The locking power and transducer connections ensure stable performance in any environment, while the included GPS with embedded AUS/NZ charting offers precise navigation. With Genesis Live functionality, you can create custom charts on the go, enhancing your fishing experience. Whether you prefer in-dash or gimbal bracket mounting, this combo unit delivers versatility and performance for serious anglers.
Features
- 9" IPS screen for improved resolution, clarity and visibility
- Traditional Sonar plus DownScan Imaging and SideScan technology for detailed views of fish and structures
- Locking power and transducer connections for stable performance in any environment
- Included GPS with embedded AUS/NZ charting
- Genesis Live - create your own charts while fishing
- Simple, user-friendly keypad operation
- Single MicroSD card slot

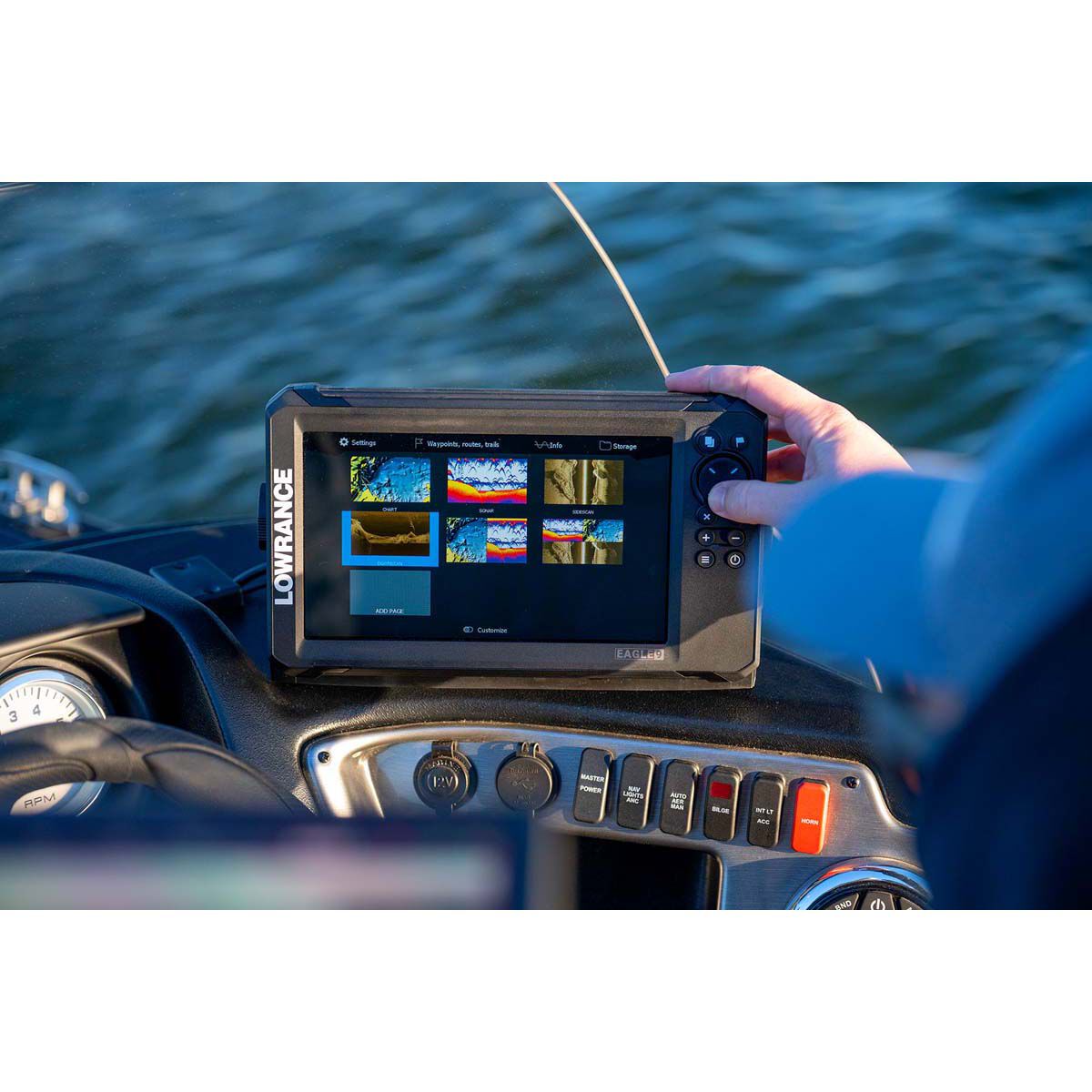

- In-dash or gimbal bracket mounting
Product Overview

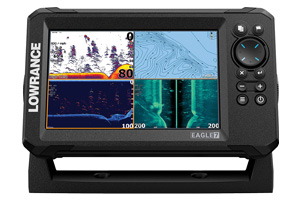

TRIPLESHOT™ HD
Tripleshot™ HD combines wide-angle CHIRP sonar with high-res SideScan and DownScan Imaging™ — giving you crystal-clear views of fish and structure.

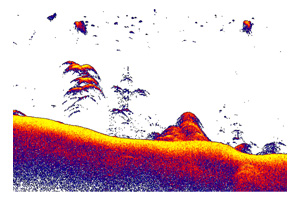

CHIRP SONAR

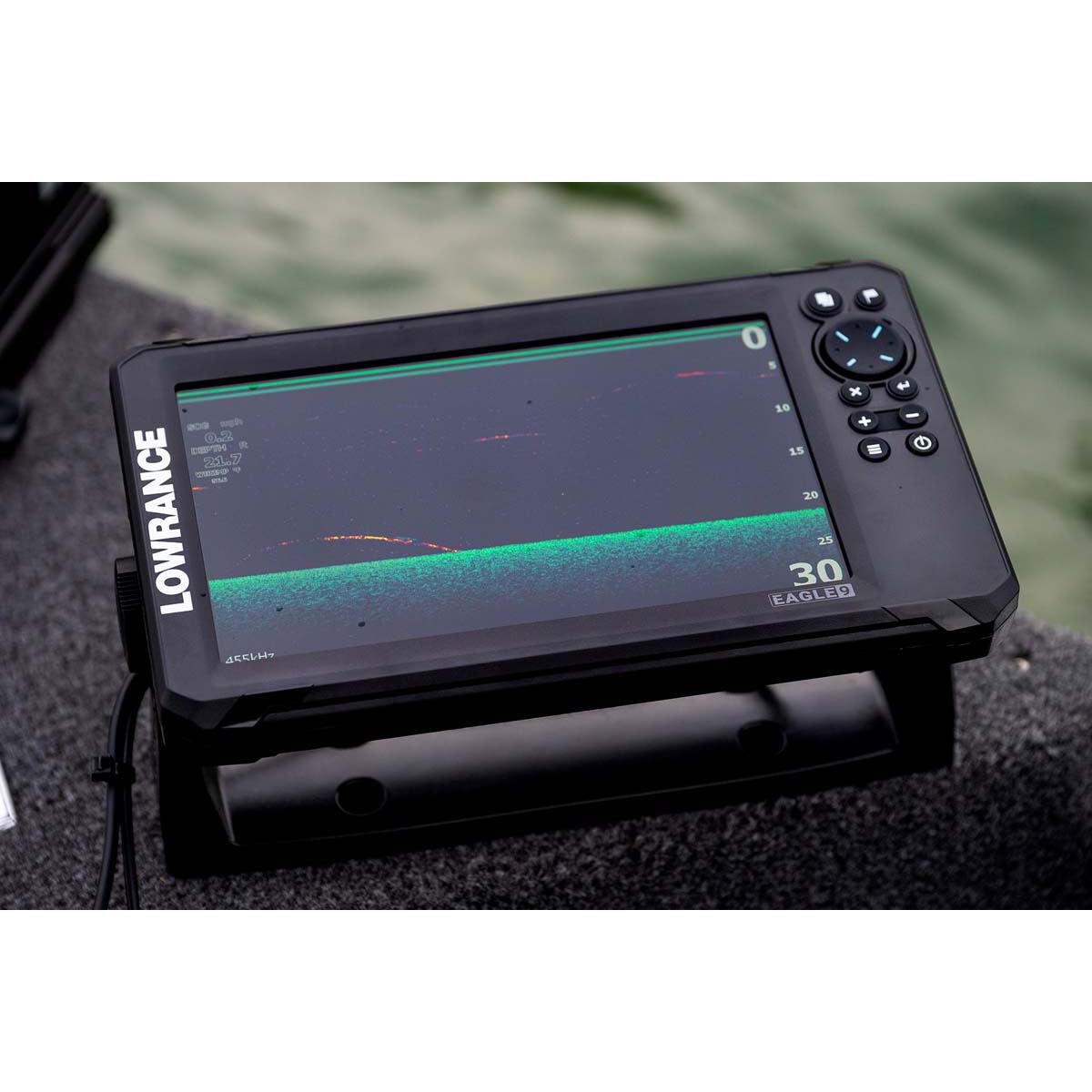

CHIRP sonar delivers high-resolution views of individual fish targets, even when targets are close to the bottom or suspended in tight schools.

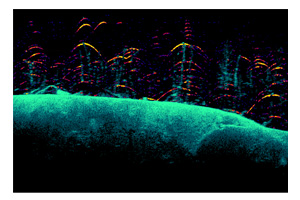

DOWNSCAN IMAGING™
DownScan Imaging™ makes it easier to identify how fish relate to structure, providing photo-like images of rocks, trees, and other underwater structures directly beneath your boat.

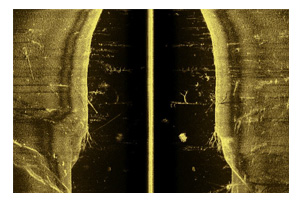

SIDESCAN IMAGING™
SideScan helps search large areas for fish-holding structure. See up to 600ft either side of your vessel, helping you cover more water in a shorter period of time.

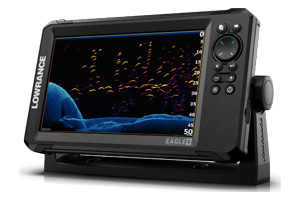

FISHREVEAL™
FishReveal™ combines DownScan Imaging™ with CHIRP making it easier than ever before to tell the fish from the weeds. After all, an Eagle thrives on its vision.

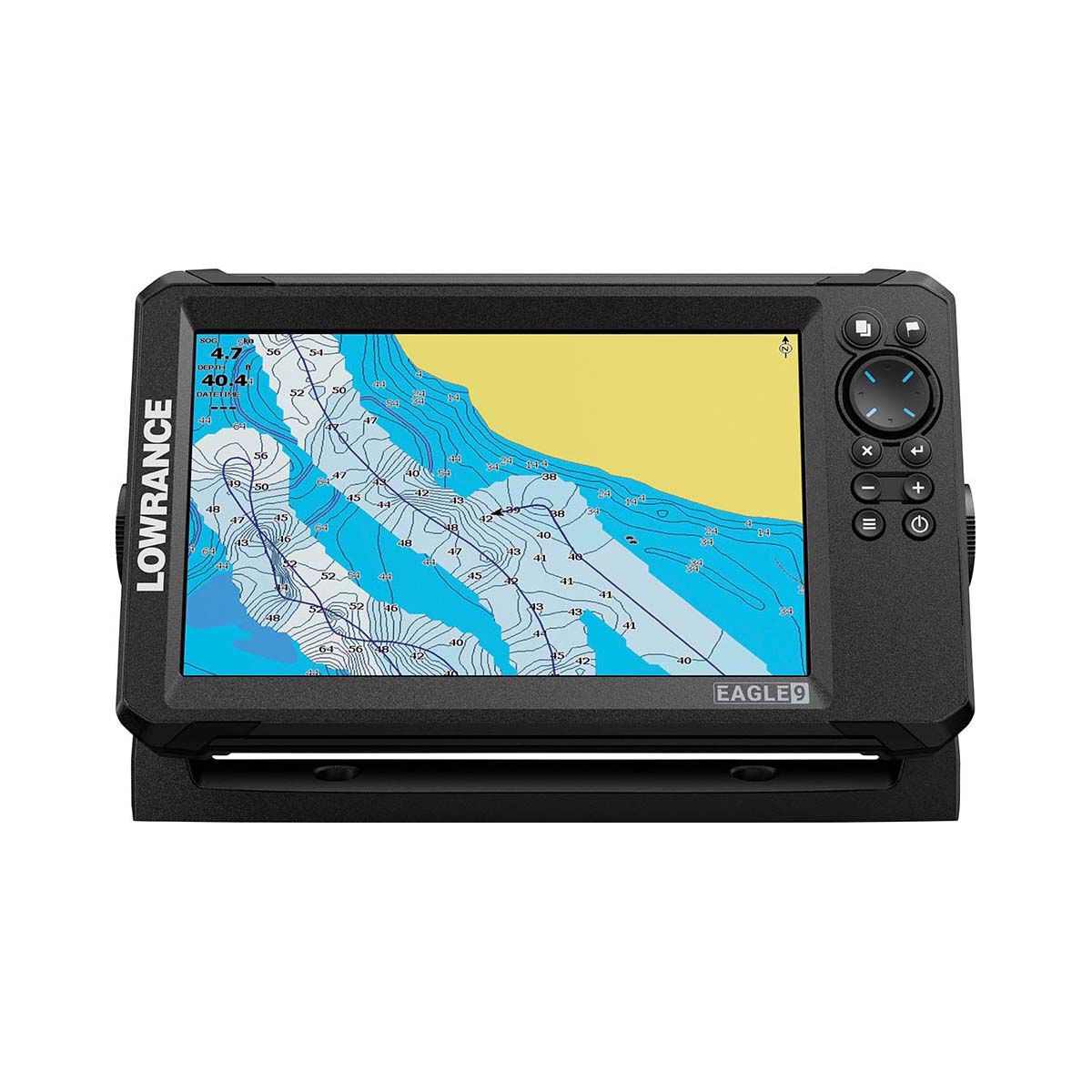

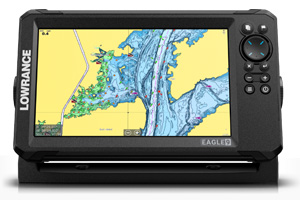

High-resolution charts
Eagle comes pre-loaded with high-resolution C-MAP® Embedded inland and coastal charts for New Zealand and Australia.

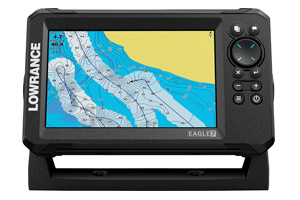

Genesis Live
With the ability to create custom ½-foot contour maps of your local lake or uncharted water – in real time - with Genesis Live, you have all the detail you need to discover and navigate to the best fishing spots, faster.

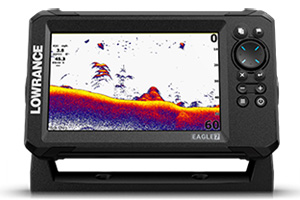

Autotuning Sonar
Simple autotuning sonar gives you the optimal settings from the start so you don’t have to spend time trying to find them yourself.

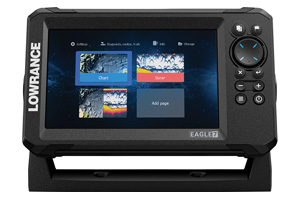

IPS screens
See it all clearly with the IPS screen — sharper resolution, next-level clarity, and perfect visibility, even through polarized sunnies in full sun.
Tech Spec
| DISPLAY | |
|---|---|
| Screen size | 9" IPS |
| Keypad | 9-way directional keypad, pages, waypoint, exit, enter, zoom, menu, power |
| Resolution | 1024 x 600 |
| Viewing angles in degrees | 85° top/bottom, 85° left/right |
| SONAR | |
| Sonar compatibility | Integrated: CHIRP, Broadband, DownScan |
| Max depth | 200 kHz: 152m (500ft) |
| DownScan: 91m (300ft) | |
| Max range | SideScan: 183m (600ft) side-to-side |
| Sonar frequencies | |
| CHIRP* | 200kHz (High) |
| 83kHz (Medium) | |
| 50 kHz (Low) | |
| *depending on transducer | |
| DownScan | 455 kHz (Low) |
| 800 kHz (High) | |
| SideScan | 455 kHz (Low) |
| 800 kHz (High) | |
| MULTIFUNCTION SUPPORT | |
| Cartography included | AUS/NZ Enhanced Embedded Charts |
| Cartography supported | C-MAP® DISCOVER™ |
| C-MAP® Genesis Live | |
| Waypoints, routes, tracks | 3000 waypoints |
| 100 routes | |
| 100 trails | |
| GPS | |
| Correction | SBAS |
| Time to first fix | 45s |
| INTERFACE AND CONNECTIVITY | |
| Sonar | 1 port |
| Card reader | 1 slot (microSD) up to 32GB |
| ELECTRICAL | |
| Supply voltage | 12 VDC |
| Recommended fuse rating | 5A |
| Power consumption | 650mA, 230mA at 12VDC (backlight full/off) |
| PHYSICAL | |
| Weight | 0.90 kg (1.98 lbs) |
| Mounting type | Panel mount or bracket mount |
| Dimensions | 287.2 mm (11.30") W x 162.5 mm (6.39") H x 90 (3.54) D |
| ENVIRONMENTAL | |
| Operating temperature range | -15°C to +55°C (5° F to 131° F) |
| Humidity | Damp heat 66°C (150°F) at 95% relative (48 hr) |
| Storage temperature | -20°C to +60°C (4°F to 140°F) |
| Waterproof rating | IPX7 with card door closed |
| WARRANTY | |
| Warranty period | 1 year |
