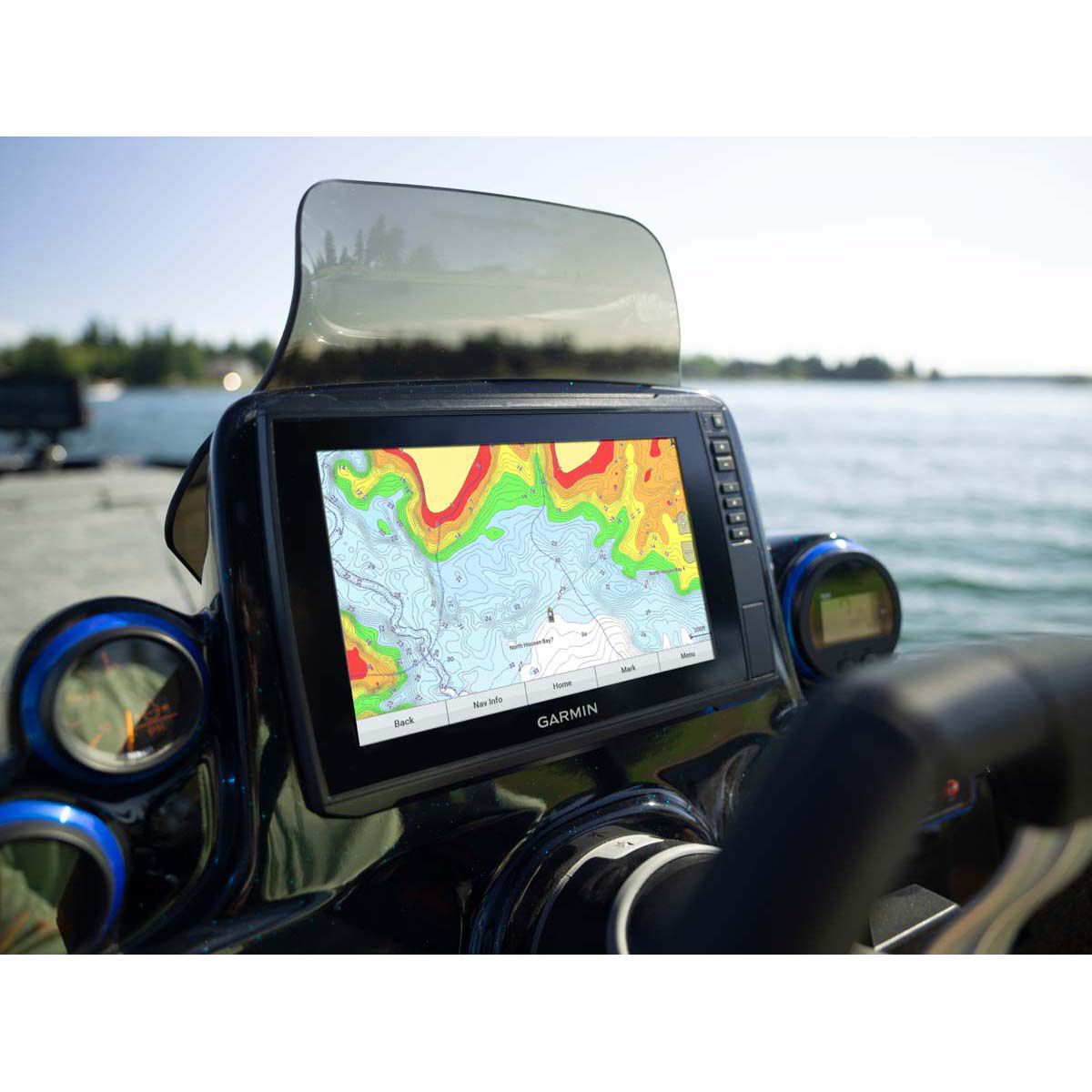

Garmin Echomap UHD2 75sv with GT54UHD-TM Transducer and Garmin Navionics+
Details
https://www.bcf.com.au/p/garmin-echomap-uhd2-75sv-with-gt54uhd-tm-transducer-and-garmin-navionics/658170.htmlPromotions
Special Offer
Or 4 payments of
$450.00
with
Buy now, pay four interest-free payments.
- 4 simple installments
- 100% interest-free, no hidden fees
Additional Information
Product Info
Product Info
Put more fish in the boat with the Garmin UHD2 75SV sounder combo. Coming complete with a GT54TM transducer and preloaded charts, it is ready for installation straight from the box. This unit supports Garmin traditional, SideVu and ClearVu scanning sonars, making it versatile and effective for a range of fishing applications. The 7 inch screen display combined with Garmin’s vivid colour palettes help anglers to easily distinguish between fish, bait and structure.
The Garmin UHD2 range comes with a range of additional marine compatibilities. These include Garmin marine app connectivity, NMEA 2000 compatibility and an in-built multi band GPS. As mentioned, the Garmin Navionics+ charts can help you fish and navigate across Australian coastal and inland waters. At an easy to read size, this Garmin UHD2 sounder combo has all of the marine tech to enhance your fishing!
The Garmin UHD2 range comes with a range of additional marine compatibilities. These include Garmin marine app connectivity, NMEA 2000 compatibility and an in-built multi band GPS. As mentioned, the Garmin Navionics+ charts can help you fish and navigate across Australian coastal and inland waters. At an easy to read size, this Garmin UHD2 sounder combo has all of the marine tech to enhance your fishing!
Features
- Easy-to-use touchscreen with keyed assist chartplotter with bright, sunlight-readable screens
- Included GT54-TM transducer for Garmin traditional, ClearVu and SideVu scanning sonars
- Features Garmin Navionics+™ charts for Australia and New Zealand
- Built in WIFI connectivity
- Supports wired NMEA 2000 marine network connectivity
- Includes multi-band GPS
- Compatible with LiveScope live scanning sonar
- Vivid scanning sonar colour palettes make it easy to distinguish fish and structure
Product FEATURES
Includes Transducer
Every ECHOMAP UHD2 comes bundled with a suitable transducer.
Sonar Support
Every Echomap UHD2 supports Traditional & UHD ClearVu.
SV models include UHD SideVu scanning sonars.
Wireless Networking
Wirelessly share information such as sonar, waypoints and routes.
*LiveScope cannot be shared wirelessly.
Garmin/Navionics Charts
Includes HD Bathymetric charts
*55CV & 75CV Garmin Bluechart
65SV & 95SV Garmin Navionics+
Tech Spec
GARMIN ECHOMAP UHD2 75SV COMBO INCLUDING GT54-TM TRANSDUCER
| DIMENSIONS | 21.8 x 14.2 x 8.1cm |
|---|---|
| DISPLAY SIZE | 15.5 x 8.7, 17.8cm |
| DISPLAY RESOLUTION | 800 x 480 pixels |
| DISPLAY TYPE | WVGA, TN |
| WEIGHT | 1kg |
| WATERPROOF RATING | IPX7 |
| MOUNTING OPTIONS | Bail or Flush |
| DATA CARDS | 1 micro SD, 32gb max size |
| WAYPOINTS | 5000 |
| TRACK POINTS | 50000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
| BUILT-IN RECEIVER | Yes |
| RECEIVER | 10 Hz |
| GPS | Yes |
| SUPPORTS WAAS | Yes |
| SUPPORTS MULTI-BAND, MULTI CONSTELLATION GPS | Yes |
| BUILT-IN AUTO GUIDANCE + | Yes (downloadable via ActiveCaptain app) |
| GARMIN NAVIONICS+ (COASTAL AND INLAND) | Yes |
| TIDE TABLES | Yes |
| ACTIVECAPTAIN MOBILE APP | Yes |
| DISPLAYS SONAR | Yes |
| POWER OUTPUT | 500W |
| TRADITIONAL SONAR | Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| CLEARVU SONAR | Built-in 260/455/800/1000/1200 kHZ |
| SIDEVU SONAR | Built-in 260/455/800/1000/1200 kHz |
| PANOPTIX SONAR COMPATIBILITY | Yes |
| LIVESCOPE SONAR COMPATIBILITY | Yes |
| NMEA 2000 PORTS | Yes |
| BLUETOOTH PAIRING | Yes |
| ANT+ (CONNECTIVITY) | Yes |
| GARMIN WIFI NETWORK (LOCAL CONNECTION) | Yes |
| POWER INPUT | 9 - 18 V DC |
| TYPICAL CURRENT DRAW AT 12V DC | 1.52 amp |
| MAX CURRENT DRAW AT 12V DC | 3.2 amp |
| MAX POWER USAGE AT 10V DC | 18.3 W |
