The Garmin Livescope Plus System is a live scanning sonar that delivers a crystal clear image of everything below water, with improved resolution, reduced noise, and better target separation than ever before. The latest LiveScope tech uses real-time sonar to make sure your images are as accurate as possible, showing you exactly what you need to see with less noise and artifacts that cloud your image of the fish and structures around your boat. The built-in stabilisation system keeps the sonar image rock steady, even when the waters start getting choppy.
You can select between seven bright colour options to maximise contrast and clarity and 3 LiveScope modes to fit your situation perfectly. Forward Mode scouts ahead of your boat to show what's coming up in real time. Down mode shows a live view of the activity directly beneath your boat, and Perspective Mode shows you details under the water from your perspective above the water. The package comes with the sonar, Panoptix LVS34 transducer, and the mounts you need to set it all up.

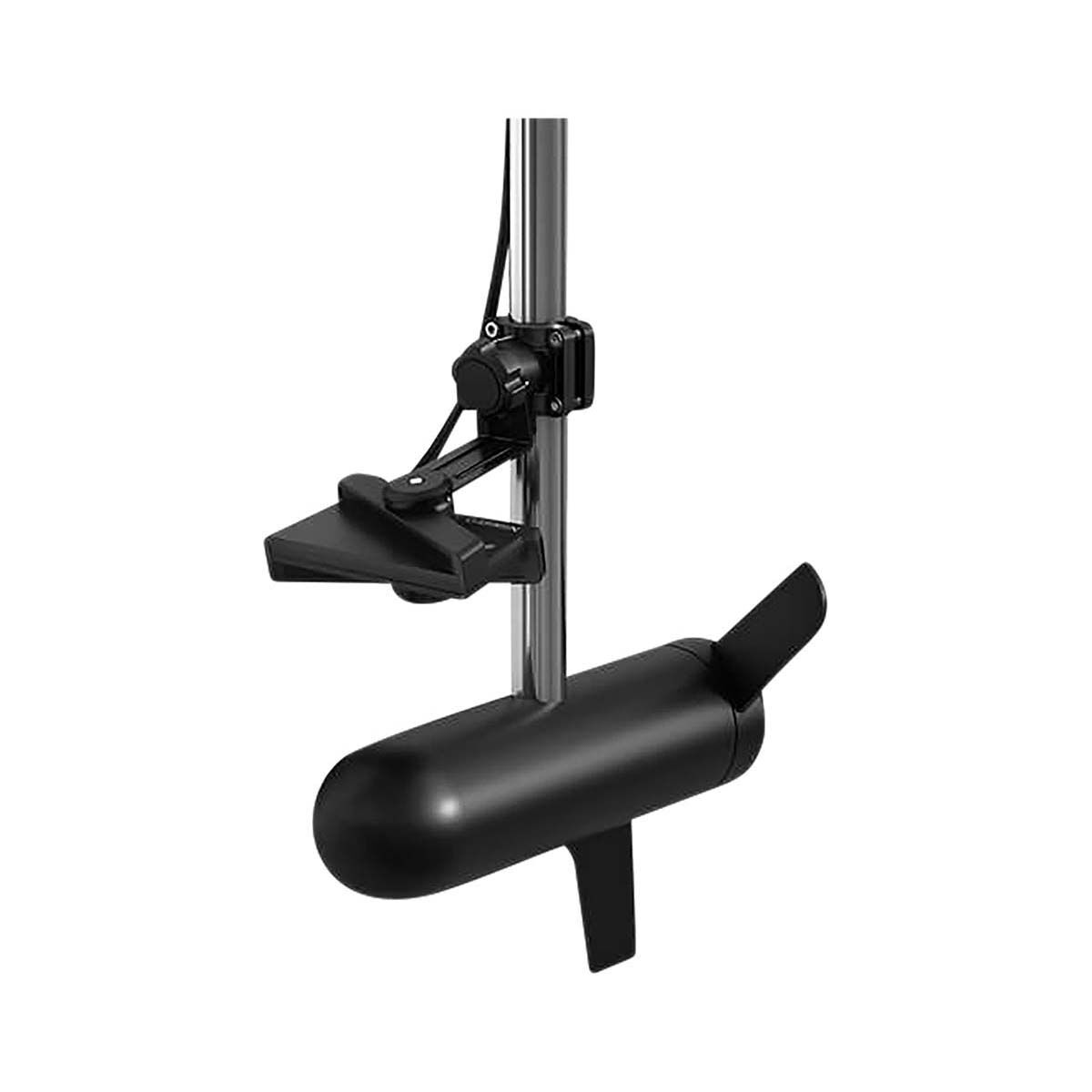

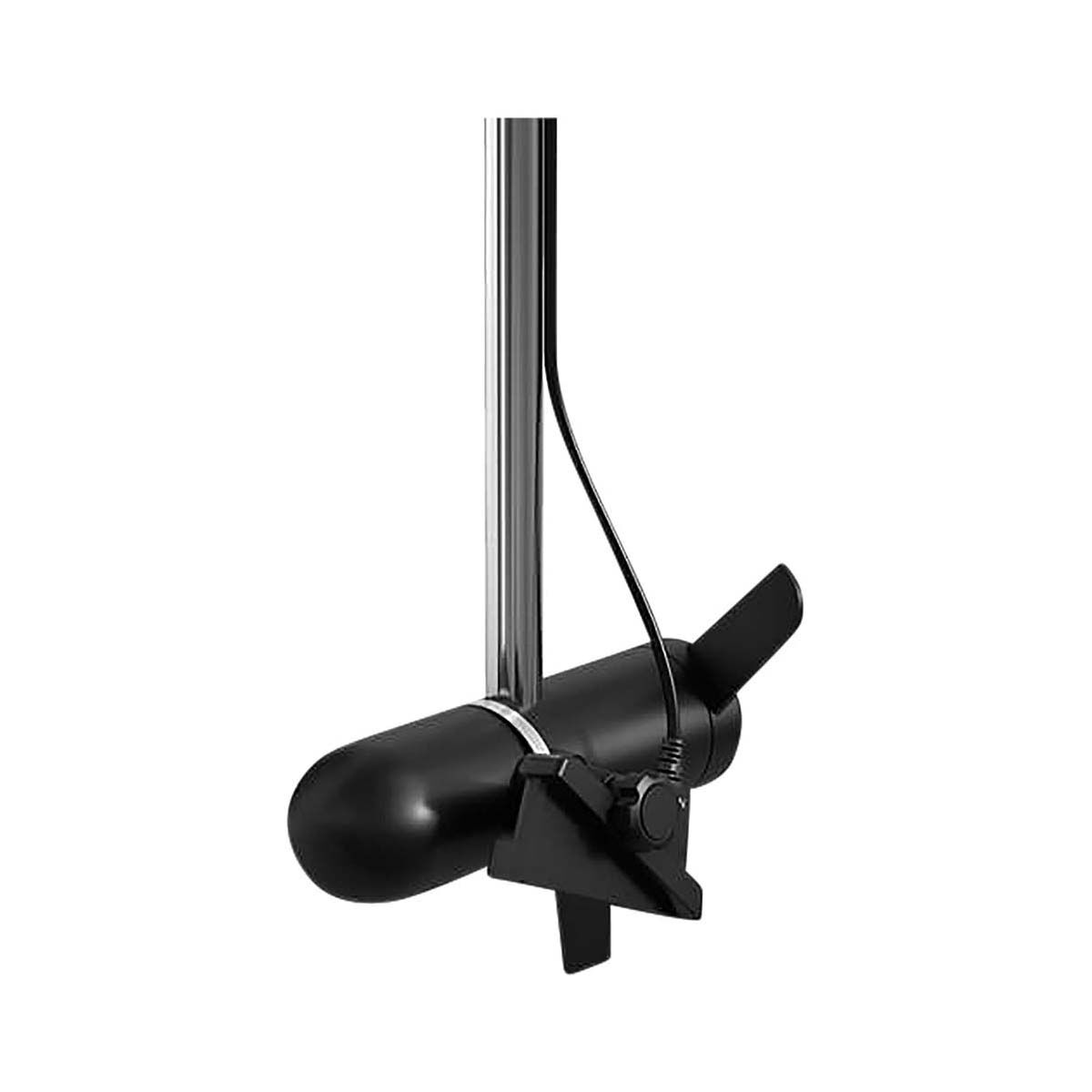

Box includes: LiveScope GLS 10 sonar black box, Panoptix LVS34 transducer, perspective mount, trolling motor barrel mount, shaft mount, power cable, 2 metre Garmin marine network cable (small connector), network adapter cable, and documentation.
Features
- See images clearly with improved screen clarity, transducer sensitivity and target separation
- Scan surroundings with sharper images, reduced noise and fewer sonar artifacts
- Get maximum contrast and clarity in your images with vivid colour palettes
- Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount
- 7 vivid colour palettes to choose from, including Aqua, Caribbean, Lava and more, for perfect contrast and clarity
- Built-in stabilisation system keeps the sonar image on your compatible chartplotter steady
- Pack includes perspective mount, trolling motor barrel mount, and shaft mount
- Real-time sonar for accurate live images
Tech Spec
| PHYSICAL & PERFORMANCE | |
|---|---|
| DIMENSION | GLS 10 sonar black box: 24.5 x 14.9 x 6.5 cm; |
| LVS32 transducer: 13.7 x 9.7 x 4.6 cm | |
| WATERPROOF | IPX7 |
| WEIGHT | GLS 10 sonar black box: 2.0 kg; |
| LVS32 transducer: 0.9 kg | |
| FEATURES | |
| TRANSDUCER CABLE LENGTH | 20 ft |
| TRANSMIT POWER | 500 W |
| SONAR TYPE | Live |
| POWER USAGE | 21 W typical, 58 W max |
| PERSPECTIVE MODE MOUNT INCLUDED | Yes |
| TRANSDUCER NUMBER OF PINS | 21 |
| TEMPERATURE RANGE | GLS 10 Black Box: Operating: -15 C to 70 C |
| Panoptix LiveScope LVS32 Transducer: Operating: 0 C to 40 C | |
| TRANSDUCER BEAMWIDTH | 20° x 135° |
| FUSE | 7.5 A |
| MISC | Minimum depth: 3' (0.91 m) |
| Sonar type: Live | |
| Sonar type: Live | |
| Transducer cable length: 20 ft (6.1 m) | |
| Transducer number of pins: 21 | |
