Garmin Echomap UHD2 75CV with GT20-TM Transducer and Garmin Navionics+
Details
https://www.bcf.com.au/p/garmin-echomap-uhd2-75cv-with-gt20-tm-transducer-and-garmin-navionics/658168.htmlPromotions
Special Offer
Or 4 payments of
$287.50
with
Buy now, pay four interest-free payments.
- 4 simple installments
- 100% interest-free, no hidden fees
Additional Information
Product Info
Product Info
The Garmin Echomap UHD2 75CV is a cracking sounder option for serious anglers. It has a 7 inch keyed display that is easy to use and navigate at all hours. Simple to install, the unit comes with a GT20 transducer that supports traditional and ClearVu scanning sonars. For those wishing to use LiveScope, the UHD2 supports this sonar technology with an additional transducer (not included). Anglers can also easily distinguish bait and fish on this sounder with Garmin’s vivid colour palettes.
Another key feature on the entire Echomap UHD2 range is the preloaded chart functionality. With Garmin Navionics+ charts, anglers can navigate coastal and inland waters across Australia and New Zealand without needing additional mapping software. Other features include built-in WIFI connectivity, NMEA 2000 compatibility and a multi-band GPS. This unit is a great size for almost all fishing applications and boats around the country!
Another key feature on the entire Echomap UHD2 range is the preloaded chart functionality. With Garmin Navionics+ charts, anglers can navigate coastal and inland waters across Australia and New Zealand without needing additional mapping software. Other features include built-in WIFI connectivity, NMEA 2000 compatibility and a multi-band GPS. This unit is a great size for almost all fishing applications and boats around the country!
Features

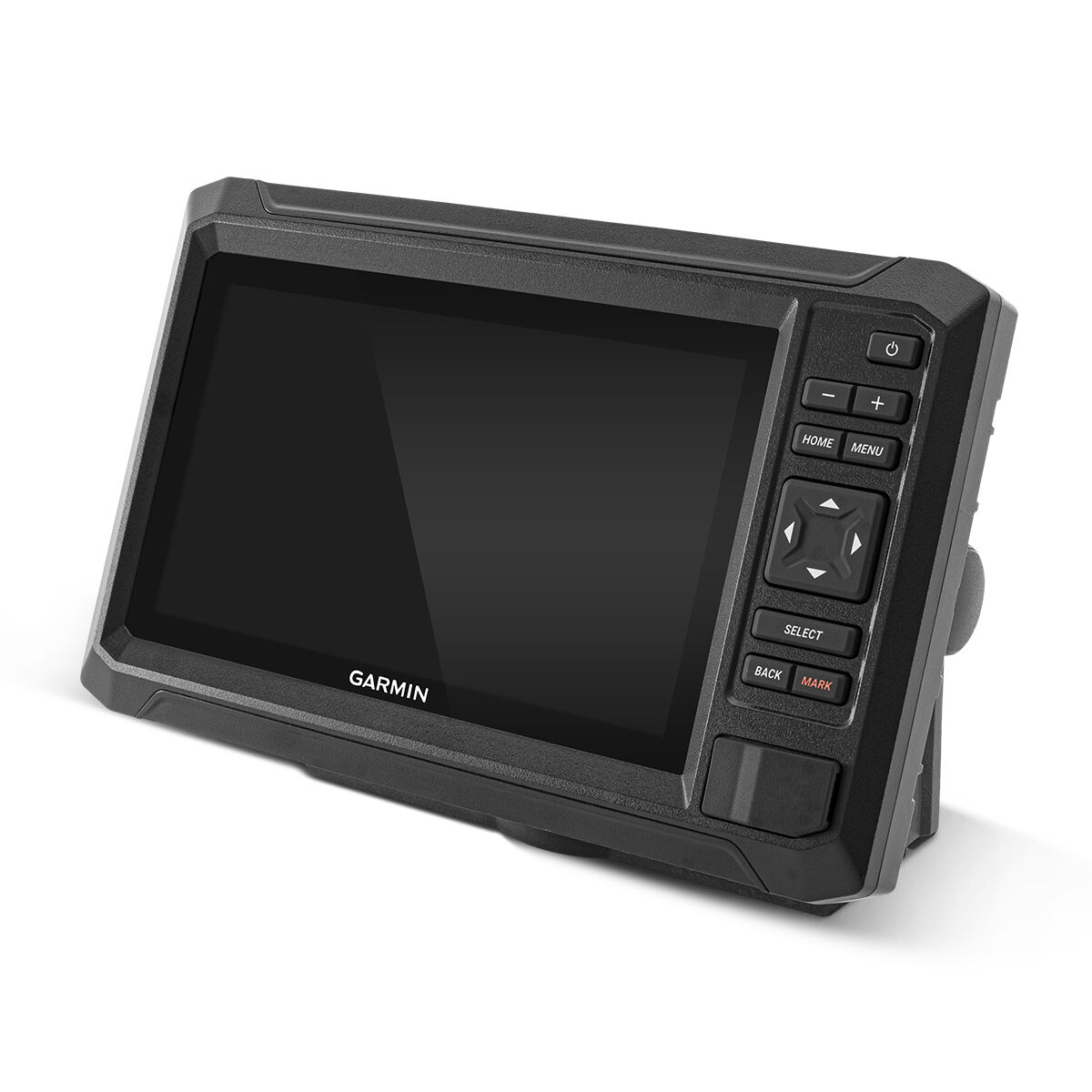

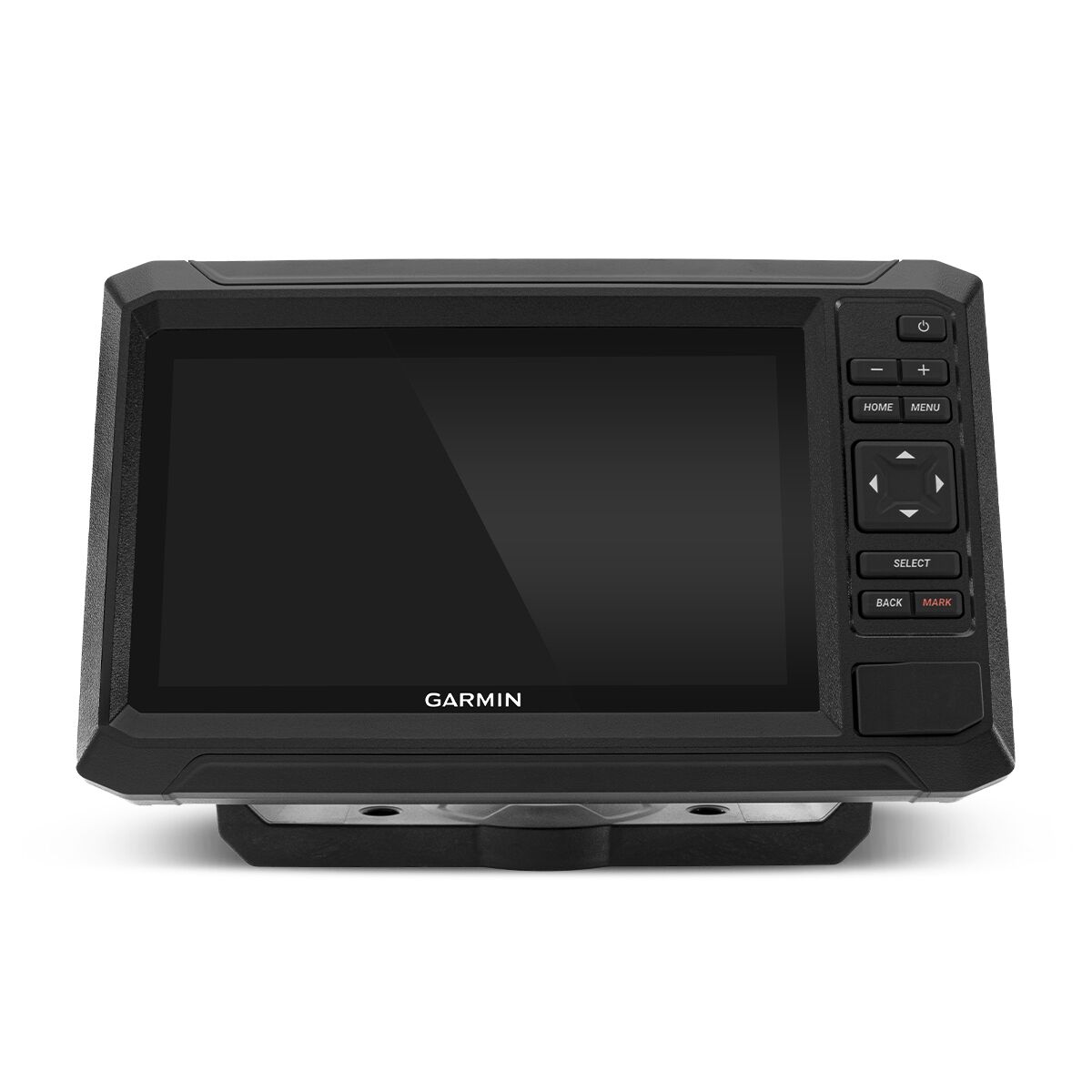

- Garmin 7 inch display with keyed buttons for added convenience

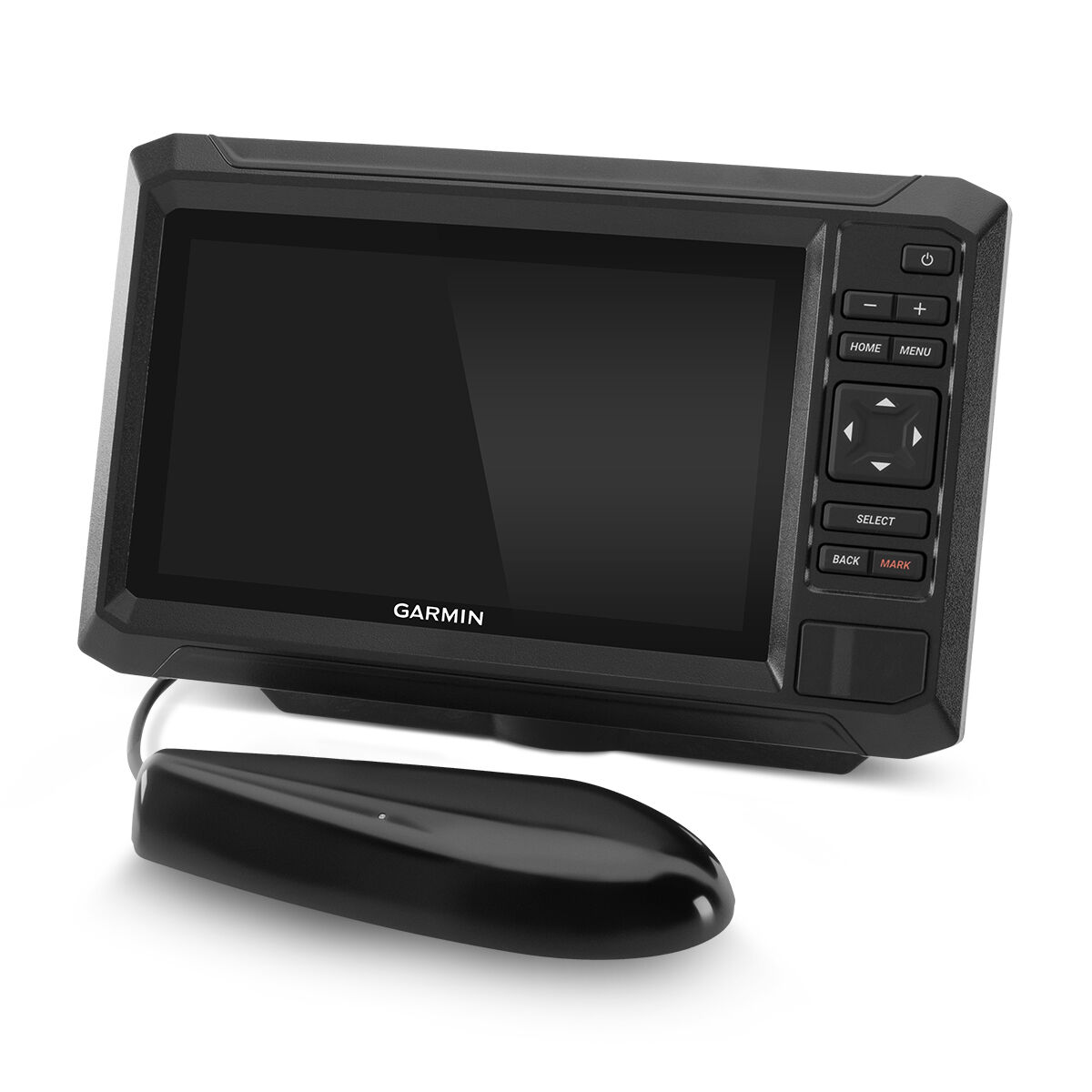

- Included GT-20 transducer for Garmin traditional and ClearVu scanning sonars
- Built in WIFI connectivity
- Supports wired NMEA 2000 marine network connectivity
- Includes multi-band GPS
- Compatible with LiveScope live scanning sonar
- Vivid scanning sonar colour palettes make it easy to distinguish fish and structure
- Features Garmin Navionics+™ charts for Australia and New Zealand
Product FEATURES
Includes Transducer
Every ECHOMAP UHD2 comes bundled with a suitable transducer.
Sonar Support
Every Echomap UHD2 supports Traditional & UHD ClearVu.
SV models include UHD SideVu scanning sonars.
Wireless Networking
Wirelessly share information such as sonar, waypoints and routes.
*LiveScope cannot be shared wirelessly.
Garmin/Navionics Charts
Includes HD Bathymetric charts
*55CV & 75CV Garmin Bluechart
65SV & 95SV Garmin Navionics+
Tech Spec
GARMIN ECHOMAP UHD2 75CV COMBO INCLUDING GT20 TRANSDUCER
| DIMENSIONS | 23.2 x 14.3 x 6.7cm |
|---|---|
| DISPLAY SIZE | 15.5 x 8.7cm |
| DISPLAY RESOLUTION | 800 x 480 pixels |
| DISPLAY TYPE | WVGA, TN |
| WEIGHT | 0.7kg |
| WATERPROOF RATING | IPX7 |

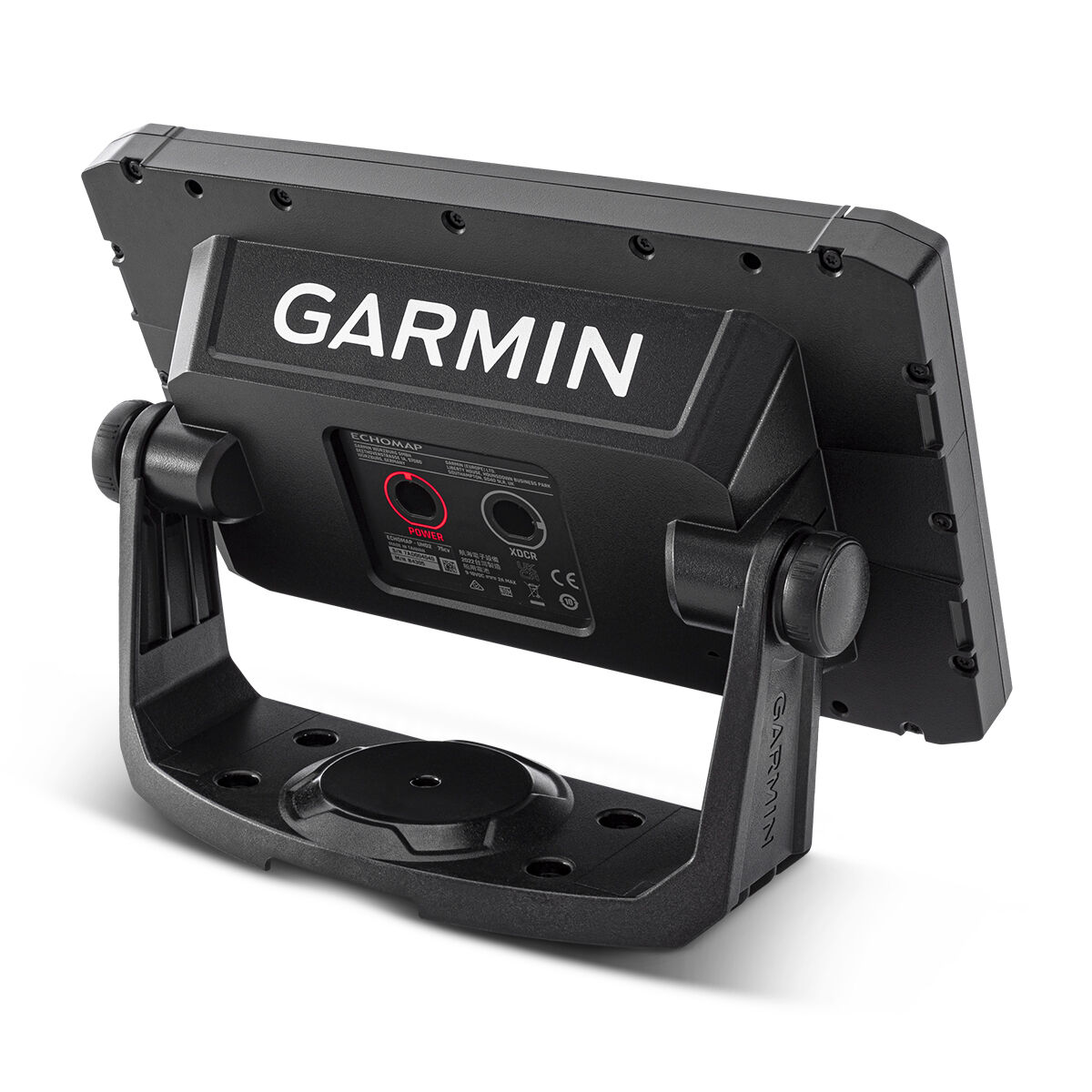

| MOUNTING OPTIONS | Bail or Flush |
| DATA CARDS | 1 micro SD, 32gb max size |
| WAYPOINTS | 5000 |
| TRACK POINTS | 50000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
| BUILT-IN RECEIVER | Yes |
| RECEIVER | 5 Hz |
| GPS | Yes |
| SUPPORTS WAAS | Yes |
| GARMIN NAVIONICS+ (COASTAL AND INLAND) | Yes |
| BLUECHART (COASTAL) | Yes |
| ACTIVECAPTAIN MOBILE APP | Yes |
| DISPLAYS SONAR | Yes |
| POWER OUTPUT | 500W |
| TRADITIONAL SONAR | Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| CLEARVU SONAR | Built-in 260/455/800/1200 KhZ |
| GARMIN WIFI NETWORK (LOCAL CONNECTION) | Yes |
| POWER INPUT | 9 - 18 V DC |
| TYPICAL CURRENT DRAW AT 12V DC | 1 amp |
| MAX CURRENT DRAW AT 12V DC | 1.5 amp |
| MAX POWER USAGE AT 10V DC | 18W |
