Garmin Echomap UHD2 65SV 6.5" Sounder Combo
Details
https://www.bcf.com.au/p/garmin-echomap-uhd2-65sv-6.5-sounder-combo/658169.htmlPromotions
Buy now, pay four interest-free payments.
- 4 simple installments
- 100% interest-free, no hidden fees
Additional Information
Product Info
Product Info

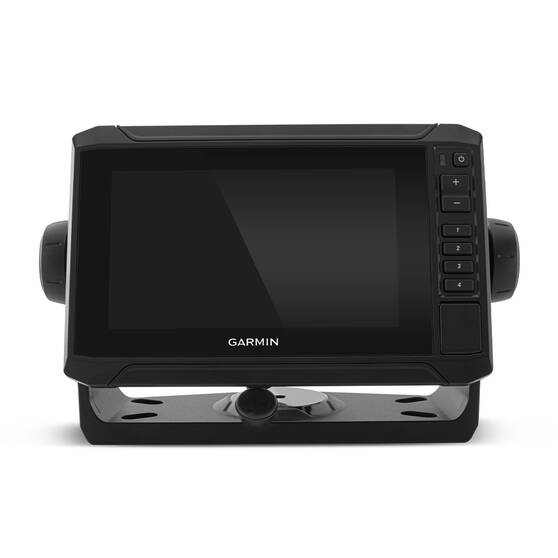

Bright, Clear Display
The bright 6.5-inch touchscreen with keyed assist makes navigating charts, sonar and menus quick and intuitive. The responsive display remains easy to read in bright Australian conditions, while the physical keys provide added confidence when conditions get rough.See More Below
The included GT54UHD-TM transducer combines Garmin CHIRP traditional sonar with ClearVü and SideVü scanning sonar, giving you incredibly detailed images beneath and beside your boat. Garmin's vivid colour palettes help fish, bait and structure stand out clearly, making it easier to interpret what you're seeing.Navigate With Confidence
Preloaded Garmin Navionics+™ charts for Australia and New Zealand provide detailed coastal and inland mapping straight out of the box. Combined with the built-in multi-band GPS, you'll enjoy accurate positioning, reliable waypoint marking and confident navigation wherever you fish.Built To Grow
The Echomap UHD2 65SV is compatible with LiveScope™ live-scanning sonar, allowing you to expand your setup as your fishing style evolves. NMEA 2000® networking also makes it easy to integrate compatible marine electronics into your vessel.Smart Connectivity
Built-in Wi-Fi® connects with the ActiveCaptain® app for software updates and additional Garmin functionality, while compatible ECHOMAP UHD2 chartplotters can wirelessly share sonar, waypoints and routes across your helm.Ready For Bigger Adventures
Compact enough for a wide range of boats yet packed with premium Garmin technology, the Echomap UHD2 65SV gives anglers the confidence to search more water, navigate with precision and spend more time focused on finding fish.BCF's got you covered nationwide with a huge network of stores and convenient Click & Collect or home delivery options.
Features
- Easy-to-use touchscreen with keyed assist and bright, sunlight-readable display
- Included GT54UHD-TM transducer with Garmin CHIRP traditional, ClearVü and SideVü scanning sonar
- Preloaded Garmin Navionics+™ charts for Australia and New Zealand
- Built-in Wi-Fi® connectivity for the ActiveCaptain® app
- Supports wired NMEA 2000® marine network connectivity
- High-sensitivity multi-band GPS for improved positioning
- Compatible with LiveScope™ live-scanning sonar
- Vivid scanning sonar colour palettes for improved target separation
- Share sonar, waypoints and routes with compatible ECHOMAP UHD2 chartplotters
- Supports wireless software updates through the ActiveCaptain® app
Take a closer look

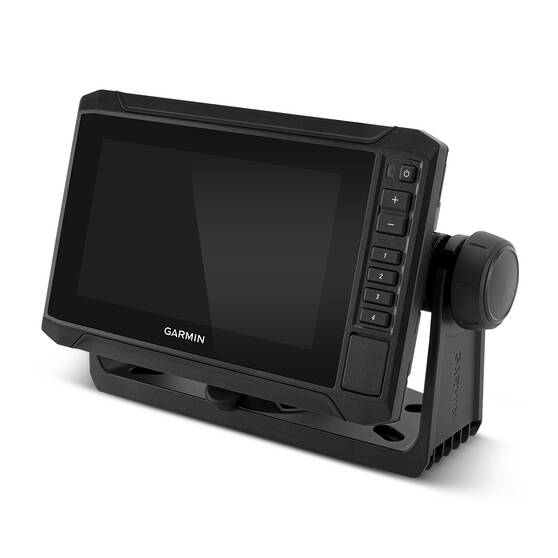

BRIGHT TOUCHSCREEN
The bright, sunlight-readable touchscreen with keyed assist gives you quick, intuitive control of charts, sonar and waypoints while you’re out on the water.

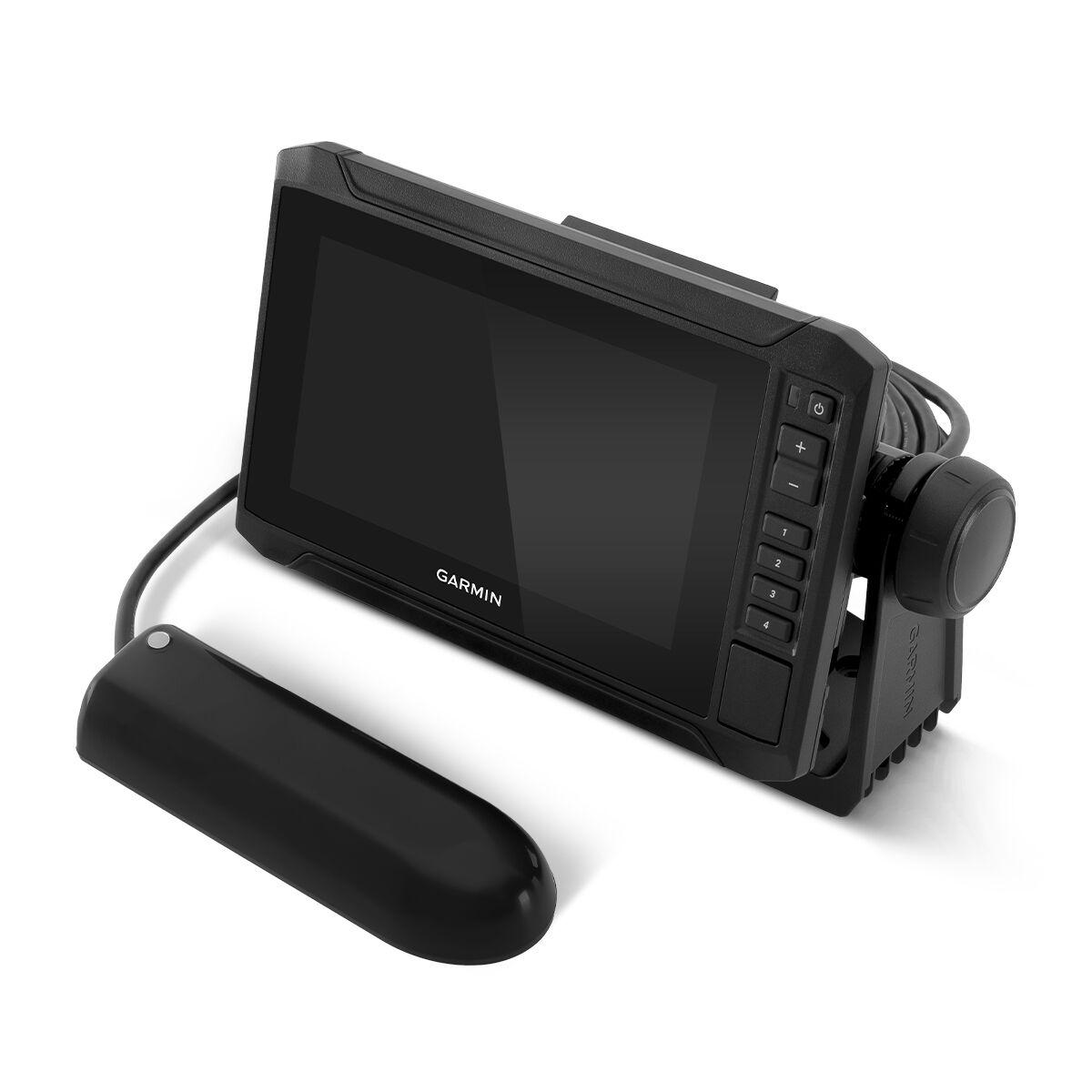

INCLUDED UHD TRANSDUCER
The included Garmin Ultra High-Definition transducer delivers CHIRP traditional sonar, ClearVü™ and SideVü™ scanning sonar straight out of the box.
CHIRP SONAR
See fish arches, bait and bottom detail with Garmin CHIRP traditional sonar, helping you understand what’s happening throughout the water column beneath your boat.

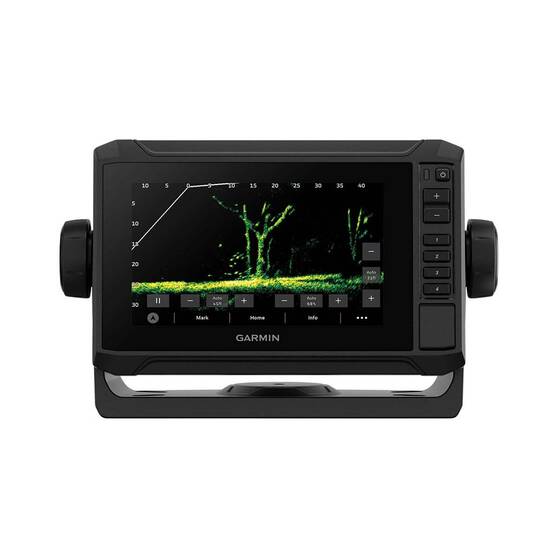

CLEARVÜ™ DETAIL
Get a detailed view of fish, structure and bottom contours directly below the boat, making it easier to identify promising ground and likely fish-holding areas.

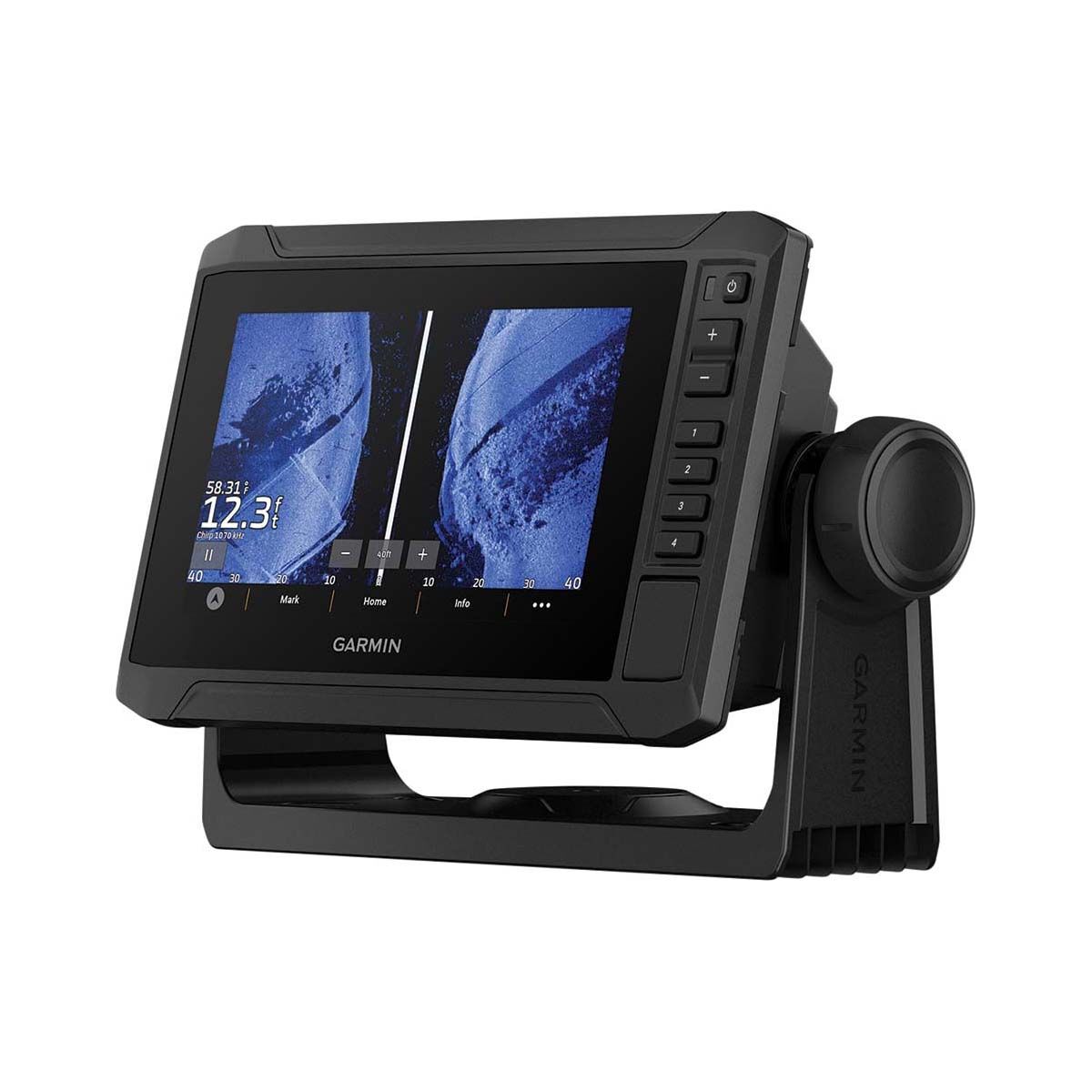

SIDEVÜ™ SONAR
Scan the water to both sides of your boat to cover more ground and quickly locate fish, bait and structure beyond your current path.

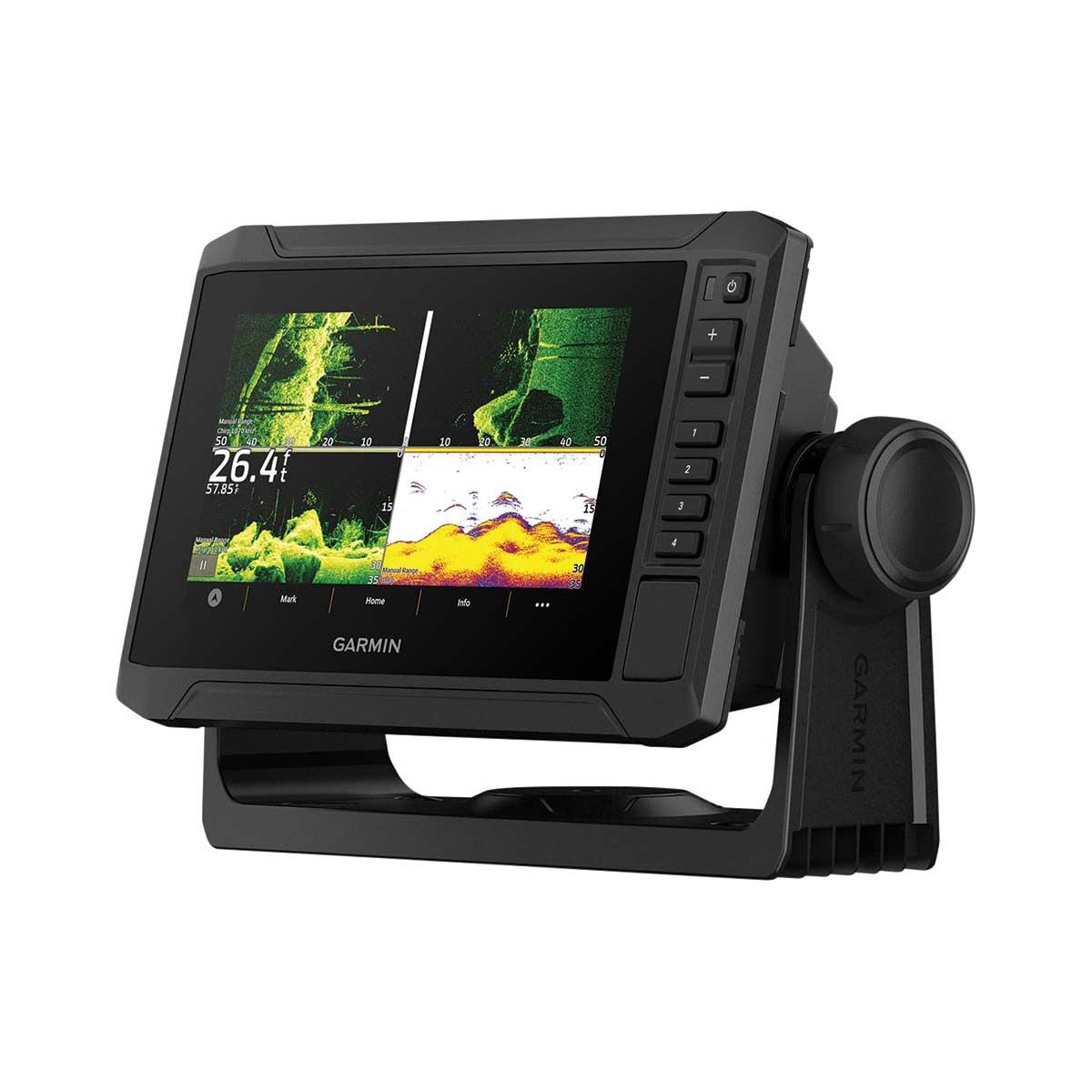

VIVID SONAR COLOURS
High-contrast sonar colour palettes help fish, bait and structure stand out clearly, so you can interpret the screen faster and focus on the right areas.
LIVESCOPE™ READY
Connect a compatible LiveScope™ system to see fish, structure and your lure moving around the boat in real time, helping you adjust your approach as the action unfolds.

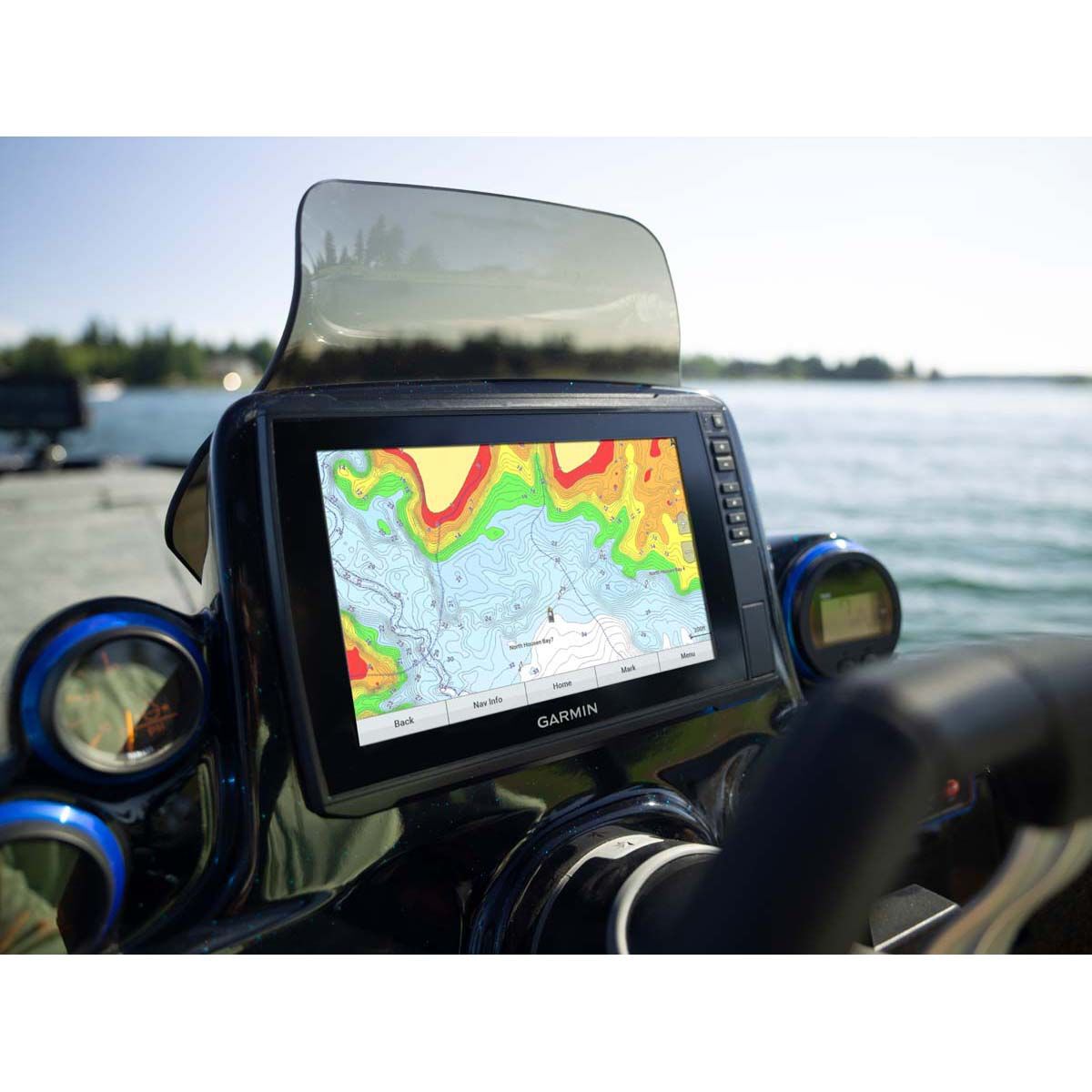

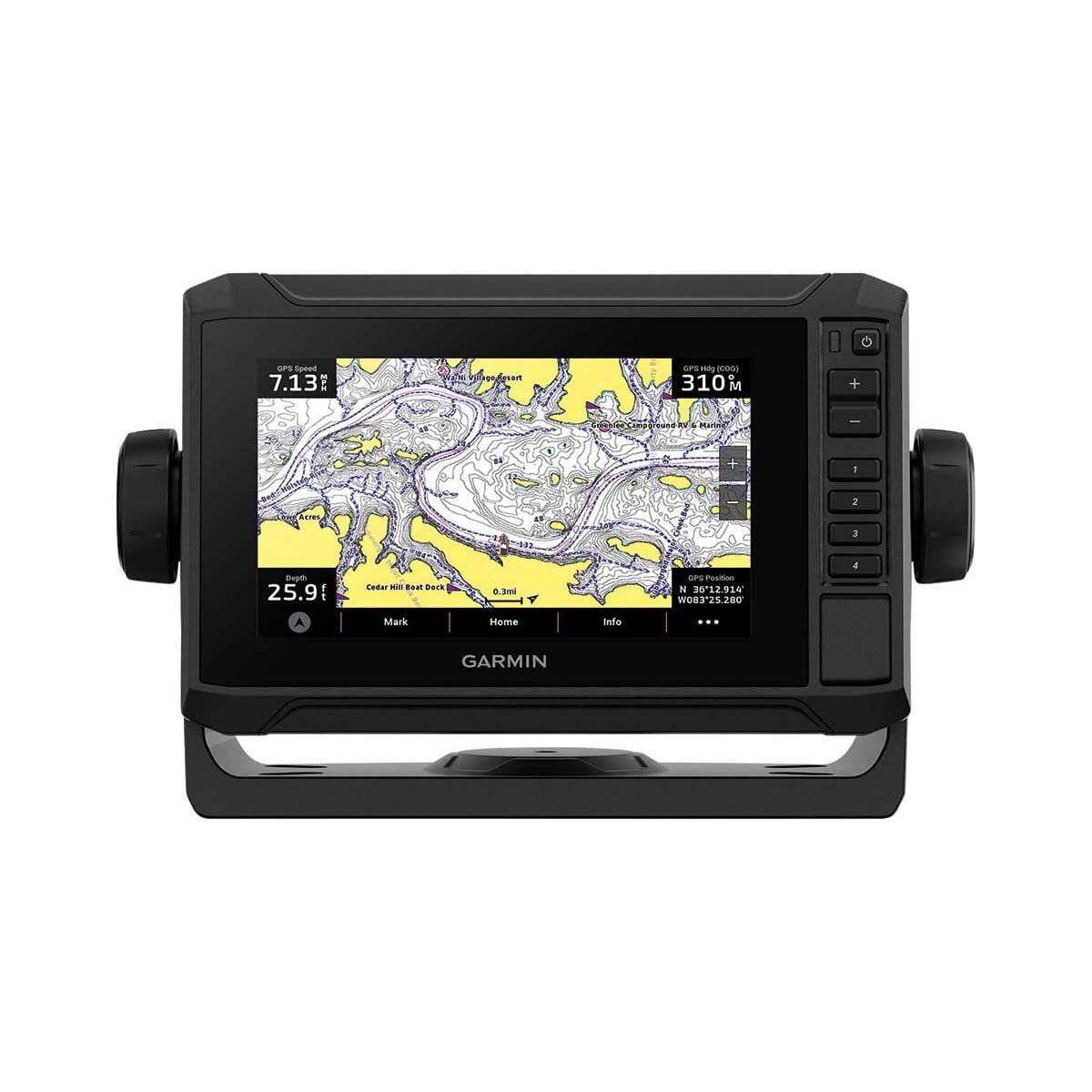

DETAILED MAPPING
Preloaded Garmin Navionics+™ charts provide detailed coastal and inland mapping across Australia and New Zealand, helping you explore new water and navigate with confidence.
MULTI-BAND GPS
High-sensitivity multi-band GPS delivers improved positioning, helping you accurately mark waypoints and stay on track as you explore new water.
WIRELESS NETWORKING
Wirelessly connect with a compatible ECHOMAP UHD2 or ECHOMAP Ultra 2 chartplotter to share sonar, waypoints and routes across your boat.
NMEA 2000® NETWORKING
Connect compatible marine electronics through NMEA 2000® networking, giving you the flexibility to share onboard data and expand your setup over time.
ACTIVECAPTAIN® APP
Connect with the ActiveCaptain® app to access compatible chart and software updates, manage routes and waypoints, and explore the Garmin Quickdraw™ Community.
Key Features
| Best For | Estuary Fishing |
|---|---|
| Screen Size | 6.5 inch |
| Included Charts | Garmin Navionics+ Australia & New Zealand |
| Transducer | GT54UHD-TM Transducer with SideVu, ClearVu and CHIRP |
| NMEA Compatible? | Yes |
Tech Specs
| POWER INPUT | 9 to 18 Vdc |
|---|---|
| TYPICAL CURRENT DRAW AT 12 VDC | 1.53 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 3.2 A |
| MAXIMUM POWER USAGE AT 10 VDC | 18.4 W |
| POWER OUTPUT | 500 W |
| TOUCHSCREEN | |
| DISPLAY TYPE | WVGA, TN |
| DISPLAY SIZE | 13.8 x 7.8 cm, 15.7 cm |
| DISPLAY RESOLUTION | 800 x 480 pixels |
| ACCEPTS DATA CARDS | 1 microSD™ card; 32 GB maximum size |
| WAYPOINTS | 5,000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| CLEARVÜ | Built-in 260/455/800/1000/1200 kHz |
| SIDEVÜ | Built-in 260/455/800/1000/1200 kHz |

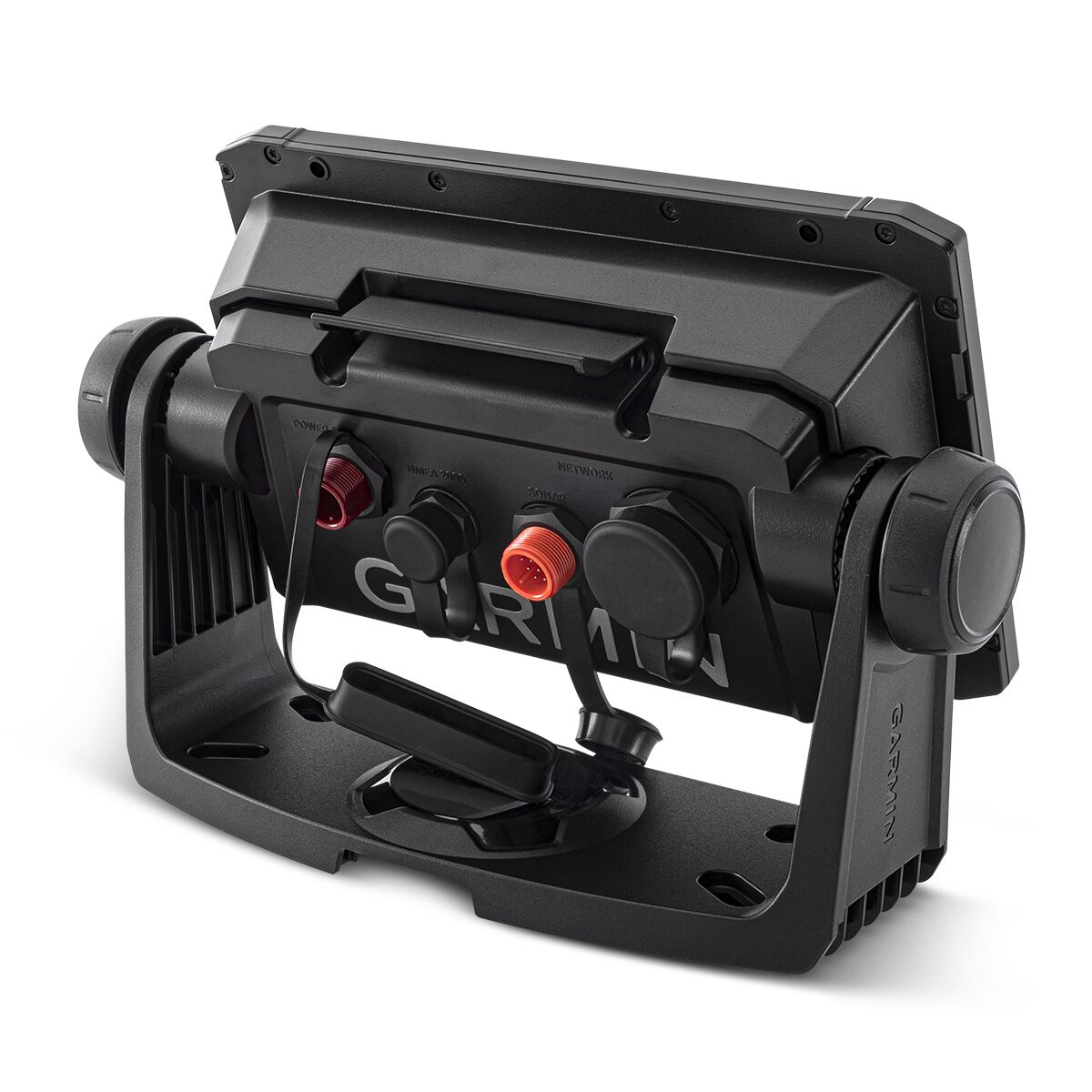

| GARMIN MARINE NETWORK PORTS | 1 |
| 12-PIN TRANSDUCER PORTS | 1 |
| MOUNTING OPTIONS | Bail or flush |
| WATER RATING | IPX7 |
| WEIGHT | 0.8 kg |
| WARRANTY | 12 months |
Compare the range
| Feature | 55CV | 65SV | 75CV | 75SV | 95SV |
|---|---|---|---|---|---|
| Screen Size | 5" | 6.5" | 7" | 7" | 9" |
| Display | Keyed | Touchscreen + Keyed Assist | Keyed | Touchscreen + Keyed Assist | Touchscreen + Keyed Assist |
| Sonar Technology | CHIRP + ClearVü | CHIRP + ClearVü + SideVü | CHIRP + ClearVü | CHIRP + ClearVü + SideVü | CHIRP + ClearVü + SideVü |
| Included Transducer | GT20-TM | GT54UHD-TM | GT20-TM | GT54UHD-TM | GT56UHD-TM |
| SideVü Sonar | |||||
| NMEA 2000® Networking | |||||
| Share Sonar, Waypoints & Routes |
FAQs
What's included with the Garmin Echomap UHD2 65SV?
The Garmin Echomap UHD2 65SV includes the 6.5-inch display, GT54UHD-TM transducer, power cable, mounting hardware and documentation.
What sonar technologies are included?
The GT54UHD-TM transducer provides Garmin CHIRP traditional sonar together with ClearVü and SideVü scanning sonar for highly detailed underwater views.
What is the advantage of SideVü sonar?
SideVü scanning sonar allows you to search both sides of your boat, helping you locate fish-holding structure and cover more water without driving directly over it.
Are Garmin Navionics+™ charts included?
Yes. The Echomap UHD2 65SV comes preloaded with Garmin Navionics+™ charts covering Australia and New Zealand.
Does the Echomap UHD2 65SV include GPS?
Yes. Built-in multi-band GPS provides accurate positioning, waypoint marking and navigation.
Is the Echomap UHD2 65SV compatible with LiveScope™?
Yes. The Echomap UHD2 65SV supports Garmin LiveScope™ live-scanning sonar when paired with a compatible LiveScope transducer (sold separately).
Can I connect to other ECHOMAP UHD2 units?
Yes. Compatible ECHOMAP UHD2 chartplotters can wirelessly share sonar, waypoints and routes for a more connected fishing experience.
What does ActiveCaptain® allow me to do?
The ActiveCaptain® app allows software updates and provides additional Garmin connectivity features through the built-in Wi-Fi® connection.
Who is the Garmin Echomap UHD2 65SV best suited to?
The Echomap UHD2 65SV is ideal for anglers wanting SideVü scanning sonar, premium mapping and advanced networking in a compact touchscreen unit.
Why choose the Garmin Echomap UHD2 65SV?
The Garmin Echomap UHD2 65SV combines premium CHIRP, ClearVü and SideVü sonar, Garmin Navionics+™ mapping, touchscreen operation and powerful networking features into a versatile sounder built for serious fishing adventures.
Includes
- ECHOMAP UHD2 65SV
- GT54-TM Transducer
- Power Cable

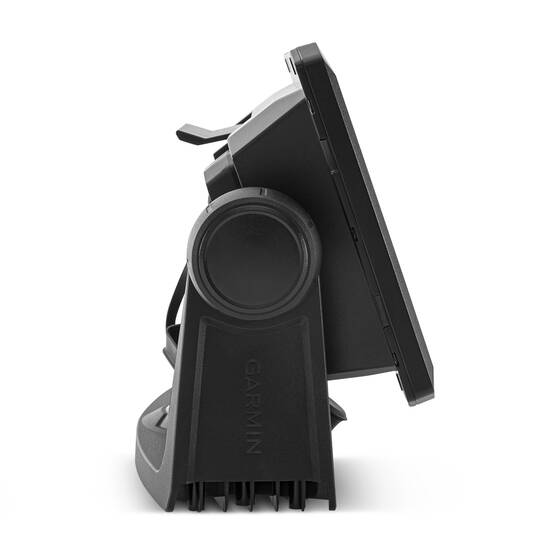

- Tilt/Swivel Mount with Quick Release Cradle

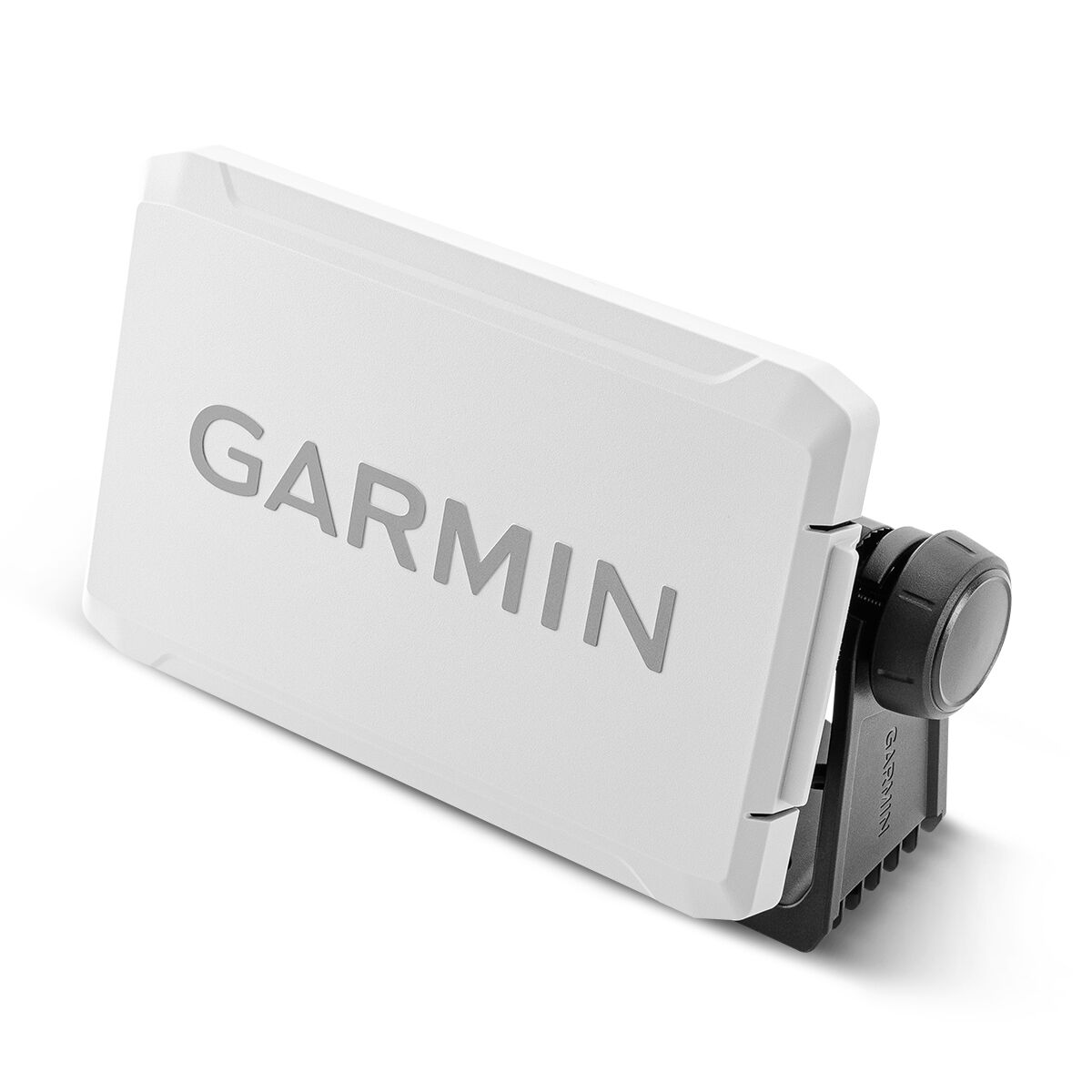

- Protective Cover
- Mounting Hardware
Video
Transducer Upgrades
Take your sounder setup to the next level with a compatible transducer upgrade. Whether you’re chasing clearer targets, sharper structure detail or more advanced sonar views, check out the compatible options below to find the right fit for your boat and fishing style.
Garmin LiveScope™ Plus System with GLS 10 and LVS34 Transducer
The Garmin LiveScope™ Plus System delivers real-time sonar with improved screen clarity, reduced noise and excellent target separation, making it easier to see fish, structure and your lure as they move. Forward, Down and Perspective modes provide flexible viewing options, while seven vivid colour palettes and built-in stabilisation help keep sonar images clear and easy to interpret.
Perfect for anglers wanting to actively target fish, monitor lure presentation and see exactly how fish respond beneath and around the boat.
Garmin GT17M-THF 20 Degree CHIRP Transducer
The Garmin GT17M-THF 20 Degree CHIRP Transducer is a flush-mounted 1kW mid-band CHIRP transducer designed to deliver sharp fish arches, clear structure and dependable bottom tracking with minimal drag. Its 80–165kHz frequency range, 9–18° beamwidth and fast-response water temperature sensor provide detailed sonar performance across a wide range of depths, while Auto-ID supports straightforward setup.
Ideal for offshore and deepwater fishing boats with higher-deadrise hulls that need a clean through-hull installation and powerful CHIRP performance.
Chart Upgrades
Upgrade your Garmin sounder’s built-in mapping with Garmin Navionics Vision+ charts and unlock even more detail for your time on the water. From detailed contours and relief shading to satellite imagery, aerial photos and 3D views, these premium charts make it easier to explore new ground, plan your route and get a clearer picture of what’s around the boat. Check out the available features below and gear up for your next fishing or boating adventure.
Compatible Charts
