Garmin Echomap UHD2 55CV with GT20 Transducer and Garmin Navionics+
Details
https://www.bcf.com.au/p/garmin-echomap-uhd2-55cv-with-gt20-transducer-and-garmin-navionics/658167.htmlPromotions
Special Offer
Or 4 payments of
$197.50
with
Buy now, pay four interest-free payments.
- 4 simple installments
- 100% interest-free, no hidden fees
Additional Information
Product Info
Product Info

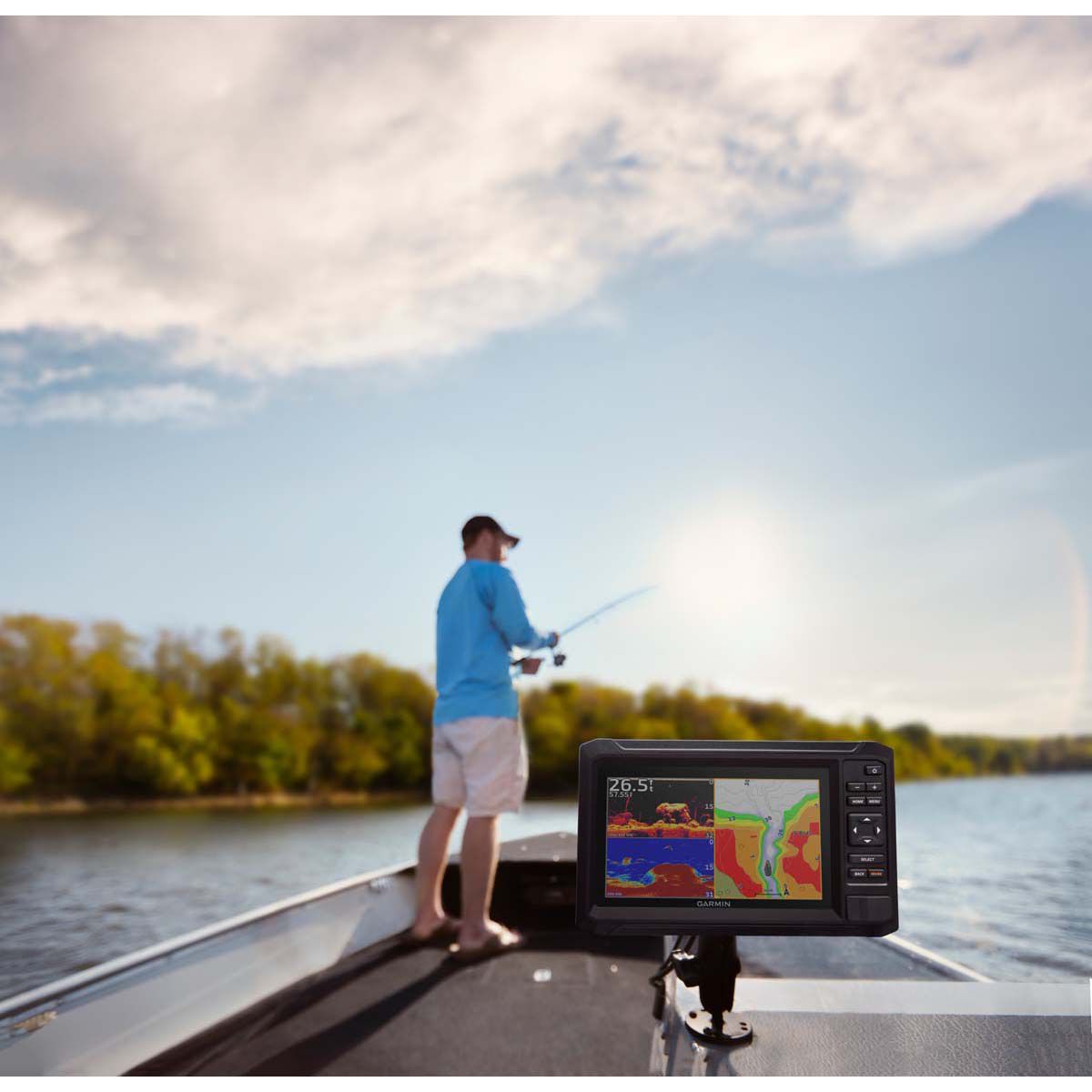

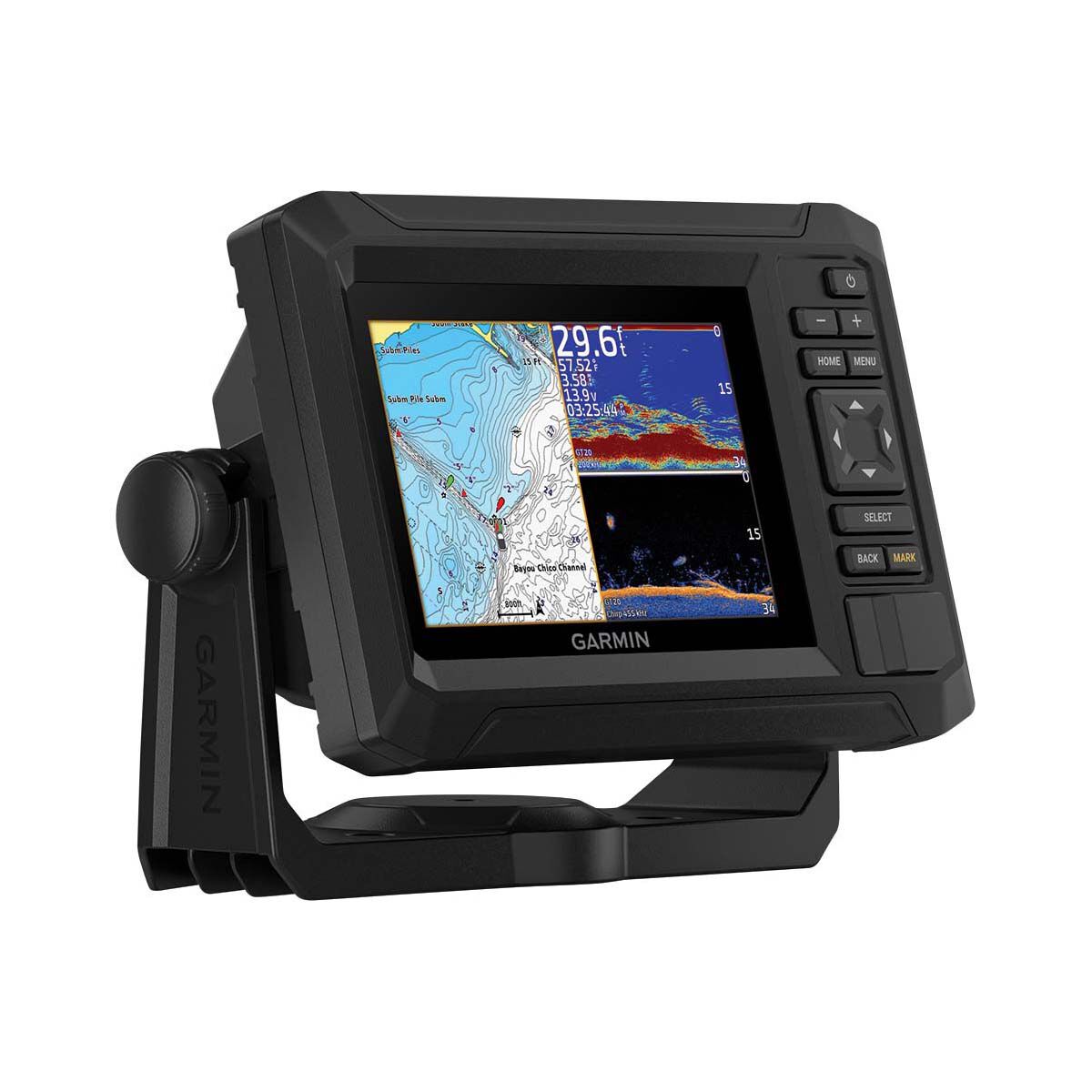

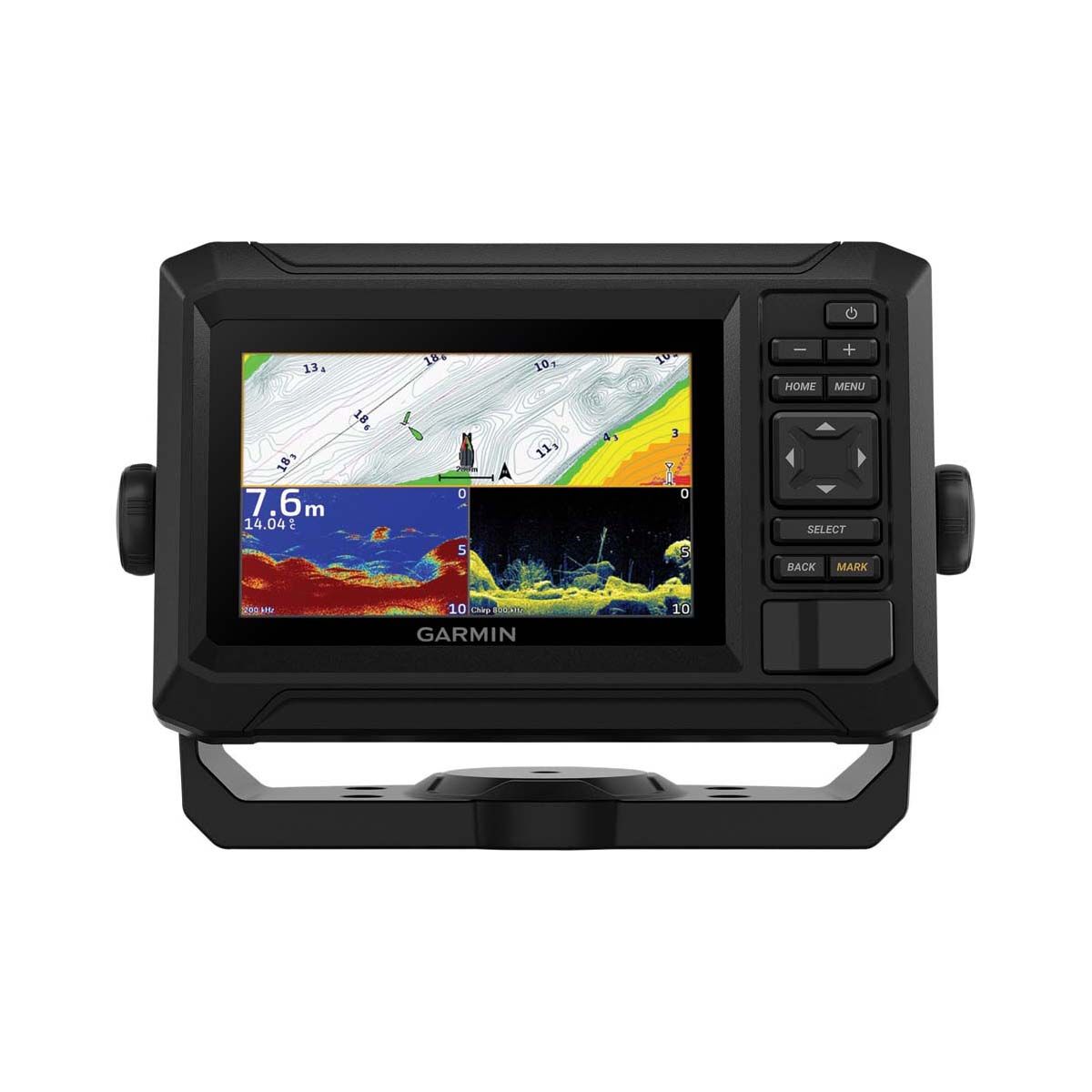

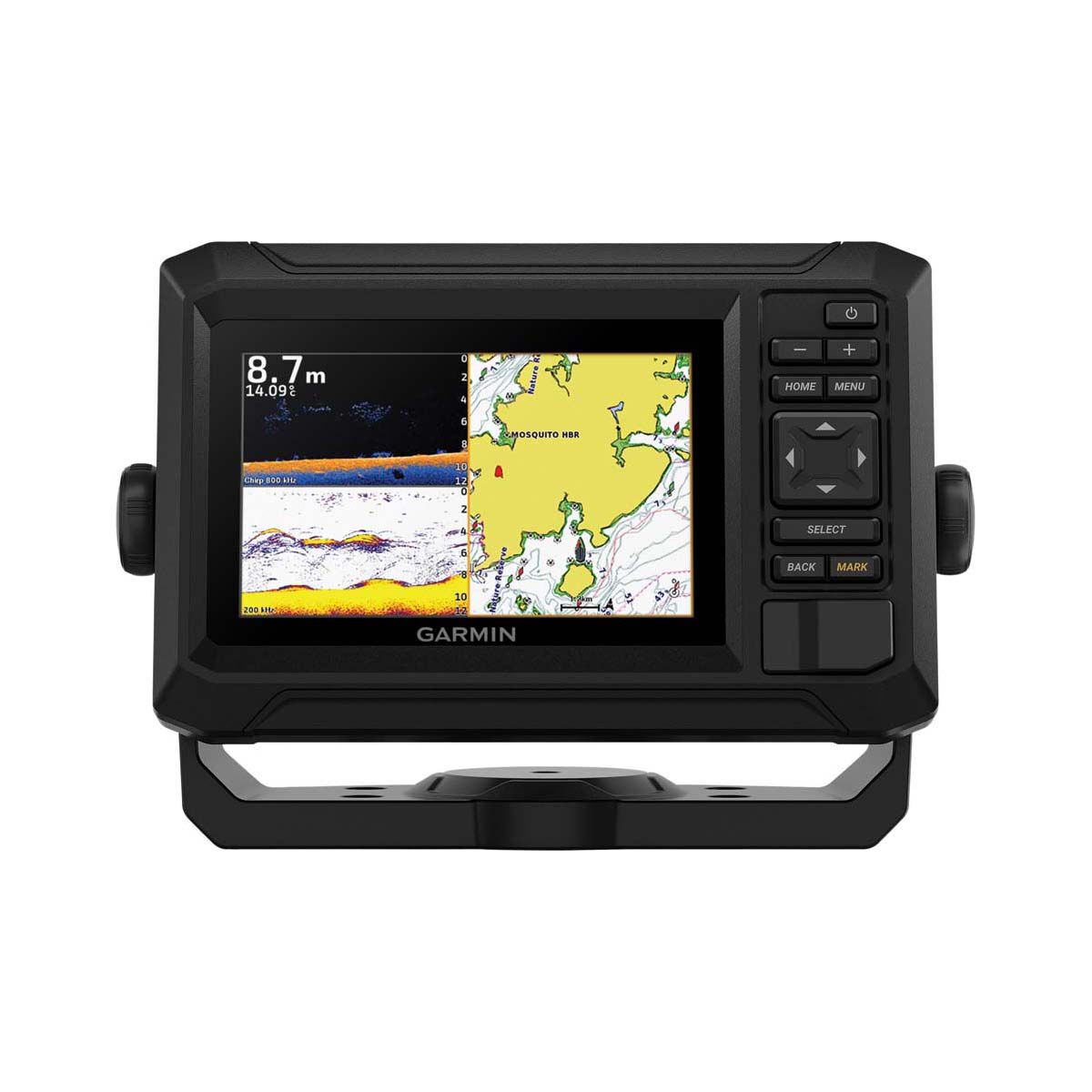

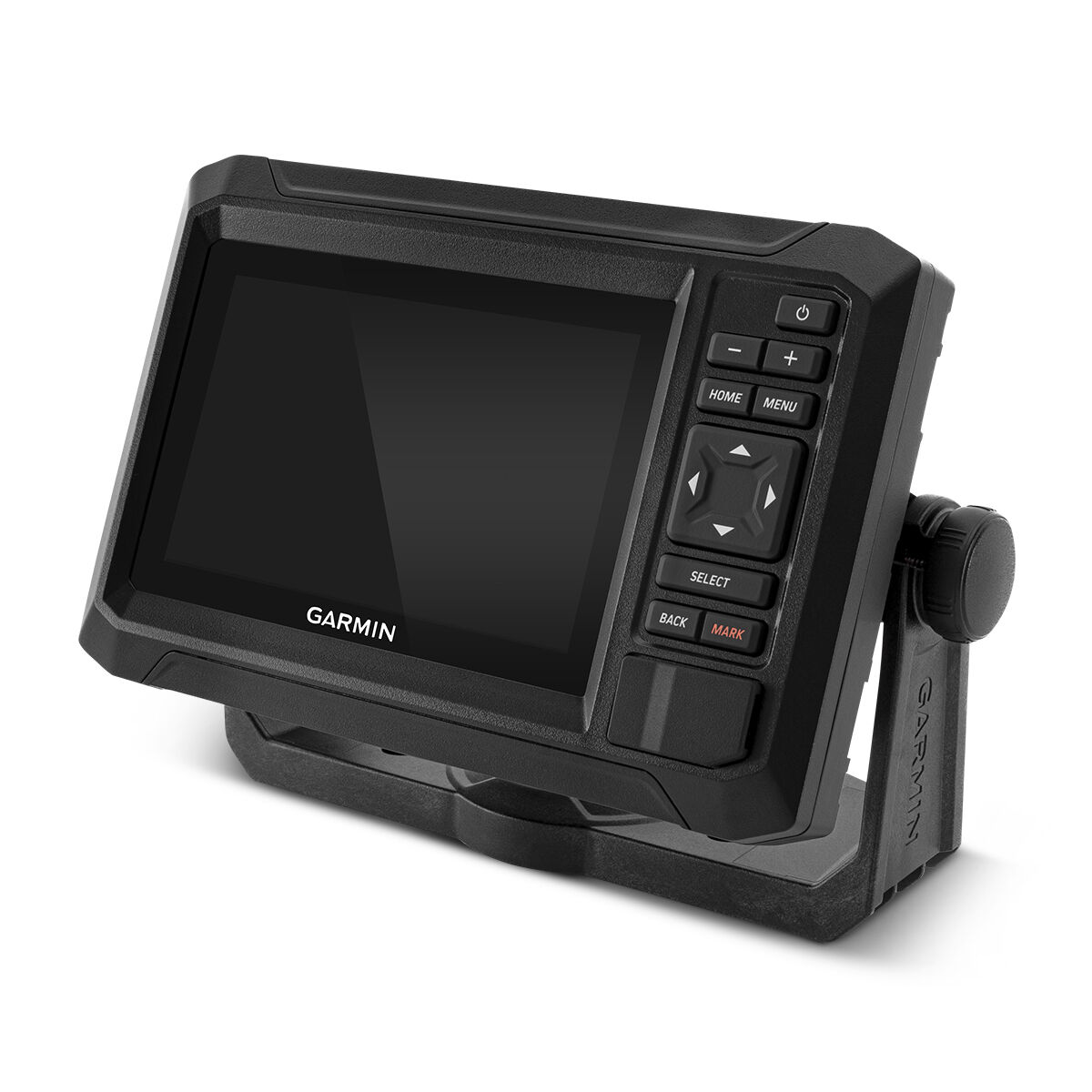

Find new grounds and catch more fish with the Garmin Echomap UHD2 55CV combo. Featuring a 5 inch keyed display, this model is a great option for smaller vessels with dash constraints and space limitations. The included GT20 transducer supports traditional and SideVu scanning sonars, and combined with Garmin’s vivid colour palettes, it’s never been easier to mark structure, find bait and catch fish!
Another key feature on this unit is the preloaded chart functionality. With Garmin Navionics+ charts for Australia and NZ, you can navigate coastal and inland waters without needing additional mapping software. Other features on this model include built-in WIFI connectivity, NMEA 2000 compatibility, a multi-band GPS and support for LiveScope. Take your fishing to a new level with this cracking Garmin sounder installed on your boat.
Another key feature on this unit is the preloaded chart functionality. With Garmin Navionics+ charts for Australia and NZ, you can navigate coastal and inland waters without needing additional mapping software. Other features on this model include built-in WIFI connectivity, NMEA 2000 compatibility, a multi-band GPS and support for LiveScope. Take your fishing to a new level with this cracking Garmin sounder installed on your boat.
Features

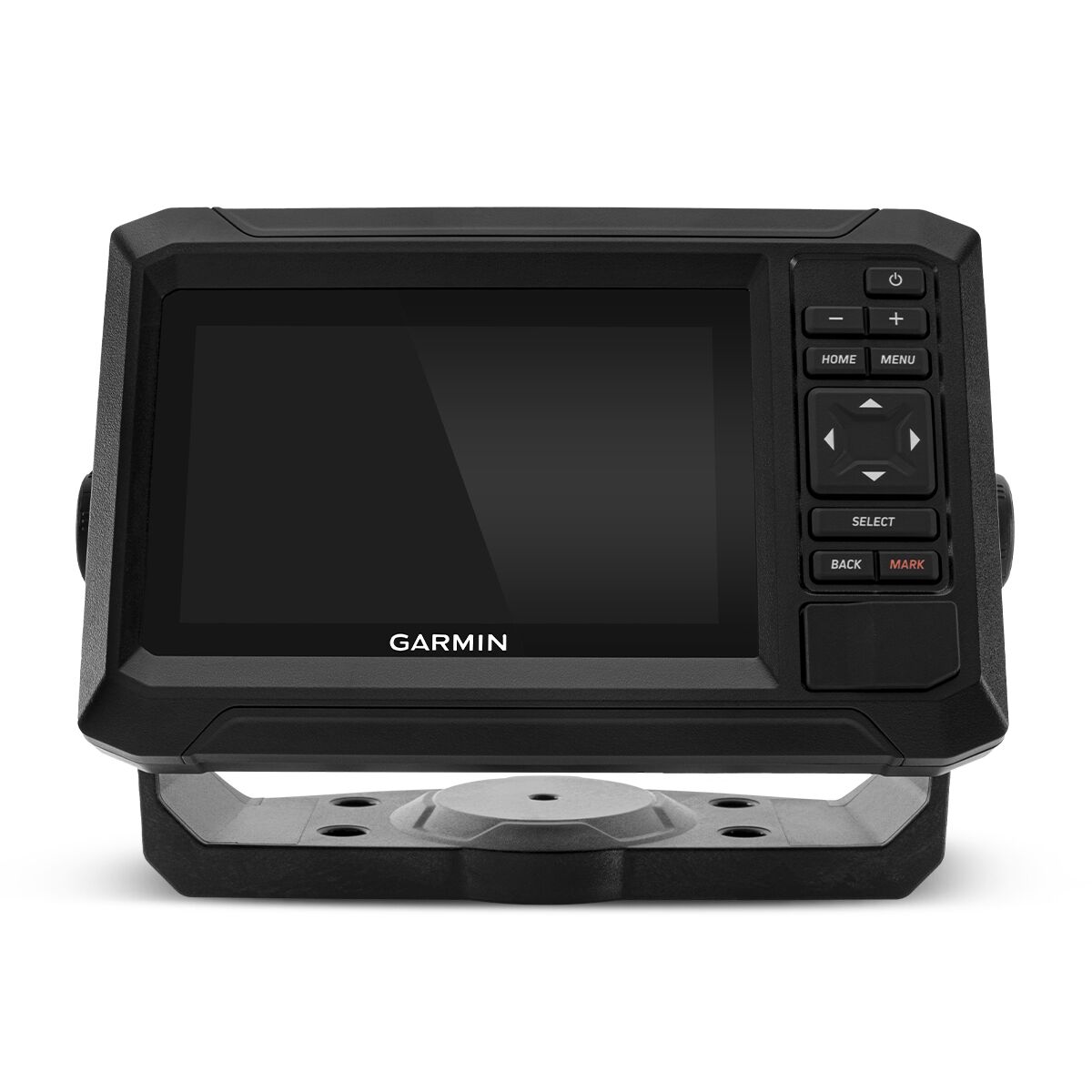

- Garmin 5 inch display with keyed buttons for added convenience

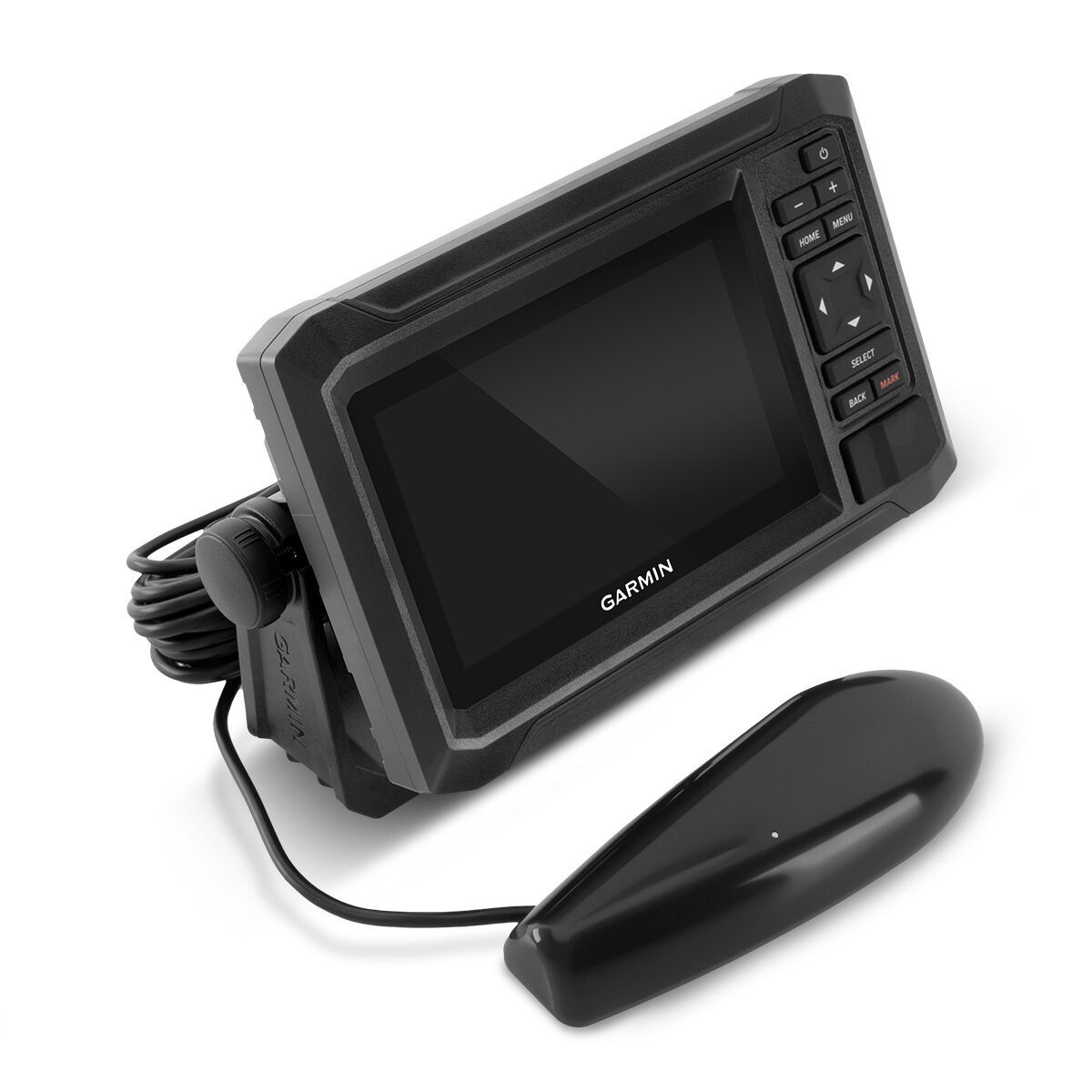

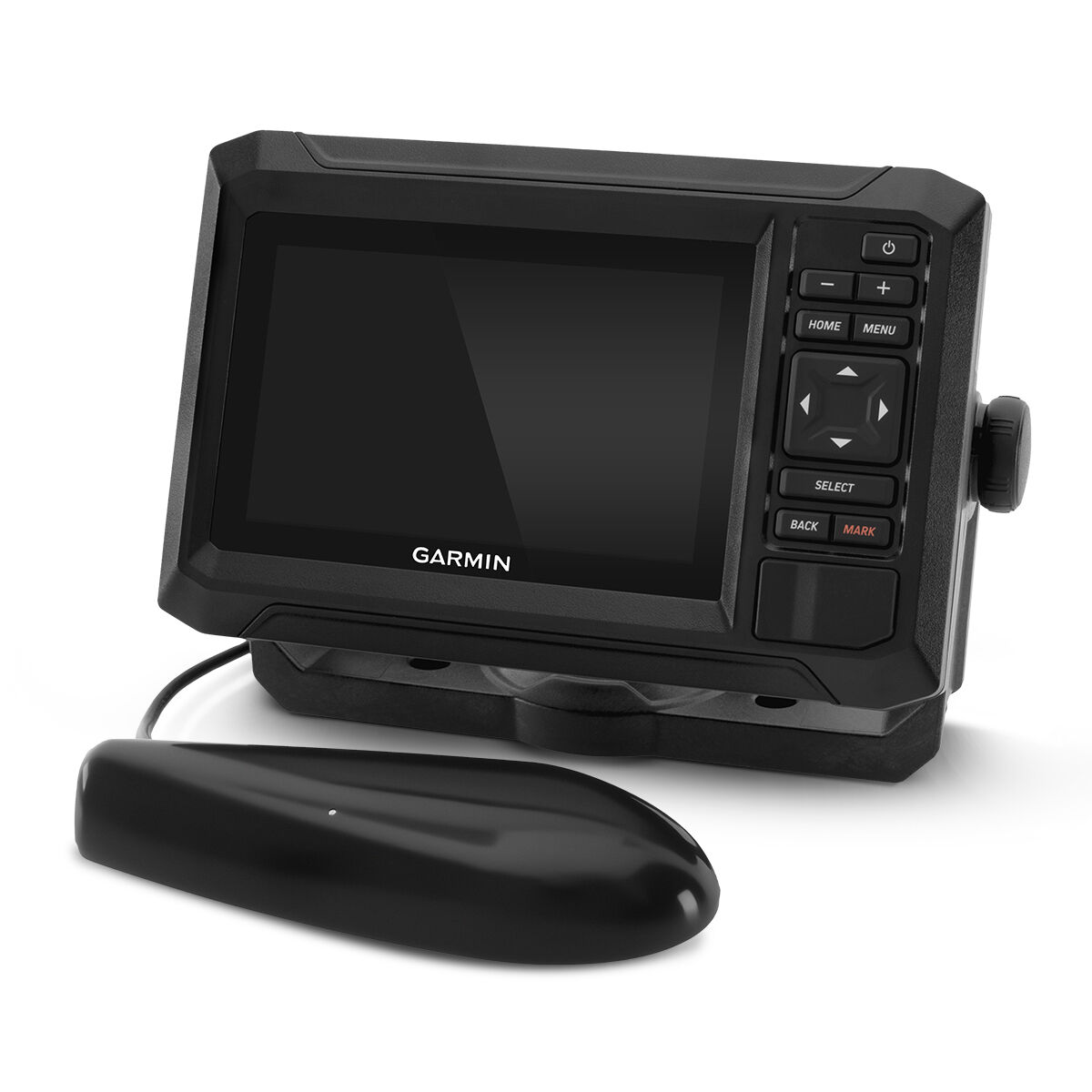

- Included GT-20 transducer for Garmin traditional and ClearVu scanning sonars
- Built in WIFI connectivity
- Supports wired NMEA 2000 marine network connectivity
- Includes multi-band GPS
- Compatible with LiveScope live scanning sonar

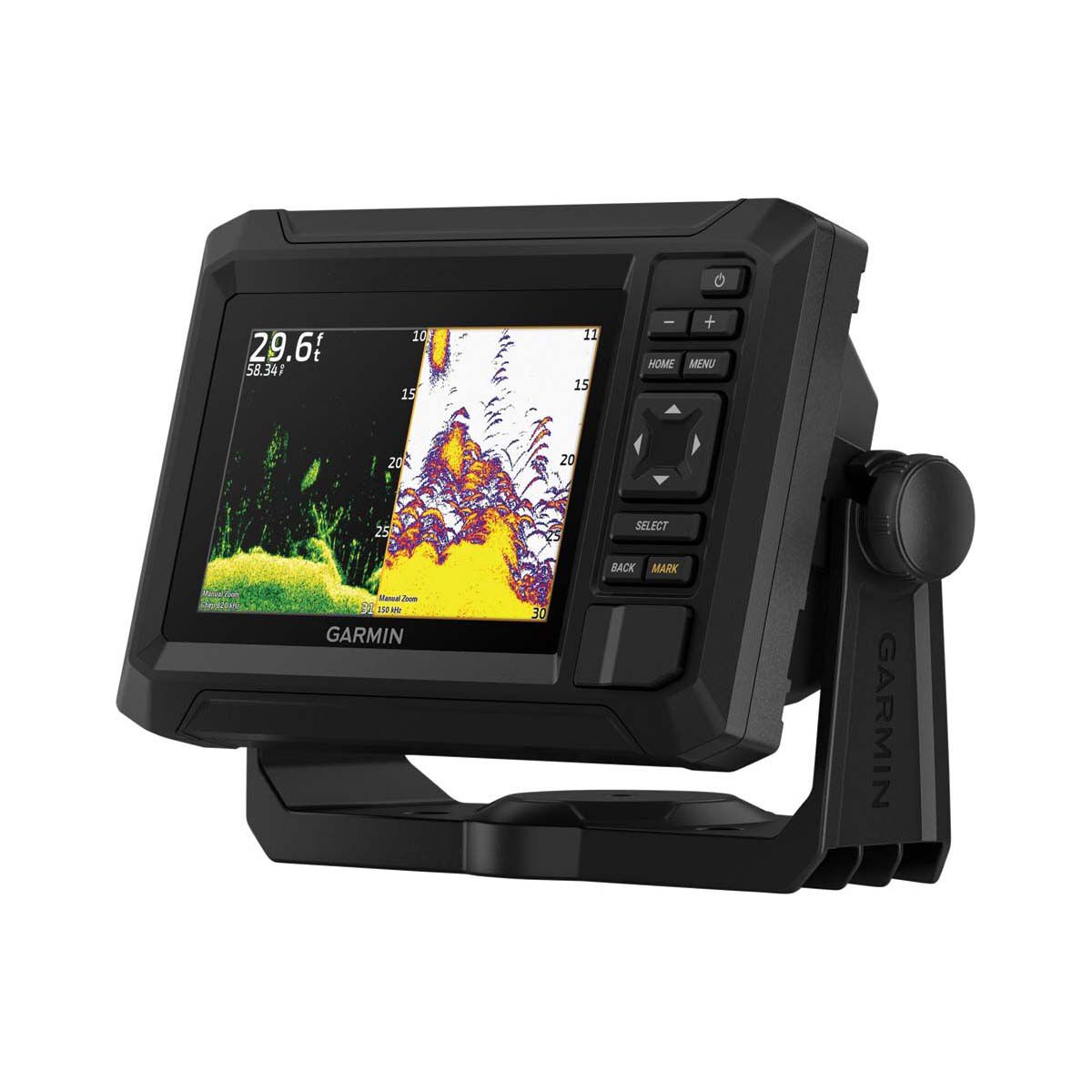

- Vivid scanning sonar colour palettes make it easy to distinguish fish and structure

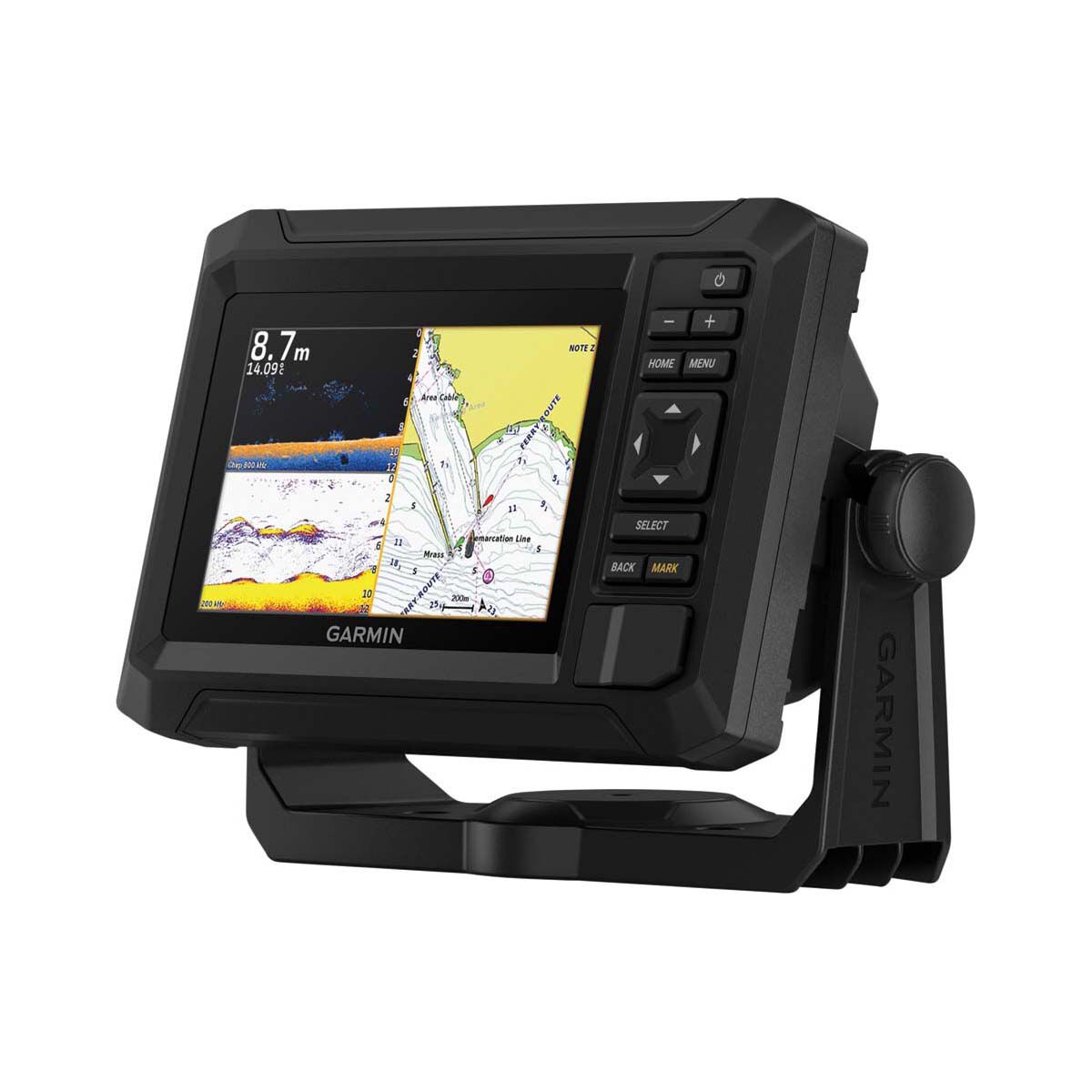

- Features Garmin Navionics+™ charts for Australia and New Zealand
Product FEATURES
Includes Transducer
Every ECHOMAP UHD2 comes bundled with a suitable transducer.
Sonar Support
Every Echomap UHD2 supports Traditional & UHD ClearVu.
SV models include UHD SideVu scanning sonars.
Wireless Networking
Wirelessly share information such as sonar, waypoints and routes.
*LiveScope cannot be shared wirelessly.
Garmin/Navionics Charts
Includes HD Bathymetric charts
*55CV & 75CV Garmin Bluechart
65SV & 95SV Garmin Navionics+
Tech Spec
GARMIN ECHOMAP UHD2 55CV COMBO INCLUDING GT20 TRANSDUCER
| DIMENSIONS | 18.8 x 12.2 x 6.2cm |
|---|---|
| DISPLAY SIZE | 10.9 x 6.6cm |
| DISPLAY RESOLUTION | 800 x 480 pixels |
| DISPLAY TYPE | WVGA, IPS |
| WEIGHT | 0.5kg |
| WATERPROOF RATING | IPX7 |

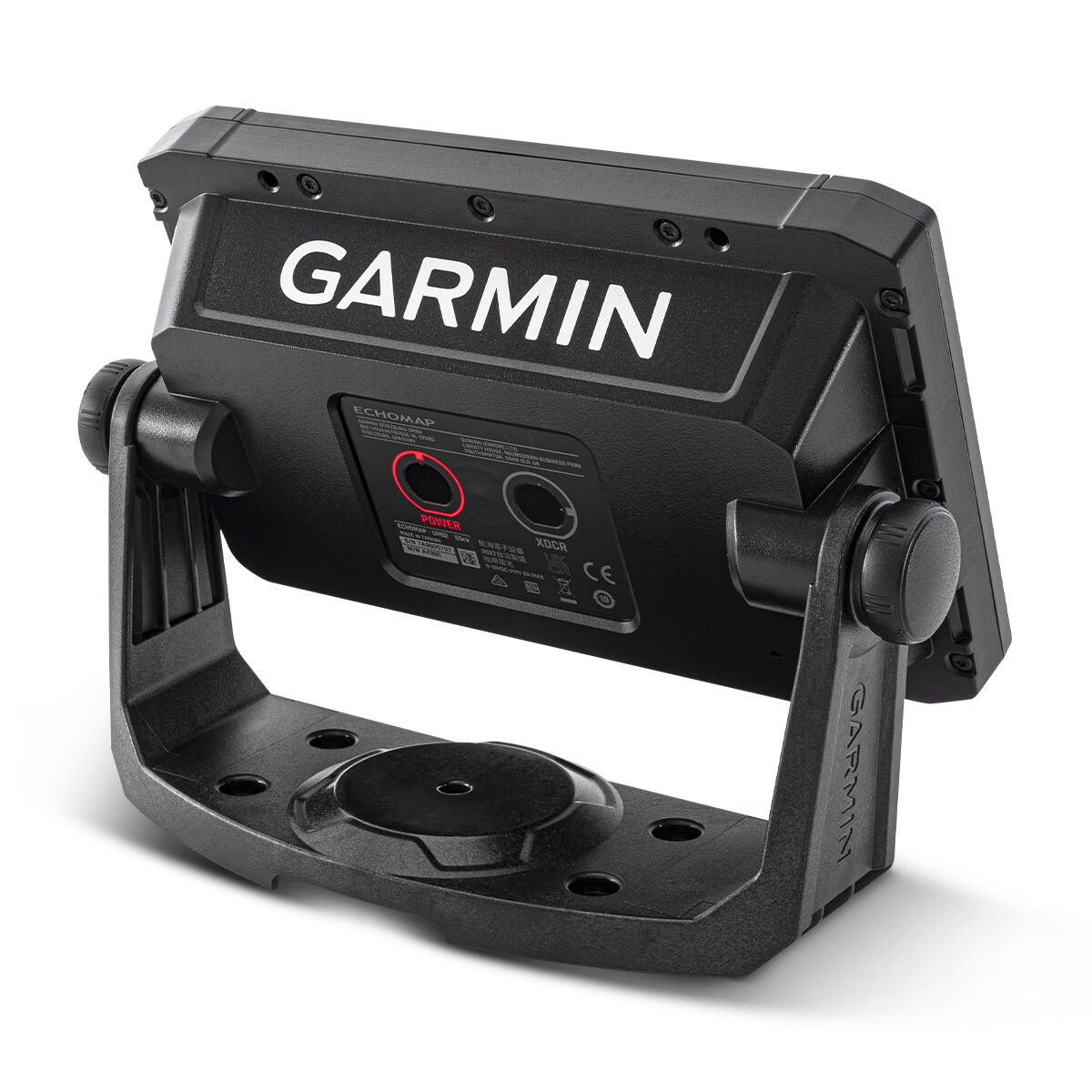

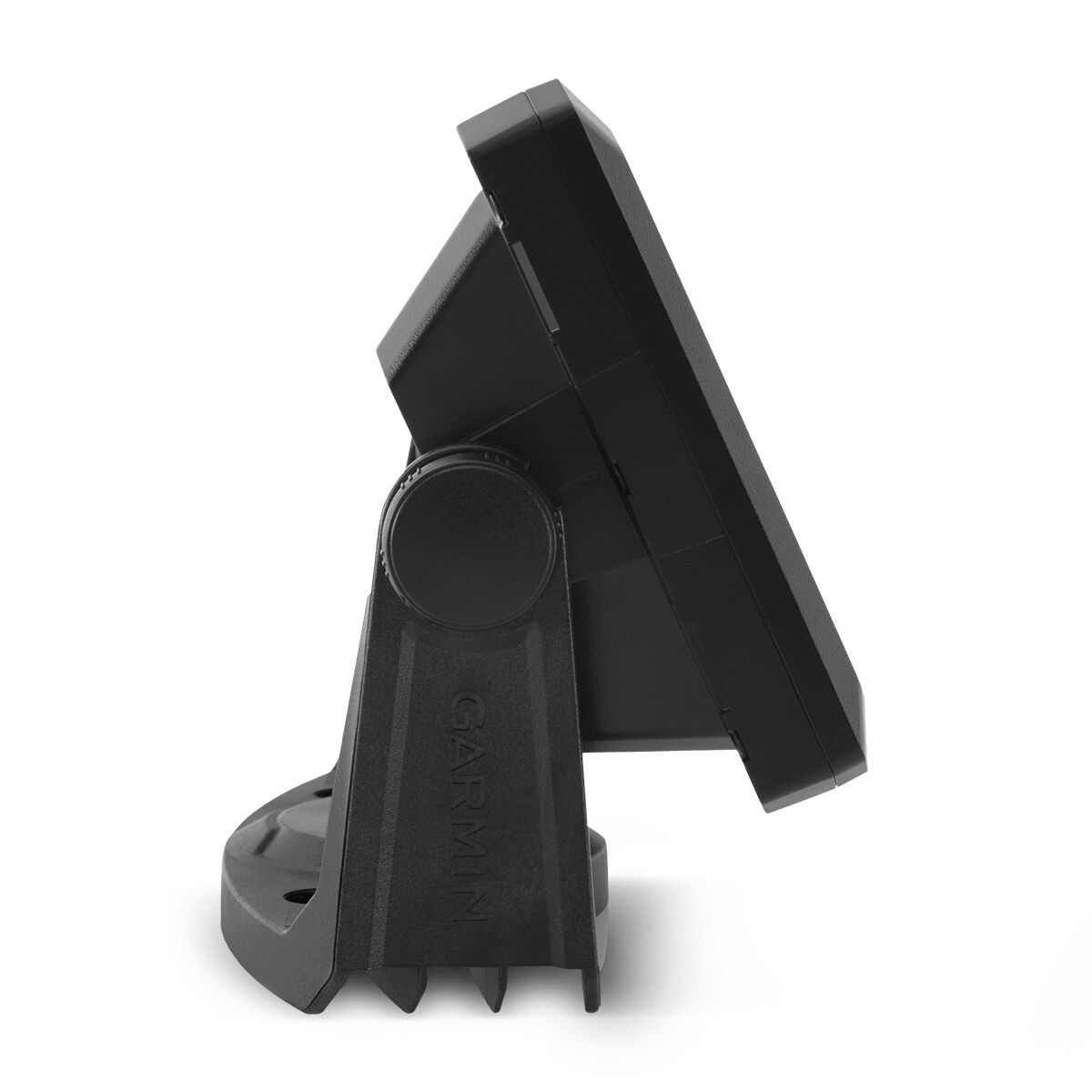

| MOUNTING OPTIONS | Bail or Flush |
| DATA CARDS | 1 micro SD |
| WAYPOINTS | 5000 |
| TRACK POINTS | 50000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
| BUILT-IN RECEIVER | Yes |
| RECEIVER | 5 Hz |
| GPS | Yes |
| SUPPORTS WAAS | Yes |
| GARMIN NAVIONICS+ (COASTAL AND INLAND) | Yes |
| BLUECHART (COASTAL) | Yes |
| ACTIVECAPTAIN MOBILE APP | Yes |
| DISPLAYS SONAR | Yes |
| POWER OUTPUT | 500W |
| TRADITIONAL SONAR | Built-in |
| CLEARVU SONAR | Built-in 260/455/800/1200 KhZ |
| GARMIN WIFI NETWORK (LOCAL CONNECTION) | Yes |
| POWER INPUT | 9 - 18 V DC |
| TYPICAL CURRENT DRAW AT 12V DC | 1 amp |
| MAX CURRENT DRAW AT 12V DC | 1.5 amp |
| MAX POWER USAGE AT 10V DC | 18W |
