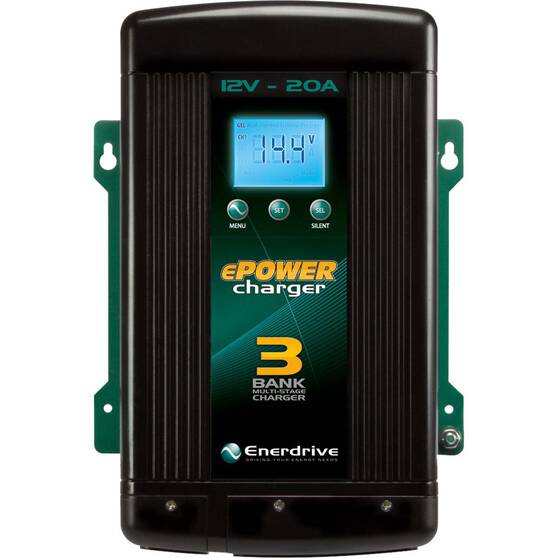

Enerdrive ePOWER 12V Smart Charger
Details
https://www.bcf.com.au/p/enerdrive-epower-12v-smart-charger/M648691.htmlPromotions
Variations
-
Size
Additional Information
Product Info
Product Info
The charger has a 4 stage charging process to protect your battery.
Stage 1 - Bulk or boost charge; The battery is charged at the full rated output of the charger until it reaches its absorption voltage at about 80% charge.
Stage 2 - Absorption charge; The remaining 20% of the battery is charged with the charger voltage held steady, allowing the current to taper off as the battery gets close to being fully charged.
Stage 3 - Float; The voltage of the charger is lowered and held at a safe level so that it will supply enough current to allow for any self-discharge or loads on the battery without overcharging.
Stage 4 - Maintenance; After the battery has been in the float stage for 7 days the charger will switch from float to bulk to agitate the battery’s electrolyte and help extend the life of your battery.
The smart charging feature of the charger allows it to regulate its output based on the load connected to your battery. This is important for maintaining the life of your battery.
Features
- Fully automatic multistage battery charger with the ability to charge 3 separate battery banks
- Isolated charging design where battery bank one is separate from battery bank two and three
- Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3
- User adjustable current output (e.g. Dial the 60A unit back to run off a 1kVA generator)
- Regulates its output based on the loads connected to your battery banks
- Operates on both 110V / 60Hz and 240V / 50Hz
- Easy to use “set and select” menu along with scrolling charger status
- Silent mode disables the cooling fan for total silent operation at night or whenever required
- Battery temperature sensor included with 3 metre cable
- 5 year warranty
About Online Exclusives
What is an online exclusive?
BCF Online Exclusives are an extended range of exciting boating, camping & fishing gear. At BCF, we are committed to offering the best range of quality products and big brands to help you enjoy the great outdoors.
Our range has grown so much that we simply can't squeeze it all into stores, and so, the 'Online Exclusive' was born. A collection of extended ranges of boating, camping, hiking, fishing, clothing and footwear, which you won't find in most stores.
New ranges and brands are added regularly, so make sure you check it out before your next trip!
How can I tell an item is an online exclusive?
All of our online exclusives have an orange badge
Is Click & Collect available for online exclusives?
Online exclusives are available for home delivery only at this stage. They cannot be purchased as Click & Collect. We offer free shipping on all orders over $120 (excludes bulky items).
Are online exclusives available in store?
Online exclusive products are generally only available through the BCF website and not in your local store. Some products may be available in limited quantities at select stores.
Can I return an online exclusive?
Yes! Online Exclusive products are covered by our Returns Policy and are treated the same as any product you might buy instore. See the full Returns Policy..
Can I return an online exclusive to store?
Yes. Online Exclusive products can be returned in store or via post as per our Returns Policy.
Do I have to pay for return delivery fees?
We offer free returns for items under 22kg and 105cm. Full details can be found in our Returns Policy.
Does BCF price match online exclusives?
Absolutely, as long as they meet the relevant criteria our Online Exclusive products fall under our Price Match Guarantee. View the full Price Match Guarantee Policy.
Where can I find the range of online exclusives?
Shop our whole range of Online Exclusives.
Tech Spec
| 12V 20V | 12V 40A | 12V 60A | |
|---|---|---|---|
| OUTPUT CURRENT (MAX.) | 20A | 40A | 60A |
| CHARGE | 14.2 - 15.5V | ||
| FLOAT | 13.4 - 13.8V | ||
| EQUALIZE | 16V | ||
| CHARGING CONTROL | Four stage | ||
| DC OUTPUT BANK | 3 (1 indeoendant, 2 with common diode isolation | ||
| SELECTABLE BATTERY TYPE | Gel, AGM, Flooded, Lithium, Program | ||
| STANDBY CURRENT | < 2mA | ||
| AC INPUT VOLTAGE (NOMINAL) | 90 - 265 VAC | ||
| AC INPUT OPERATING RANGE | 207-265 VAC (2A max.) 90-125 VAC (3.8A max.) | 207-265 VAC (3.8A max.) 90-125 VAC (7.7A max.) | 207-265 VAC (5.9A max.) 90-125 VAC (11.3A max.) |
| POWER CONSUMPTION | 350W (full load) | 700W (full load) | 1050W (full load) |
| POWER FACTOR CORRECTION | Yes | ||
| CHARGER EFFICIENCY | >82% | ||
| REVERSE POLARITY | Yes (with user replaceable fuse/s) | ||
| OVER CHARGE | Yes, unit shutdown | ||
| OVER TEMPERATURE | Yes, unit de-rated and shutdown) | ||
| OUTPUT SHORT CIRCUIT | Yes (with user replaceable fuse/s) | ||
| COOLING | Forces air ventilation (themo controlled fan) | ||
| TEMPERATURE SETTINGS | Hot, normal, cold (no sensor connected) | ||
| BATTERY TEMP SENSOR PORT | RJ12 (standard battery temp. sensor supplied) | ||
| LCD DISPLAY | Charging status, battery voltage, output current and fault codes | ||
| AC INPUT CONNECTION | IEC with supplied 1.3m power lead | ||
| DC OUTPUT CONNECTION | Heavy duty teminals (3 banks) | ||
| DC OUTPUT GROUND | Single heavy duty common ground | ||
| STORAGE TEMP RANGE | -40° to 70° C | ||
| OPERATING TEMP RANGE | -20° to 60° C | ||
| HUMIDITY | 5-95% relative humidity non-condensing | ||
| IP RATING | IP32 (basic drip proof in verticle position) | ||
| DIMENSIONS | 295(L) x 206(W) x 86(H)mm | 295(L) x 206(W) x 86(H)mm | 356(L) x 206(W) x 99(H)mm |
| WEIGHT | 2.4kg | 2.6kg | 4kg |
| WARRANTY | 5 years | ||
