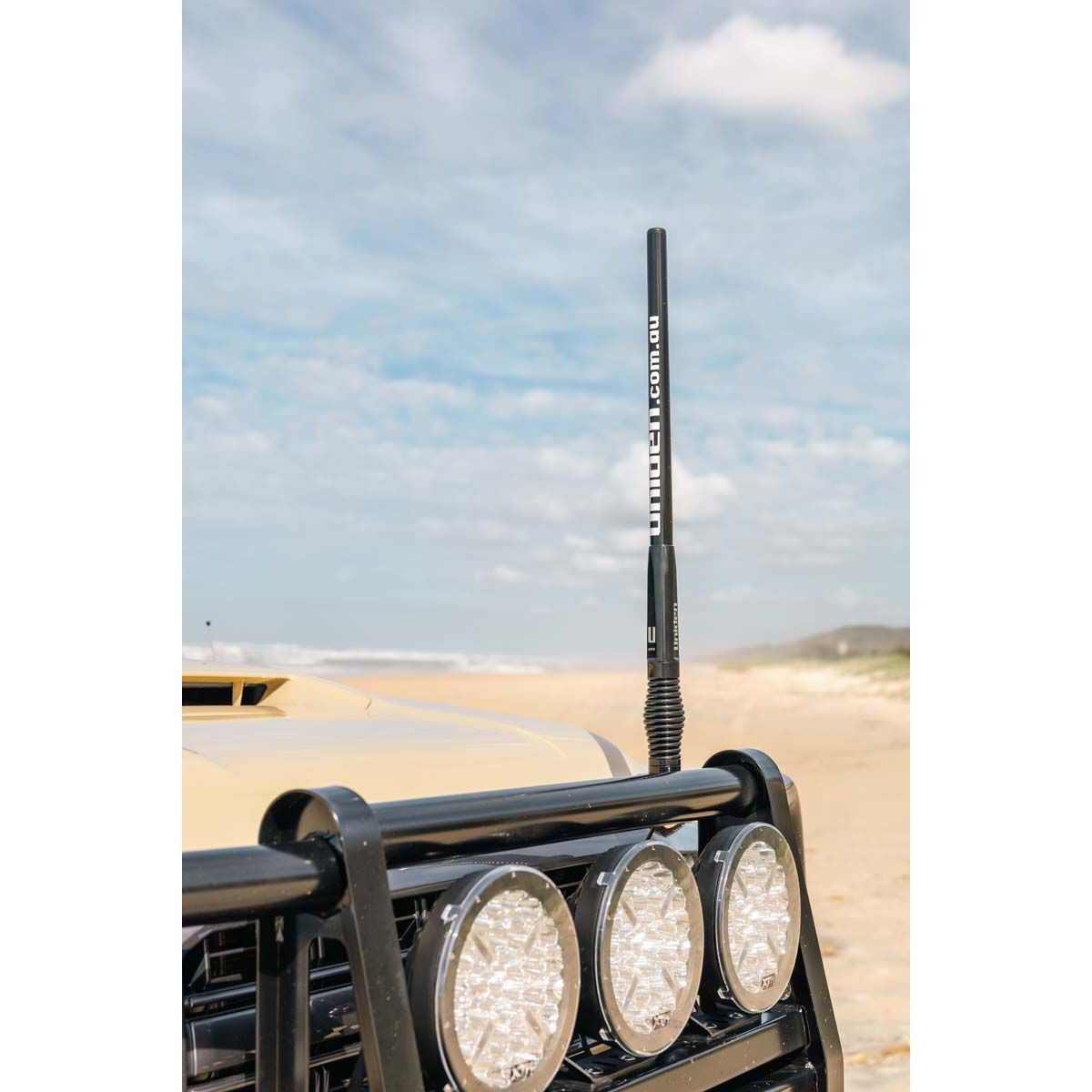

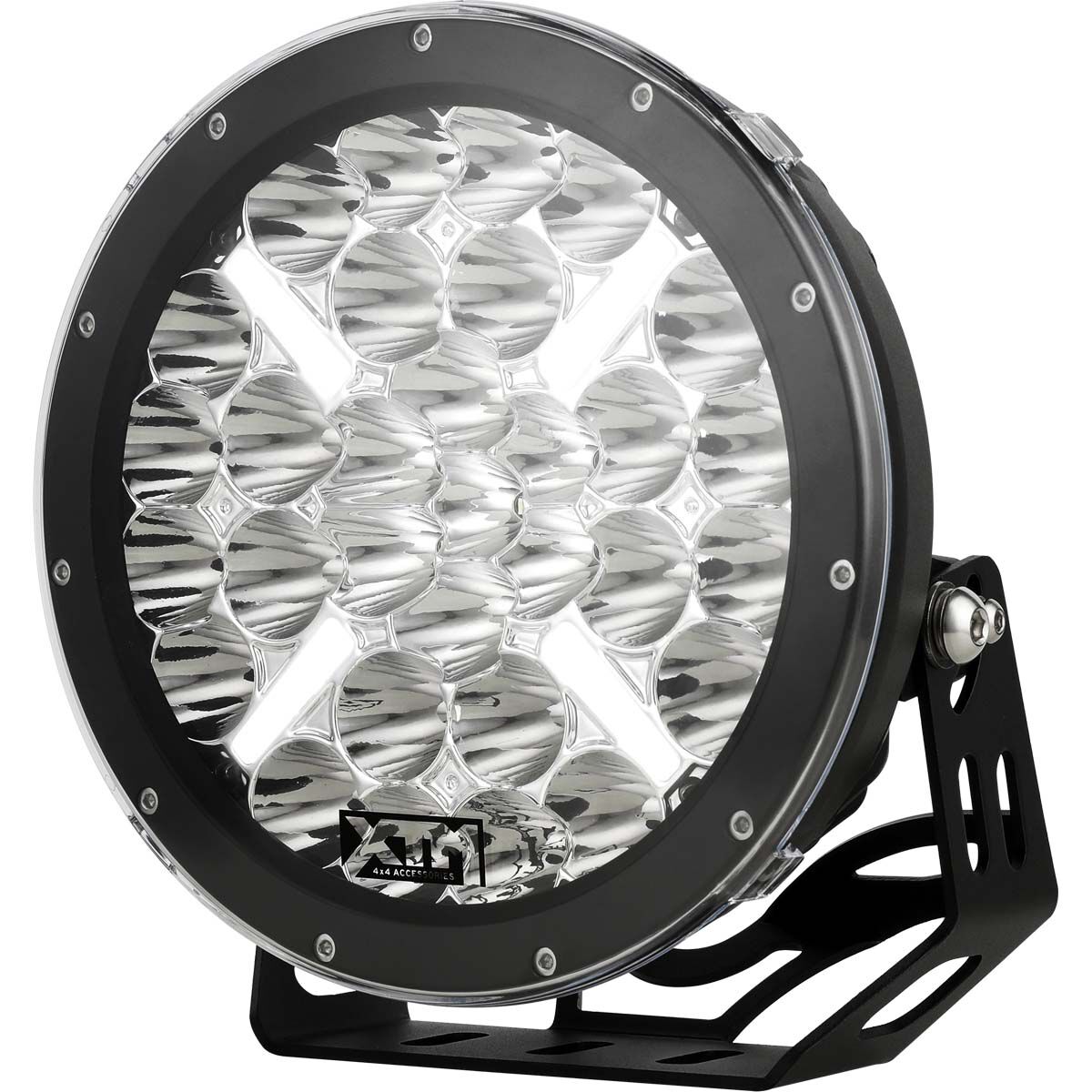

Light up the night on your 4WDing adventures with the XTM Phaethon 224mm Driving Lights with Daytime Running Lights. These driving lights pack a punch with a massive 22,000 lumens per pair and 1 lux at 1,249m thanks to the 31 5W OSRAM LEDs. They included 4 LED daytime running lights that provide extra safety and visibility during daytime driving, whether you're off the beaten track or making the daily trek to work.
These driving lights with DRL are made from tough die-cast aluminium alloy with a removable polycarbonate lens cover and are IP68 water and dust proof and shock and vibration resistant for long lasting durability. They come ready to install with the included wiring harness and everything you need to get them mounted to your vehicle. Good vision and visibility is essential when you're driving off the beaten track at night, so get your rig set up with some XTM Phaethon Driving Lights to guide you through the darkness on your next 4WDing expedition!
These driving lights with DRL are made from tough die-cast aluminium alloy with a removable polycarbonate lens cover and are IP68 water and dust proof and shock and vibration resistant for long lasting durability. They come ready to install with the included wiring harness and everything you need to get them mounted to your vehicle. Good vision and visibility is essential when you're driving off the beaten track at night, so get your rig set up with some XTM Phaethon Driving Lights to guide you through the darkness on your next 4WDing expedition!
Features
- Produces up to 22,000 lumens per pair - 11,000 lumens per light
- 1 LUX ar 1,249m/pair
- 224mm diameter (with cover)
- 31 x 5W OSRAM LEDs with spot beam
- ‘X’ shaped daytime running lights with 4 x 1.5W LEDs
- Colour temperature 6,000K
- IP68 water and dust proof, shock and vibration resistant
- Die-cast aluminium alloy housing with polycarbonate lens cover

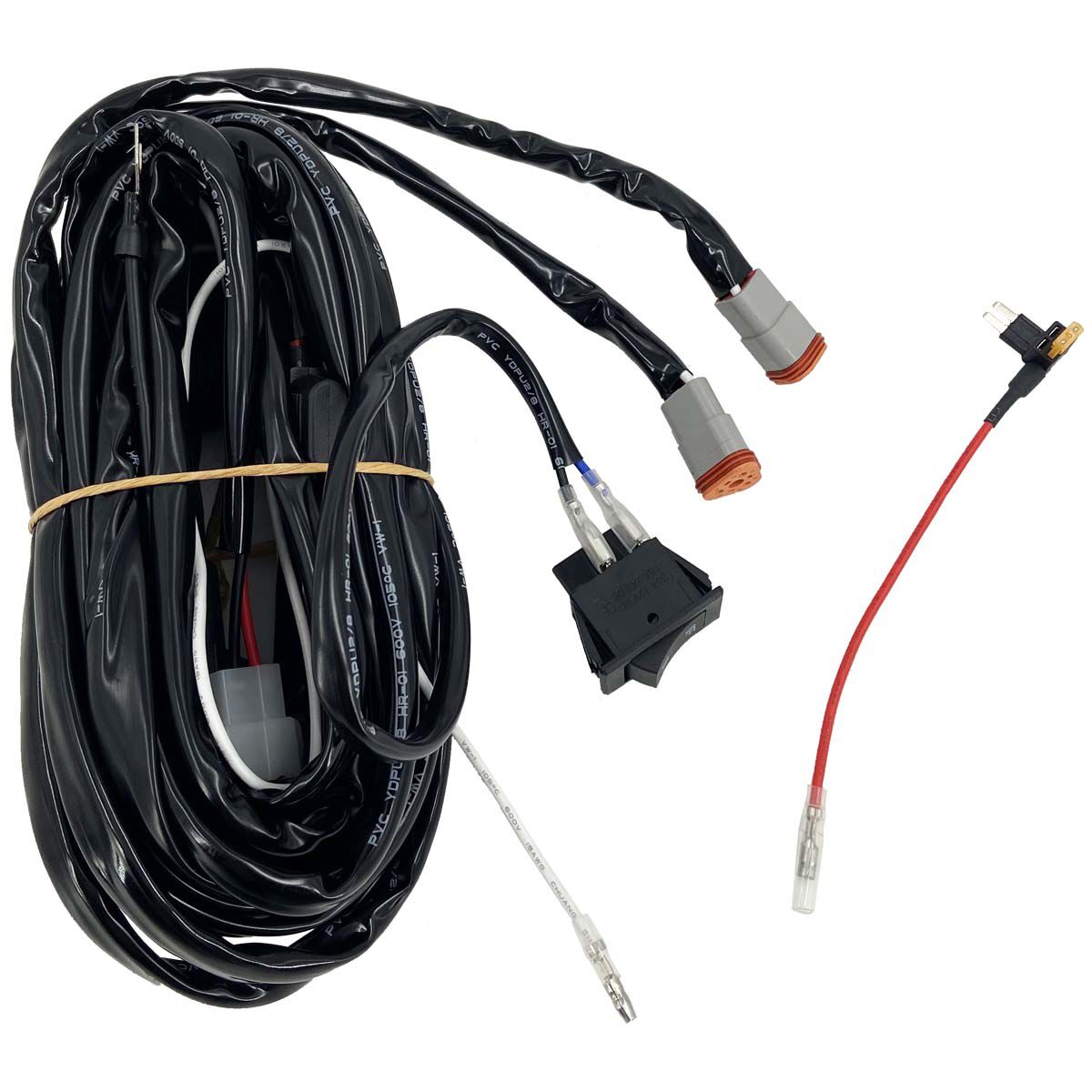

- Wiring harness included
- 12 month warranty

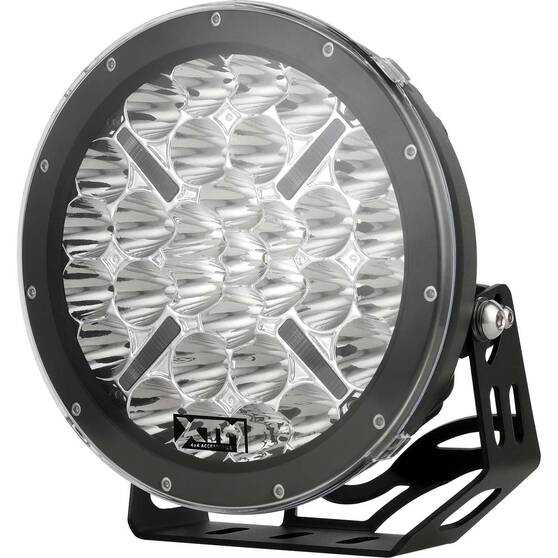

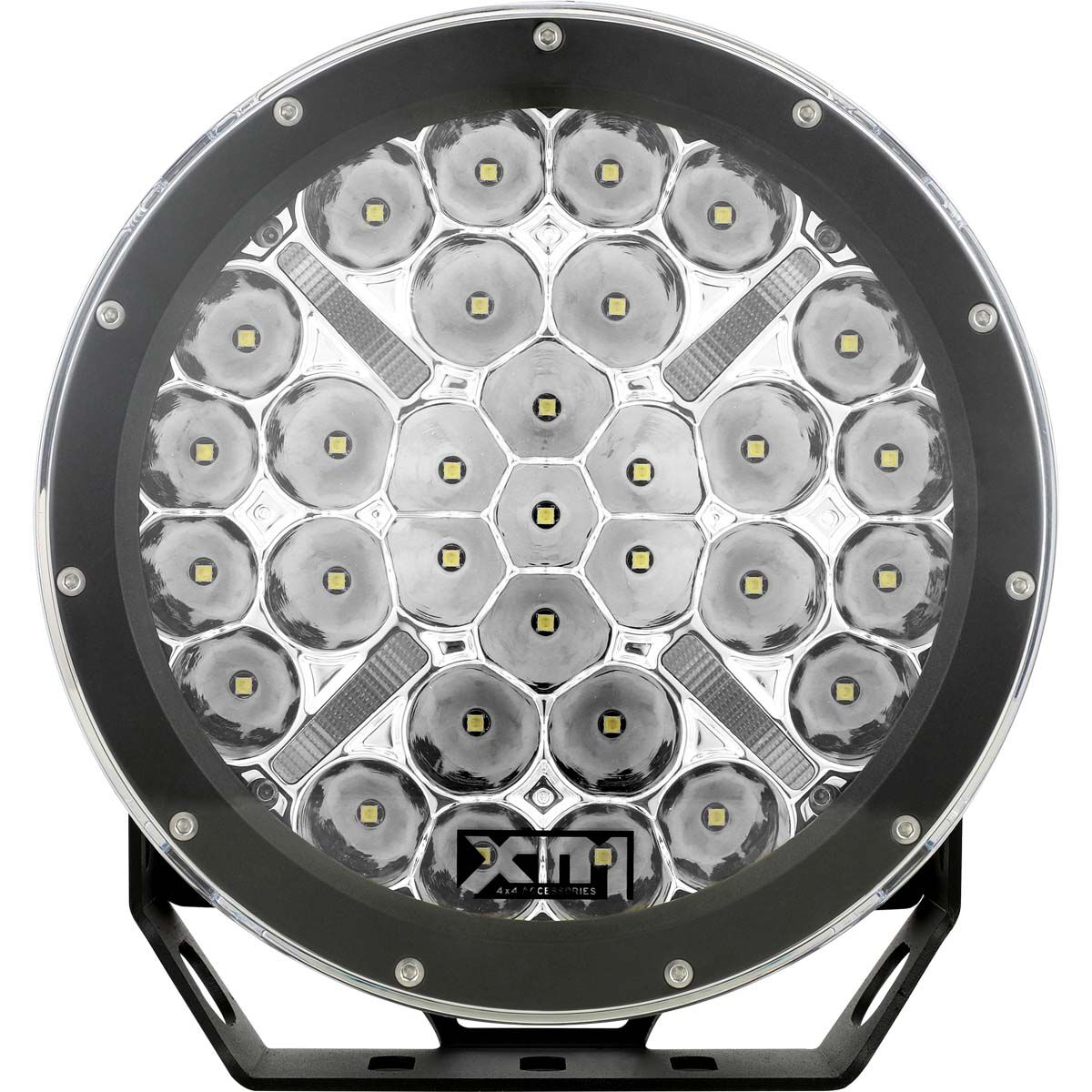

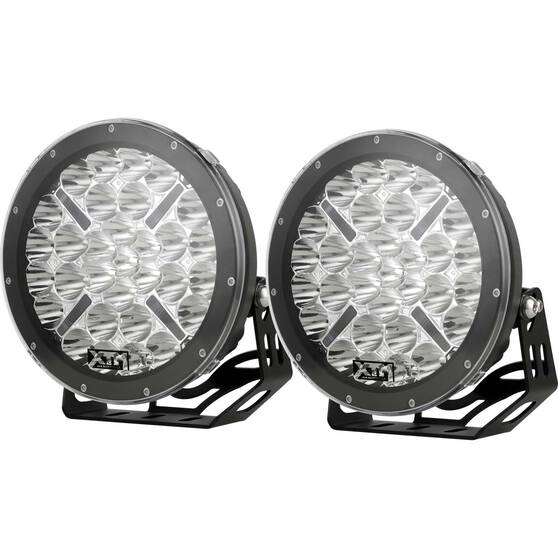

Phaethon Driving Lights with DRL
Polycarbonate Lens Cover
Tough, removeable polycarbonate lens covers
Polycarbonate Lens
Tough polycarbonate lens
5W high intensity LEDs
Bright 5W OSRAM LEDs
Spot beam
Powerful, focused spot style light beam
Mounting hardware
Comes with all required adjustable mounting hardware
Daytime Running Lights
Daytime running lights for extra visibility during daytime driving
Mounting holes
3 mounting holes for superior durability
IP68 Waterproof breather
IP68 water and dust proof to protect from the harsh Aussie elements

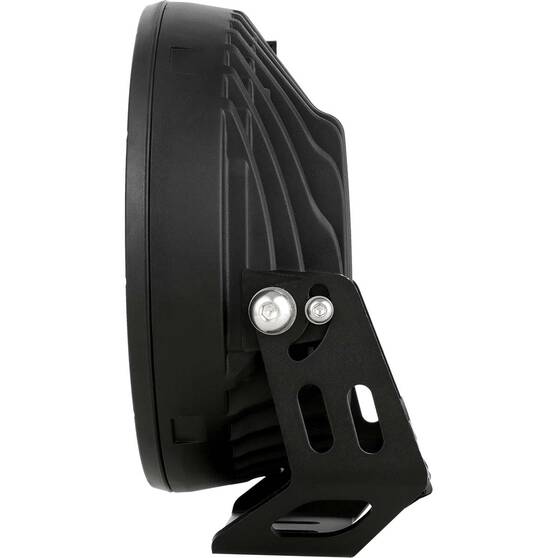

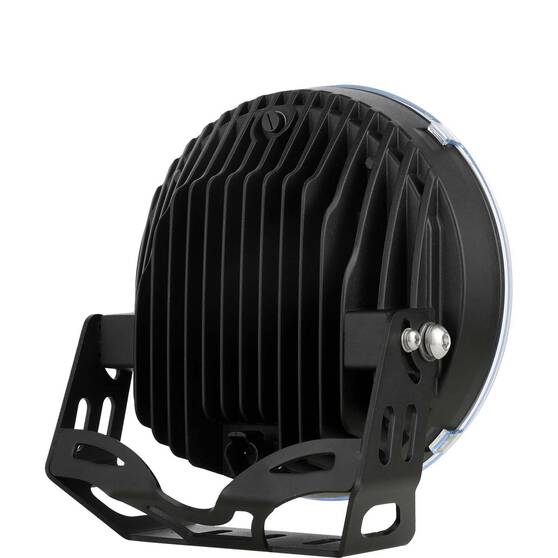

Die-cast aluminium housing
Tough die-cast aluminium alloy housing for long lasting durability

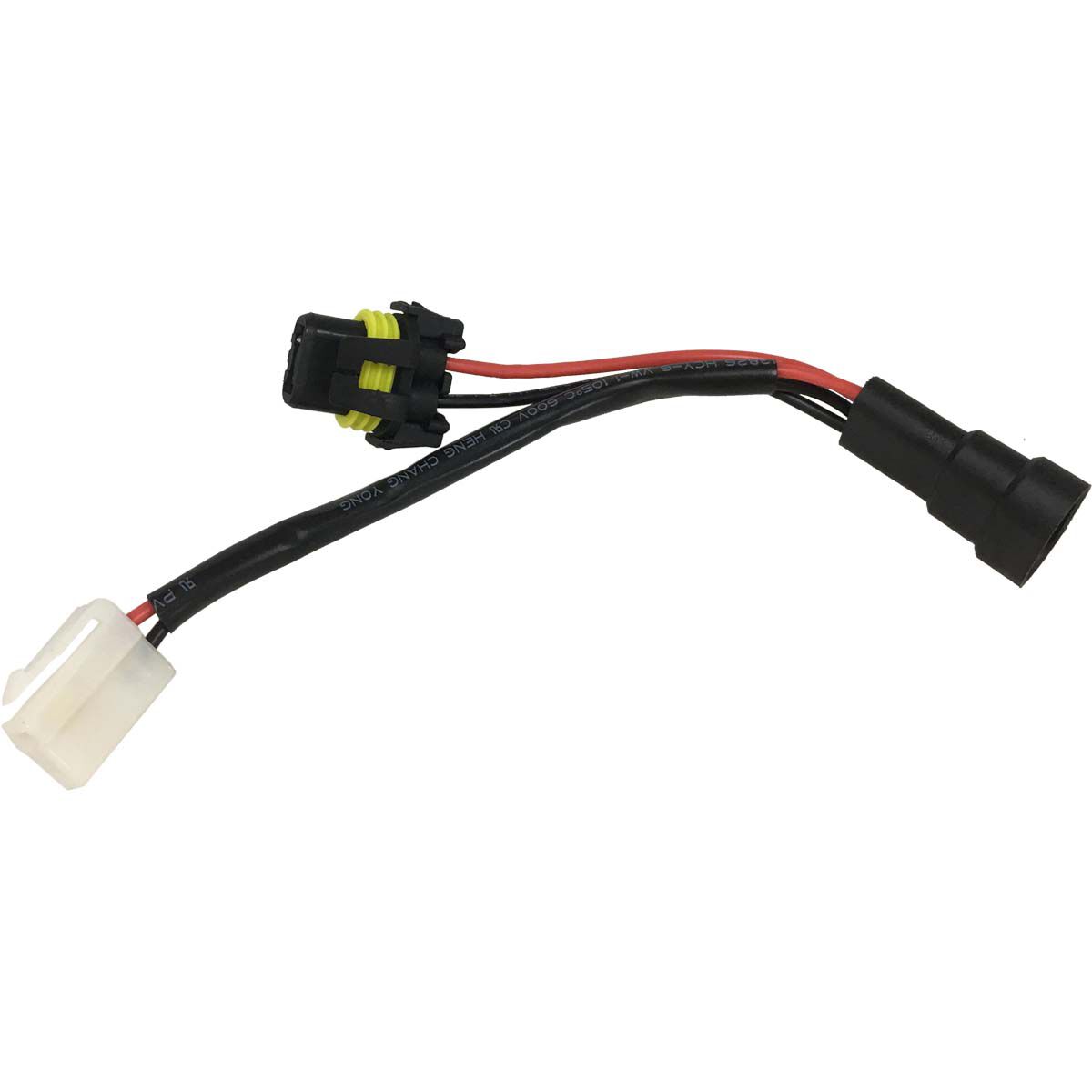

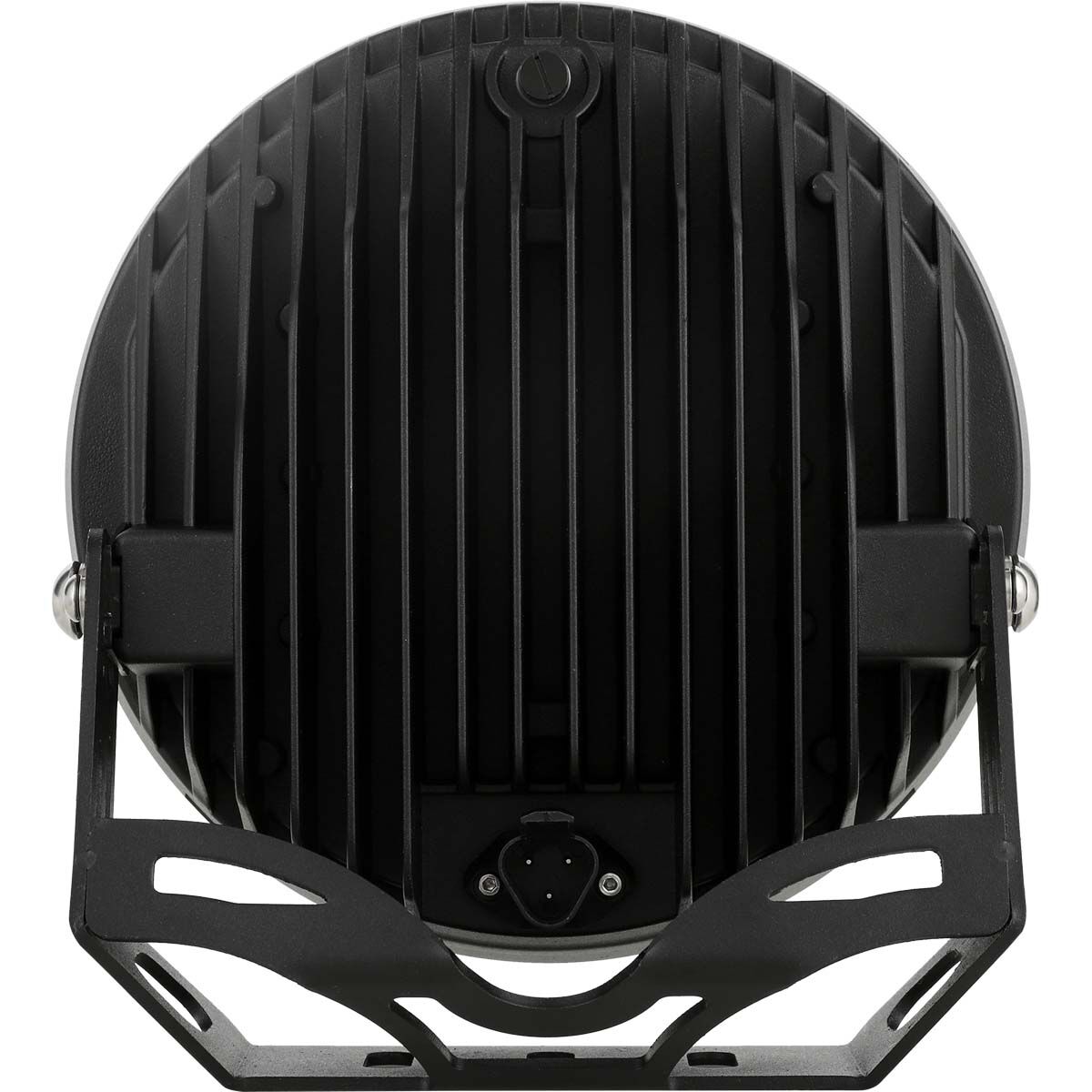

Plug & play connector

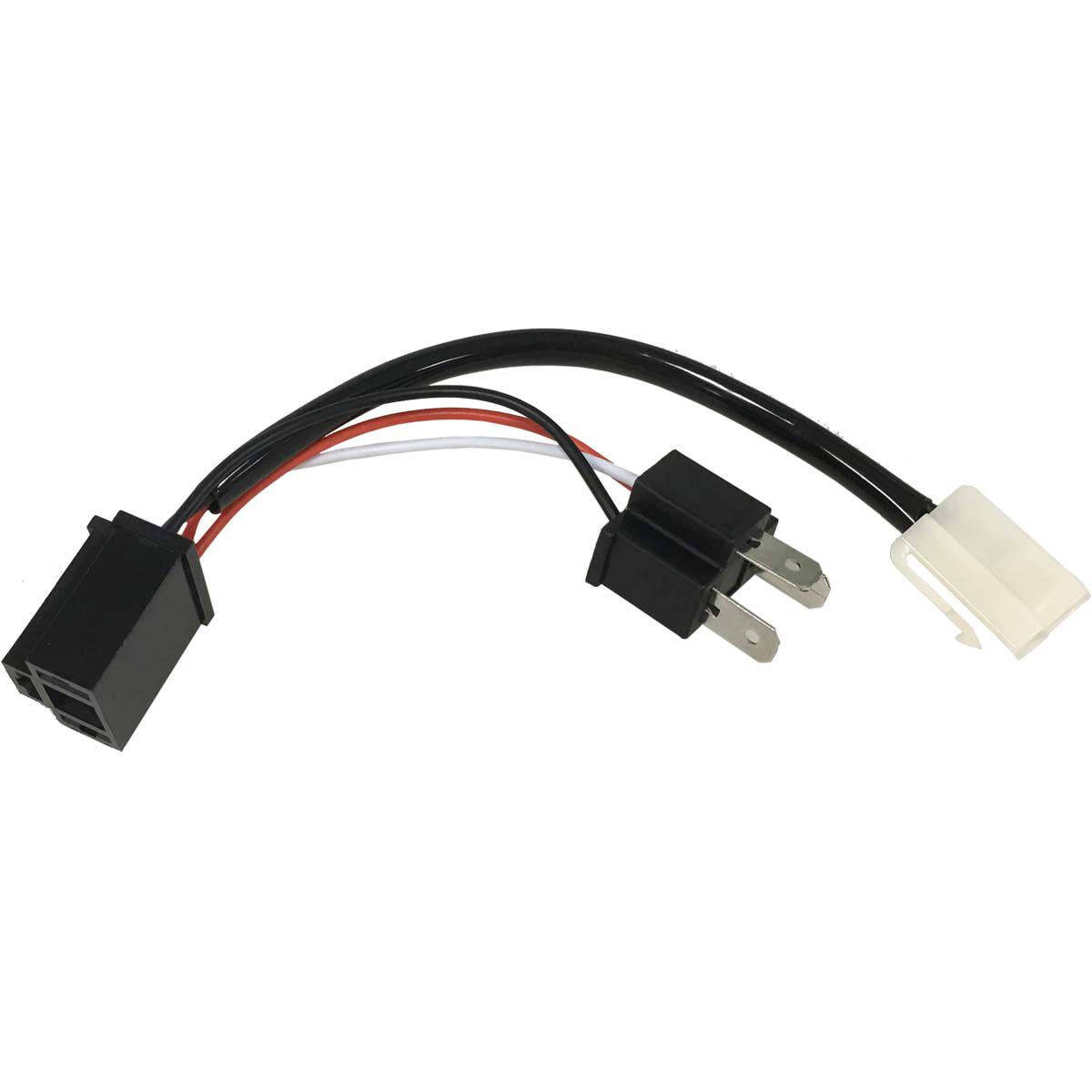

Intergrated plug & play connector and included wiring harness for easy installation
Tech Spec
XTM PHAETHON 224 DRIVING LIGHTS WITH DRL
| DIAMETER | 224mm with cover |
|---|---|
| RATED POWER | 155W (main light) + 6W (DRL) per light |
| OPERATING LUMENS OUTPUT | 22,000 lumens per pair / 11,000 per light |
| DISTANCE TO 1 LUX | 1,249m per pair |
| INPUT VOLTAGE | 12V-24V |
| CURRENT DRAW (MAIN LIGHT) | 11.25A @ 12V / 5.65A @ 24V per light |
| CURRENT DRAW (DRL) | 0.2A @ 12V / 0.08A @ 24V per light |
| COLOUR TEMPERATURE | 6,000K |
| IP RATING | IP68 |
| HOUSING MATERIAL | Die-cast alunimium alloy |
| LENS MATERIAL | Polycarbonate |
| DIMENSIONS WITH BRACKETS | 224(L) x 128(W) x 243(H)mm |
| WEIGHT (PER LIGHT) | 3.05kg |
| WARRANTY | 12 months |
