Simrad GO XSE Combo 9in
Details
https://www.bcf.com.au/p/simrad-go-xse-combo-9in/628065.htmlPromotions
Buy now, pay four interest-free payments.
- 4 simple installments
- 100% interest-free, no hidden fees
Additional Information
Product Info
Product Info

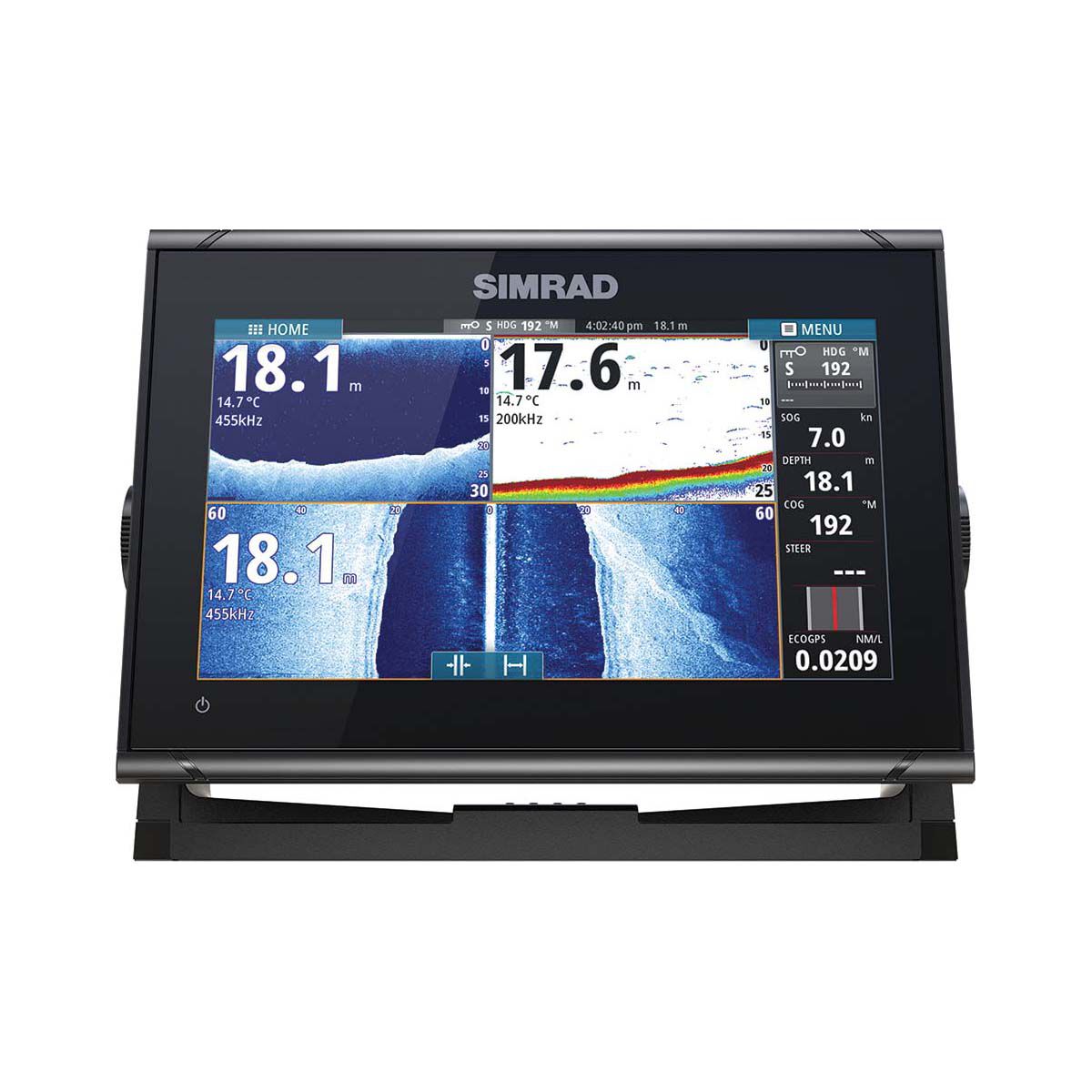

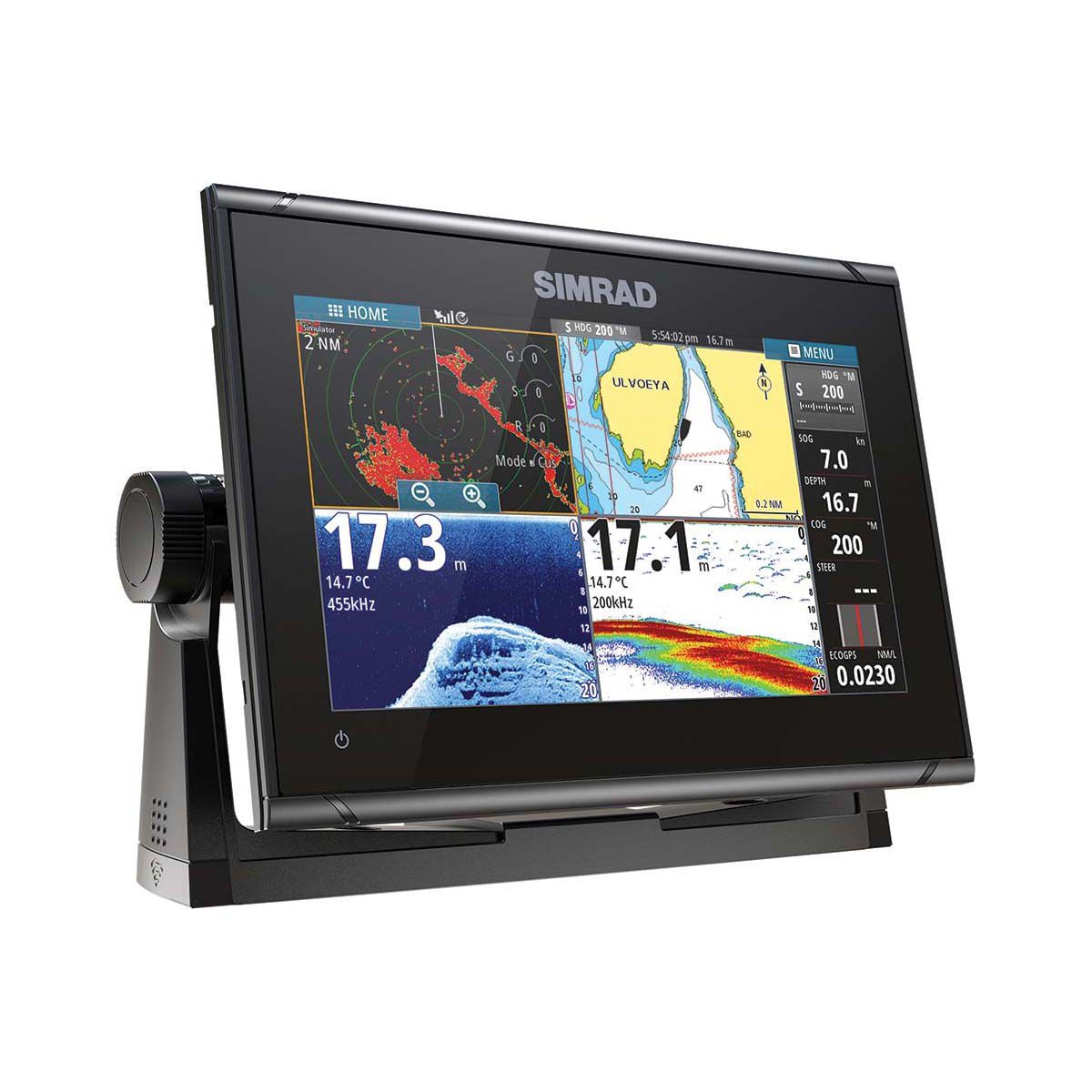

The Simrad GO XSE Combo is the perfect way to add sonar, radar, and GPS navigation to your vessel. It updates the GO XSE with a stylish glass-helm design, plug and play support for Simrad radars, and a host of other upgrades. The compact, feature-filled display makes it a great option for smaller boats and centre consoles. Plus it has full wifi and bluetooth connectivity so you can stay in control from anywhere in your boat.
The combo comes supplied with C-Map Discover charts for Australia and New Zealand, and the included Active Imaging Transducer. Active Imaging delivers incredibly detailed hi-res images, without sacrificing the range. It's rated IPX7 for waterproof durability, with a 10hz internal GPS aerial. All packaged with a beautiful, 9 inch sunlight-viewable touchscreen.
Features
- Super bright, multi-touch widescreen display
- Includes C-Map Discover Aus/NZ charts
- Plug and play support for Simrad Radars
- Wifi and Bluetooth connectivity
- IPX7 waterproof rating
- 10hz internal GPS aerial
Tech Spec
| MECHANICAL/ENVIRONMENTAL | |
|---|---|
| CASING | PC/ABS |
| OPERATING TEMP | -15°C to +55°C (+5°F to +131°F) |
| WATER INGRESS | IPX6 and 7 |
| WEIGHT (EXCLUDING MOUNTING HARDWARE) | 1.315 kg (2.9 lbs) - GO9 XSE |
| SCREEN BRIGHTNESS | 1200 nits |
| SCREEN RESOLUTION | 480 x 800 (H x W) |
| VIEWING ANGLE IN DEGREES (TYPICAL VALUE AT CONTRAST RATIO = 10) | L/R: 70, top: 50, bottom: 60 |
| ELECTRICAL | |
| OPERATING VOLTAGE | 10 - 17 V DC |
| CURRENT DRAW AT 13.6 V (SONAR OFF, MAX B/L) | 0.0416666666666667 |
| LOW POWER STANDBY MODE | yes |
| PROTECTION | reverse polarity and temporary over-voltage to 36 V |
| ALARM OUTPUT CURRENT | 1 A max |
| PROCESSOR | iMX61 single core |
| CONFORMITY | CE, C-Tick |
| NMEA 2000 (COMPLIANT) | 1 port (Micro-C male),network load 1 LEN : 1 combined port Power and NMEA 2000 (7 pin connector) |
| SONAR | 1 port (9 pin connector) Radar 1 port (5 pin ethernet connector) |
| CARD READER | Dual microSD |
