ENERDRIVE

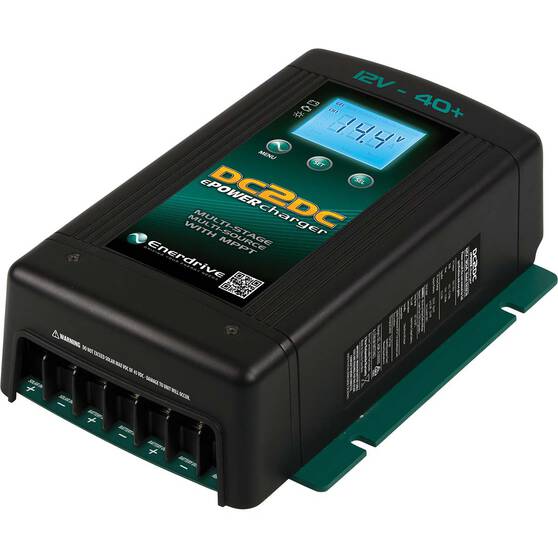

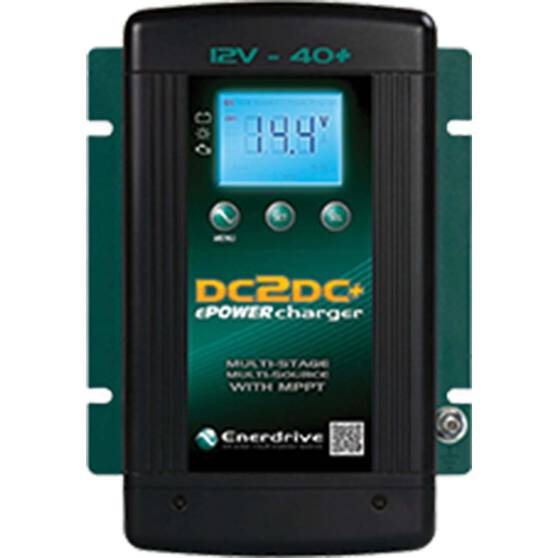

Enerdrive 40A MPPT DC-DC Battery Charger
Details
https://www.bcf.com.au/p/enerdrive-40a-mppt-dc-dc-battery-charger/648670.htmlPromotions
Special Offer
Or 4 payments of
$157.25
with
Buy now, pay four interest-free payments.
- 4 simple installments
- 100% interest-free, no hidden fees
Additional Information
Product Info
Product Info
The Enerdrive DC-DC Battery Charger is a multi-input charger that allows you to have it connected to both alternator linked car battery and solar panels at the same time. This allows it to charge your battery from your car when you are on the move and from solar panels via the inbuilt MPPT solar controller when you stop. It's fully automatic so there is no need to manually switch between the 2 modes. This battery charger allows you to simply set and forget. It's designed to quickly and accurately charge your battery and can be connected permanently without any risk to your battery.
The charger has a 3 stage charging process to protect your battery.
Stage 1 - Bulk or boost charge; The battery is charged at the full rated output of the charger until it reaches its absorption voltage at about 80% charge.
Stage 2 - Absorption charge; The remaining 20% of the battery is charged with the charger voltage held steady, allowing the current to taper off as the battery gets close to being fully charged.
Stage 3 - Float; The voltage of the charger is lowered and held at a safe level so that it will supply enough current to allow for any self-discharge or loads on the battery without overcharging.
The smart charging feature of the charger allows it to regulate its output based on the load connected to your battery. This is important for maintaining the life of your battery.
The charger has a 3 stage charging process to protect your battery.
Stage 1 - Bulk or boost charge; The battery is charged at the full rated output of the charger until it reaches its absorption voltage at about 80% charge.
Stage 2 - Absorption charge; The remaining 20% of the battery is charged with the charger voltage held steady, allowing the current to taper off as the battery gets close to being fully charged.
Stage 3 - Float; The voltage of the charger is lowered and held at a safe level so that it will supply enough current to allow for any self-discharge or loads on the battery without overcharging.
The smart charging feature of the charger allows it to regulate its output based on the load connected to your battery. This is important for maintaining the life of your battery.
Features
- A dedicated Maximum Power Point (MPPT) solar regulator
- Two totally independent DC Inputs for both engine and solar regulation charging
- DC M6 screw terminals that will allow for large battery cable connection between all sources
- Vehicle input allows for either 12 or 24v and a maximum solar input of 45V/800W
- 40A+ output up to 40+°C with thermo controlled fan cooling
- Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
- Temperature sensor included with charger for more accurate battery charging
- GEL, AGM, Flooded, Lithium and the ability to create a full custom profile
- 5 year warranty
Tech Spec
ENERDRIVE DC-DC 40A MPPT BATTERY CHARGER
| OUTPUT VOLTAGE | 12V nominal (8V min.) |
|---|---|
| OUTPUT CURRENT (MAX.) | 40A - 50A |
| OPTPUT POWER | 775W |
| SELECTABLE BATTERY TYPE | Gel, AGM, flooded, lithium, program |
| CHARGER VOLTAGE RANGE | 13.8V - 15.5V |
| FLOAT VOLTAGE RANGE | 13V - 13.8V |
| CHARGER CURRENT (SELECTABLE) | 5/10/15/20/25/30/35/40/45/50A (default 40A) |
| EQUALIZE VOLTAGE (FLOODED BATTERY) | 15.5V |
| EQUALIZE CHARGING CURRENT | 10% of bulk current setting |
| CHARGING CONTROL | 2 stage / 3 stage selectable (default 3 stage) |
| DC OUTPUT BANK | Single |
| CURRENT DRAW FROM CH1 WHEN NOT IN USE | <50mA |
| BATTERY TEMPERATURE SETTING | Low/normal/high (battery temp sensor standard) |
| EFFICIENCY | 0.95 |
| INPUT VOLTAGE (CH2 - MPPT SOLAR) | 14.5 - 45VOC |
| MAX. INPUT (CH2 - MPPT SOLAR) | ≤ 23V input, 500W (600W allowable) ≥37.5V-45V input, 750W (800W allowable) |
| INPUT VOLTAGE (CH3 - START/ALTERNATOR) | 10.5 – 16VDC / 21 – 32VDC |
| DIMENSIONS | 242(H) x 175(W) x 74(D)mm |
| WEIGHT | 1.85kg |
| WARRANTY | 5 years |
