XTM 20A MPPT Solar Controller
Details
https://www.bcf.com.au/p/xtm-20a-mppt-solar-controller/709358.html
$149.99
Promotions
Special Offer
Additional Information
Product Info
Product Info

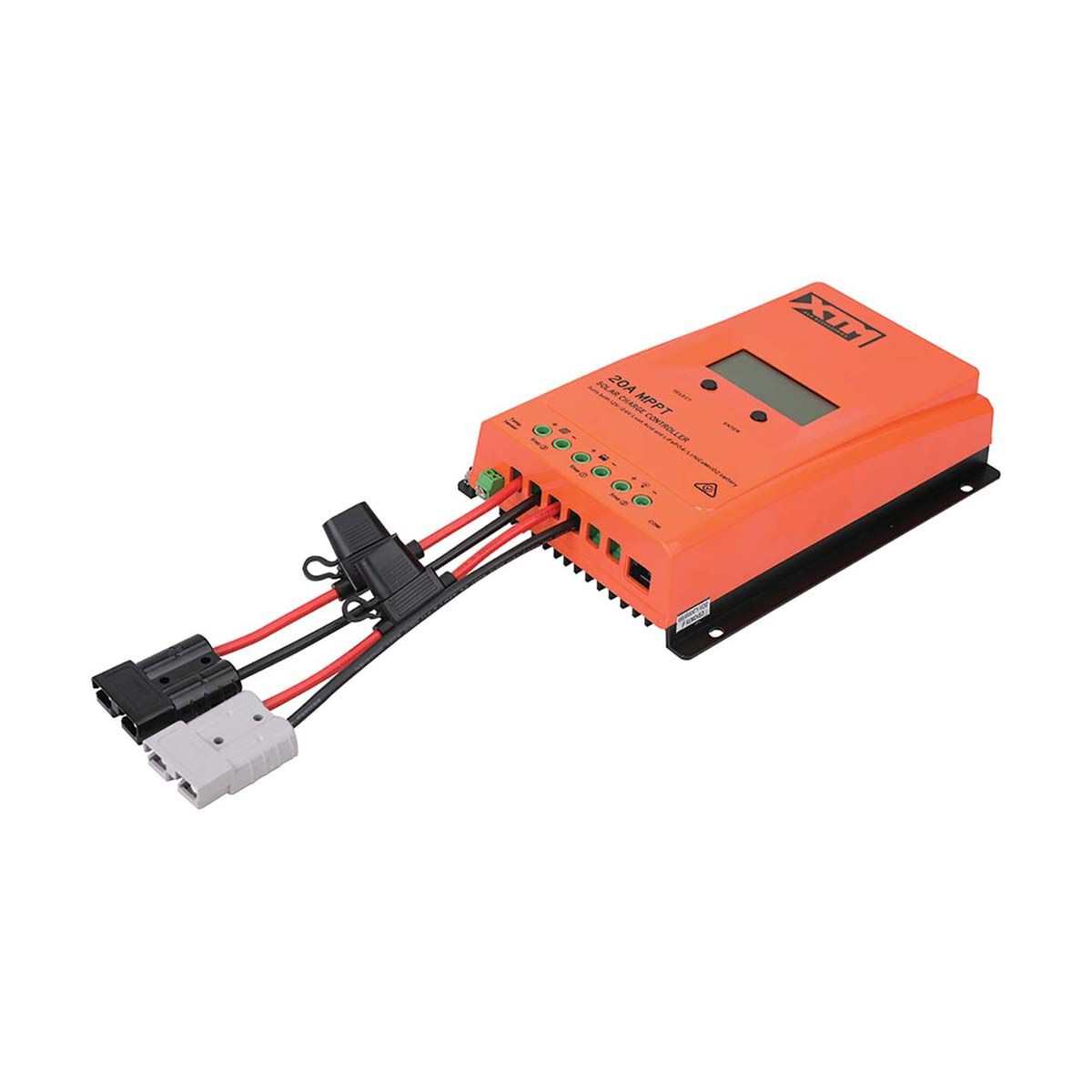

Keep your batteries charged and your setup running smoothly with the XTM 20A MPPT Solar Controller. Using advanced MPPT technology with ultra-fast tracking, it maximises efficiency to deliver reliable charging performance up to 20A. Compatible with lithium, sealed, gel, flooded, and VRLA batteries, it’s a versatile unit ready for all kinds of off-grid adventures.
With quick connect plugs, setup is simple, and the clear LCD display keeps you in the loop by showing volts, amps, watts, and the power being generated in real time. Suitable for both 12V and 24V systems, it can handle up to 260W of solar on 12V or 520W on 24V setups. Compact, powerful, and easy to use, the XTM 20A MPPT Solar Controller is the perfect way to keep your gear powered in the great outdoors.
With quick connect plugs, setup is simple, and the clear LCD display keeps you in the loop by showing volts, amps, watts, and the power being generated in real time. Suitable for both 12V and 24V systems, it can handle up to 260W of solar on 12V or 520W on 24V setups. Compact, powerful, and easy to use, the XTM 20A MPPT Solar Controller is the perfect way to keep your gear powered in the great outdoors.
Features
- Cutting edge MPPT technology with ultra-fast tracking
- Powerful charging up to 40A
- Compatible with lithium, sealed, gel, flooded and VRLA batteries

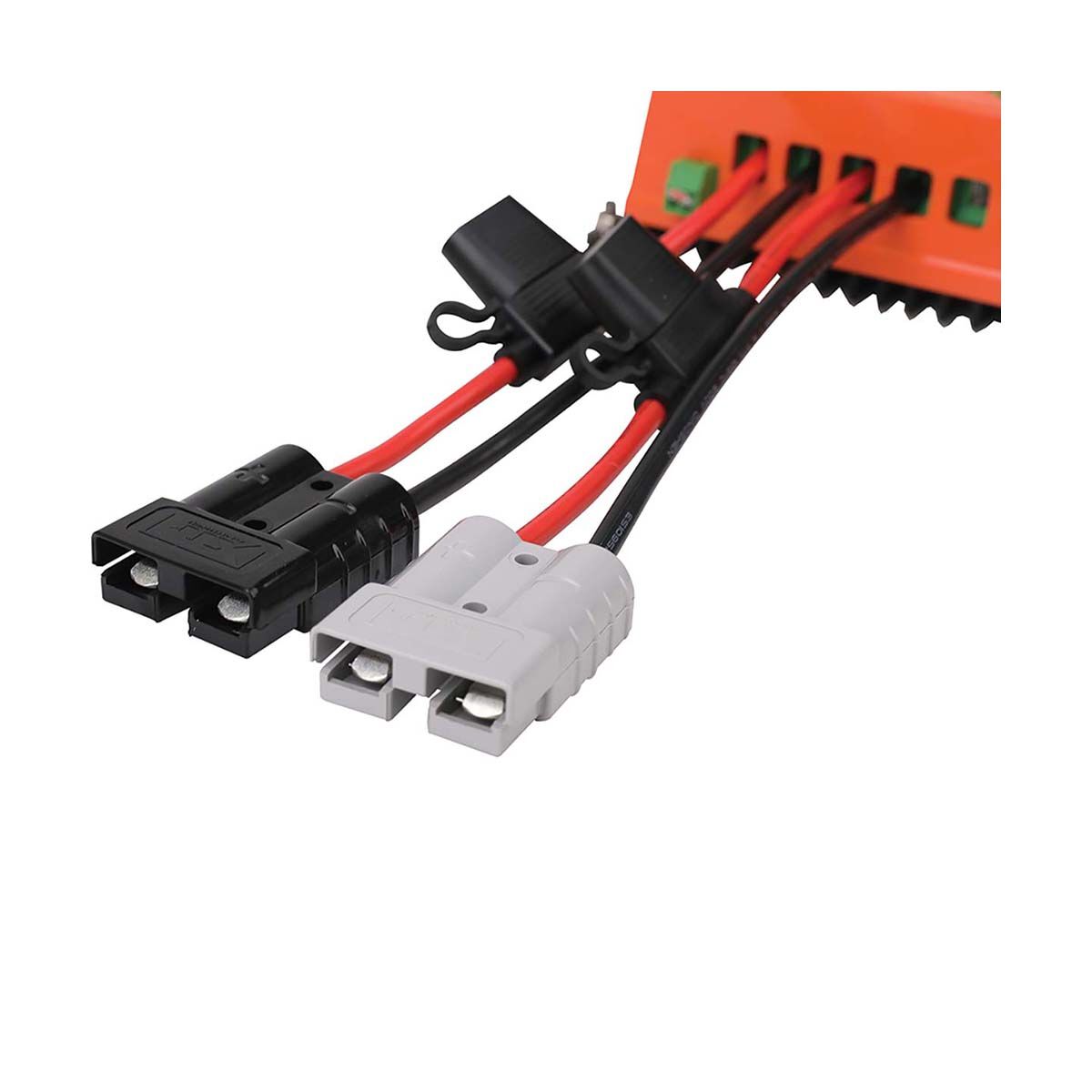

- Quick connect plugs to simplify your set up
- LCD display that shows volts, amps, watts and the power being generated
- 12/24V compatible
- Suitable for up to 260W of solar for 12V set ups and 520W for 24V set ups
- 3 year warranty
Tech Spec
XTM 20A MPPT SOLAR CONTROLLER
| COMPATABILITY | Lithium, sealed, gel, flooded and VRLA batteries |
|---|---|
| SCREEN DISPLAY | LCD display with backlight |
| WIRING SPECIFICATIONS | 200mm 10AWG + quick connect plugs |
| TERMINAL COMPATABILITY (MAX. WIRE SIZE) | Screw terminal (up to 6AWG) |
| EARTHING | Common negative |
| BATTERY VOLTAGE RANGE | 8-31V |
| MPPT VOLTAGE RANGE | Battery voltage +2V (not exceeding 36V) |
| MAX. PHOTOVOLTAIC OPEN CIRCUIT VOLTAGE INPUT | 46V |
| MAX. SOLAR POWER INPUT | 260W (12V) / 520 (24V) |
| STANDBY POWER CONSUMPTION | 8mA (12V) / 5mA (24V) |
| MAX. DC DC CONVERSION EFFICIENCY | 98% |
| MAX. TRACKING EFFICIENCY | 99% |
| LOAD CIRCUIT | Manual on/off functionality with programmable settings |
| DIMENSIONS | 220 x 154 x 52mm |
| WARRANTY | 3 years |
