XTM 4x4 Accessories
XTM 12V/24V Control Box
Details
https://www.bcf.com.au/p/xtm-12v%2F24v-control-box/659215.html
$99.99
Was
$199.99
Ends
09/06/25
Promotions
Special Offer
Additional Information
Product Info
Product Info

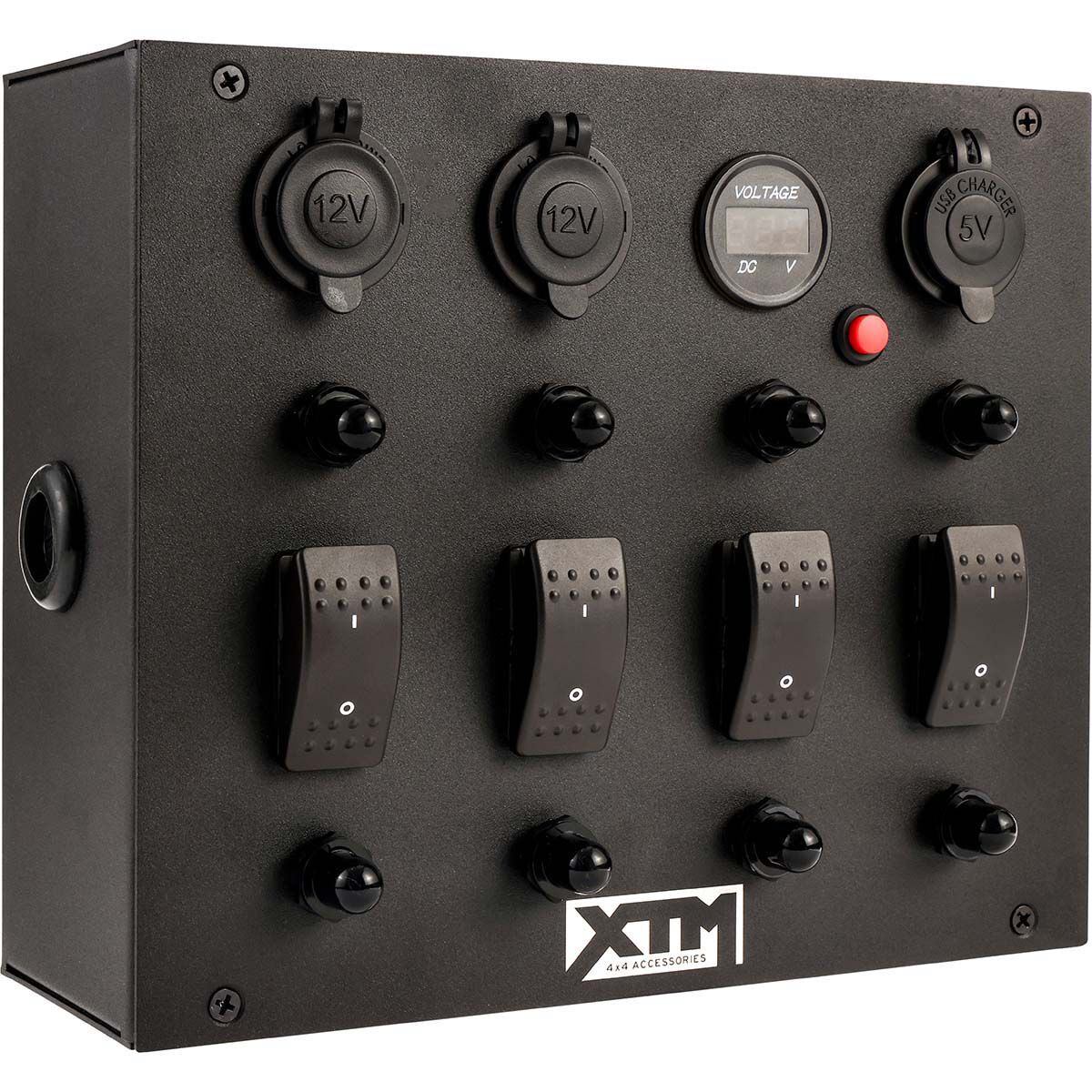

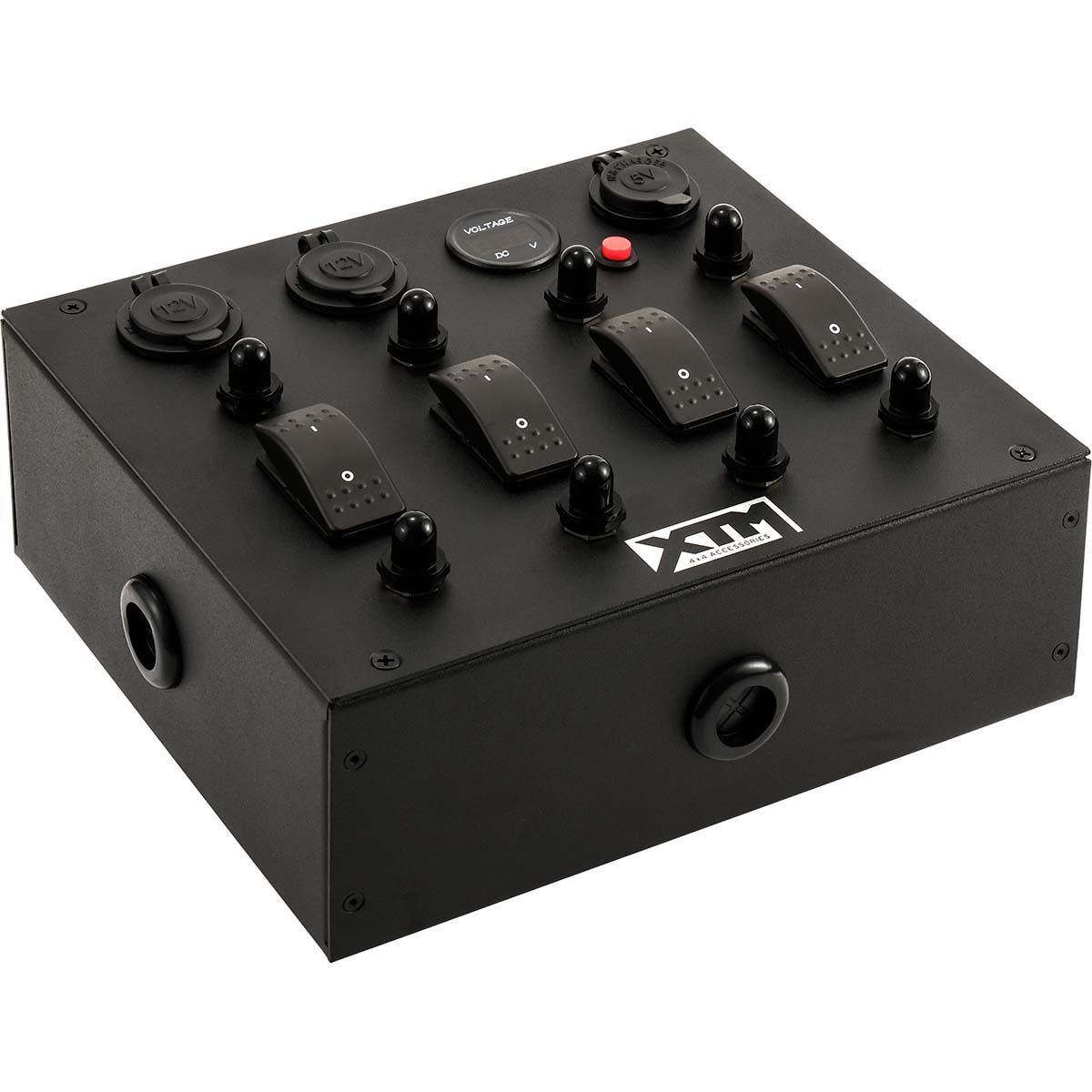

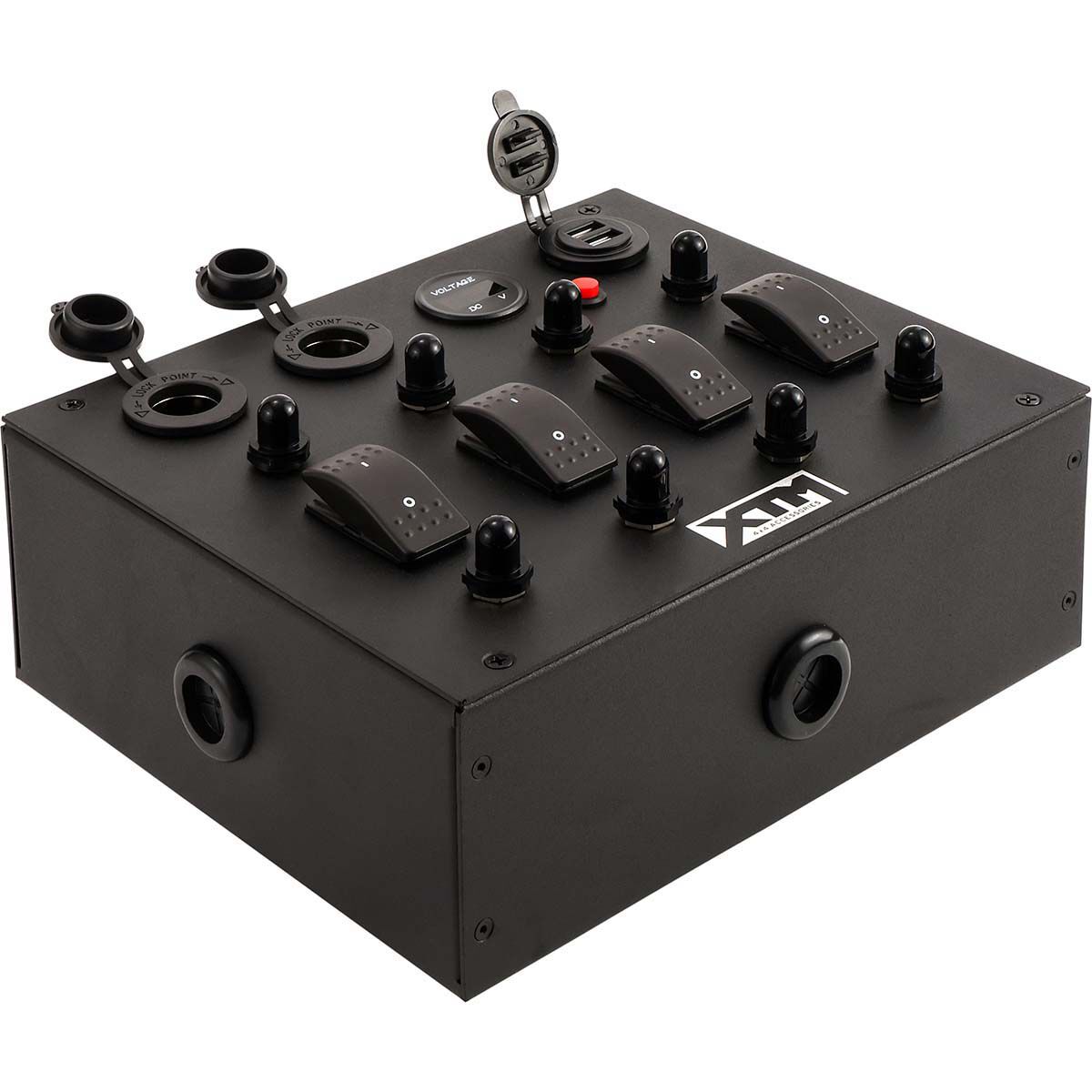

The XTM 12/24V Control Box is the perfect solution for organising your power needs in your 4WD, trailer and caravan. It comes pre-built, ready to use and is easy to install, and is made for lightweight laser cut black powder coated aluminium. It features 2 quick connect plugs for easy configuration with solar panels, 4 rocker switches that can be used to power camp lights and other accessories, a dual voltage voltmeter with LED display, 2 USB ports and 2 cigarette sockets. If you're kitting out your rig, the XTM Control Box is a must-have accessory.
The XTM Control Box comes with the following:
The XTM Control Box comes with the following:
- 12V/24V Control panel
- Dual voltage digital voltmeter with USB display

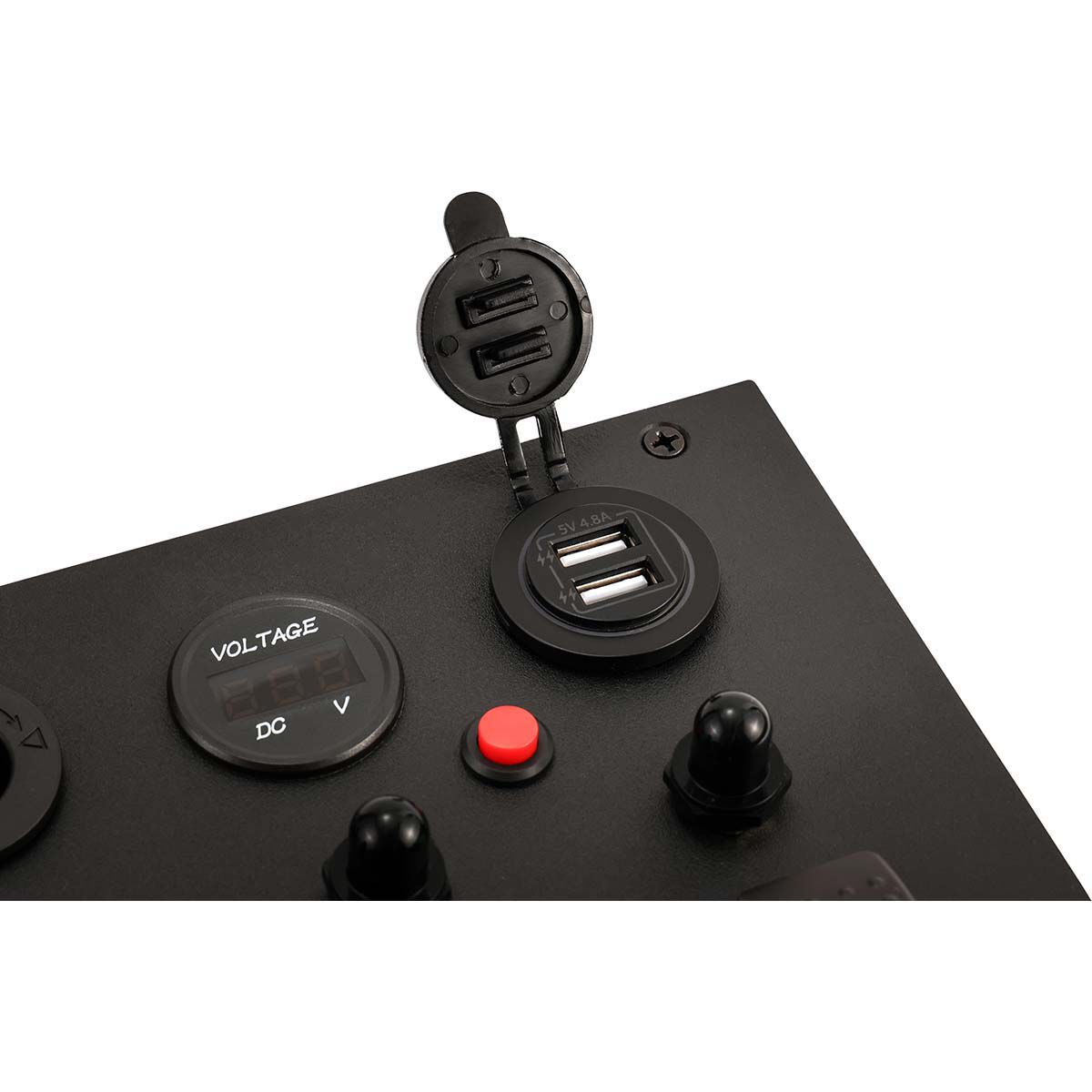

- USB socket with 2 ports

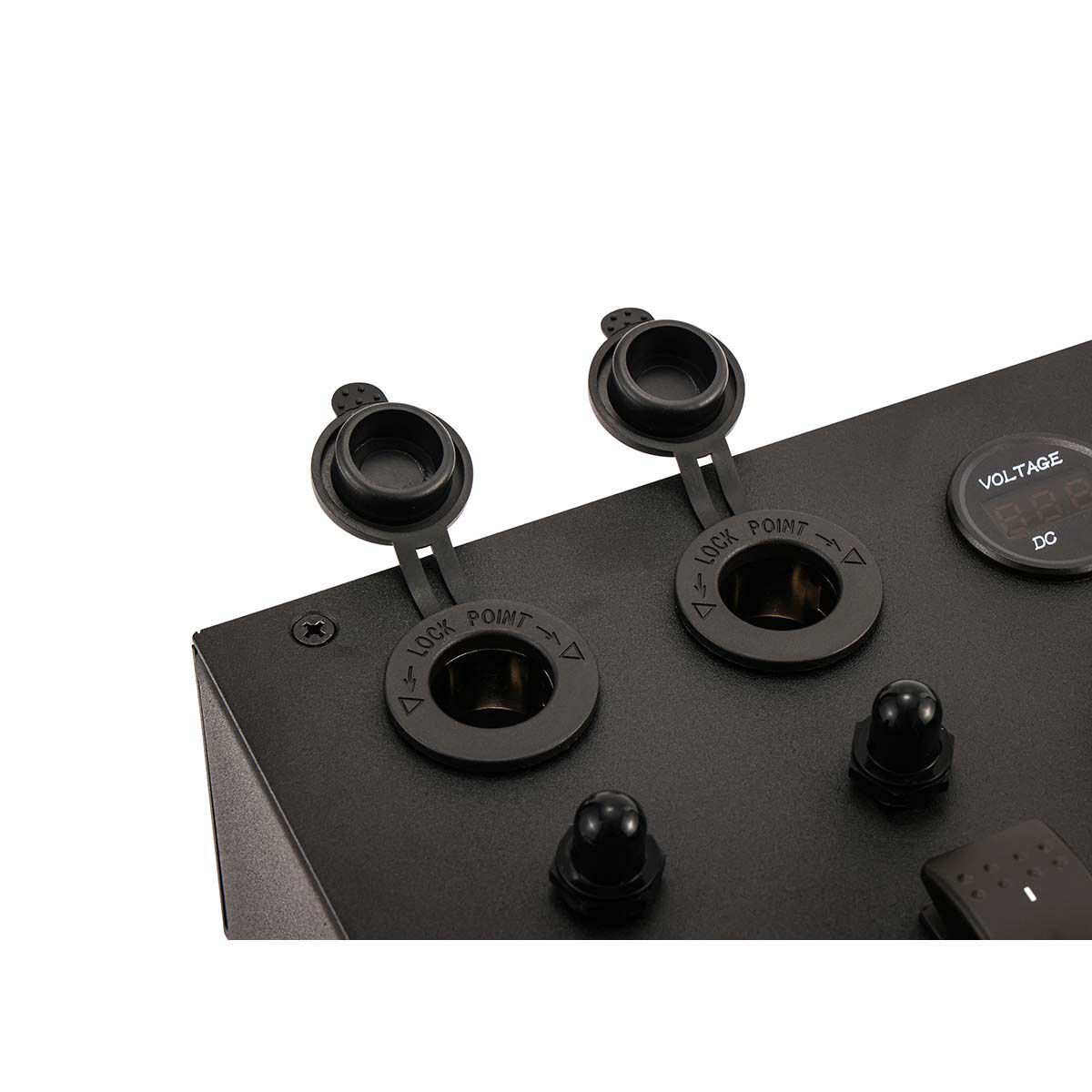

- 2 x 20A cigarette sockets
- 4 x 15A circuit breakers
- 2 x 20A circuit breakers
- 2 x 5A circuit breakers

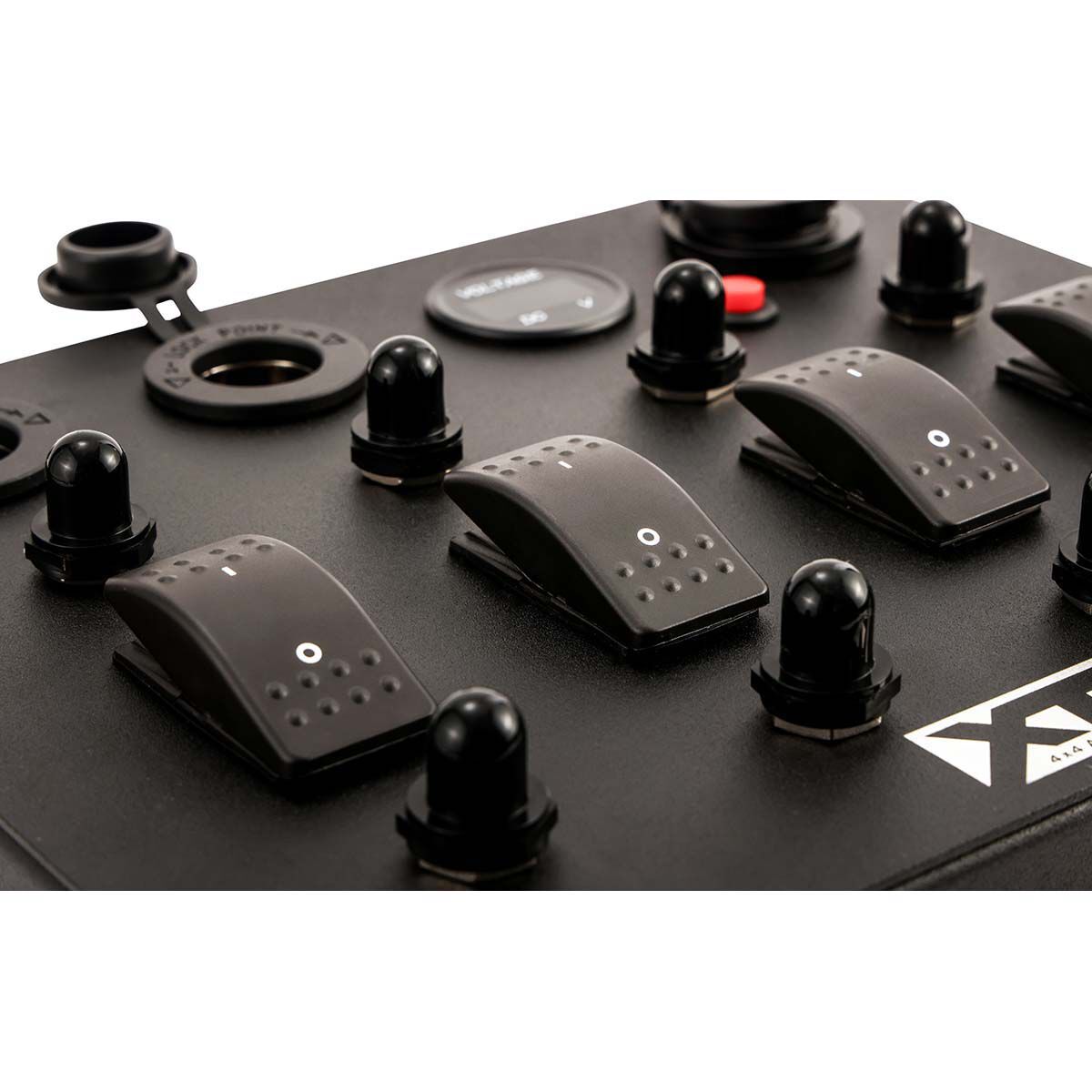

- 4 x rocker switches
Features
- Pre-built 12V/24V control system thats wired and ready to use
- Suitable for most 4WD, trailer and caravan applications
- Made from lightweight laser cut black powder coated aluminium

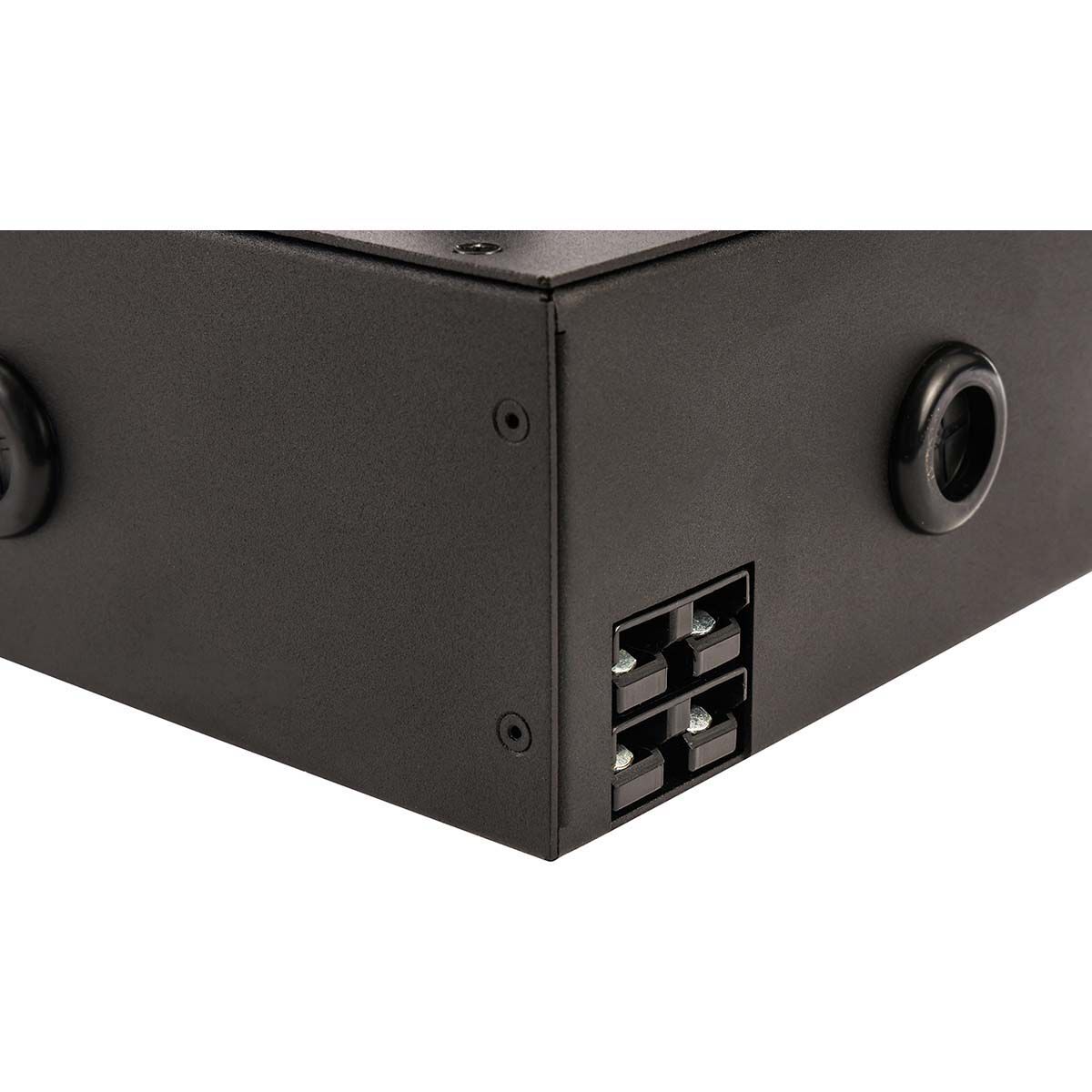

- 2 quick connect plugs for easy configuration of solar input
- 4 rocker switches that can be used to power camp lights and other accessories
- Dual voltage voltmeter with LED display
- USB socket with 2 ports and 2 cigarette sockets
- Dimensions: 27(L) x 23(W) x 12(H)cm
- Weight: 1.85kg
- 12 month warranty
Tech Spec
XTM 12/24V CONTROL BOX
| MAX. CUMULATIVE AMP | 50A |
|---|---|
| VOLTMETER | 2.5-29.9V DC |
| USB PORT (EACH) | 5V 2.4A |
| POWER SOCKET (EACH) | 12V 20A / 24V 10A |
| ROCKER SWITCH (EACH) | 12V 20A / 24V 10A |
| QUICK CONNECT PLUG | 50A total - max. 50A when single use |
| CURRENT BREAKER |
Power sockets - 15A USB/Voltmeter - 5A Rocker Switches - 15A |
| CIRCUIT BREAKER FOR QUICK CONNECT PLUG | Automatic reset 50A |
| OPERATING TEMPERATURE | -5 to 45°C |
| DIMENSIONS | 27(L) x 23(W) x 12(H)cm |
| WEIGHT | 1.85kg |
| WARRANTY | 12 months |
