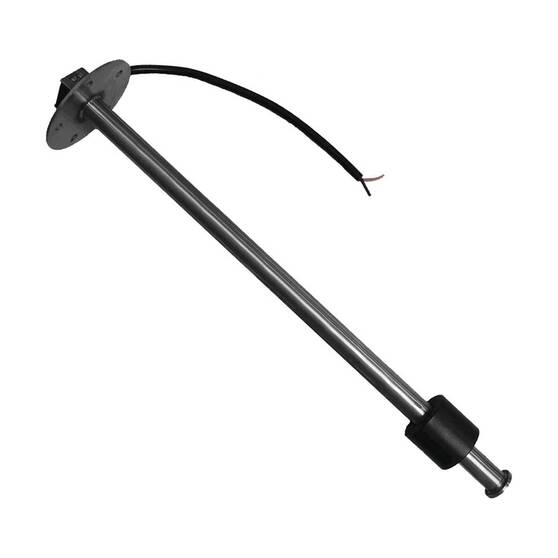

Veethree Reed Switch Fuel Tank Sender 0-180OHM
Details
https://www.bcf.com.au/p/veethree-reed-switch-fuel-tank-sender-0-180ohm/M629598.htmlPromotions
Variations
-
Size
Additional Information
Product Info
Product Info
Veethree Electronics lead the way in high performance marine technology. These range of reed switch senders are compatible with a variety of fuel and fluid types, including gasoline, diesel and hydraulic fluid. The reed switch sender unit provides fluid level information through a series of reed switches located inside the sealed level tube, a float with in-built magnets that trigger the reed relays to generate a resistance (with an OHM value) that increases and decreases. With the float being the only moving part of the sensor, these units a mechanically reliable and the range is suitable for use with both 12v and 24v gauges. Two output ranges of 0-180OHM and 240-33OHM are available in the range, in a number of different lengths to suit all fuel tank sizes.
Features
- 0-180OHM Output
- Compatible with a range of fuel and fluid types
- Suitable for 12v and 24v gauges
- 316 marine grade stainless steel build
- IP65 waterproof rating
- Floating is only moving part of sensor
- Mounting standard SAE 5 hole pattern
Tech Spec
| PLU | 629598 | 629599 | 629600 | 629601 | 629602 | 629603 | 629604 |
|---|---|---|---|---|---|---|---|
| OUTPUT | 0-180 OHM | 0-180 OHM | 0-180 OHM | 0-180 OHM | 0-180 OHM | 0-180 OHM | 0-180 OHM |
| LENGTH (MM) | 150 | 175 | 200 | 250 | 300 | 350 | 400 |
| NUMBER OF REED SWITCHES | 7 | 9 | 9 | 13 | 15 | 18 | 21 |
| MATERIAL | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
