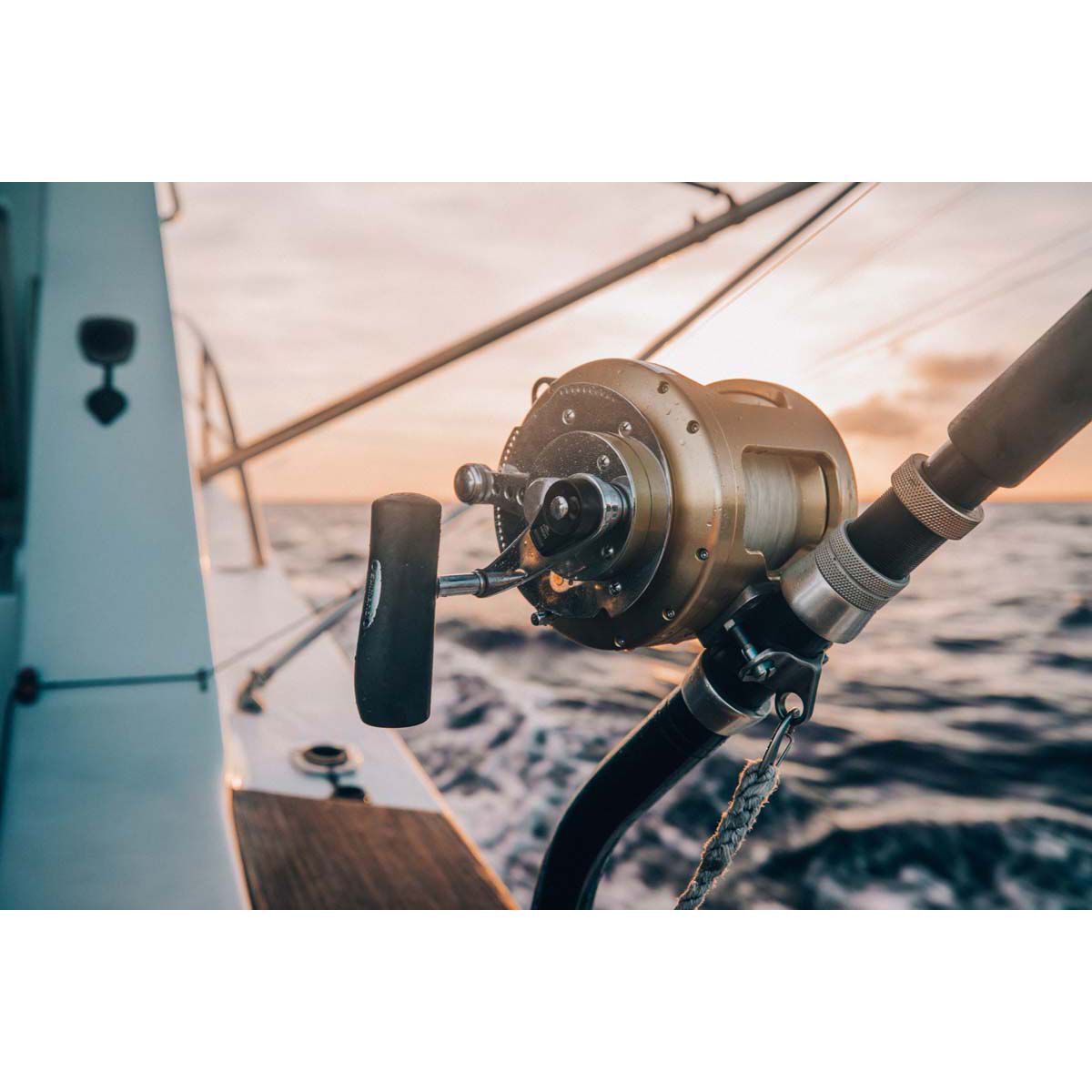

The Shimano Tiagra 20A Overhead Reel will help you take down the biggest, fastest game fish on the planet. They use a pre-lubricated drag washer that's impervious to saltwater, and a Hydrothermal drag system that automatically compensates for heat build-up, maintaining the original drag setting. The counterbalanced handle is designed to make winding easier, and the rubberised "tackiness" of the material helps keep it in your grip even when you're suffering from sweaty palms during a long fight.
Features
- Shimano's Hydrothermal drag system automatically compensates for heat build-up, maintaining the original drag setting
- 2 speed gearing mechanism where the pinion and drive gears are continuously meshed
- Saltwater ready Hagane body that can stand up to punishment
- A-RB bearings and heavy-duty stainless steel gears
- Shimano's 10 year warranty as the ultimate mark of quality
- Calibrated pre-set drag knob
- High crank power rating
- Cross-carbon drag
Tech Spec
SHIMANO TIAGRA OVERHEAD REEL
DESCRIPTION | PLU | MONO CAPACITY (KG/M) | BRAID CAPACITY (LB/YDS) | GEAR RATIO | RECOVERY RATE | MAX DRAG (KG) | BEARING COUNT | WEIGHT (G) |
---|---|---|---|---|---|---|---|---|
SHIMANO TIAGRA 16A | 130838 | 8/860 | 50/1210 | 3.9:1, 1.7:1 | 91/41cm | 13 | 6 | 1077 |
SHIMANO TIAGRA 20A | 618607 | 9/631 | 50/1225 | 3.9:1, 1.7:1 | 104/46cm | 16 | 4 | 1409 |
SHIMANO TIAGRA 30W LRSA | 136195 | 24/500 | 65/1435 | 3.9:1, 1.7:1 | 104/46cm | 15 | 4 | 1576 |
SHIMANO TIAGRA 50W | 108758 | 24/750 | 80/1575 | 3.1:1, 1.3:1 | 94/38cm | 20 | 4 | 2447 |
SHIMANO TIAGRA 50W LRSA | 136208 | 37/480 | 80/1575 | 3.1:1, 1.3:1 | 94/38cm | 20 | 4 | 2447 |
SHIMANO TIAGRA 80W | 130840 | 37/820 | 100/2445 | 2.5:1, 1.3:1 | 94/48cm | 24 | 4 | 3266 |
