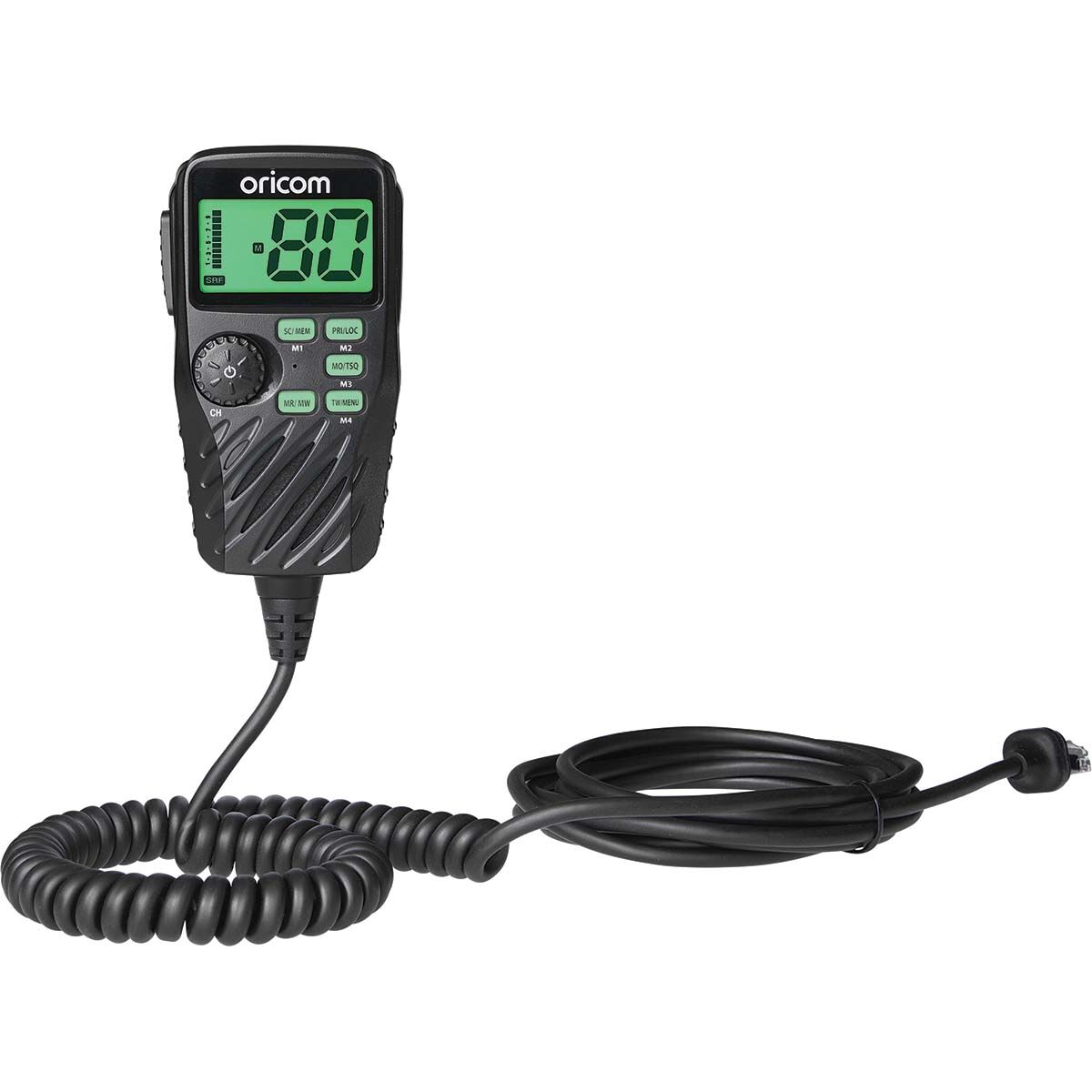

Oricom Controller Speaker Microphone 5W UHF CB Radio UHF390P
Details
https://www.bcf.com.au/p/oricom-controller-speaker-microphone-5w-uhf-cb-radio-uhf390p/704431.html
$329.99
Promotions
Special Offer
Additional Information
Product Info
Product Info

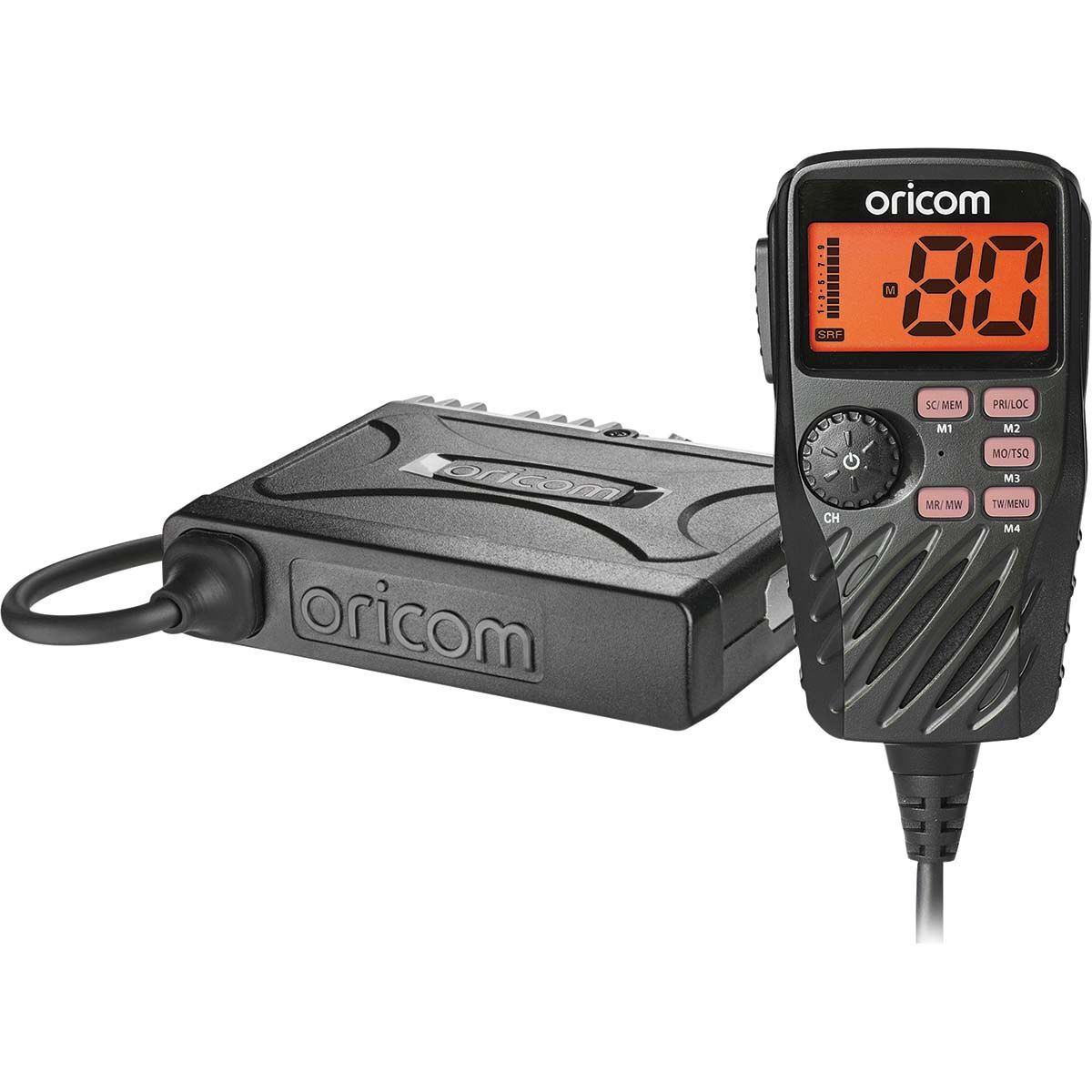

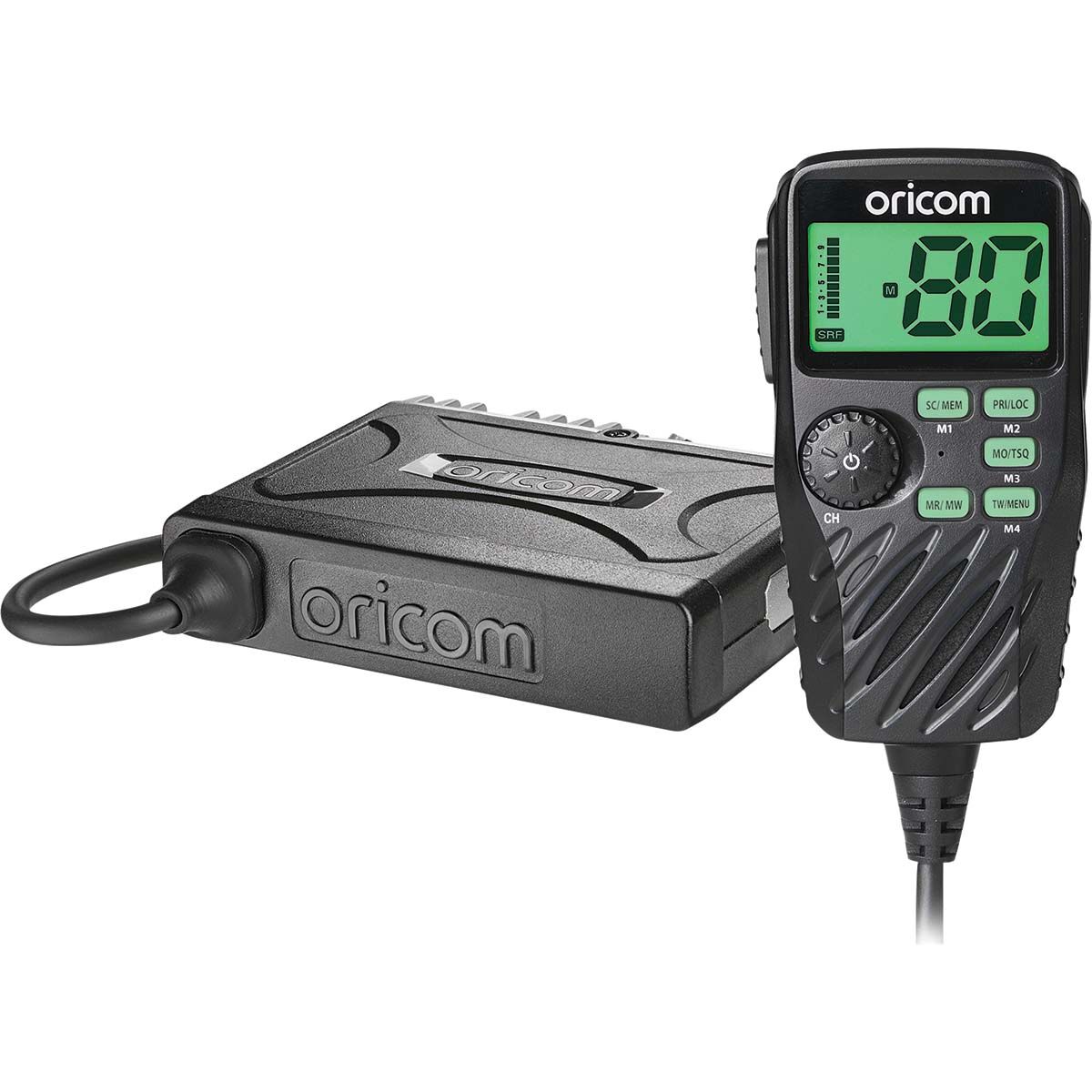

The Oricom Controller Speaker Microphone 5W UHF CB Radio UHF390P packs a serious punch for a compact unit, delivering maximum 5-watt TX power. This rugged radio is built for tough environments, with a heavy-duty controller speaker microphone that lets you control everything without needing a big head unit.

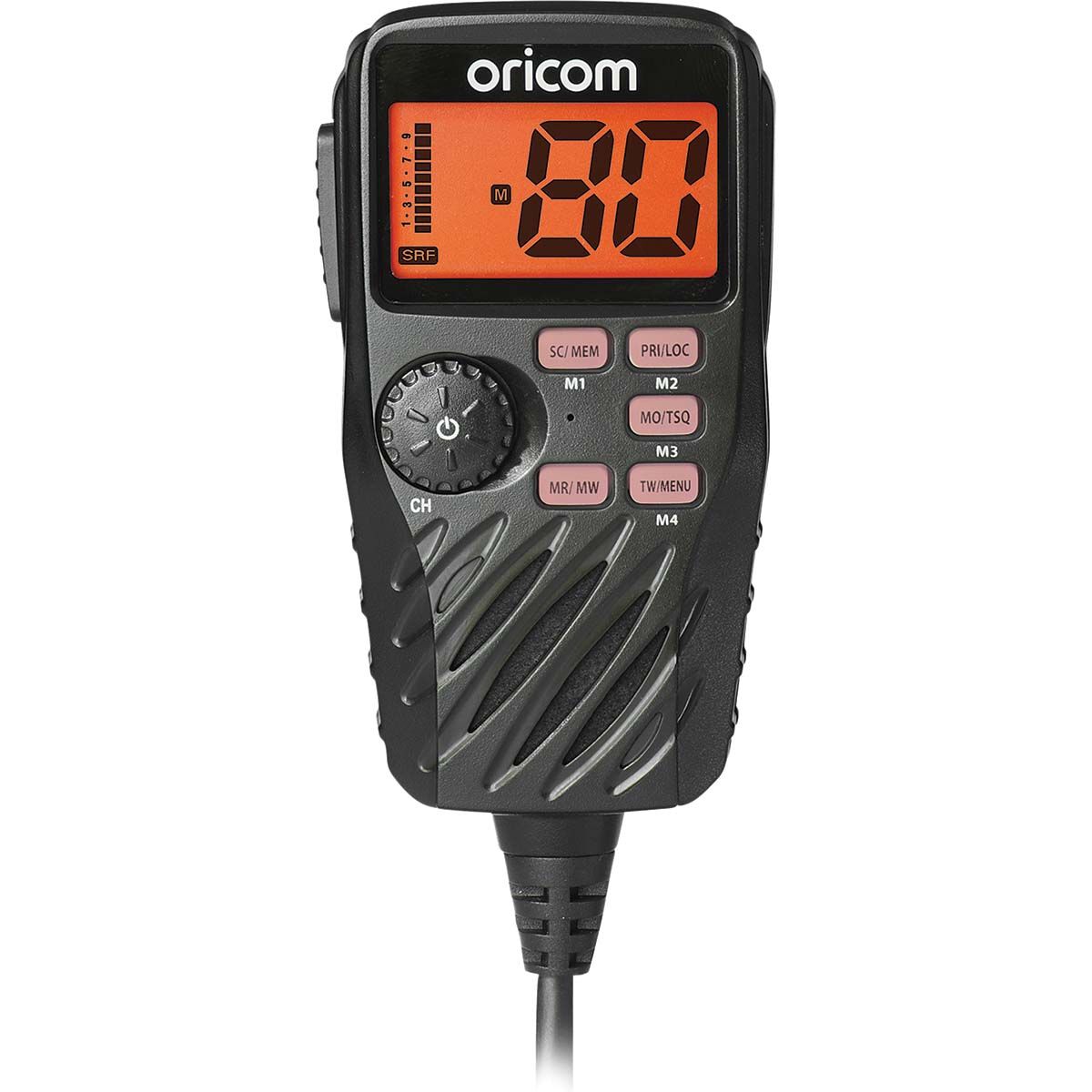

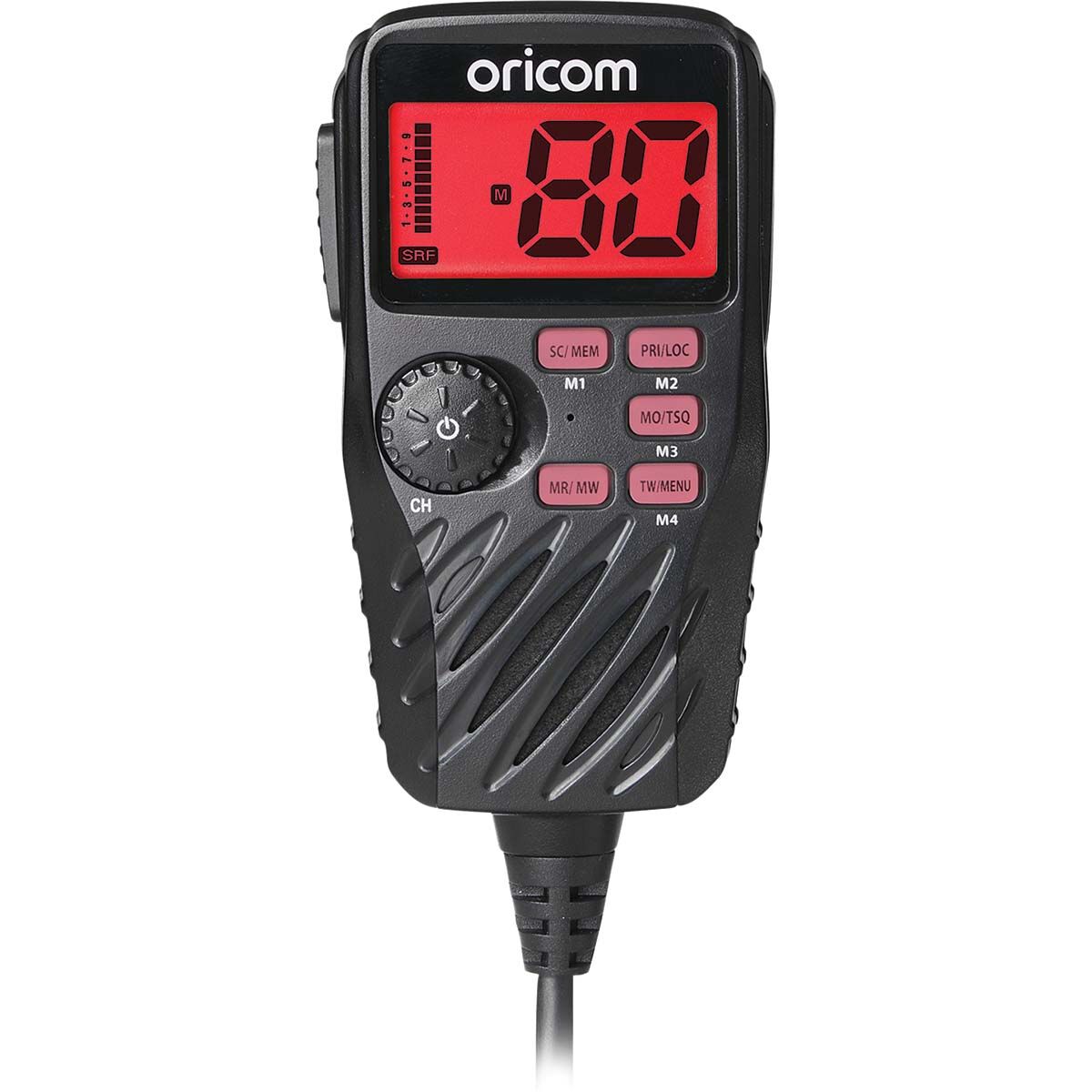

The large, easy-to-read LCD display has tri-colour backlighting (Amber, Red, Green), allowing for clear visibility in any conditions. It also features Automatic Level Control (ALC) for consistent audio quality, along with 38 CTCSS and 104 DCS codes for secure communications. With priority channel scanning, duplex range extension, and open/priority scan, this radio has everything you need for seamless communication on the go.
The large, easy-to-read LCD display has tri-colour backlighting (Amber, Red, Green), allowing for clear visibility in any conditions. It also features Automatic Level Control (ALC) for consistent audio quality, along with 38 CTCSS and 104 DCS codes for secure communications. With priority channel scanning, duplex range extension, and open/priority scan, this radio has everything you need for seamless communication on the go.
Features
- 5 watt (max TX power)
- Controls in microphone allows for a compact head unit

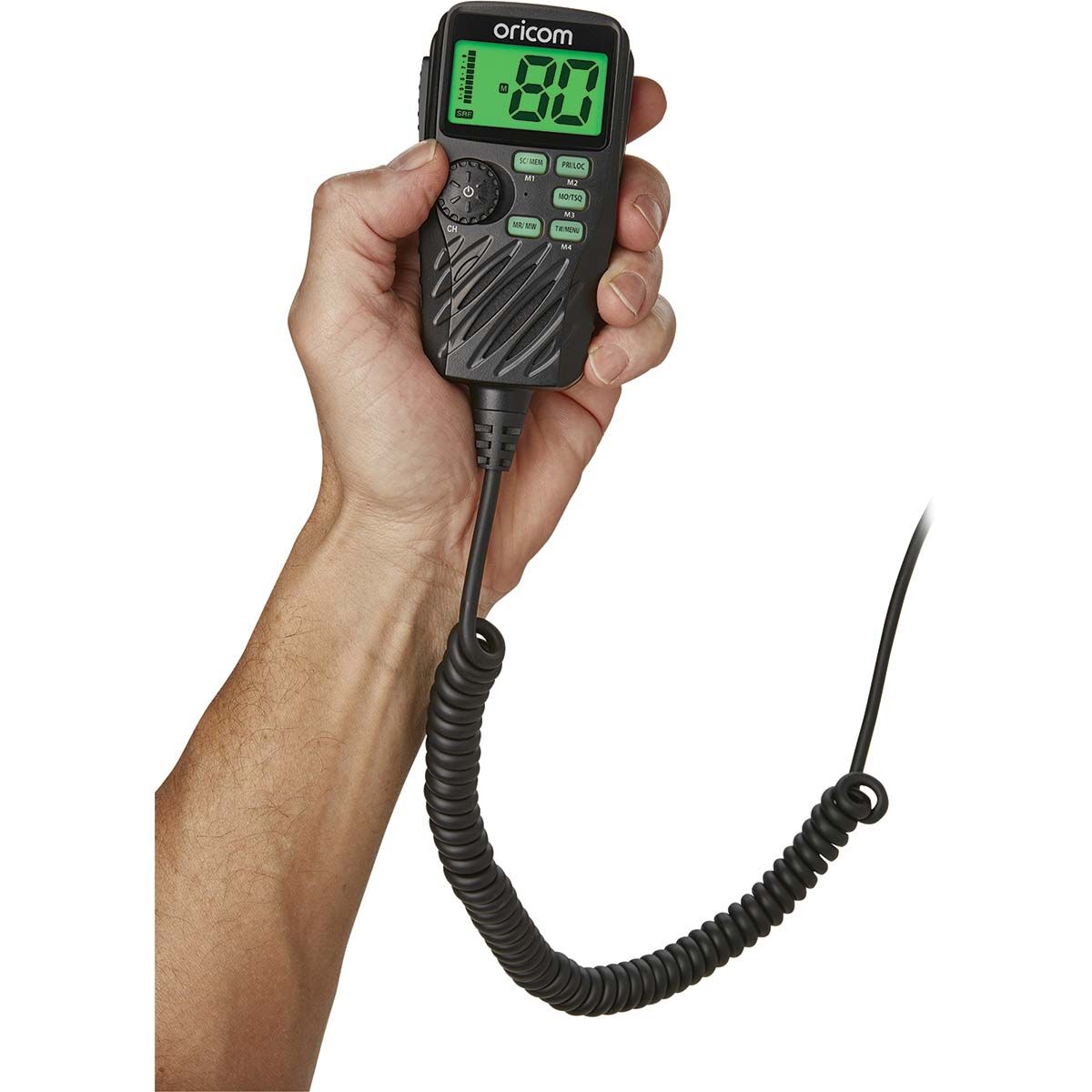

- Heavy duty controller speaker microphone

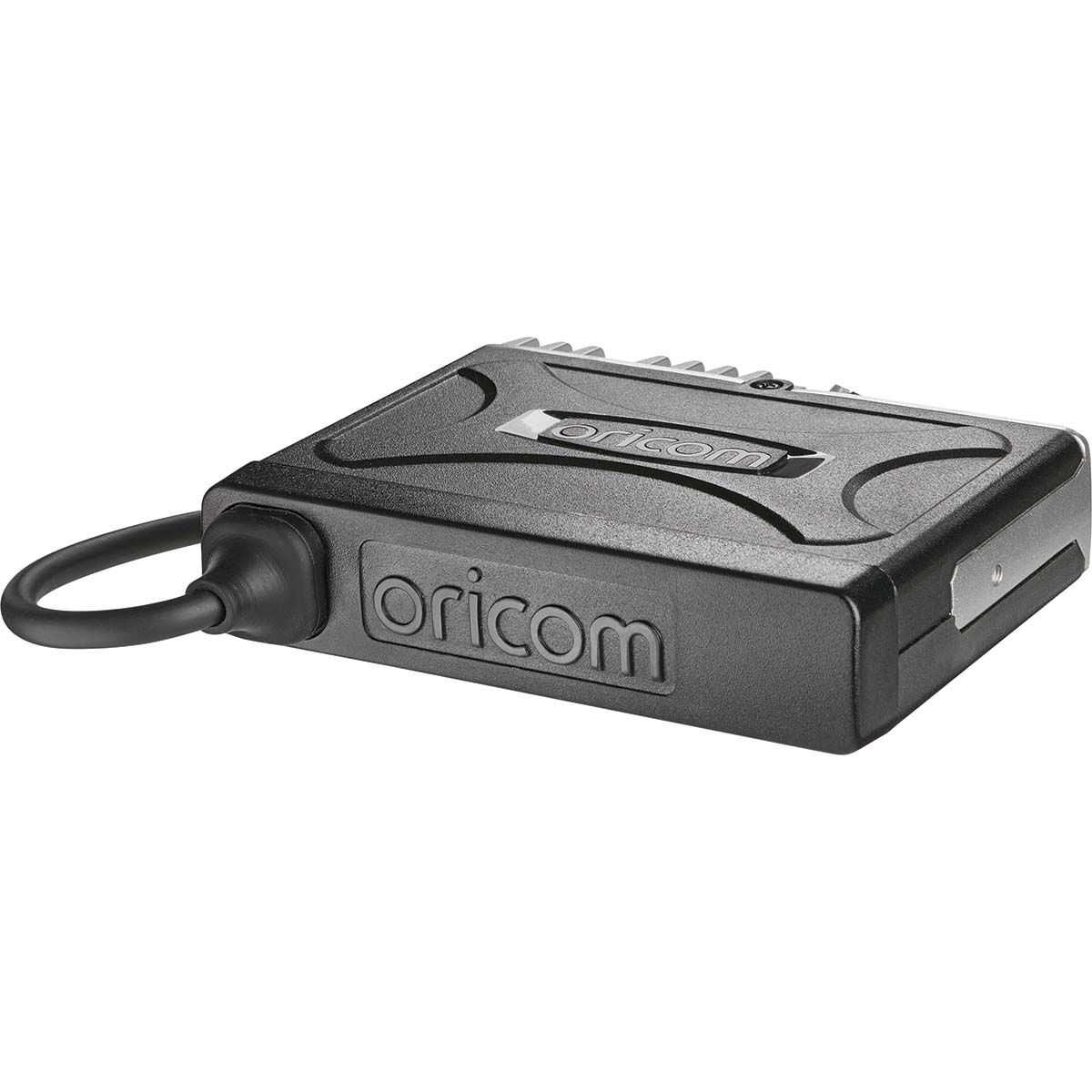

- Rugged micro size transceiver
- Large easy to read LCD display
- Automatic Level Control (ALC) for consistent audio levels
- 38 CTCSS and 104 DCS codes
- Duplex (range extender)
- Open/Priority scan and priority channel
- Tri colour backlit LCD display (Amber/Red/Green)
Tech Spec
ORICOM CONTROLLER SPEAKER MICROPHONE 5W UHF RADIO
FREQUENCY RANGE TX/RX | 476.425 - 477.4125 MHz |
---|---|
NUMBER OF TX/RX CHANNELS | 80 UHF CB (75 Voice channels) |
CHANNEL SPACING TX/RX | 12.5KHz |
OPERATING MOCES | Simplex, Repeater TX offset (+750kHz |
SANNING SPEED | 130 msec per channel |
ANTENNA IMPEDANCE | 50 Ohms |
OPERATING VOLTAGE | 13.8VDC |
OPERATING VOLTAGE RANGE | 10 to 15 VDC |
OVER VOLTAGE PROTECTION | Voltage regulator |
OVER CURRENT PROTECTION | 2 AMP fuse |
REVERSE POLARITY PROTECTION | Shunt diode |
FREQUENCY STABILITY | +/- 2.5ppm |
TRANSMITTER RF OUTPUT POWER | 5 watts |
MODULATION | F3E(FM) |
MAX DEVIATION | 2.5KHz |
SPURIOUS EMISSIONS | < -70 dBc |
TX AUDIO PRE-EMPHASIS | + 6dB/octave from 300Hz to 3kHz |
CURRENT CONSUMPTION DURING TX | 1.5 Amps with 50 Ohm antenna termination |
CIRCUIT TYPE | Direct conversion by single DSP chip |
INTERMEDIATE FREQUENCIES | IF = 137KHz |
MAX USEABLE SESNITIVITY | Less than -122dBm at 12dB SINAD |
AUDIO OUTPUT POWER | 3 Watts Maximum |
RX AUDIO DE-EMPHASIS | -6dB/octave 300Hz to 3kHz |
