Oricom 5 Watt CB Radio and Antenna Pack
Details
https://www.bcf.com.au/p/oricom-5-watt-cb-radio-and-antenna-pack/572722.html
$224.99
Was
$299.99
Ends
04/10/26
Promotions
Special Offer
Or 4 payments of
$56.25
with
Buy now, pay four interest-free payments.
- 4 simple installments
- 100% interest-free, no hidden fees
Additional Information
Product Info
Product Info
The Oricom 5 Watt UHF CB Radio and Antenna Pack is the perfect portable communication kit. It’s ultra-compact and comes with everything you need to get connected with ease. It includes bullbar and bonnet bracket mounting options, and an ANU200 6.5dBi antenna. This compact UHF CB radio includes a flip screen function, and it’s the perfect install in modern vehicles where space is limited. A great all in one solution to keep you connected on and off the road.
Features
- Pack includes 5 Watt UHF CB radio; antenna; bullbar and bonnet brackets
- 5 year warranty

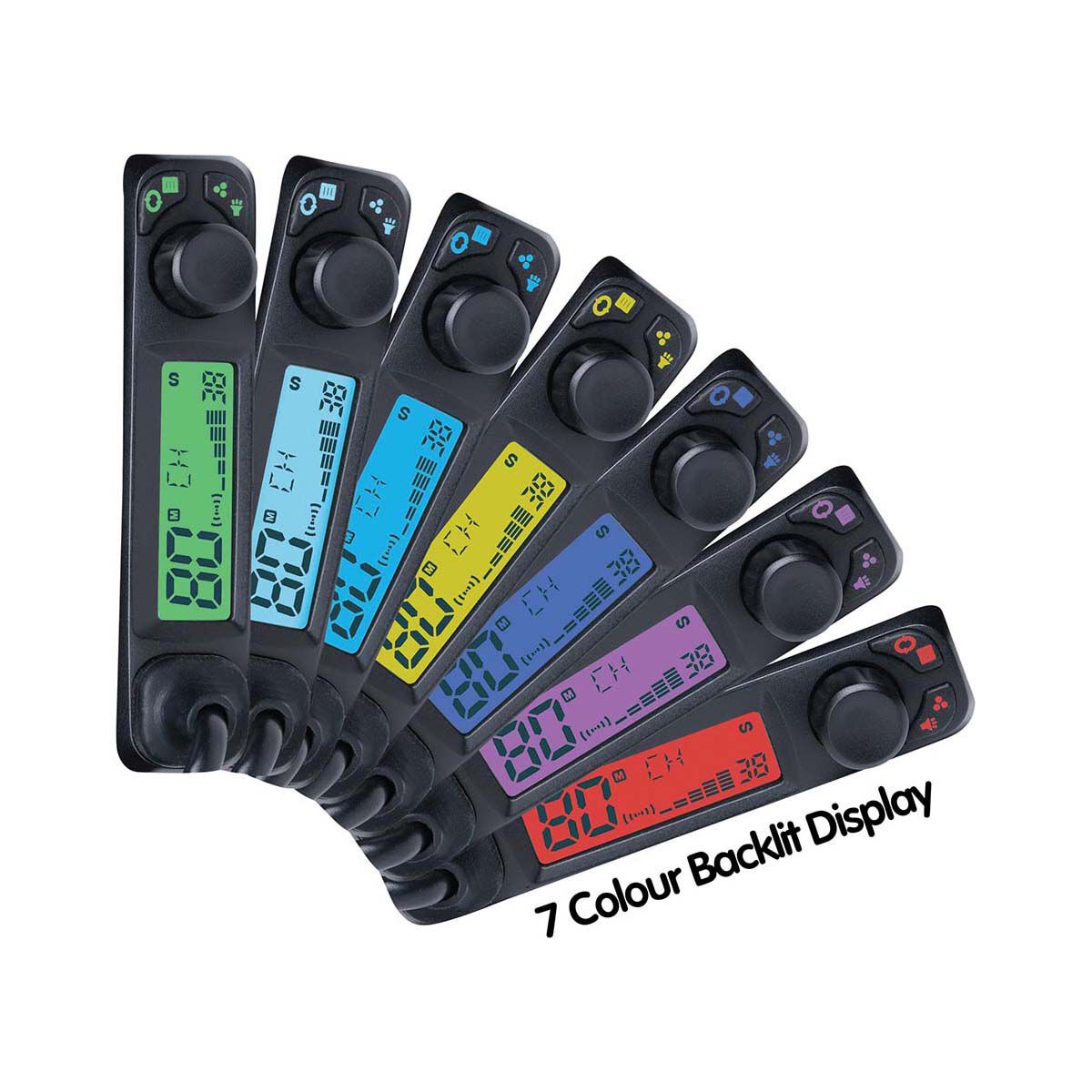

- 7 colour backlit display
- Radio - 80 channels; ultra compact; flip LCD function; duplex
- Antenna - 6.5dBi gain; pre- tuned; fibreglass whip; 4.2m coax cable and connectors

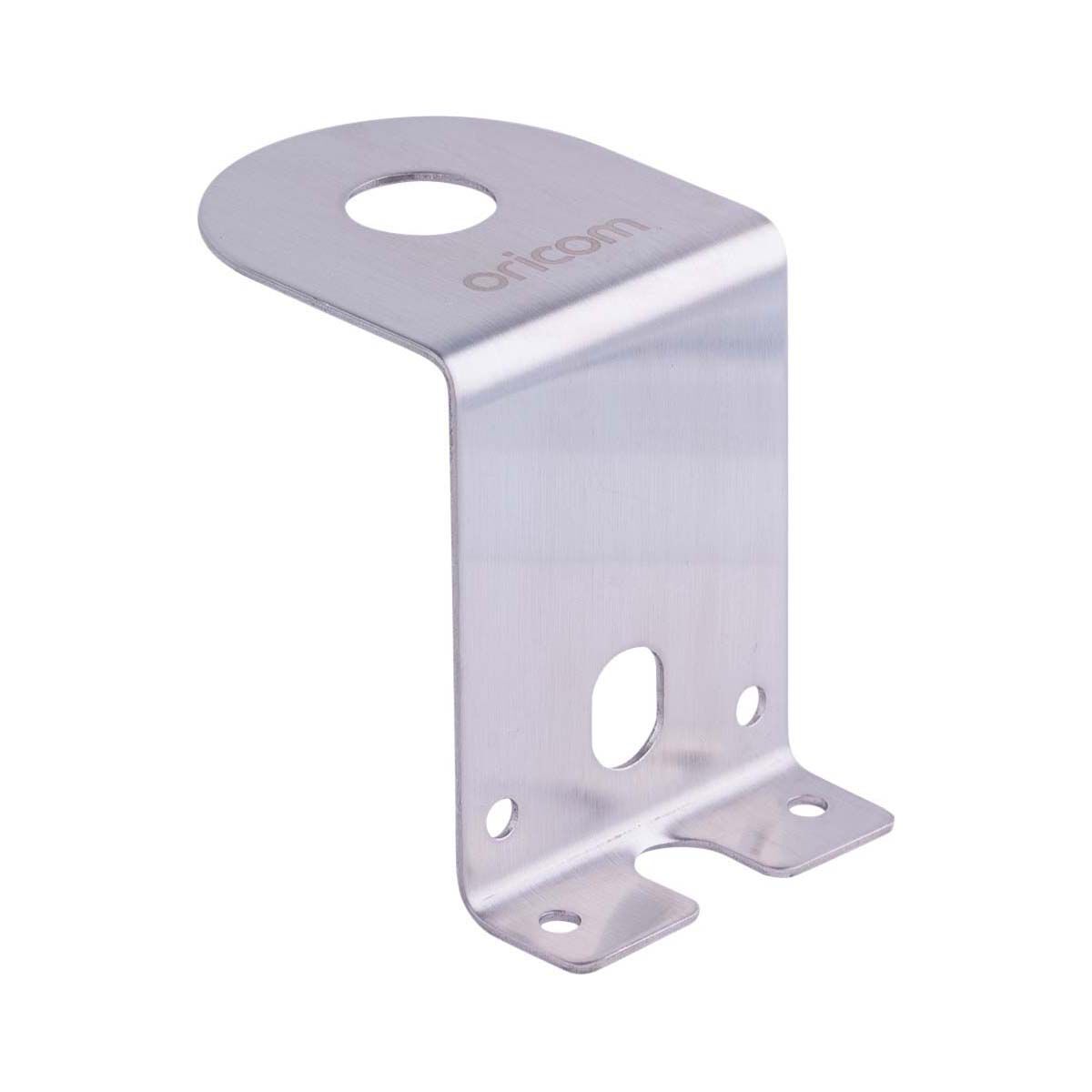

- Stainless steel brackets
Tech Spec
| UHF030 COMPACT 5 WATT UHF CB RADIO | |
|---|---|
| GENERAL | |
| Compliance | AS/NZS 4365:2011 |
| Frequency Range TX/RX | 476.425 - 477.4125 MHz Number of TX/RX |
| Channels | 80 UHF CB (75 Voice channels) Channels |
| Spacing TX/RX | 12.5KHz |
| Operating modes | Simplex, Repeater TX offset (+750kHz) |
| Scanning Speed | 130 msec per channel |
| Antenna Impedance | 50 Ohms |
| Operating Volts nominal | 13.8VDC |
| Operating Volts Range | 10 to 15 VDC |
| Over Voltage Protection | Voltage regulator |
| Over Current Protection | 2 AMP fuse Reverse |
| Polarity Protection | Shunt diode Frequency |
| Stability | +/- 2.5ppm |
| TRANSMITTER | |
| RF Output Power | 5 watts |
| Modulation | F3E(FM) |
| Maximum deviation | 2.5KHz |
| Spurious Emissions | < -70 dBc |
| TX Audio pre-emphasis | + 6dB/octave from 300Hz to 3kHz |
| Current consumption during TX | 1.5 Amps with 50 Ohm antenna termination |
| RECEIVER | |
| Circuit Type | Direct conversion by Single DSP chip |
| Intermediate Frequencies | IF = 137KHz |
| Maximum useable sensitivity | Less than -122dBm at 12dB SINAD |
| Audio output power | 3 Watts |
| RX Audio de-emphasis | -6dB/octave 300Hz to 3kHz |
| MECHANICAL | |
| Dimensions (mm) | 23.8 H x 100 W x 94 D |
