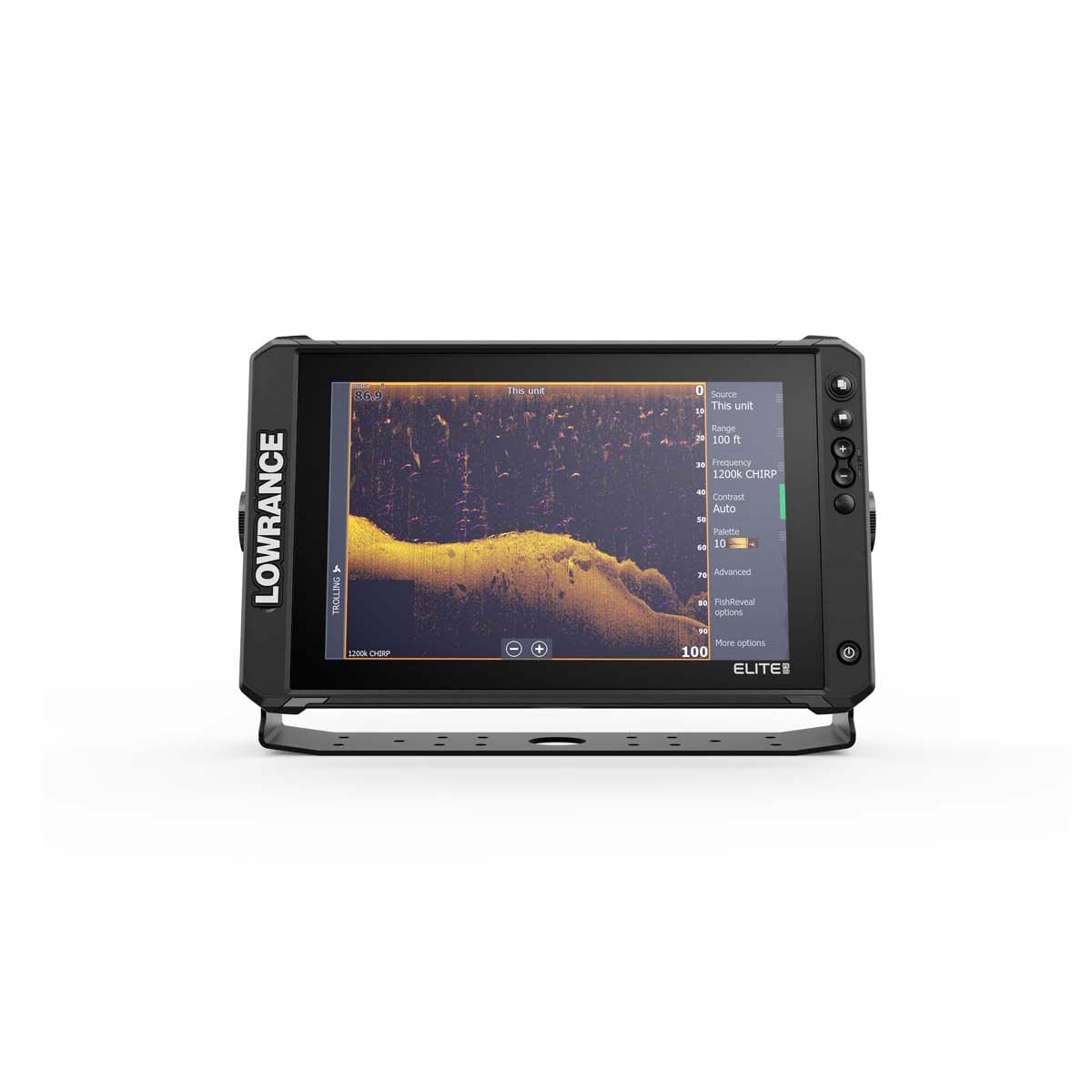

Lowrance Elite FS12” Combo Including Active Imaging 3-in-1 Transducer and CMAP
Details
https://www.bcf.com.au/p/lowrance-elite-fs12-combo-including-active-imaging-3-in-1-transducer-and-cmap/709015.htmlPromotions
Buy now, pay four interest-free payments.
- 4 simple installments
- 100% interest-free, no hidden fees
Additional Information
Product Info
Product Info
The FishReveal™ feature combines CHIRP sonar fish targets with DownScan Imaging™, making fish easier to spot and identify. Plus, it’s ActiveTarget™ Live Sonar ready(requires seperate transducer) for real-time tracking of fish movement. The Active Imaging 3-in-1 Transducer, included in the package, enhances your fishing experience with detailed sonar imaging.
Easy to install and use, the Elite FS12” also offers integrated wireless, NMEA 2000®, and Ethernet connectivity for seamless networking across your vessel. For unmatched performance and versatility, the Lowrance Elite FS12” Combo is your ultimate companion on the water.
Features
- High-res multi touch 12” screen for incredible detail
- Comes preloaded with C-MAP® enhanced embedded charts
- Compatible with a wide range of C-MAP® and other charts
- Easy to install and use
- FishReveal™ - Makes fish easier to see on DownScan Imaging™ by combining CHIRP sonar fish targets
- ActiveTarget™ Live Sonar ready (requires seperate transducer)
- Integrated wireless, NMEA 2000® and Ethernet connectivity for full vessel networking
- Combo includes Active Imaging 3-in-1 Transducer
- Full touchscreen control of Recon™ and Ghost® Trolling Motor, as well as Power Pole® Anchors
Product Overview

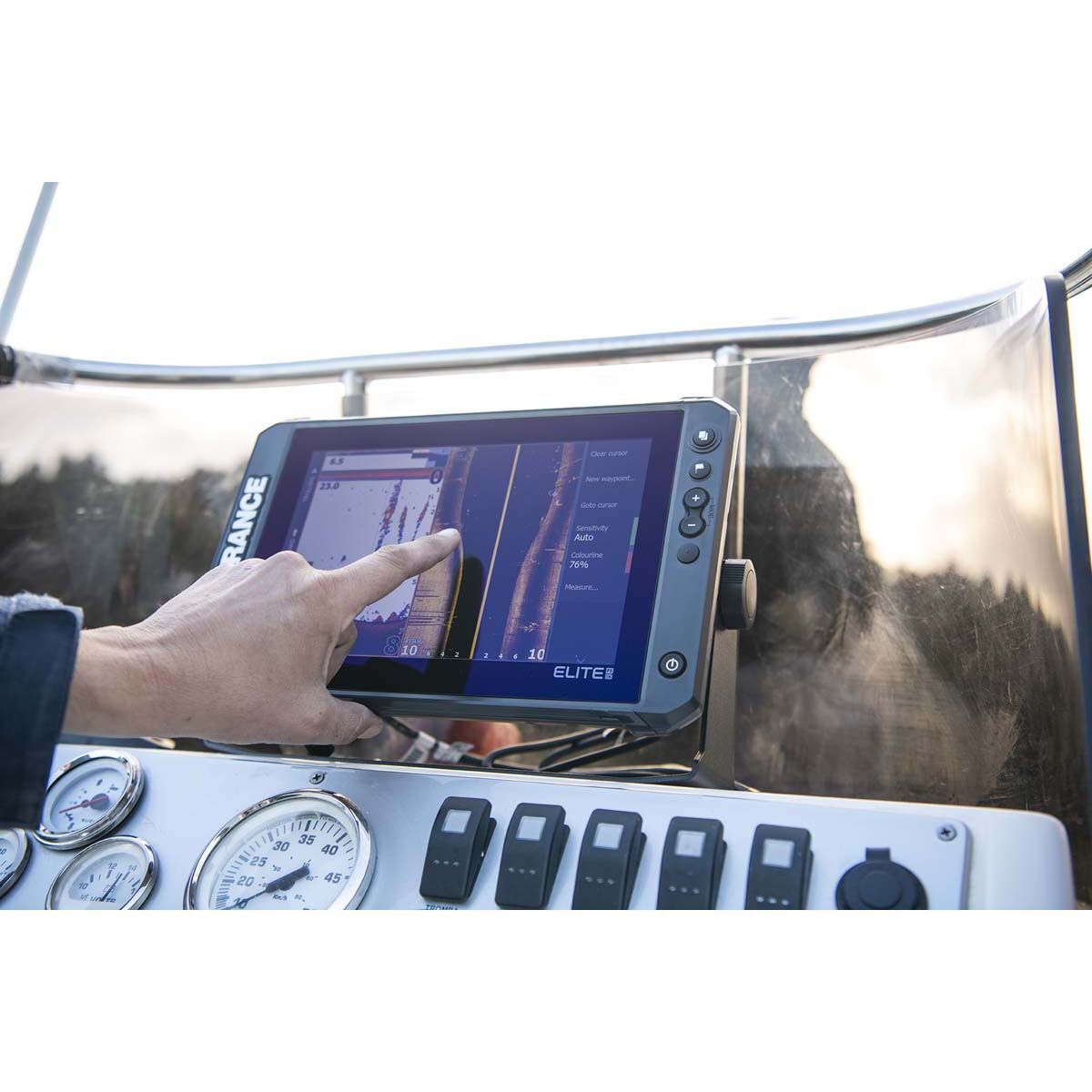

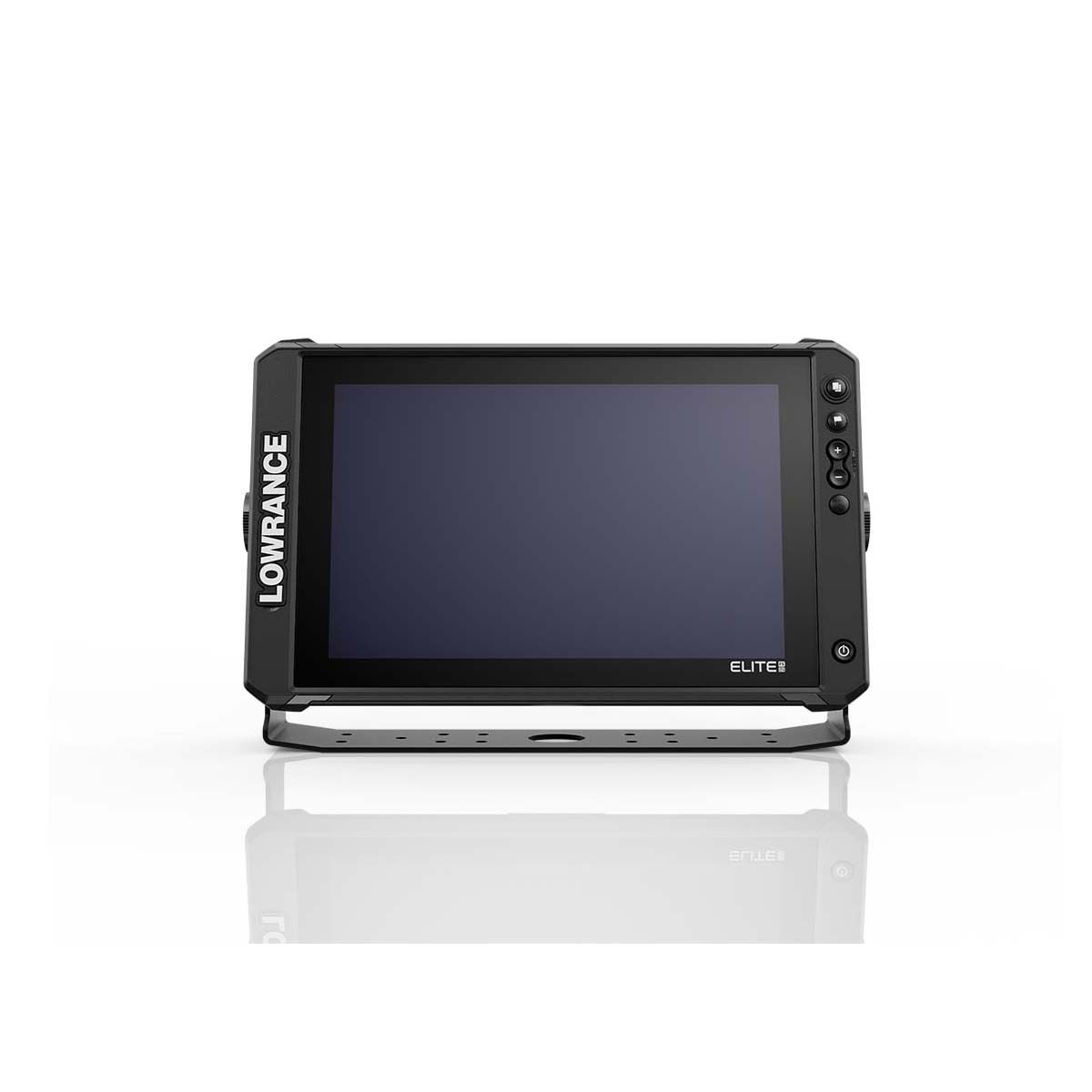

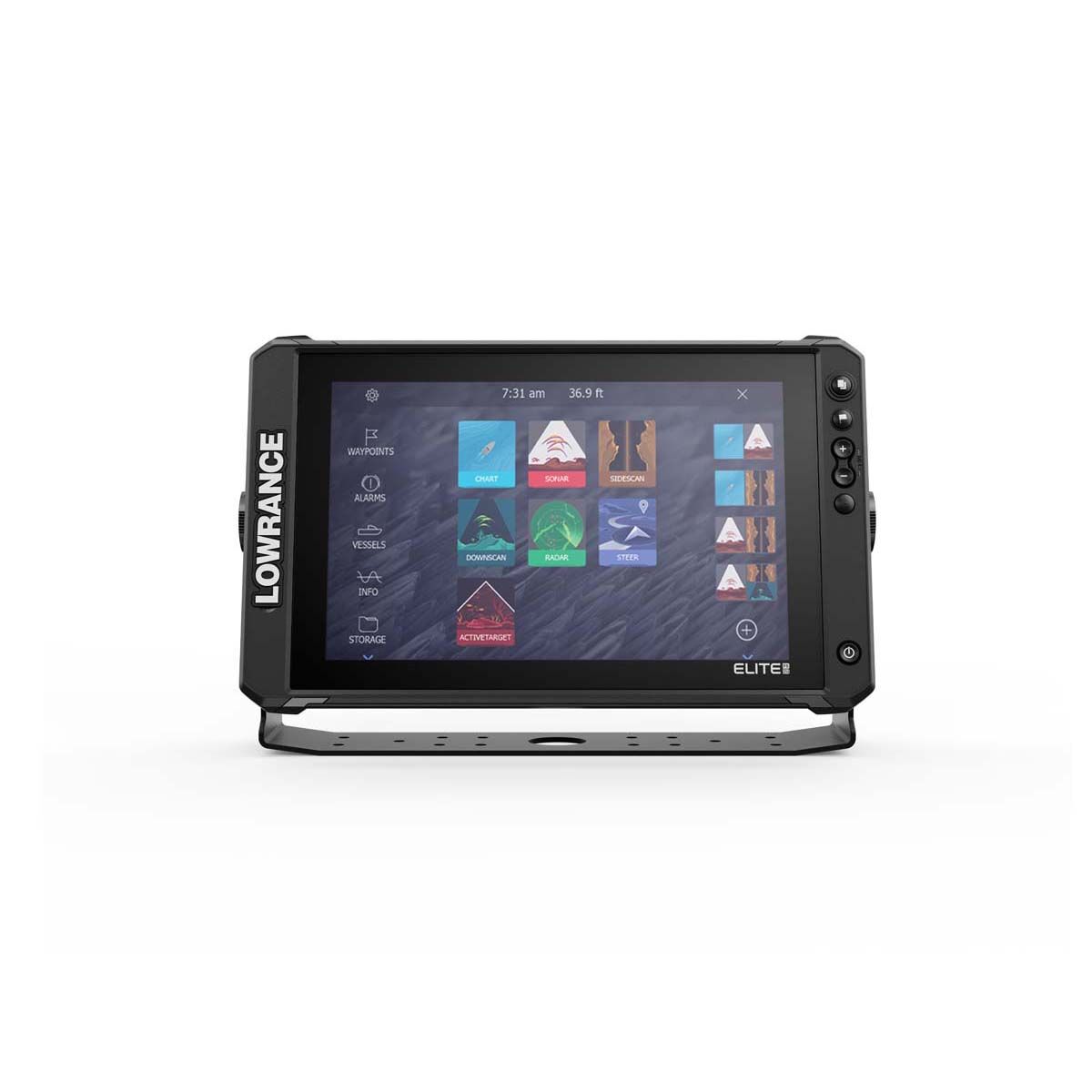

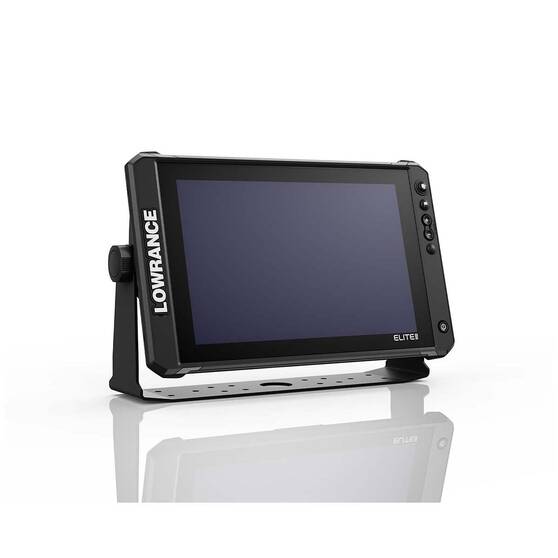

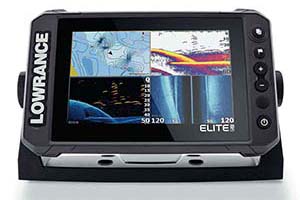

High Resolution Multi-Touch Screen
The clearest, sharpest display yet - flat glass, anti-reflective, and easy to see in any light, and a one-touch programmable key for quick access to key interactions.

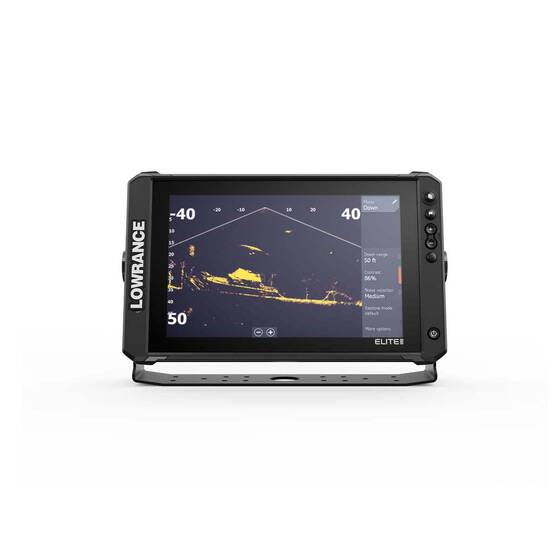

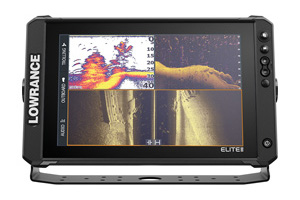

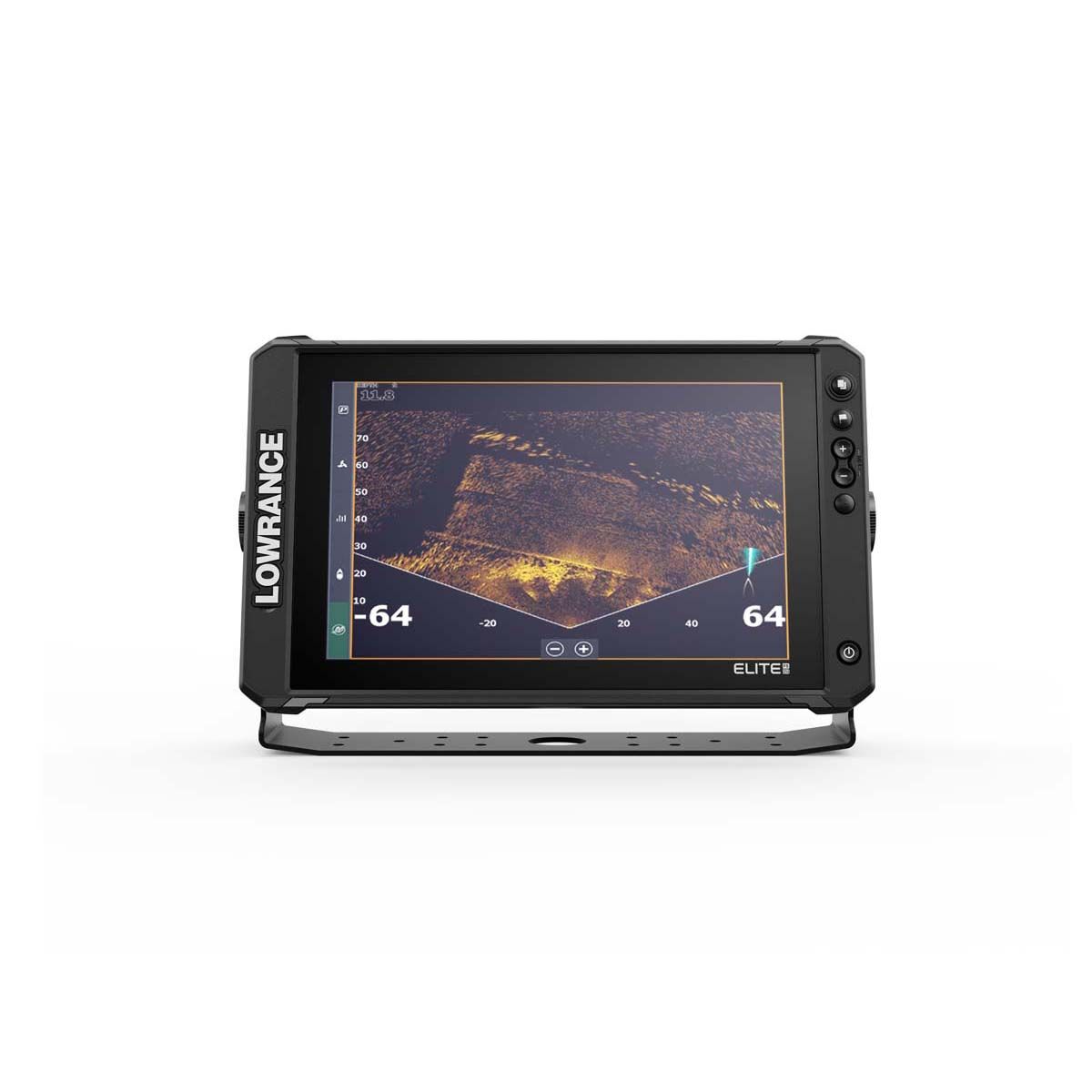

Active Imaging™ 3-in-1 & Active Imaging™ HD
Active Imaging™ and Active Imaging™ HD* sonar gives crystal-clear views of fish and structure — from rockpiles to weedbeds — with unbeatable clarity and range every cast.

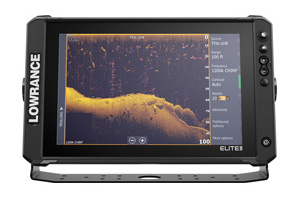

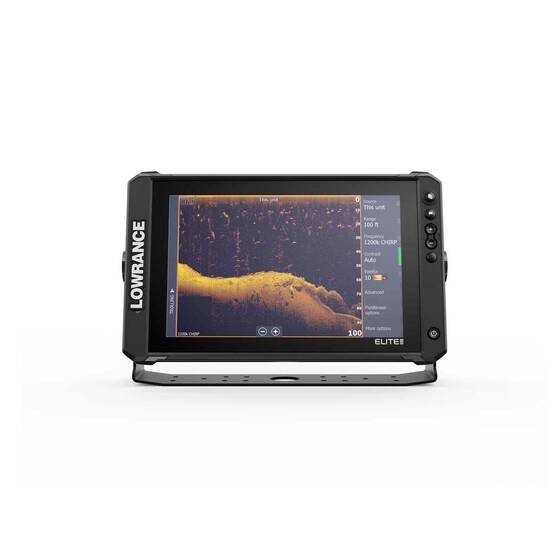

DownScan Imaging™
DownScan Imaging™ shows you exactly what’s below — clear, photo-like views of fish, rocks, trees, and structure so you know where the action’s happening.

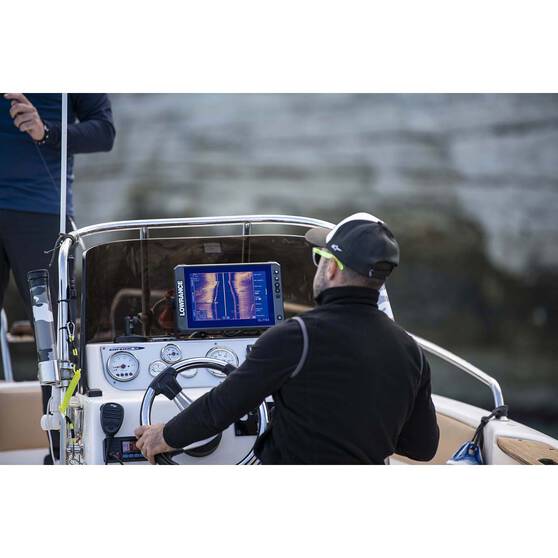

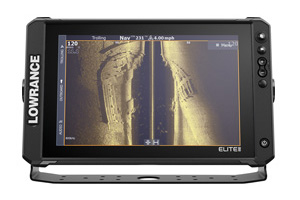

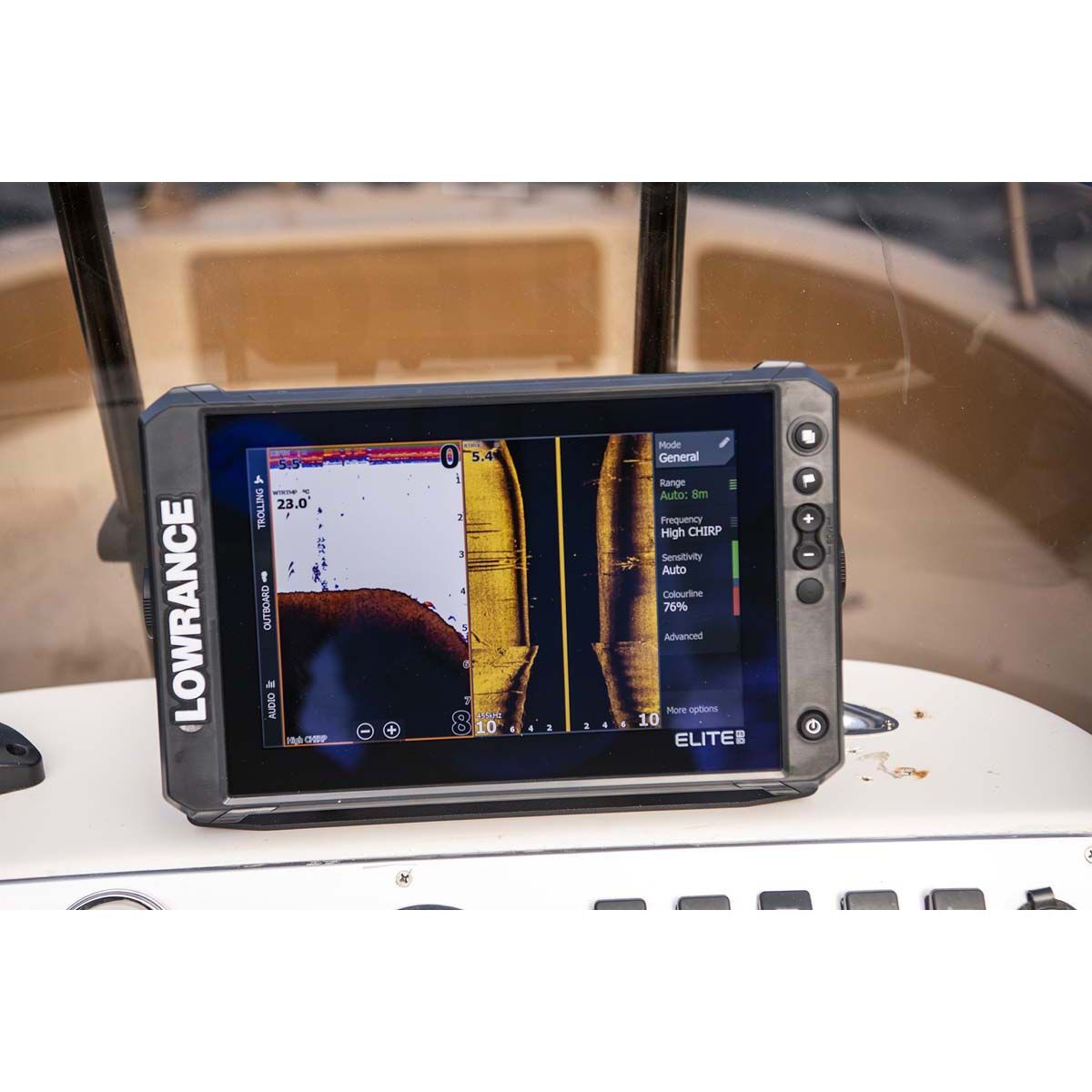

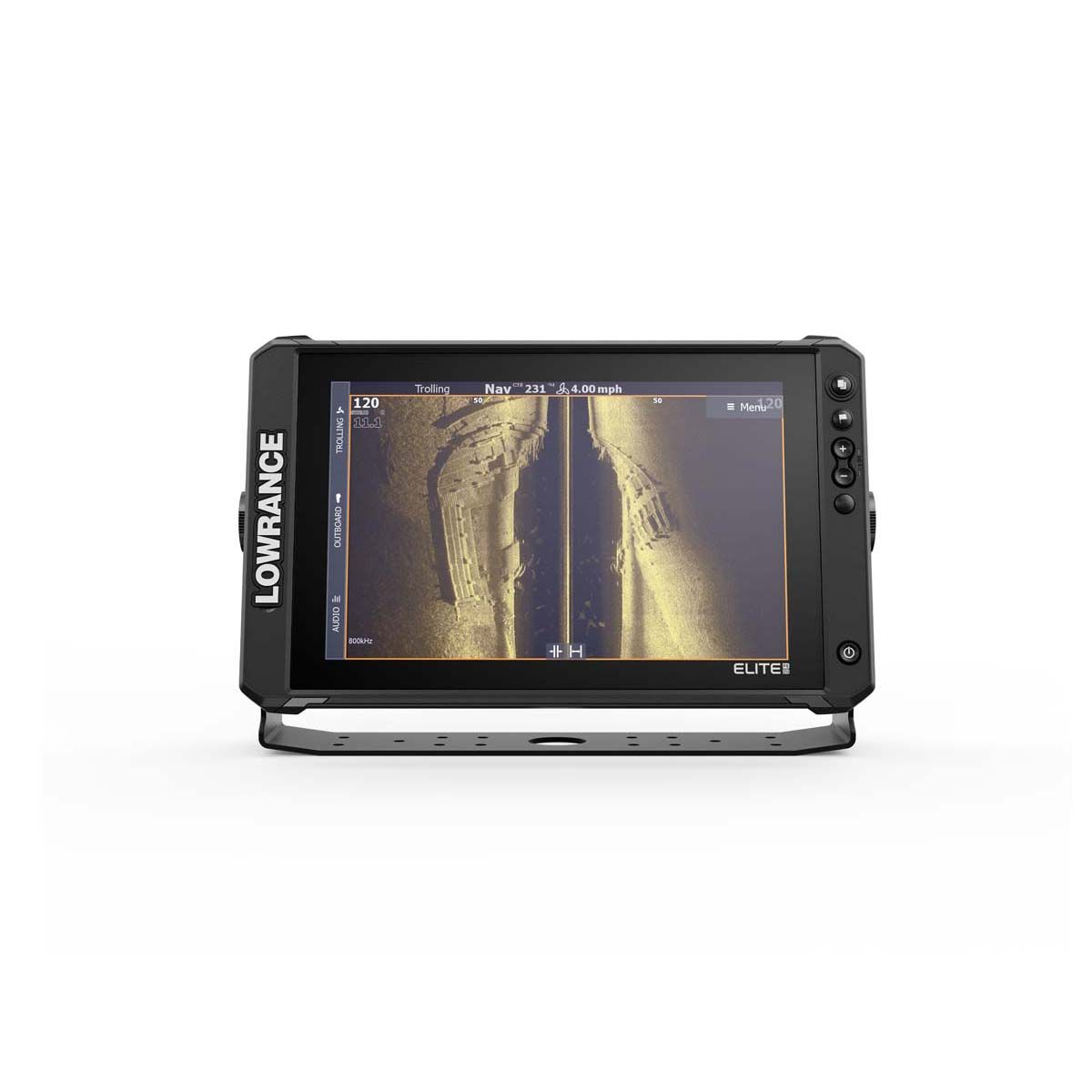

SideScan Imaging™
Ideal for scanning big areas fast, this tech helps you spot fish-holding structure and even check shallow spots near the bank with ease.

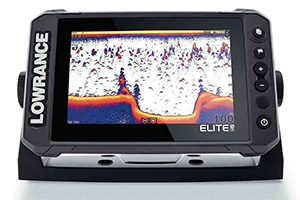

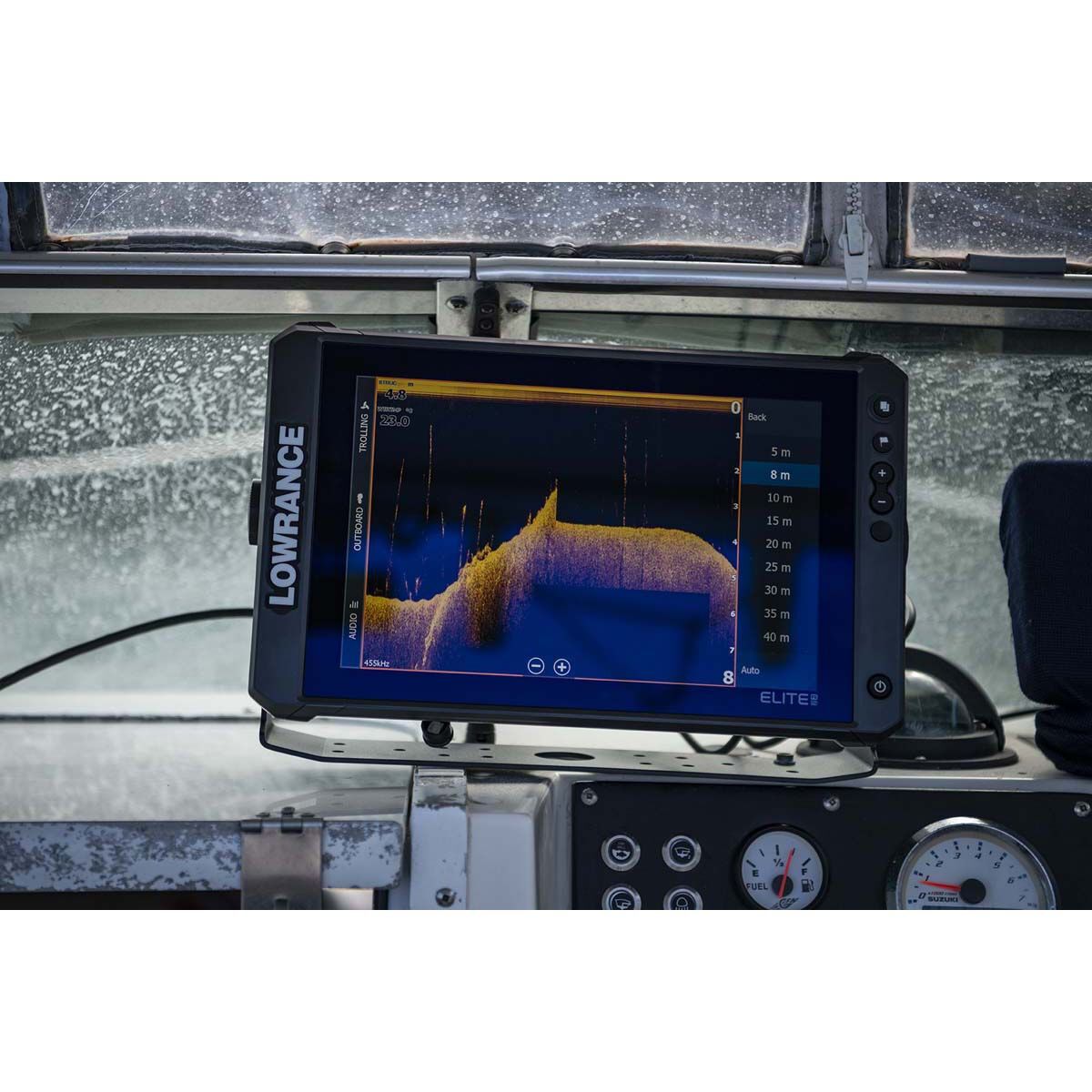

CHIRP Sonar
Lowrance CHIRP sonar gives you crystal-clear views of fish, structure, and bottom detail — making it easier to spot individual targets with precision.

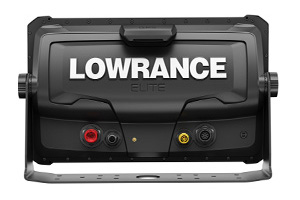

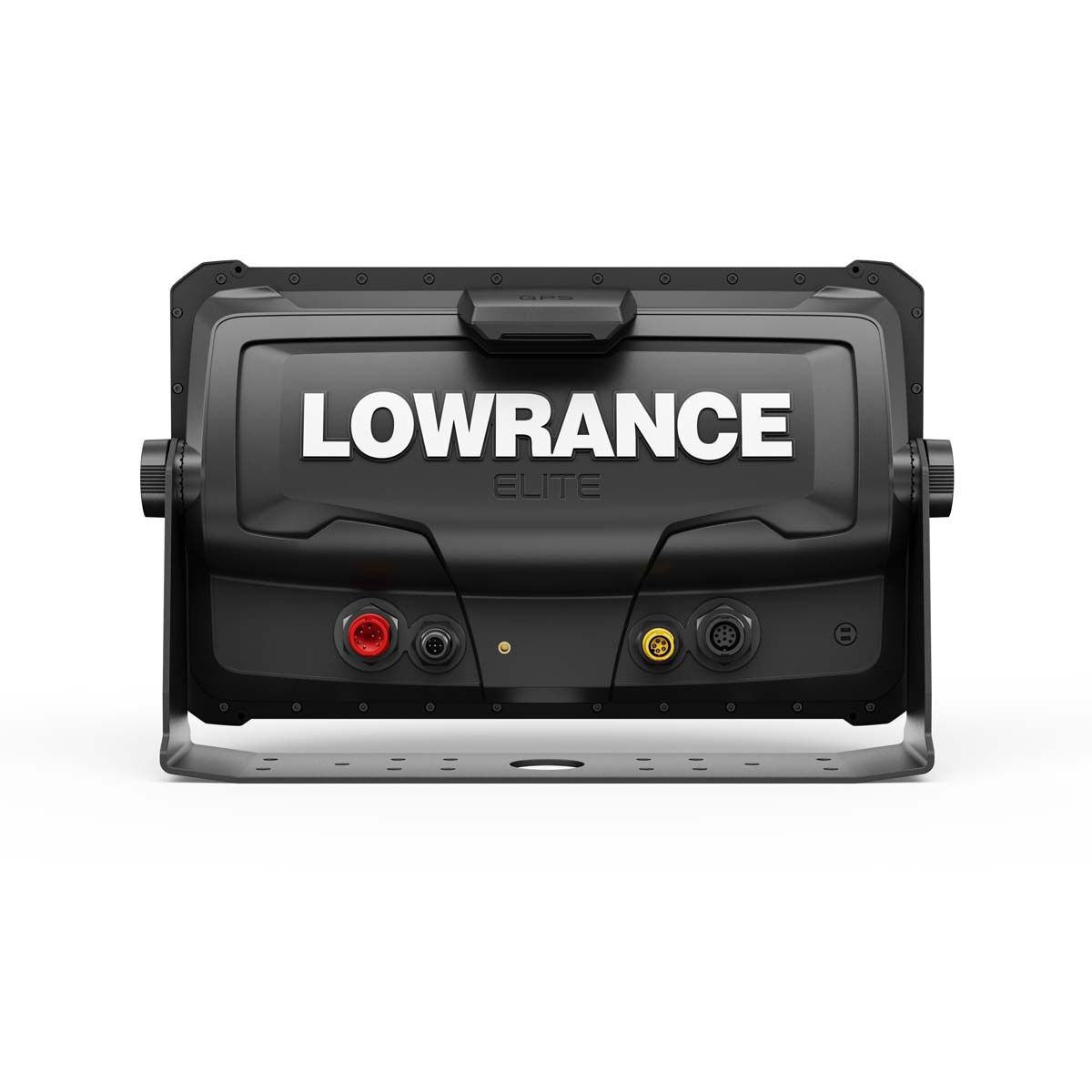

Networking compatibility
With Ethernet networking, the Elite series lets you share sonar, charts, and waypoints across displays and add NMEA2000® devices for a full fishing system setup.

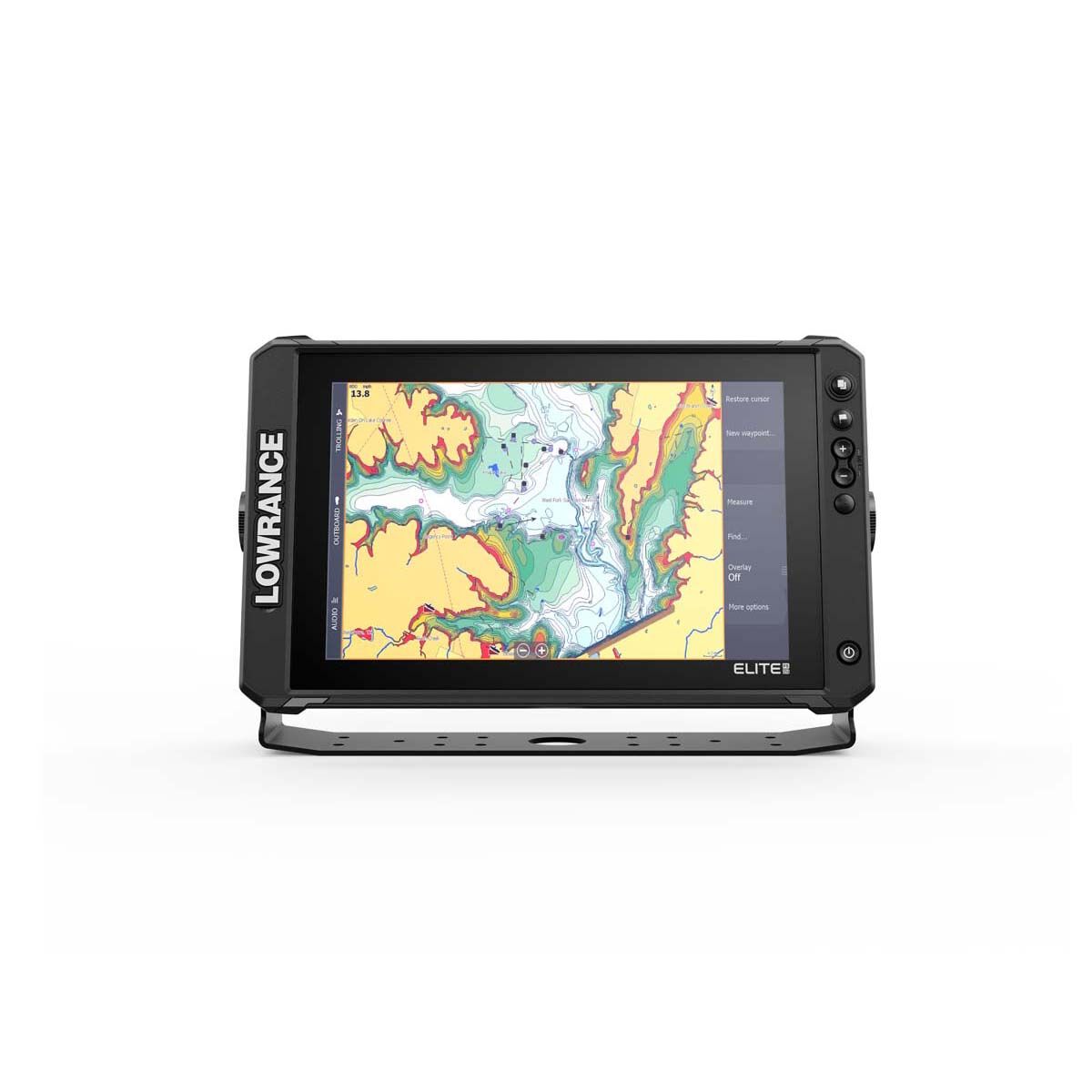

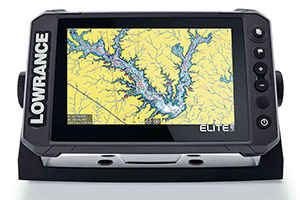

C-MAP® Enhanced Embedded Charts
Enhanced embedded charts help you find ledges, drop-offs, and ditches — then navigate straight to the fish. More precision, more success on the water.

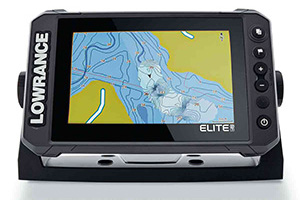

C-MAP® REVEAL® Charts
REVEAL® charts** pack all the C-MAP® DISCOVER® features plus Shaded Relief — transforming your map with lifelike detail above and below the water.
*Active Imaging™ HD requires S3100 module.
**Charts sold separately.
Tech Spec
| ELITE FS7 | ELITE FS9 | ELITE FS10 | ELITE FS12 | |
|---|---|---|---|---|
| DISPLAY | 7" IPS | 9" IPS | 10" IPS | 12" IPS |
| RESOLUTION | 800x480 | 800x480 | 1280x800 | 1280x800 |
| VIEWING ANGLES | 50° top 60° bottom 70° left/right | 50° top 60° bottom 70° left/right | 85° top/bottom, 85° left/right | 85° top/bottom, 85° left/right |
| BRIGHTNESS | >1200 nits | |||
| KEYPAD | Pages, waypoint, zoom, power, (1) user programmable quick access keys | |||
| MAX POWER CONSUMPTION | 2.0A @ 13VDC with backlight on full | 2.0A @ 13VDC with backlight on full | 2.5A @ 13.8VDC with backlight on full | 2.5A @ 13.8VDC with backlight on full |
| SUPPLY VOLTAGE | 12V DC (10.8 - 17 V DC) | |||
| WAYPOINTS / ROUTES / TRACKS | 3000 Waypoints / 100 Routes / 100 Trails with up to 10,000 points per trail | |||
| GPS | 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS | |||
| NMEA 2000® | 1x Micro-C | |||
| WI-FI | Internal 802.11b/g/n | |||
| ETHERNET | 1 x 100Mbit | |||
| CARD READER | 1 micro SD card up to 32GB | |||
| BLUETOOTH | Bluetooth 4.0 with support for Bluetooth classic | |||
| WATERPROOF RATING | IPX7 with card door closed | |||
| OPERATING TEMP | -15°C to 55°C | |||
| SHOCK AND VIBRATION | 100,000 cycles of 20 G | |||
| MOUNTING TYPE | Gimbal bracket or dash flush mount | |||
| WARRANTY | 2 years + 3 additional years of upgrade options totaling 5 years | |||
