Blue Sea Systems

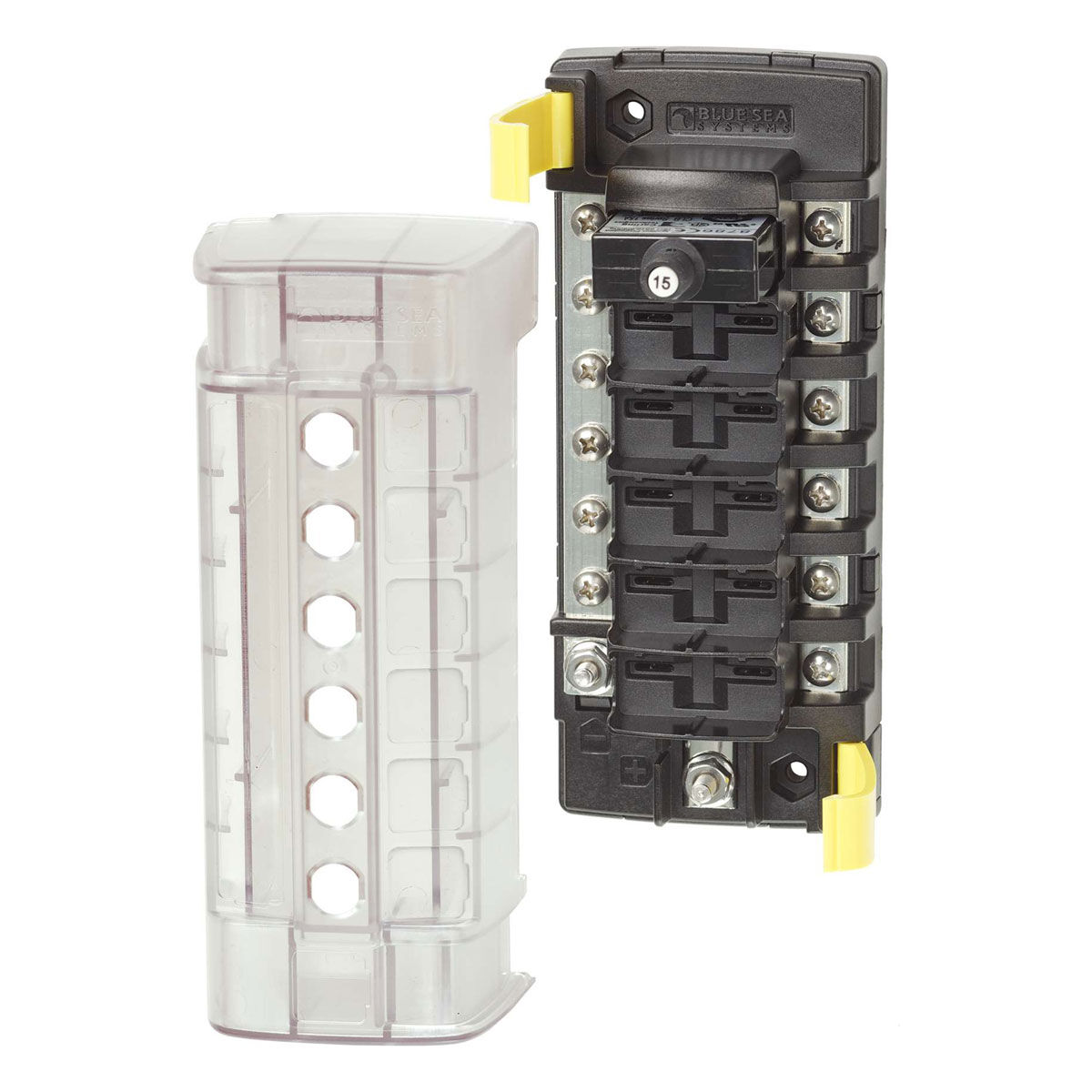

Blue Sea Systems ST CLB Circuit Breaker Block with Negative Bus
Details
https://www.bcf.com.au/p/blue-sea-systems-st-clb-circuit-breaker-block-with-negative-bus/625611.html
$119.90
119.90
AUD
Promotions
Additional Information
Product Info
Product Info
The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse. Circuit breakers sold separately.
Features
- Height: 170mm
- Width: 70.8mm
- Depth: 75.9mm
- Maximum voltage: 32V DC
- Maximum amperage: 100A per block, 32A per circuit
- Cover satisfies ABYC/USCG requirements for insulation
- 6 individually protected circuits
- Optional push button waterproof boots or dress nuts can be installed over cover
- Accepts square labels
- CLB circuit breakers sold separately
