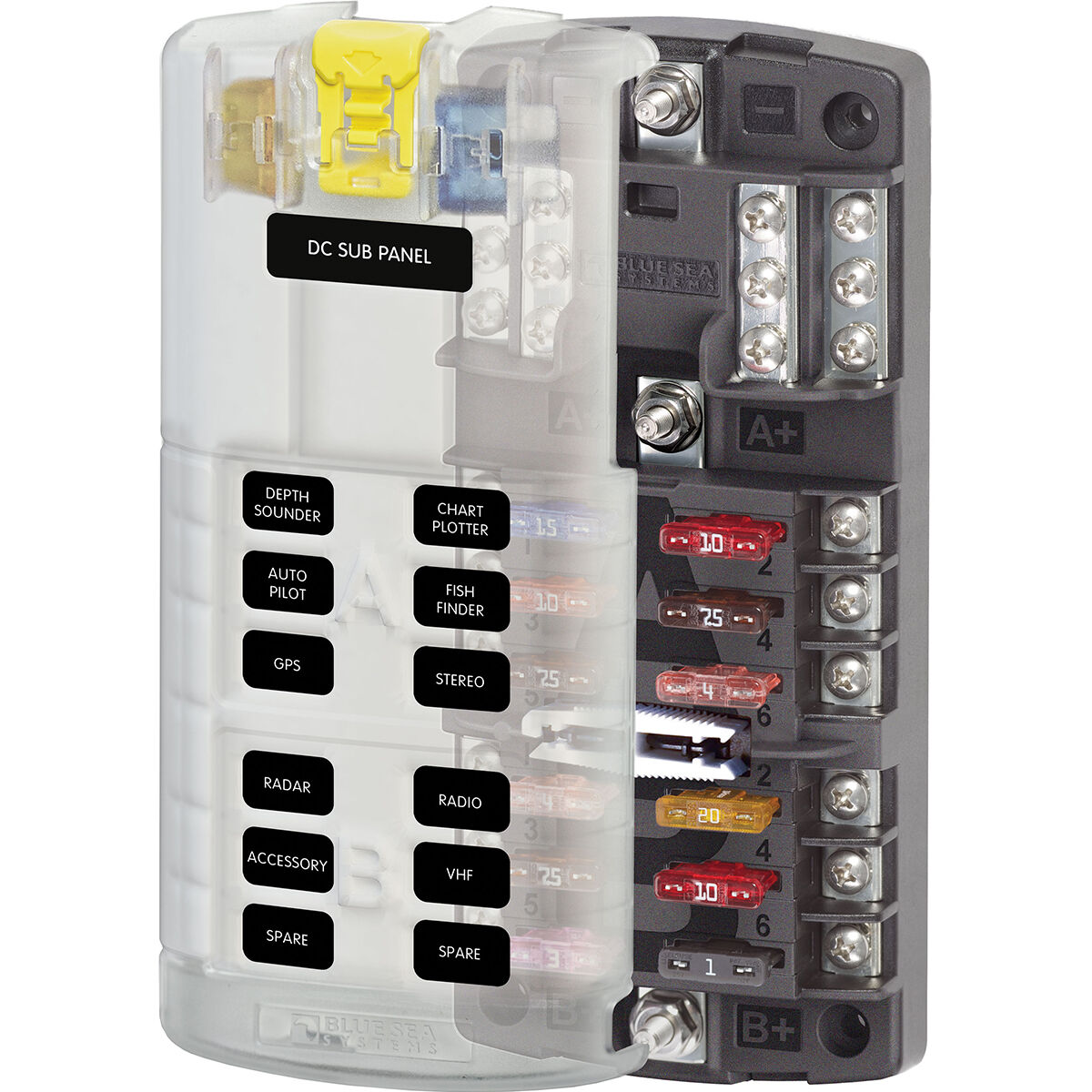

Blue Sea Systems ST Blade Split Fuse Block - 12 Gang Negative Bus and Cover
Details
https://www.bcf.com.au/p/blue-sea-systems-st-blade-split-fuse-block---12-gang-negative-bus-and-cover/625607.html
$139.90
139.90
AUD
Promotions
Additional Information
Product Info
Product Info
The ST Blade Split Bus Fuse Block with ground is designed for use when a mix of switched and 24-hour circuits are desired in the same block and provides two isolated groups of six circuits. It can be used with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits. The clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements.
Features
- Height: 186.6mm
- Width: 84.2mm
- Depth: 38.4mm
- Maximum voltage: 32V DC
- Maximum amperage: 100A per block, 30A per circuit
- Cover satisfies ABYC/USCG requirements for insulation
- One-piece stainless flange nuts ensure safe and secure connections
- Easy to open, push button latch for easy access to fuses
- 12 individually fised circuits in two groups of 6
- Accepts ATO® and ATC® fast acting blade fuses. Fuses sold separately
