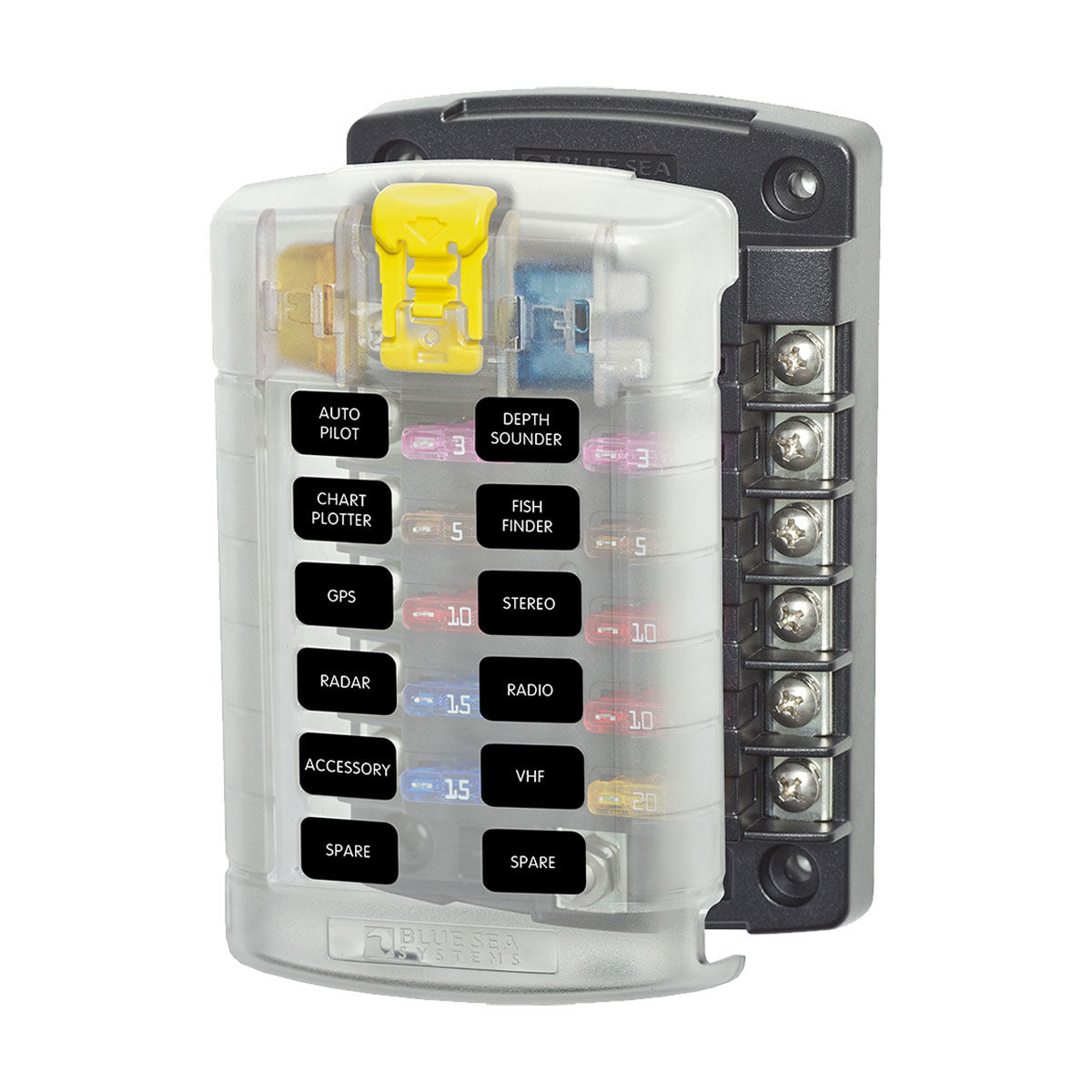

Blue Sea Systems ST Blade Fuse Block - 12 Gang with Cover
Details
https://www.bcf.com.au/p/blue-sea-systems-st-blade-fuse-block---12-gang-with-cover/625606.html
$139.99
Promotions
Special Offer
Or 4 payments of
$35.00
with
Buy now, pay four interest-free payments.
- 4 simple installments
- 100% interest-free, no hidden fees
Additional Information
Product Info
Product Info
The ST Blade Fuse Block with 12 Circuits and Cover is designed to consolidate branch circuits and in line fuses. By using a single wire input from the power supply this simplifies power distribution. The cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels for circuit identification.
Features
- Height: 132.9mm
- Width: 84.2mm
- Depth: 38.6mm
- Maximum voltage: 32V DC
- Maximum amperage: 100A per block, 30A per circuit
- Positive distribution bus with #10-32 stud
- Cover satisfies ABYC/USCG requirements for insulation
- Includes 20 write-on circuit labels
- 12 individually fised circuits
- Accepts ATO® and ATC® fast acting blade fuses. Fuses sold separately
