XTM 4x4 Accessories
XTM 40A MPPT Solar Controller
Details
https://www.bcf.com.au/p/xtm-40a-mppt-solar-controller/709359.html
$199.99
Promotions
Special Offer
Additional Information
Product Info
Product Info

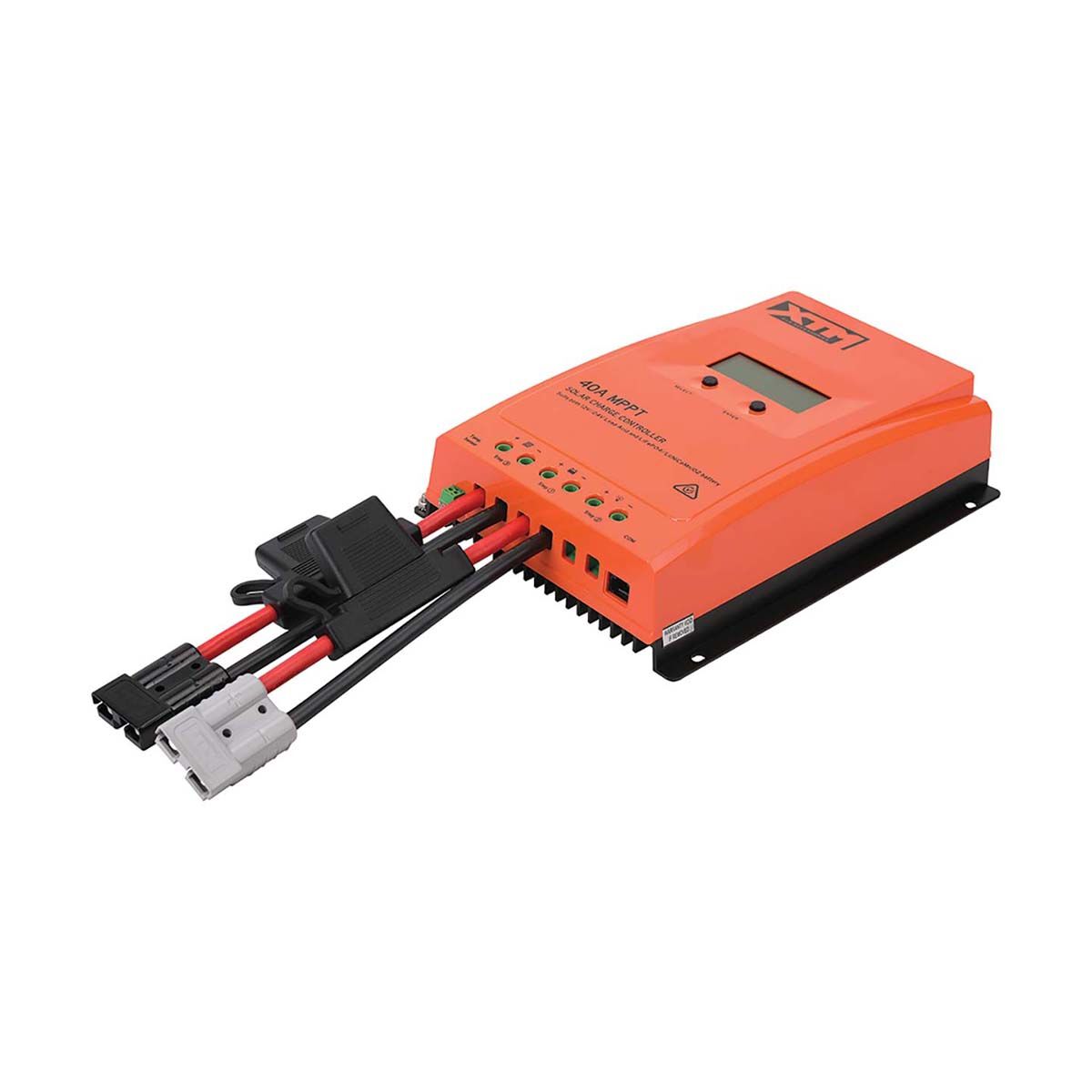

Get the most out of your solar setup with the XTM 40A MPPT Solar Controller. Using cutting-edge MPPT technology with ultra-fast tracking, it delivers powerful charging up to 40A while squeezing maximum efficiency out of your panels. Whether you’re running lithium, sealed, gel, flooded or VRLA batteries, this controller has you covered with full compatibility across the board.
Designed for easy use, it features quick connect plugs to simplify your setup and an LCD display that clearly shows volts, amps, watts, and the power being generated. Compatible with both 12V and 24V systems, it can handle up to 520W of solar on 12V and an impressive 1040W on 24V. Tough, reliable, and efficient – the XTM 40A MPPT Solar Controller is the perfect way to keep your off-grid power flowing.
Designed for easy use, it features quick connect plugs to simplify your setup and an LCD display that clearly shows volts, amps, watts, and the power being generated. Compatible with both 12V and 24V systems, it can handle up to 520W of solar on 12V and an impressive 1040W on 24V. Tough, reliable, and efficient – the XTM 40A MPPT Solar Controller is the perfect way to keep your off-grid power flowing.
Features
- Cutting edge MPPT technology with ultra-fast tracking
- Powerful charging up to 40A
- Compatible with lithium, sealed, gel, flooded and VRLA batteries

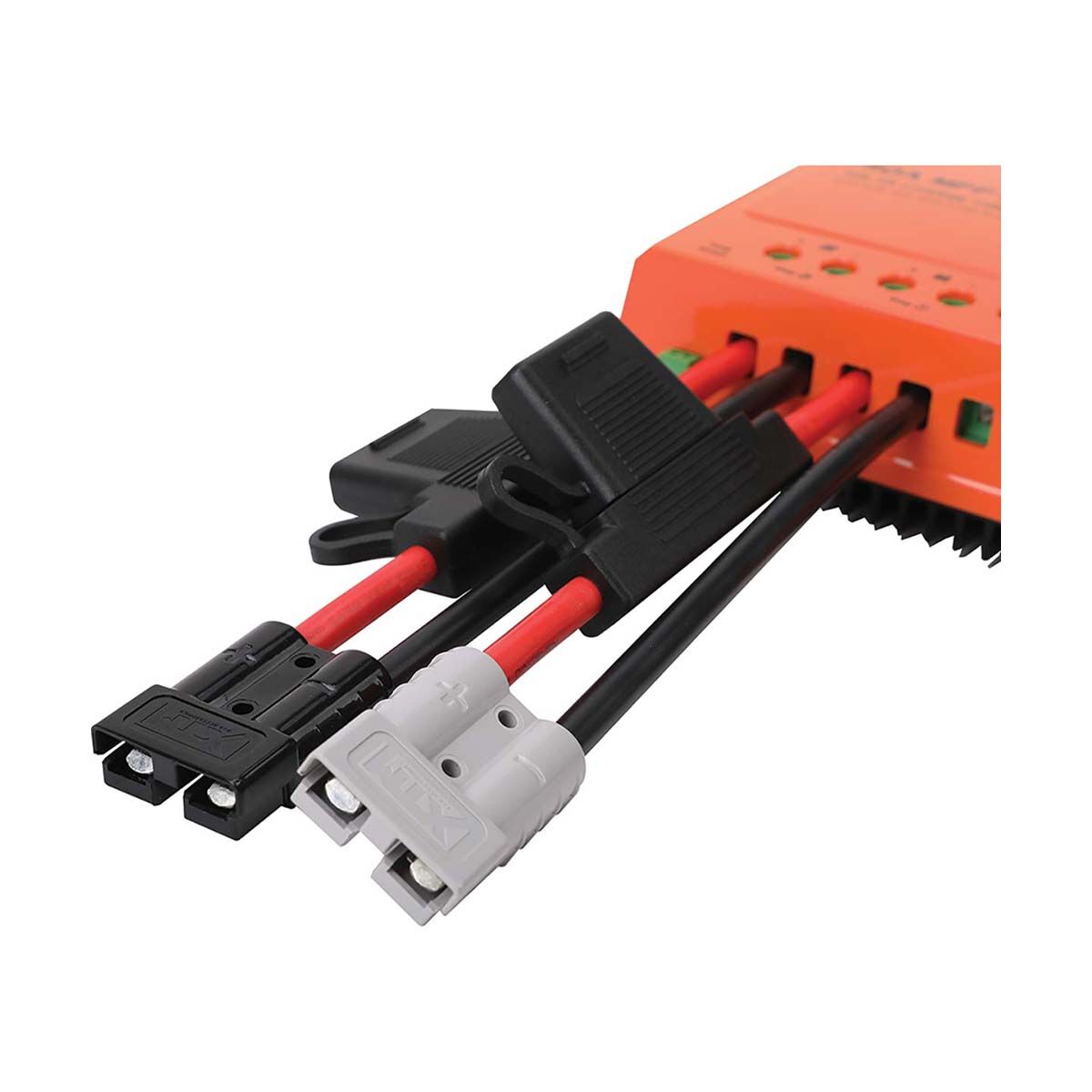

- Quick connect plugs to simplify your set up
- LCD display that shows volts, amps, watts and the power being generated
- 12/24V compatible
- Suitable for up to 520W of solar for 12V set ups and 1040W for 24V set ups
- 3 year warranty
Tech Spec
XTM 40A MPPT SOLAR CONTROLLER
| COMPATABILITY | Lithium, sealed, gel, flooded and VRLA batteries |
|---|---|
| SCREEN DISPLAY | LCD display with backlight |
| WIRING SPECIFICATIONS | 200mm 6AWG + quick connect plugs |
| TERMINAL COMPATABILITY (MAX. WIRE SIZE) | Screw terminal (up to 6AWG) |
| EARTHING | Common negative |
| BATTERY VOLTAGE RANGE | 8-31V |
| MPPT VOLTAGE RANGE | Battery voltage +2V (not exceeding 72V) |
| MAX. PHOTOVOLTAIC OPEN CIRCUIT VOLTAGE INPUT | 92V |
| MAX. SOLAR POWER INPUT | 520W (12V) / 1040 (24V) |
| STANDBY POWER CONSUMPTION | 8mA (12V) / 5mA (24V) |
| MAX. DC DC CONVERSION EFFICIENCY | 98% |
| MAX. TRACKING EFFICIENCY | 99% |
| LOAD CIRCUIT | Manual on/off functionality with programmable settings |
| DIMENSIONS | 252 x 180 x 63mm |
| WARRANTY | 3 years |
