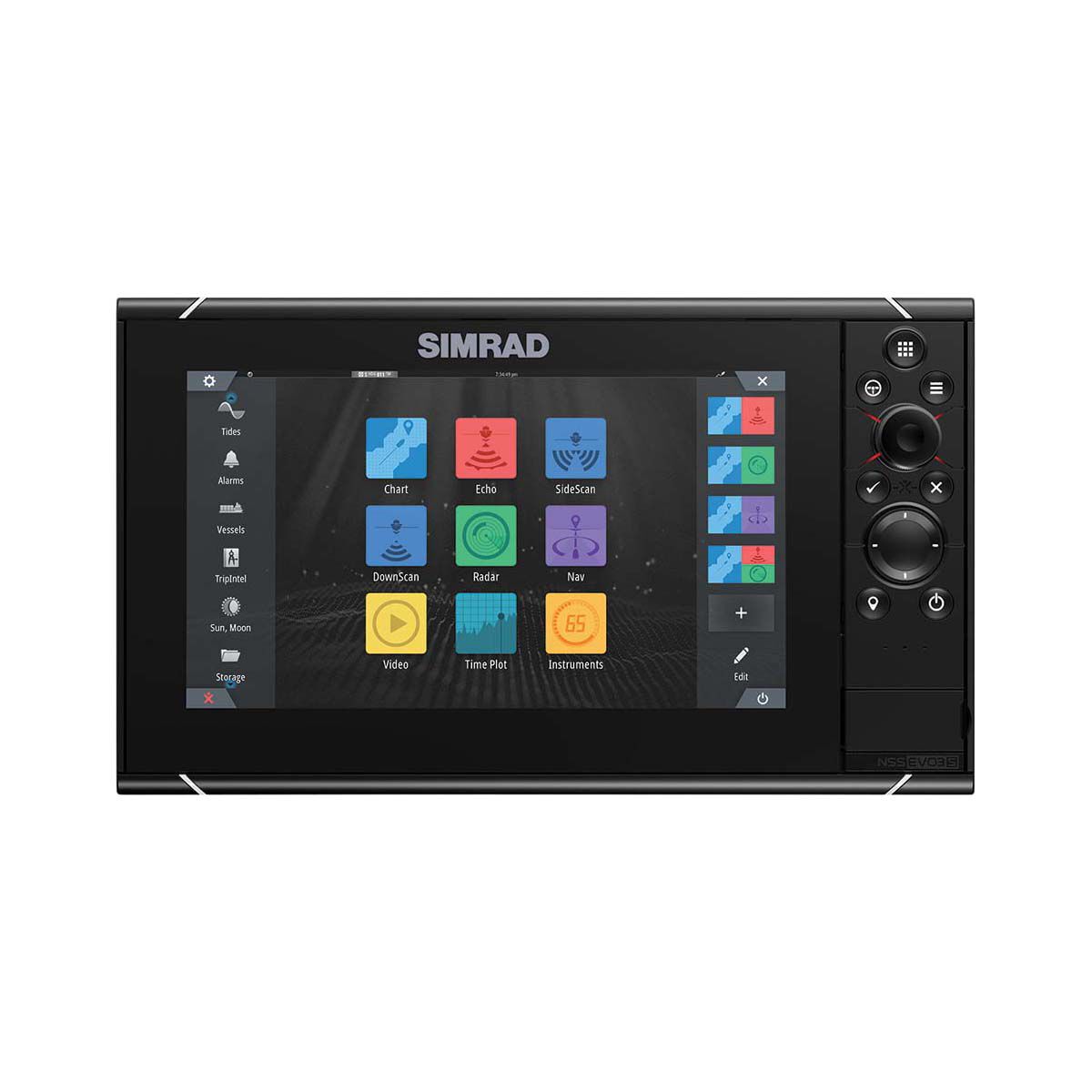

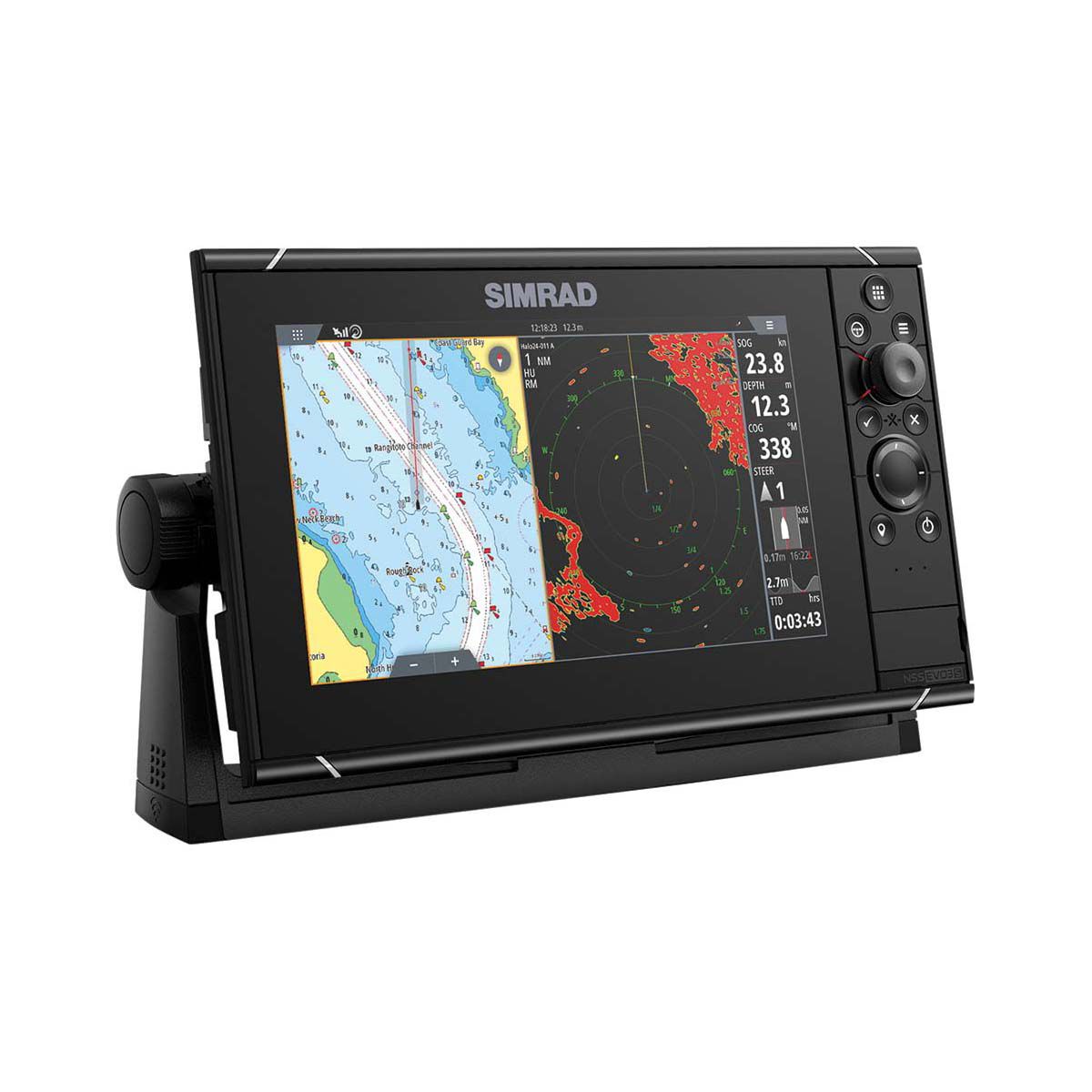

Simrad EVO3S NSS9 Sounder Combo 9in
Details
https://www.bcf.com.au/p/simrad-evo3s-nss9--sounder-combo-9in/646270.htmlPromotions
Additional Information
Product Info
Product Info
Find more ground and catch more fish with the Simrad EVO3S NSS9 sounder combo. A popular unit among offshore anglers, this all-in-one combo is packed with features and tech capabilities to maximise your catch rate.
The EVO3S NSS series has an inbuilt dual channel CHIRP sonar that provides accurate readings across the entire water column. This is beneficial for anglers fishing deep but still needing to mark fish and bait which is higher in the column. All other essential fishing features are included in this unit, including inbuilt GPS, ActiveTarget, SideScan and DownScan imaging capabilities. Get ready to set the hooks!
What sets this unit apart from other sounder combos are the endless tech capabilities available through Simrad. The EVO3S NSS supports CZONE and NMEA networking technology, various chart options, radars, autopilots and other instrumentation. It can also be synced to your Simrad app to access additional maps, charts and marine data. And to bring this all together, the iMX8 processor gives you this data in lightning fast times on an easy-to-read interface.
The 9 inch model is a common choice on smaller fishing vessels with limited space and crowded dashes. Pair it up with a suitable transducer and the opportunities are endless with the EVO3S NSS9!
Features
- All-in-one multi functional 9 inch display
- Built-in dual channel CHIRP sonar, GPS and WIFI

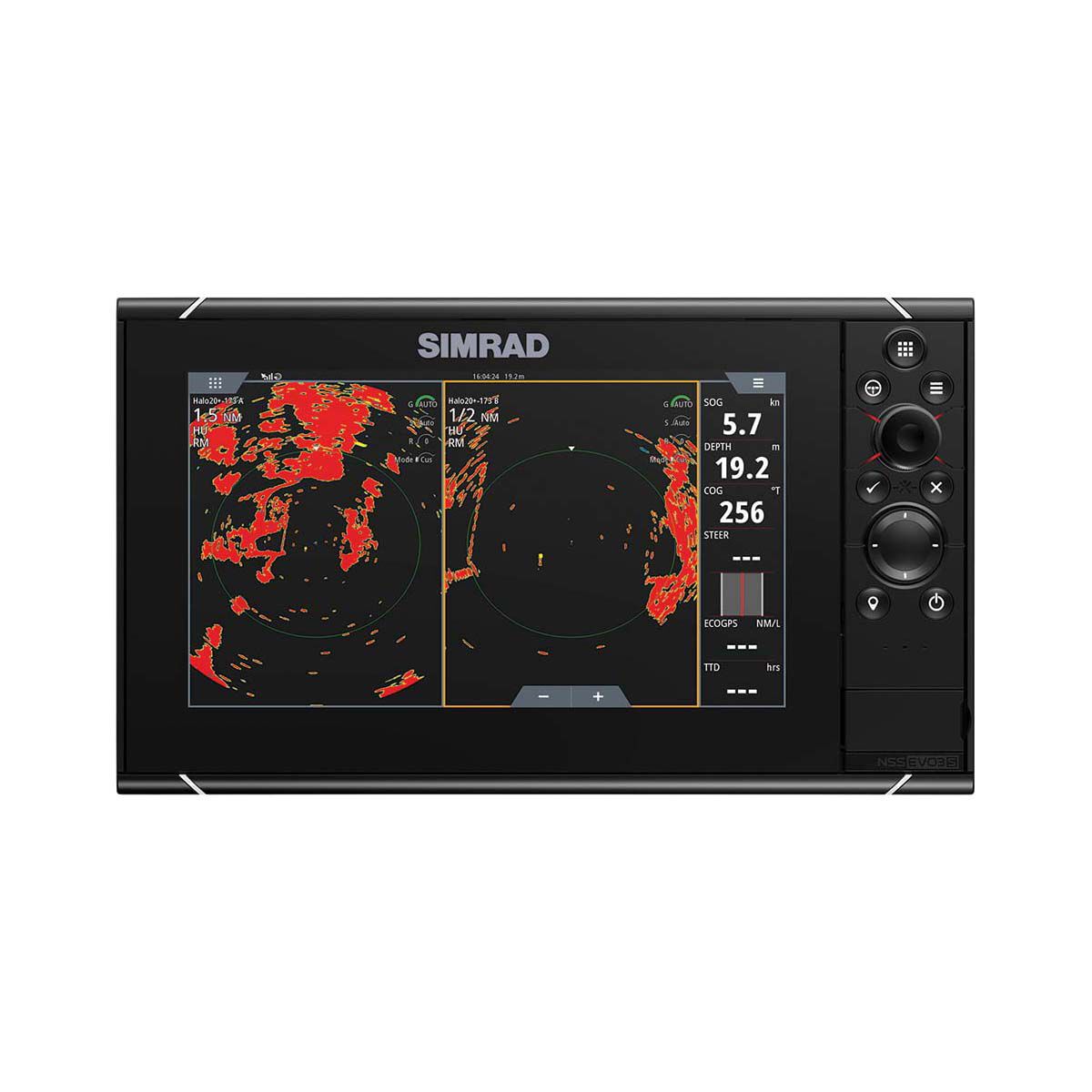

- Support for chart options, radars, autopilot and instrumentation
- High performance iMX8 processor provides lightning fast loading times and a choice of any split screen combination
- All-weather IPX7 screen with ultra wide viewing angles (easily viewable with polarised lens)
- Manage and sync all of your marine data with the Simrad app

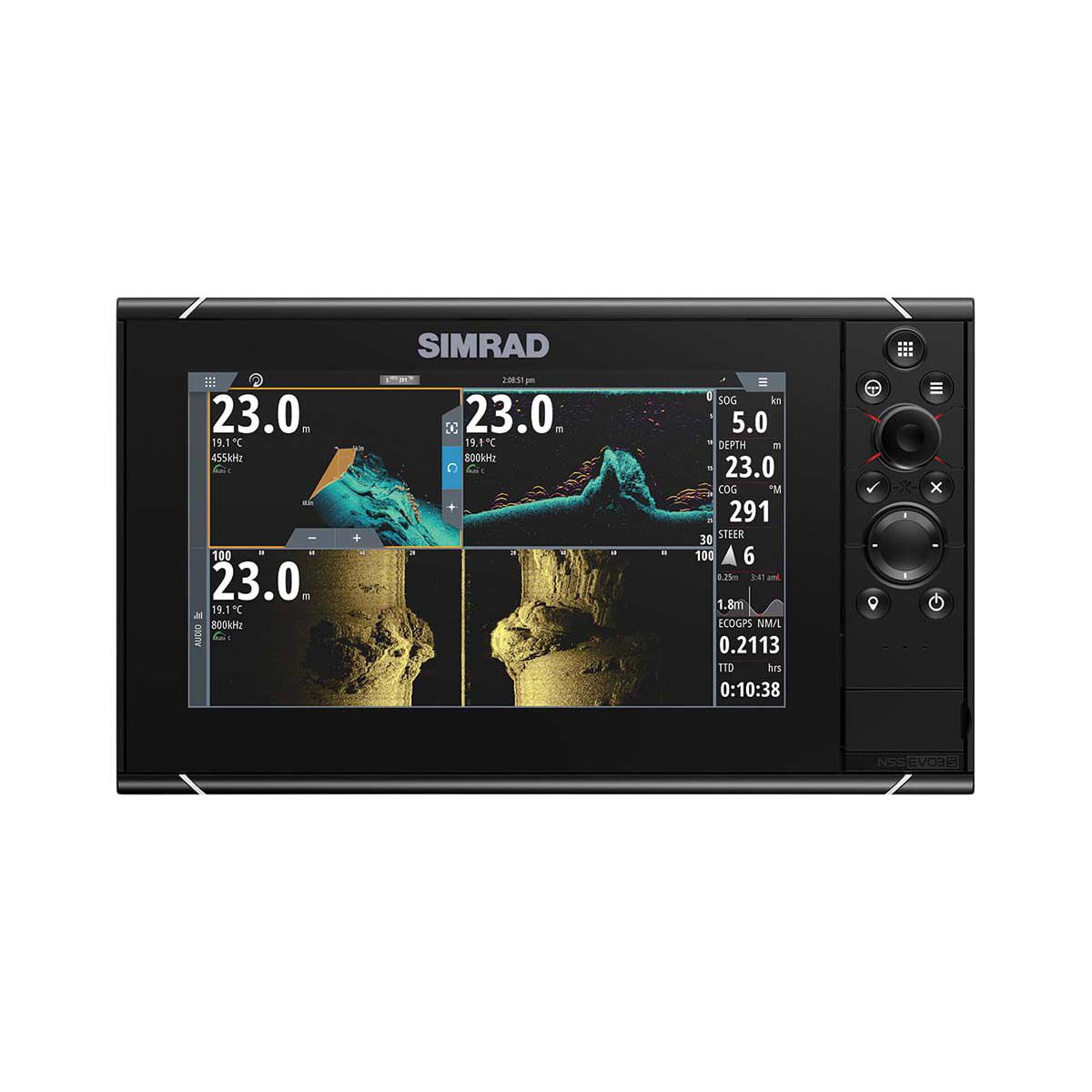

- ActiveTarget, SideScan, DownScan imaging for a clearer view beneath the surface
- Compatible with CZONE and NMEA marine networking technology
- Transducer not included
Product FEATURES
Double the processing speed
2x faster chart rendering*
30% faster boot up time*
2x faster page transitions*
*When compared with Simrad® NSSevo3™
Tech Spec
| DIMENSIONS | 287 x 166 x 90mm |
|---|---|
| DIMENSIONS (WITH BRACKET) | 311 x 180 x 85mm |
| WEIGHT | 1.41kg |
| DISPLAY RESOLUTION | 1280 x 720 pixels |
| DISPLAY SCREEN BRIGHTNESS | 1200 nits |
| DISPLAY SIZE AND TYPE | High vis SolarMax HD IPS 7inch |
| DISPLAY BACKLIGHT COLOUR | White |
| SUPPLY VOLTAGE | 10-31.2 V DC |
| FUSE RATING | 5A |
| POWER CONSUMPTION | 21W max |
| ETHERNET CONNECTIVITY | 1x 5 pin yellow connector x 1Mbit |
| BLUETOOTH CONNECTIVITY | Internal |
| NMEA 2000 CONNECTIVITY | 1x NMEA2000 Micro-C port, 1 LEN |
| NMEA 0183 CONNECTIVITY | Refer to manual |
| WATER RESISTANCE | IPX6 and 7 |
| SONAR FREQUENCIES | 40-250kHz and 455-800kHz |
| SONAR OUTPUT POWER | 1kW RMS |
