Oricom Plug & Play 5W UHF310 Radio Pack

$279.99
Club Price $223.99
Club Price $223.99
To access Club exclusive prices,
or sign up for free now!
Special Offer



Or 4 payments of $70.00 with Afterpay

Buy now, pay four interest-free payments.

  • 4 simple installments
  • 100% interest-free, no hidden fees
Pay later, from $10 per week. zip More Info

Own it now, pay later

  • For everyday spending up to $8,000
  • Nothing to pay today
  • Interest free always
  • Flexible repayments
Page does not contain any content.
PLU: 573880
Add to wishlist
Pay in 4
Product Info
Tech Spec
Articles
Reviews
Recommended Products

Product Info

Product Info

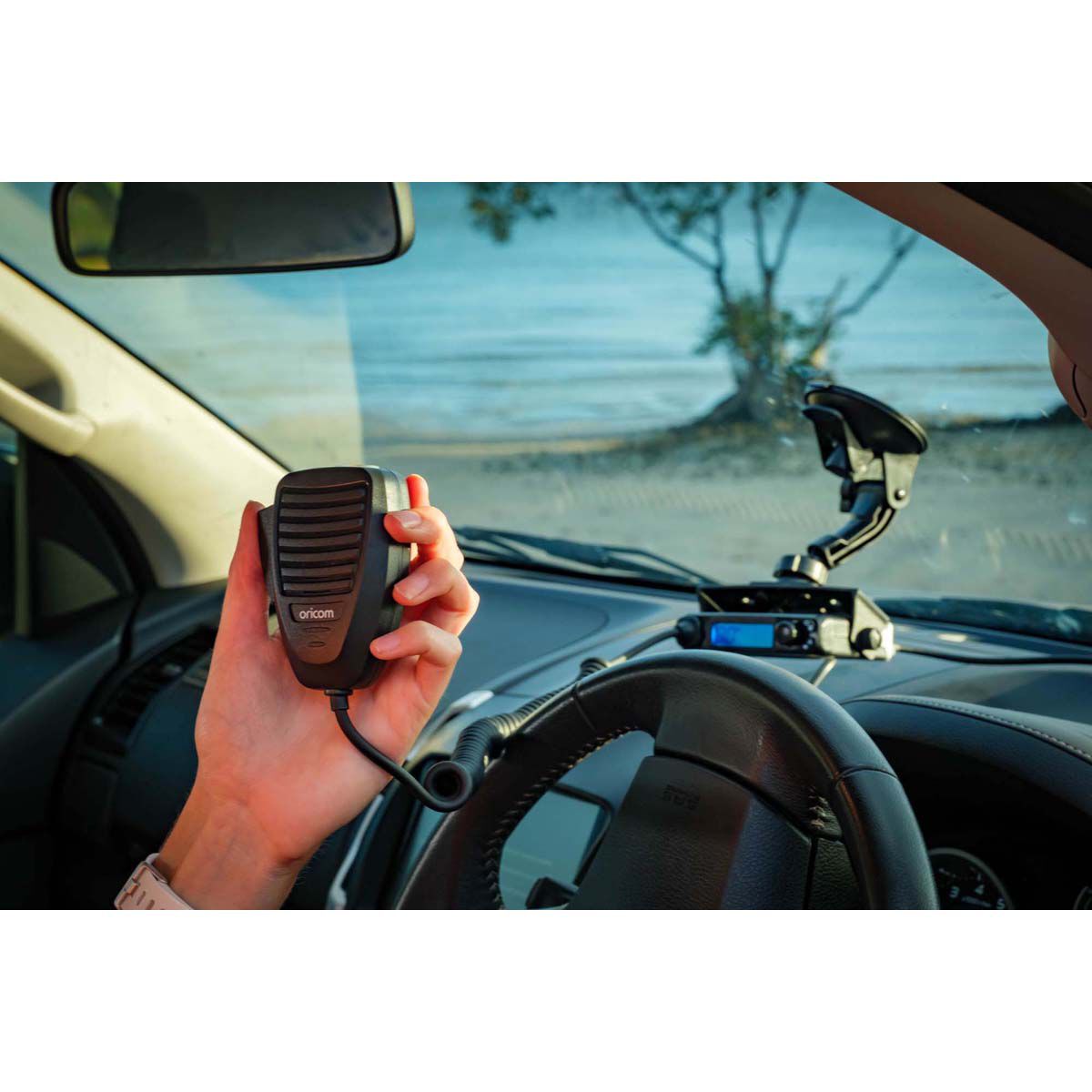

Ready for easy communication wherever your 4WD journey takes you? The Oricom Plug and Play 5W UHF310 Radio Pack is the answer. This mini-UHF CB radio is easy to assemble, mounts pretty much everywhere and it's portable. No installation work, just run the cables and plug the unit into a cig socket, ideal for temporary use or to move from car to car.

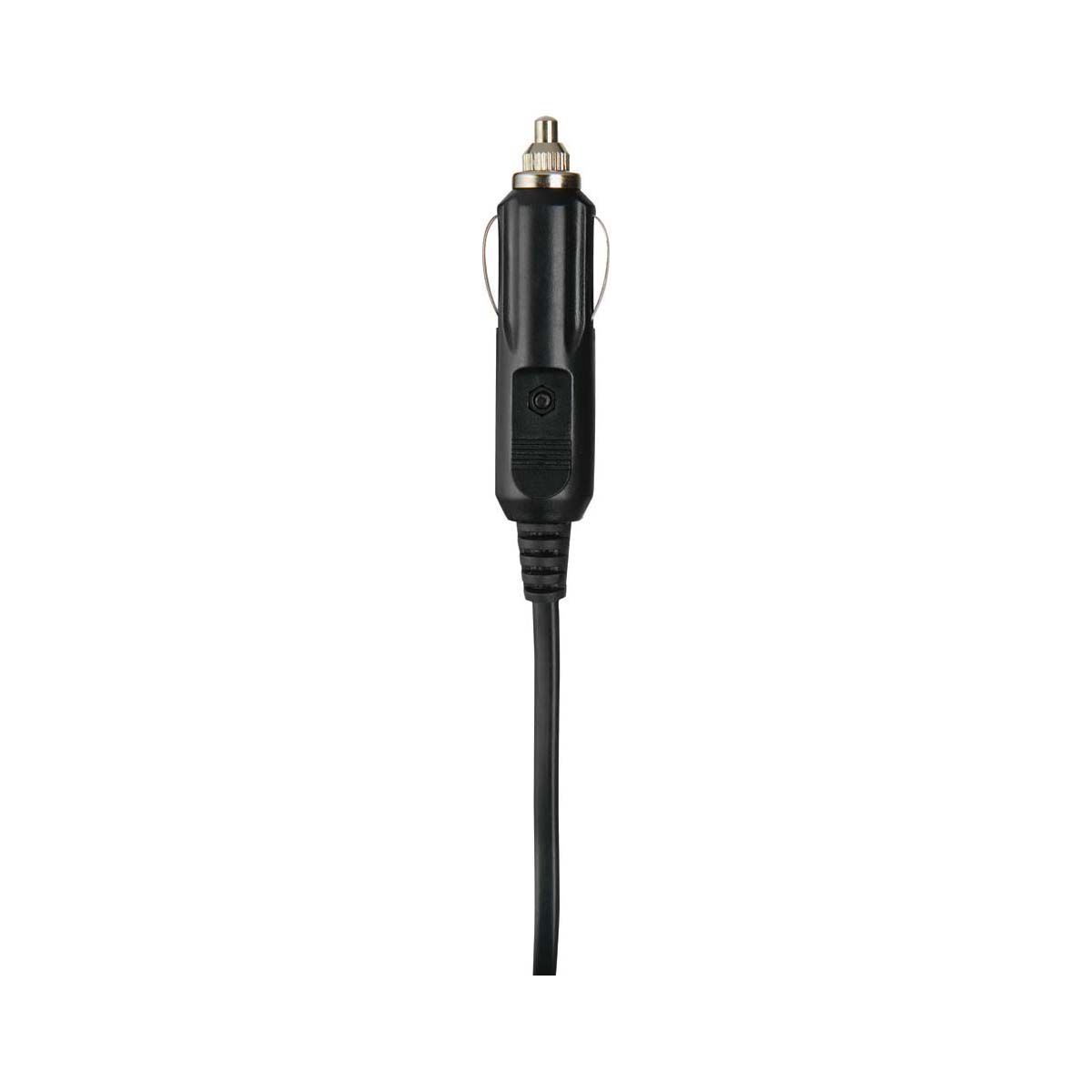

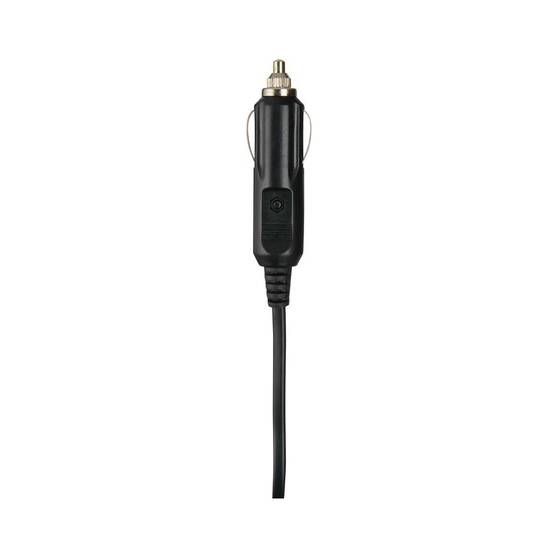

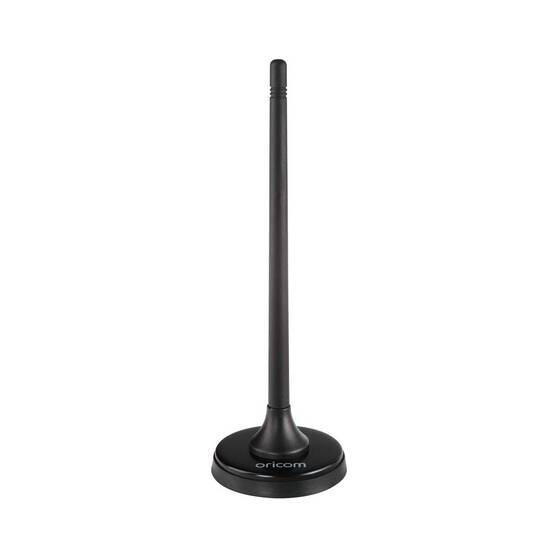

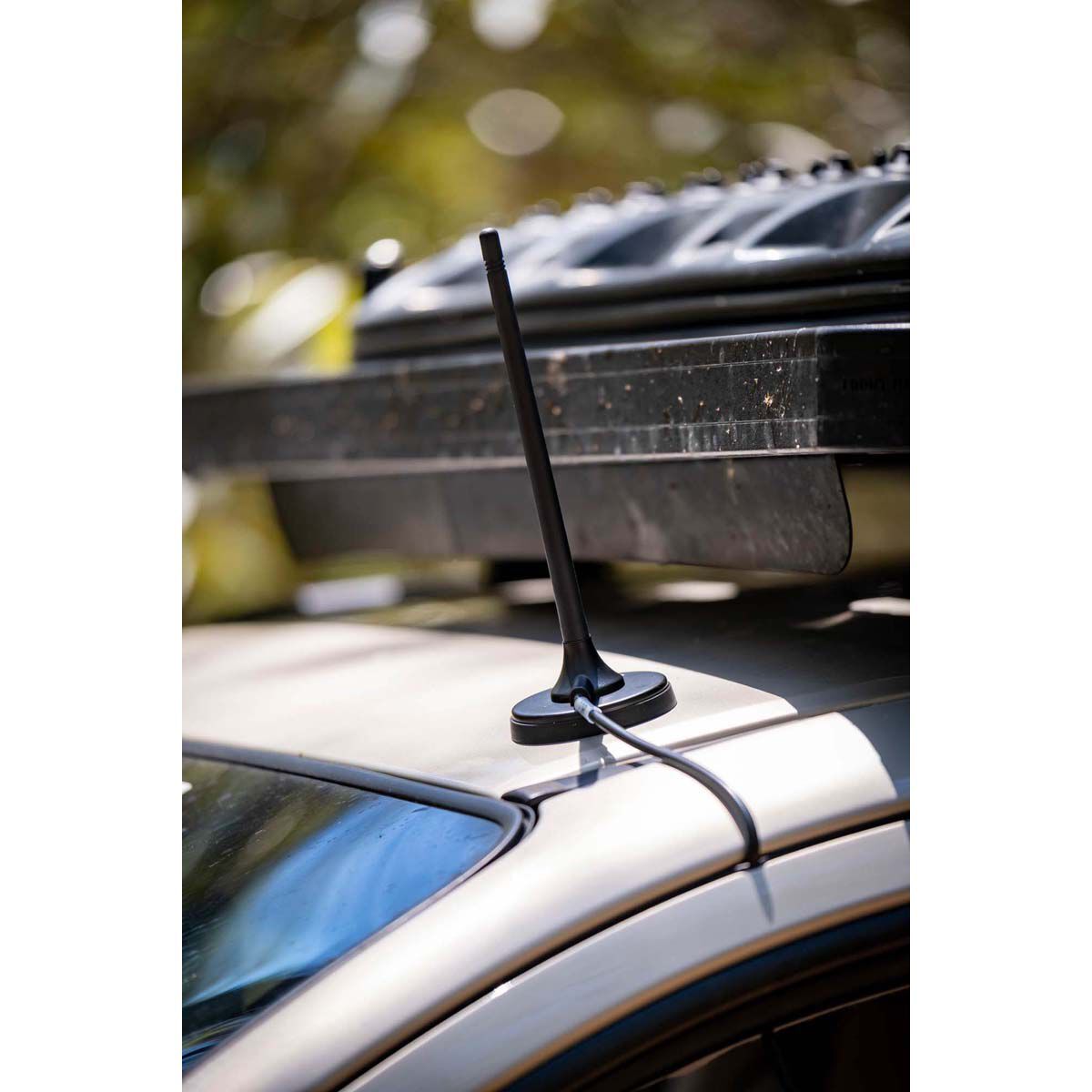

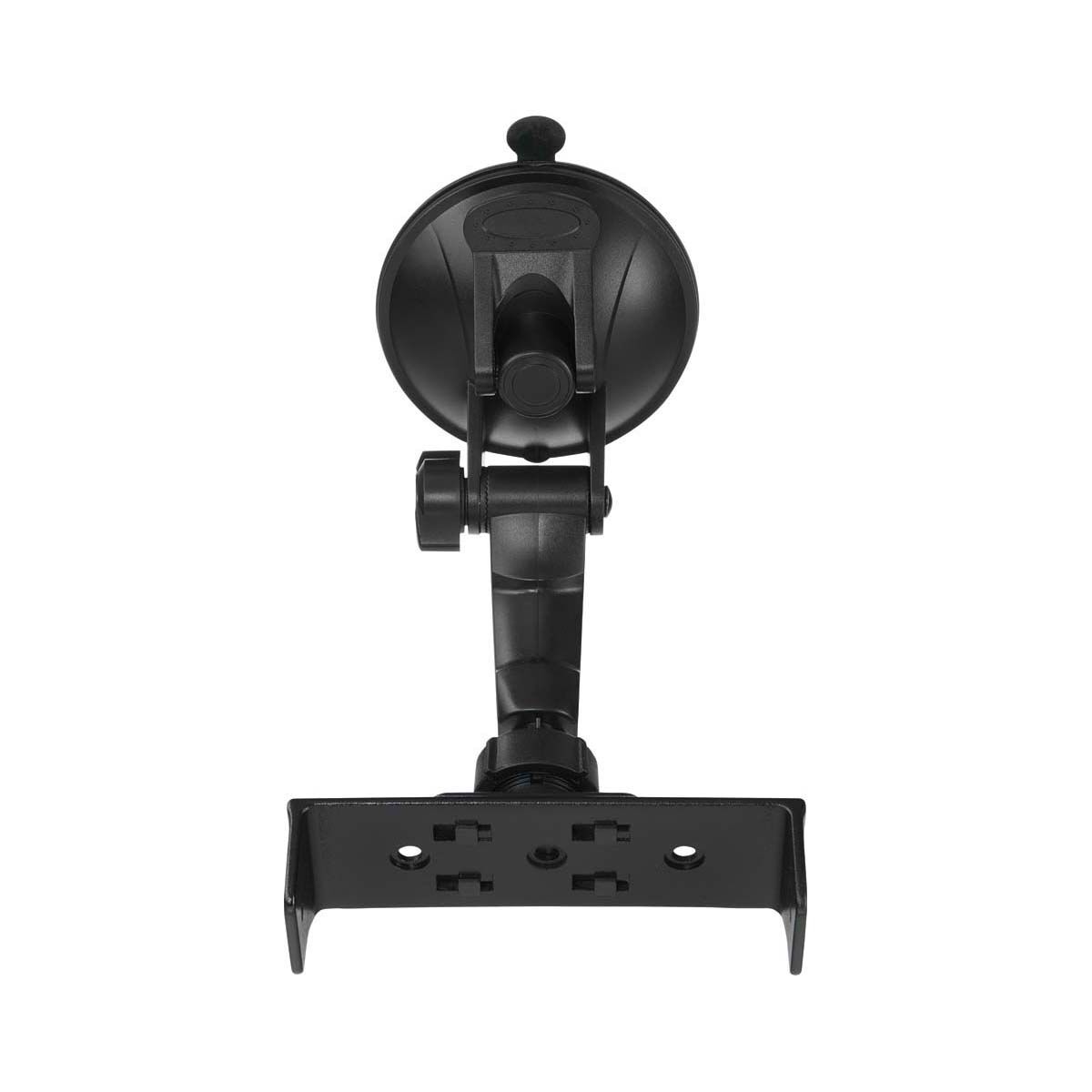

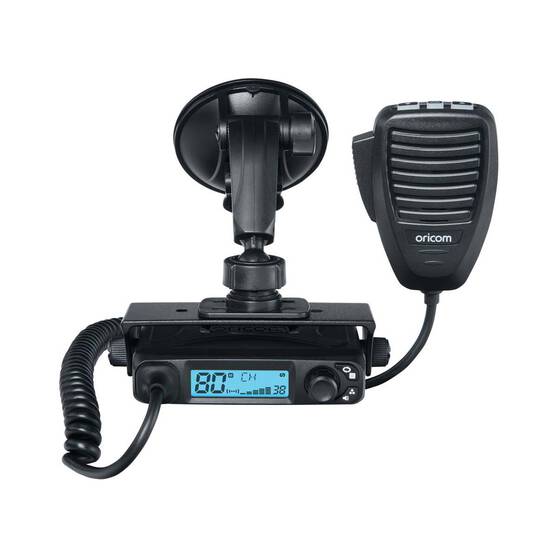

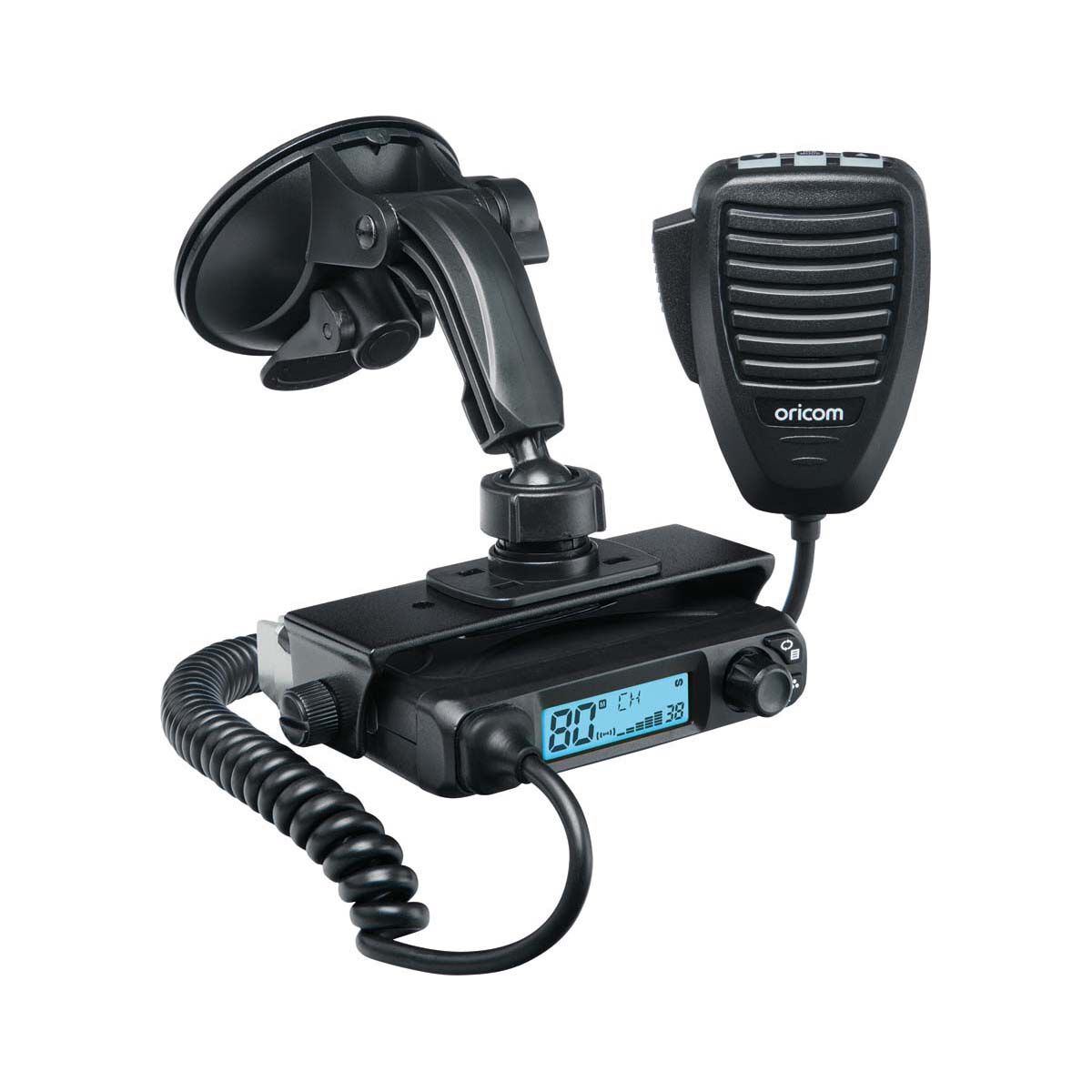

This UHF radio pack has everything you need to kick your adventure into high gear. The Plug and Play radio comes with the ANU025 antenna, a heavy-duty microphone, a convenient suction bracket, and a 12V car charger.

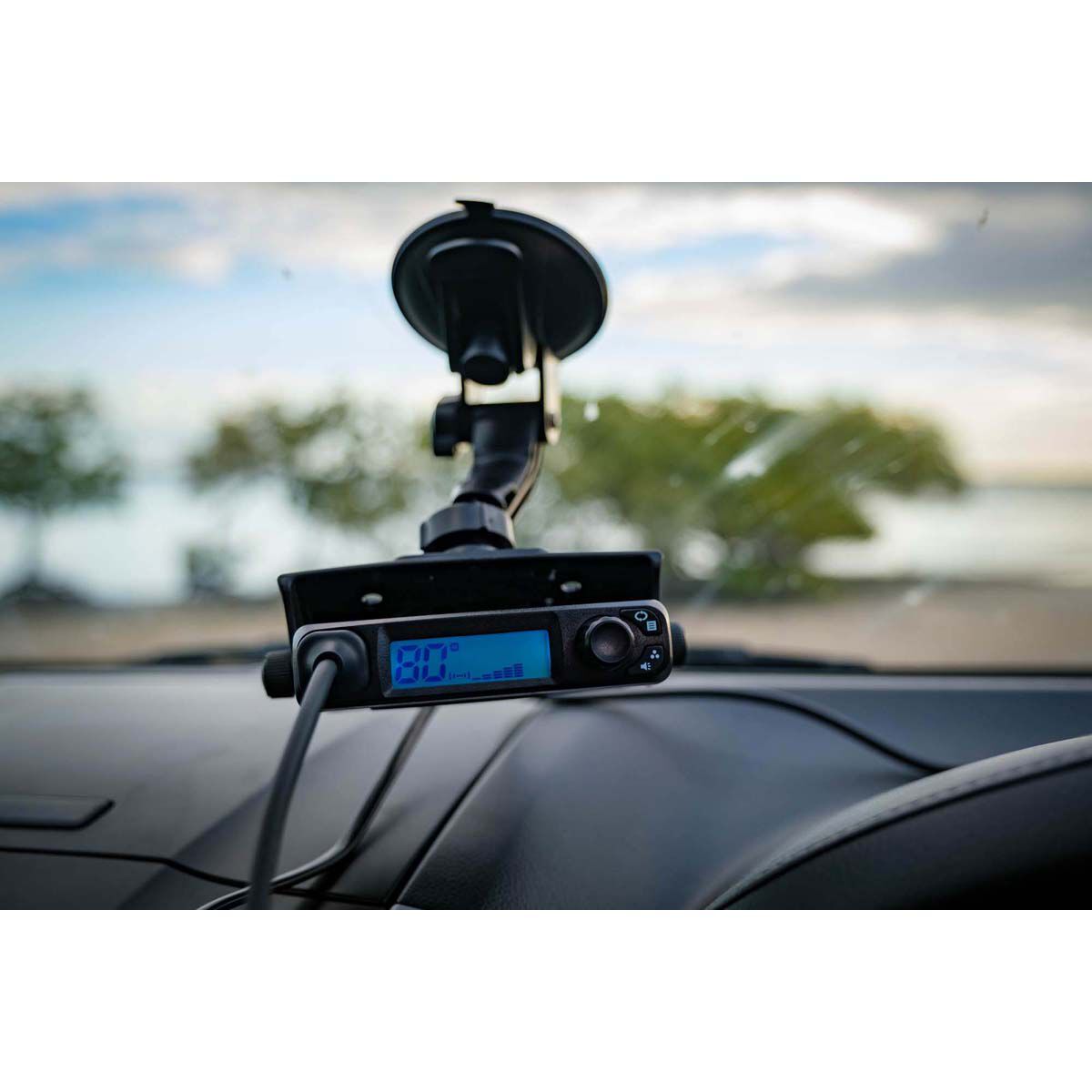

With 80 channels and a 7-color backlit LCD display, this micro-UHF CB radio has all the features you need of a normal UHF radio in a compact easy to install kit. Mount it up anywhere with the suction bracket and adjust the radio with the Flip LCD Display Function. Steady audio thanks to Automatic Level Control (ALC). Want a sound booster? Plug in an external speaker!

Gear up your journey with the Oricom Plug and Play 5W UHF Radio Pack, your companion for unforgettable adventures!

The Oricom Plug and Play 5W UHF310 Radio Pack comes with the following:
  • Micro UHF310 CB Radio
  • Heavy Duty Microphone
  • Microphone mounting bracket
  • Transceiver mounting bracket
  • Plug and Play Kit
  • Pack of supplied mounting screws
  • User Guide

Features

  • 5 year warranty on UFH310 UHF CB Radio

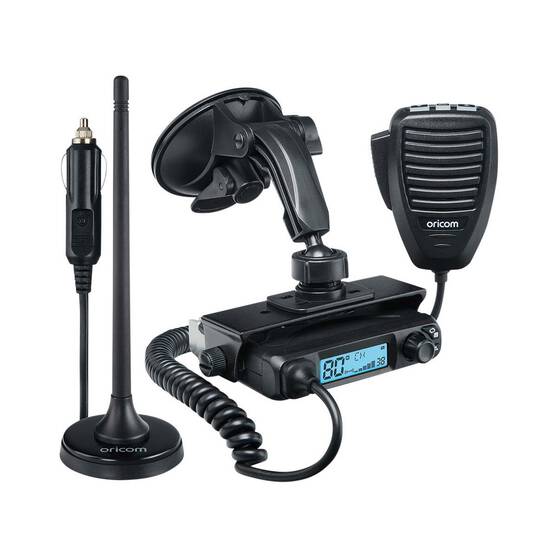

  • Value Pack Includes UHF310 Radio, ANU025 Antenna, Suction Bracket and 12V Car Charger
  • 5-Watt transmission power
  • Ultra compact micro size 80 channel CB radio with 7 colour backlit LCD display
  • Ideal mounting position with the Flip LCD display function
  • Maintain consistent audio levels during transmission with Automatic Level Control (ALC)
  • Simultaneous transmission and reception on two different frequencies
  • Open/Priority Scan allows you to monitor multiple channels automatically while on the designated priority channel

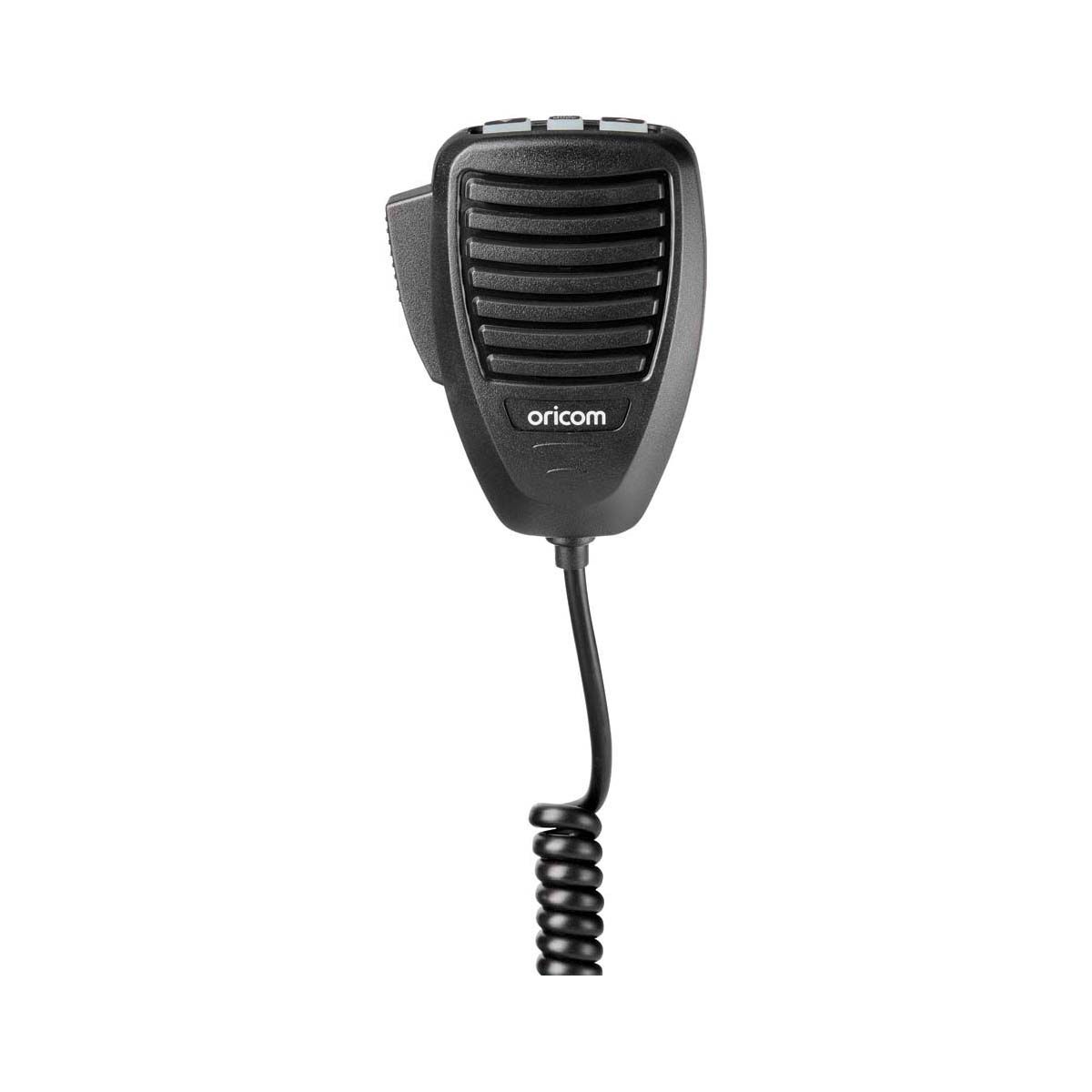

  • Heavy duty microphone with volume and channel control
  • 3.5mm external speaker jack

Tech Spec

GENERAL
COMPLIANCE AS/NZS 4365:2011
FREQUENCY RANGE TX/RX 476.425 - 477.4125MHz
NUMBER OF TX/RX CHANNELS 80UHF CB (75 Voice channels)
CHANNEL SPACING TX/RX 12.5KHz
OPERATING MODES Simplex, Repeater TX offset (+750kHz)
SCANNING SPEED 130msec per channel
ANTENNA IMPEDANCE 50 Ohms
OPERATING VOLTS NOMINAL 13.8V DC
OPERATING VOLTS RANGE 10 to 15V DC
OVER VOLTAGE PROTECTION voltage regulator
OVER CURRENT PROTECTION 2 AMP fuse
REVERSE POLARITY PROTECTION Shunt diode
FREQUENCY STABILITY +/- 2.5ppm
TRANSMITTER
RF OUTPUT POWER 5W
MODULATION F3E(FM)
MAXIMUM DEVIATION 2.5KHz
SPURIOUS EMISSIONS < -70dBc
TX AUDIO PRE-EMPHASIS + 6dB/octave from 300Hz to 3kHz
CURRENT CONSUMPTION DURING TX 1.5 Amps with 50 Ohm antenna terminatio
RECEIVER
CIRCUIT TYPE Direct conversion by Single DSP chip
INTERMEDIATE FREQUENCIES IF = 137KHz
MAXIMUM USEABLE SENSITIVITY Less than -122dBm at 12dB SINAD
