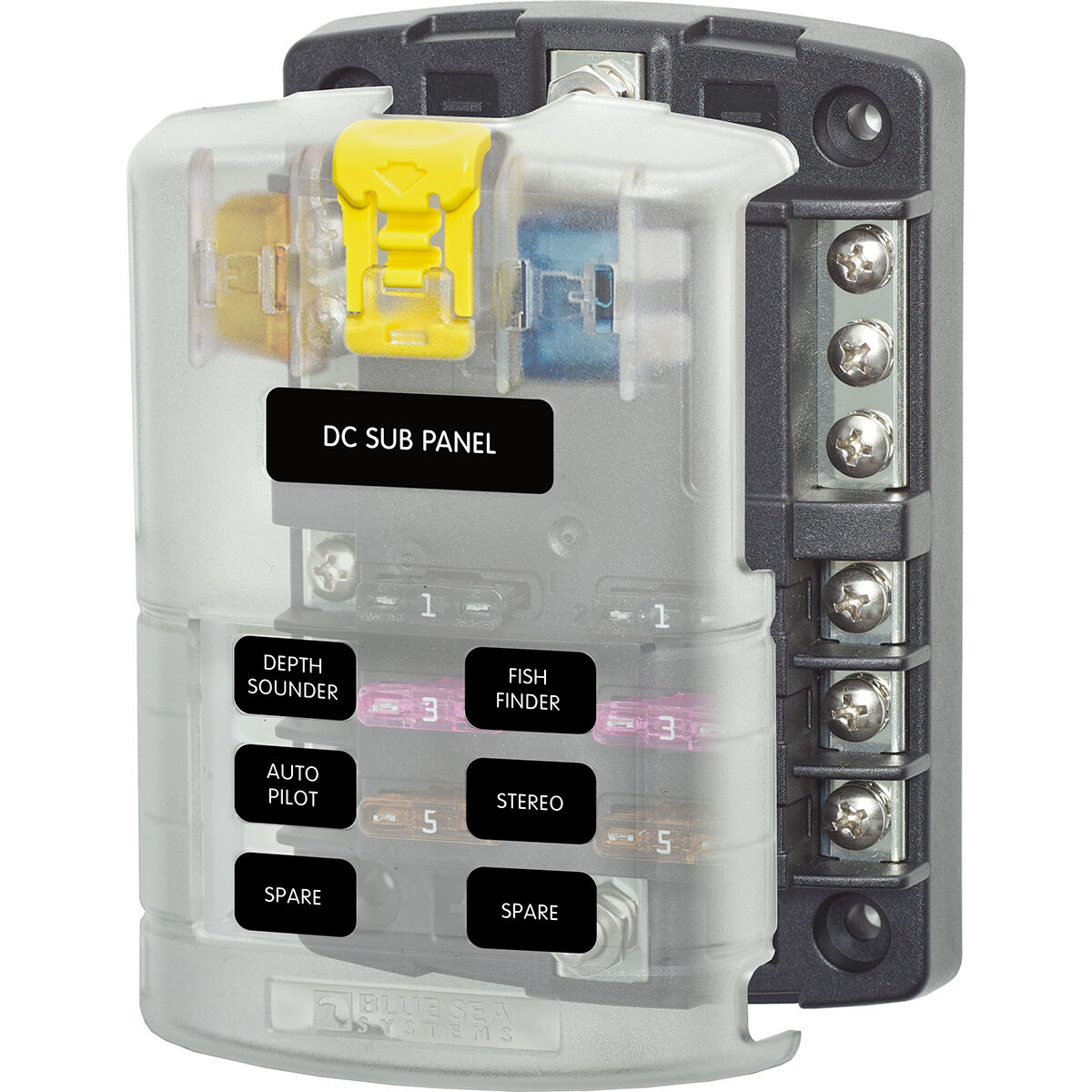

Blue Sea Systems ST Blade Fuse Block - 6 Gang Negative Bus and Cover
Details
https://www.bcf.com.au/p/blue-sea-systems-st-blade-fuse-block---6-gang-negative-bus-and-cover/625603.html
$89.99
Promotions
Special Offer
Additional Information
Product Info
Product Info
The ST Blade Fuse Block with 6 Circuits, Negative Bus and Cover is designed to consolidate branch circuits and in line fuses. By using a twin wire input from the power supply this simplifies power distribution and the integrated negative bus removes the need for a separate busbar. The cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels for circuit identification.
Features
- Height: 124.3mm
- Width: 84.2mm
- Depth: 38.6mm
- Maximum voltage: 32V DC
- Maximum amperage: 100A per block, 30A per circuit
- Positive distribution bus with #10-32 stud
- Cover satisfies ABYC/USCG requirements for insulation
- Includes 20 write-on circuit labels
- 6 individually fised circuits
- Accepts ATO® and ATC® fast acting blade fuses. Fuses sold separately
