Blue Sea Systems

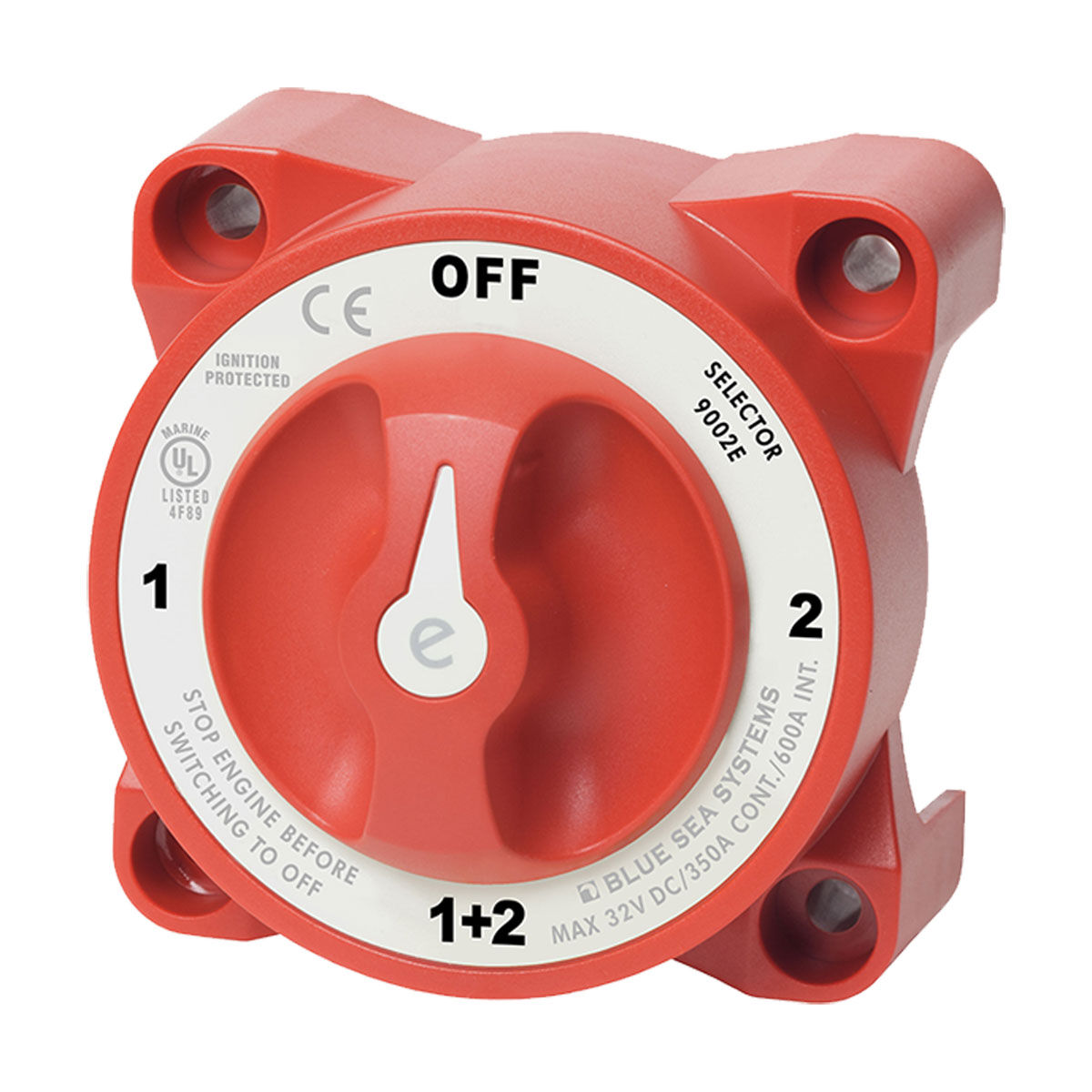

Blue Sea Systems e-Series Battery Selector Switch with AFD
Details
https://www.bcf.com.au/p/blue-sea-systems-e-series-battery-selector-switch-with-afd/625739.html
$149.99
Promotions
Special Offer
Or 4 payments of
$37.50
with
Buy now, pay four interest-free payments.
- 4 simple installments
- 100% interest-free, no hidden fees
Additional Information
Product Info
Product Info
This e-Series Battery Selector Switch switches two isolated battery banks to one load . It includes Alternator Field Disconnect (AFD) which protects the diodes in the alternator in the event of the switch being turned to the off position while the engine is running. It is also ignition protected and is safe for installation aboard petrol powered boats. The case design allows surface or rear panel mounting. This switch also allows the combining of batteries.
Features
- Maximum Voltage: 32V DC
- Continuous rating: 350A
- Intermittent rating: 600A (5 Mins)
- Cranking rating: 1200A (30 Seconds)
- Battery inputs: 2
- M10 terminal studs
- M6 mounting holes
- Colour: red
