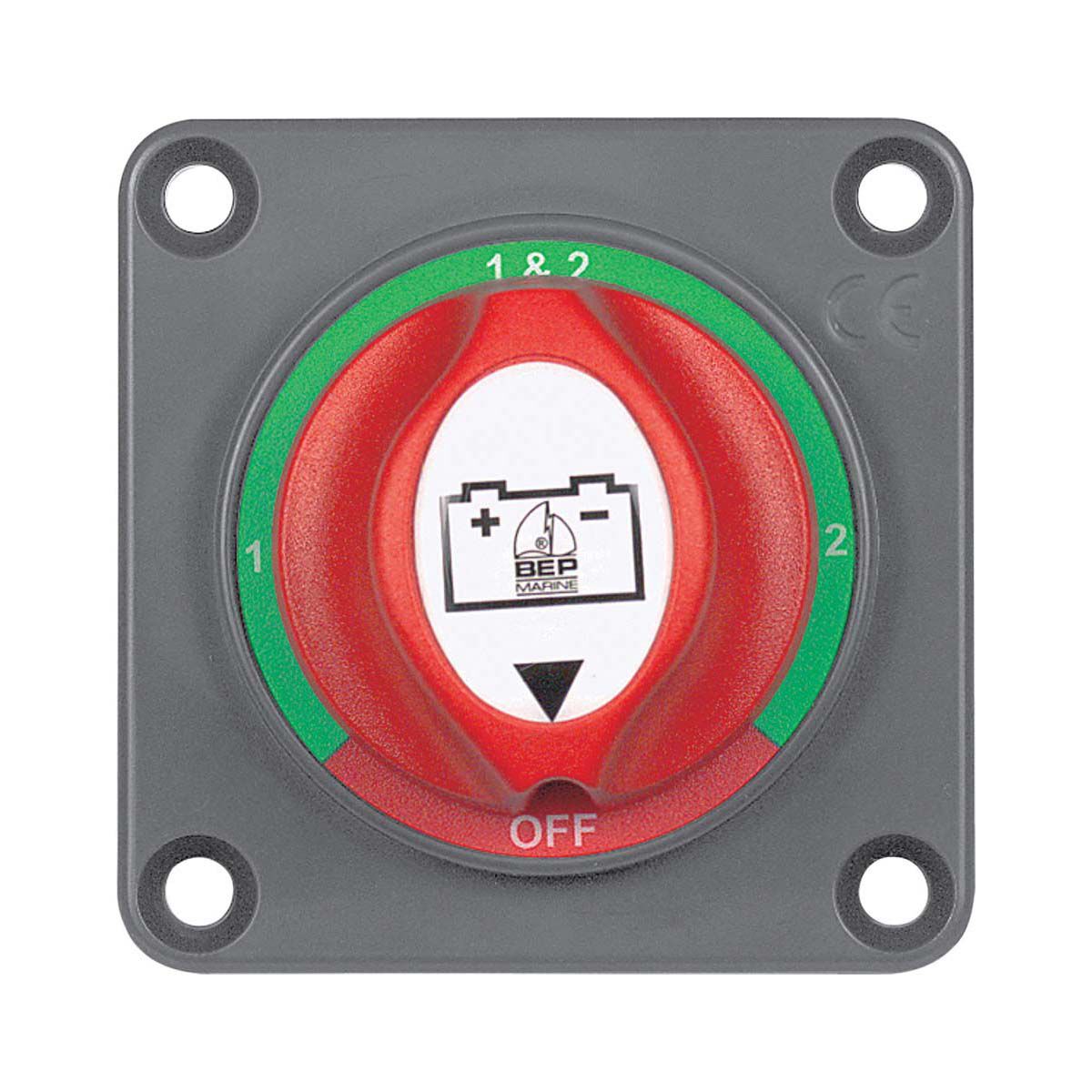

Introducing the BEP 701-S Mini Four Position Selector Switch, the smallest and most economical way to manage your boat's batteries. This rotating switch offers four positions: off, battery 1, both, and battery 2, providing flexibility in managing power sources.
The switch's removable rear cover insulates the rear terminals against short circuits, and removable side plates on four sides allow access for heavy-duty battery cables. Designed for surface or recess mounting in a 52mm hole, it includes mounting holes for 5mm roundhead screws. The 7015-PM model is specifically for panel mounting, offering full recess or shallow intrusion options. Please note, this switch will not protect electronics from harmful engine starting spikes.
Features
- The smallest selector switch on the market
- A simple, economical way to separate 2 batteries
- 4-position rotating switch provides off, battery 1, both, and battery 2 options
- Removable rear cover insulates the rear terminals against any short circuits
- Removable side plates on four sides provide access for heavy duty battery cables
- Surface mount or recess mount in a 52mm hole
- Mount holes 5mm roundhead
- Designed specifically for panel mounting with the option of full recess or shallow intrusion
- This flush mounting version accepts 5mm countersunk screws
- Note: This switch will not protect electronics from harmful engine starting spikes
Tech Spec
| CONTINUOUS RATING | 200 amps DC |
|---|---|
| INTERMITTENT RATING | 300 amps DC |
| CRANKING RATING | 1000 amps DC for 10 seconds |
| VOLTAGE RATING | 48 volts DC maximum |
| TERMINAL STUD SIZE | 3 x 8mm |
| MATERIALS | Moulded in high temperature, fibre-reinforced plastics |
