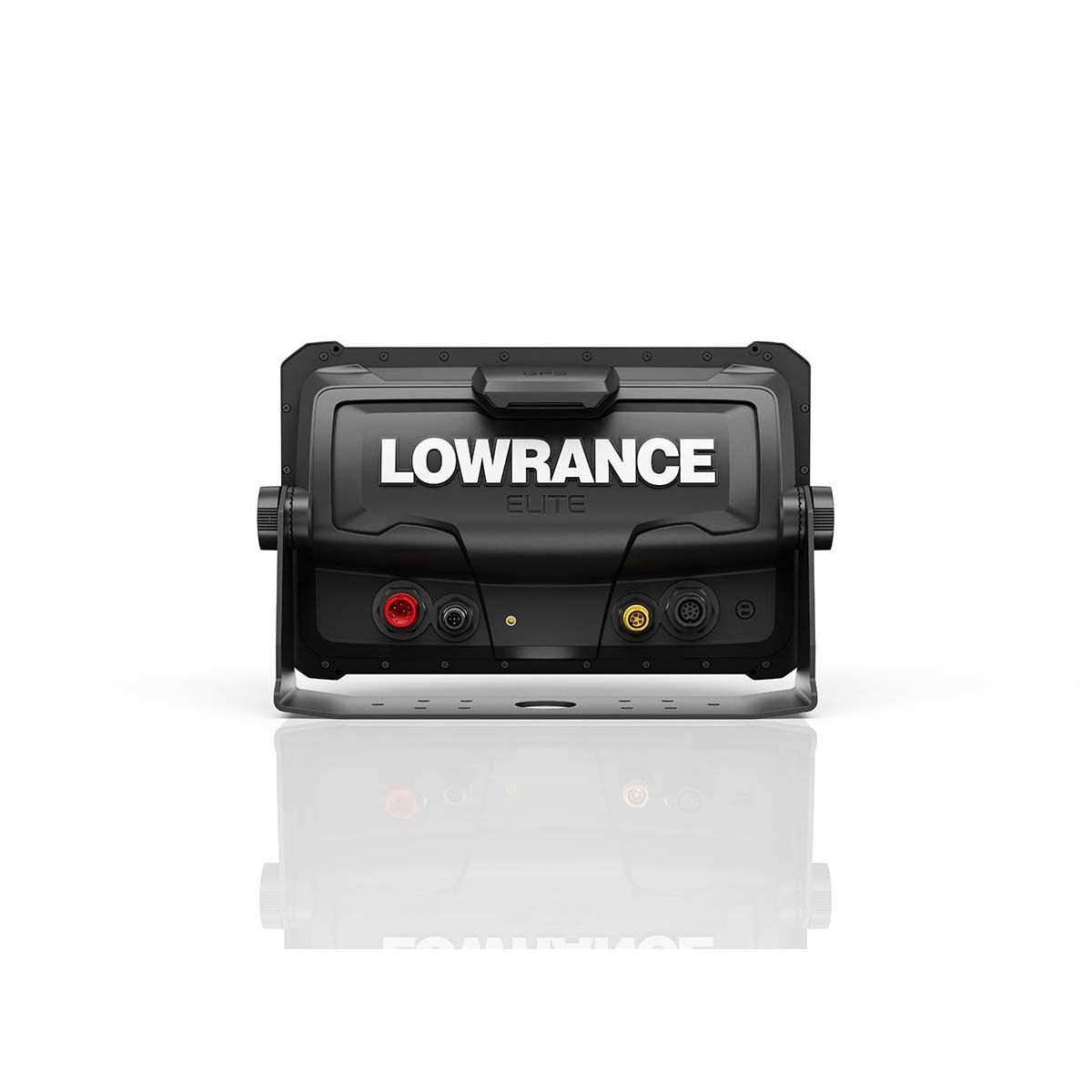

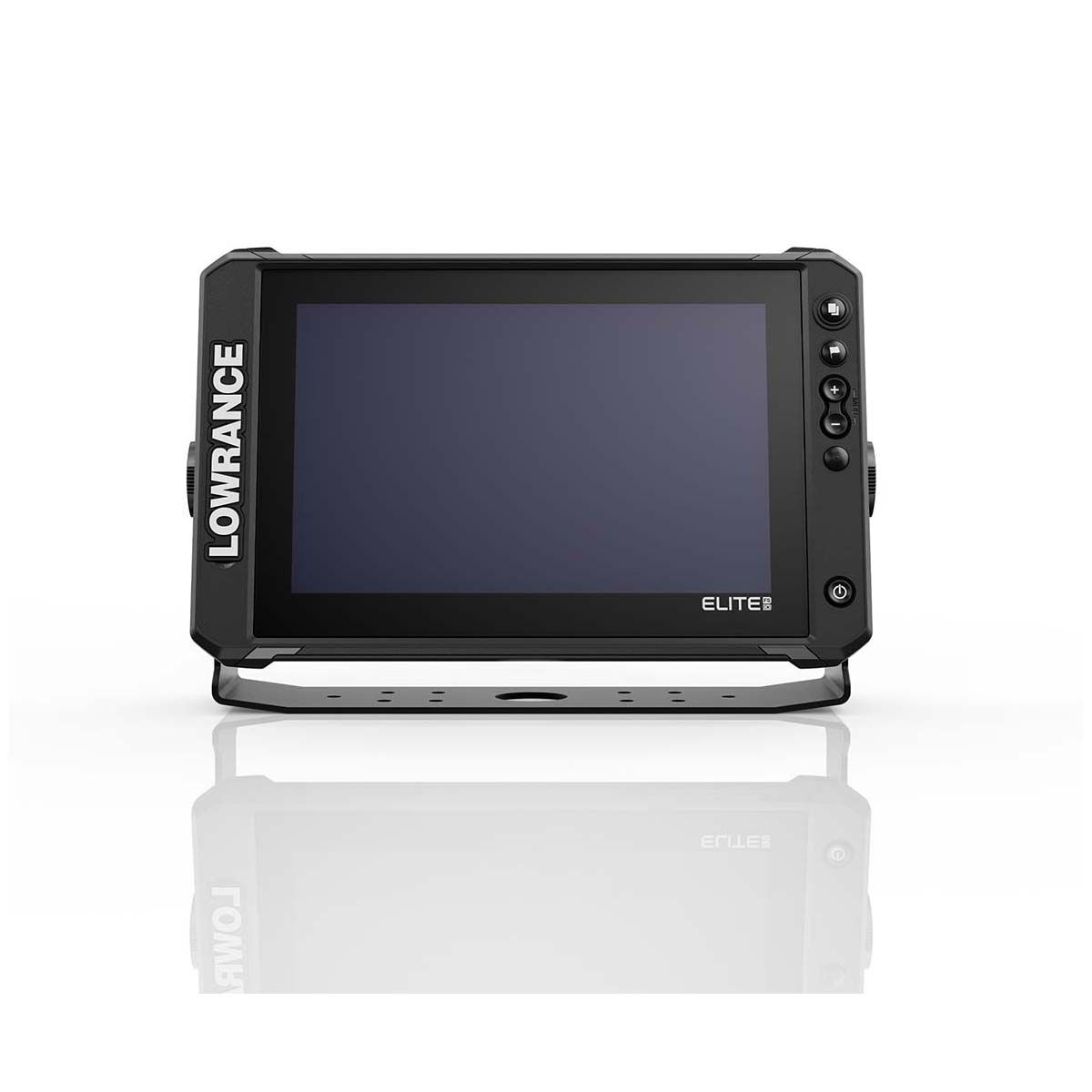

Lowrance Elite FS10” Combo Including Active Imaging 3-in-1 Transducer and CMAP
Details
https://www.bcf.com.au/p/lowrance-elite-fs10-combo-including-active-imaging-3-in-1-transducer-and-cmap/709014.htmlPromotions
Buy now, pay four interest-free payments.
- 4 simple installments
- 100% interest-free, no hidden fees
Additional Information
Product Info
Product Info
The FishReveal™ feature combines CHIRP sonar fish targets with DownScan Imaging™, making fish easier to spot and identify. Plus, it’s ActiveTarget™ Live Sonar ready(requires seperate transducer) for real-time tracking of fish movement. The Active Imaging 3-in-1 Transducer, included in the package, enhances your fishing experience with detailed sonar imaging.
Easy to install and use, the Elite FS10” also offers integrated wireless, NMEA 2000®, and Ethernet connectivity for seamless networking across your vessel. For unmatched performance and versatility, the Lowrance Elite FS10” Combo is your ultimate companion on the water.
Features

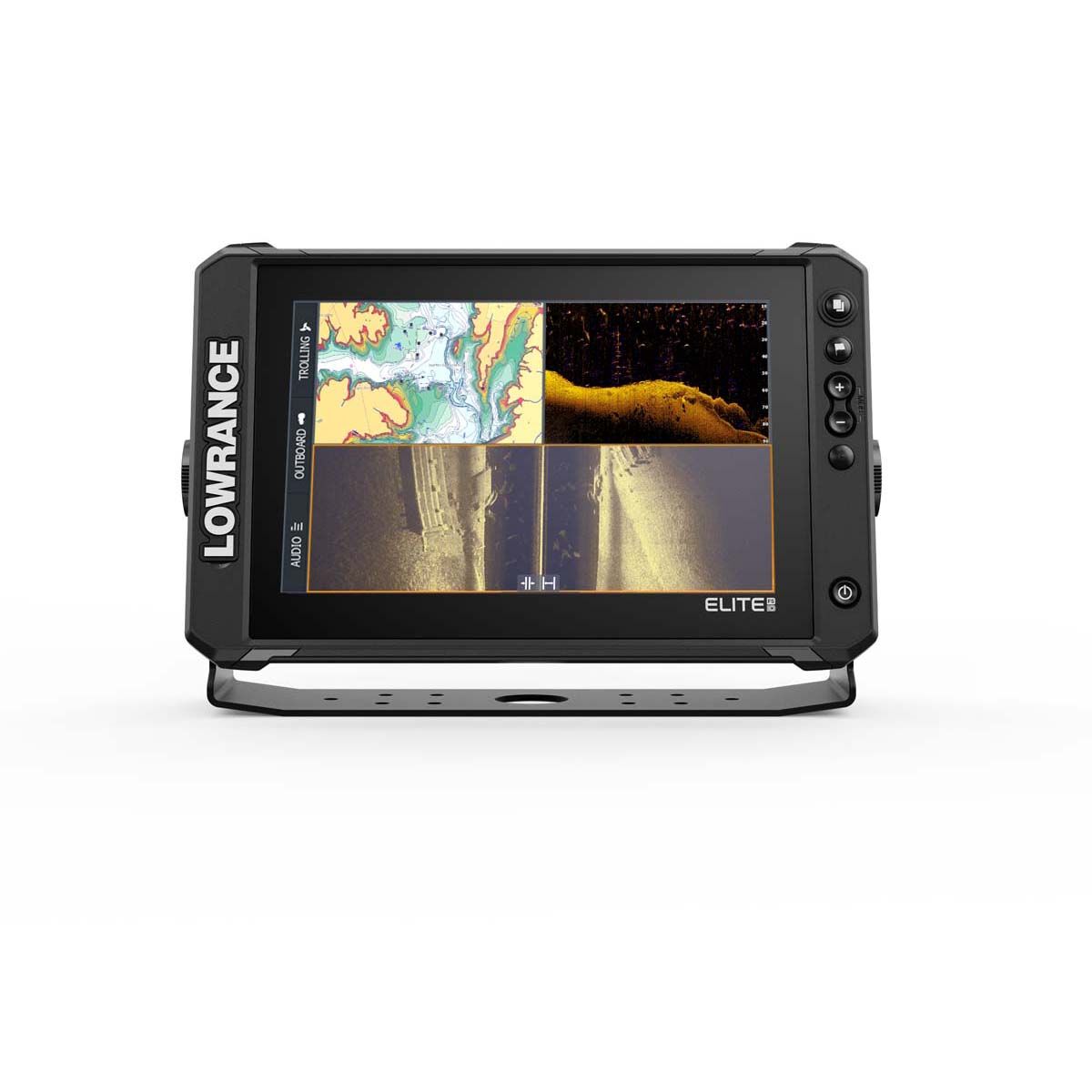

- High-res multi touch 10” screen for incredible detail
- Comes preloaded with C-MAP® enhanced embedded charts
- Compatible with a wide range of C-MAP® and other charts
- Easy to install and use
- FishReveal™ - Makes fish easier to see on DownScan Imaging™ by combining CHIRP sonar fish targets
- ActiveTarget™ Live Sonar ready (requires seperate transducer)
- Integrated wireless, NMEA 2000® and Ethernet connectivity for full vessel networking
- Combo includes Active Imaging 3-in-1 Transducer
- Full touchscreen control of Recon™ and Ghost® Trolling Motor, as well as Power Pole® Anchors
Product Features

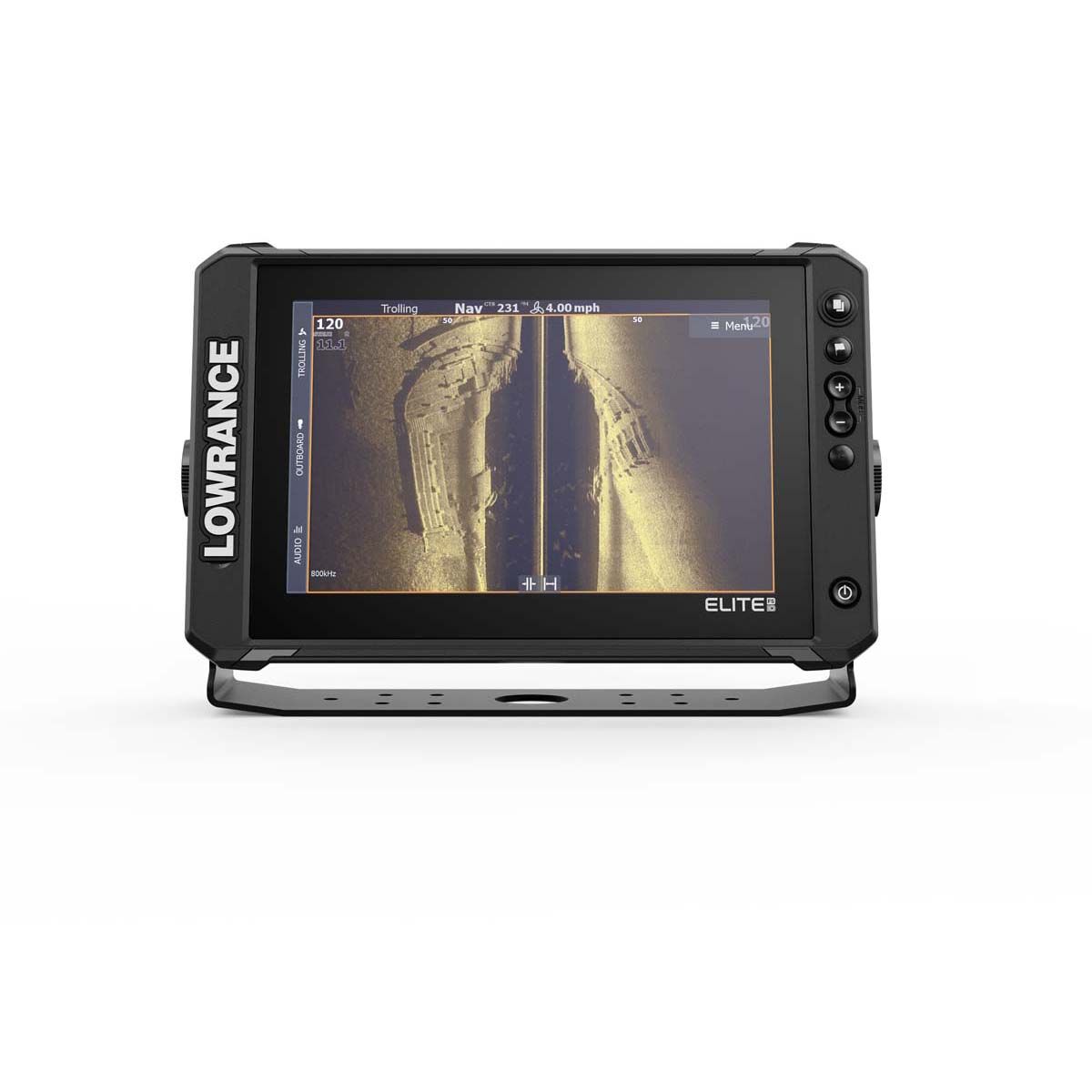

ACTIVE IMAGING
See structure and cover in more detail and at a range unmatched by other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan and DownScan Imaging™.
FISHREVEAL

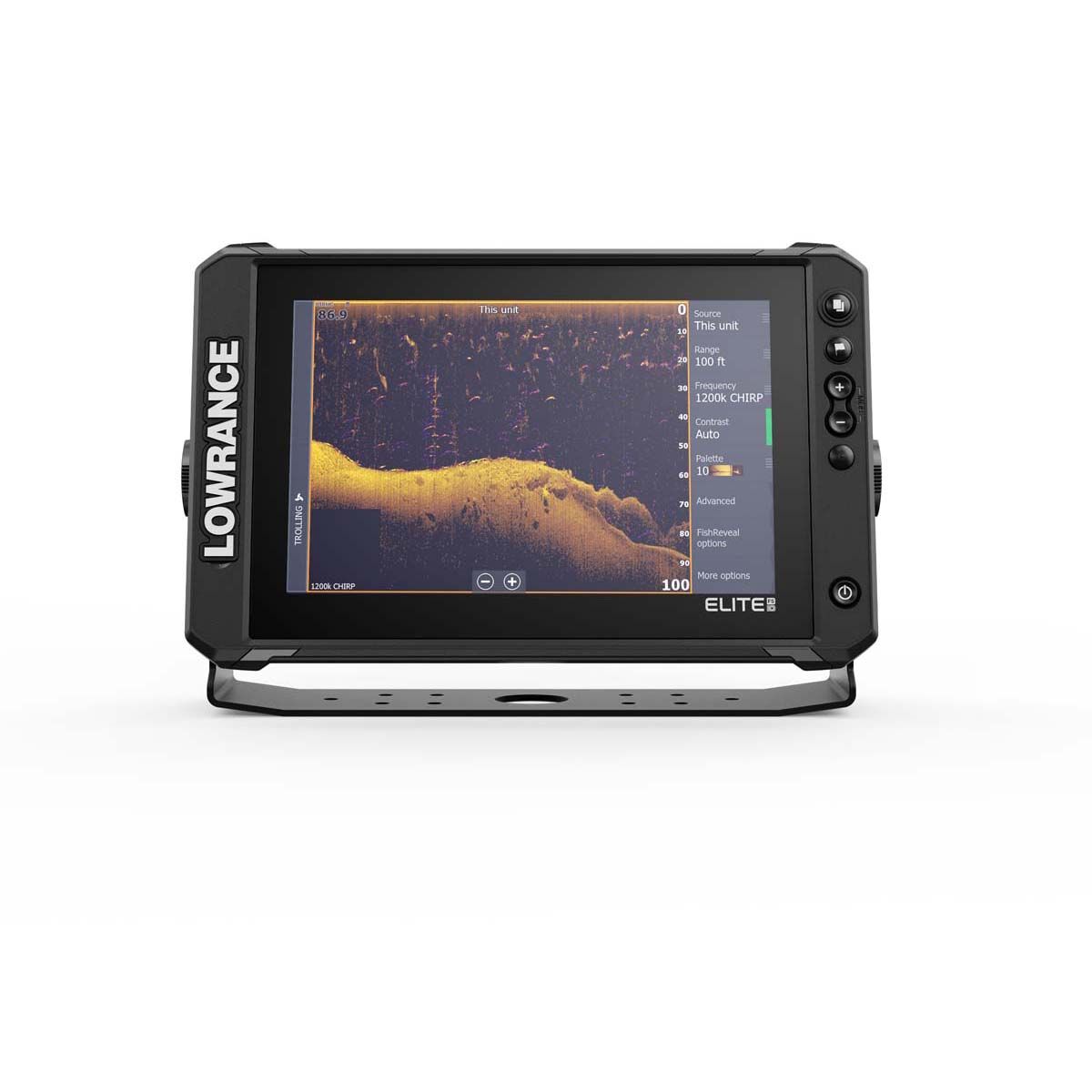

Get the best of CHIRP sonar and DownScan Imaging on one screen with FishReveal, a Lowrance exclusive that helps you easily recognise fish from structure and cover on high-detailed DownScan Images.

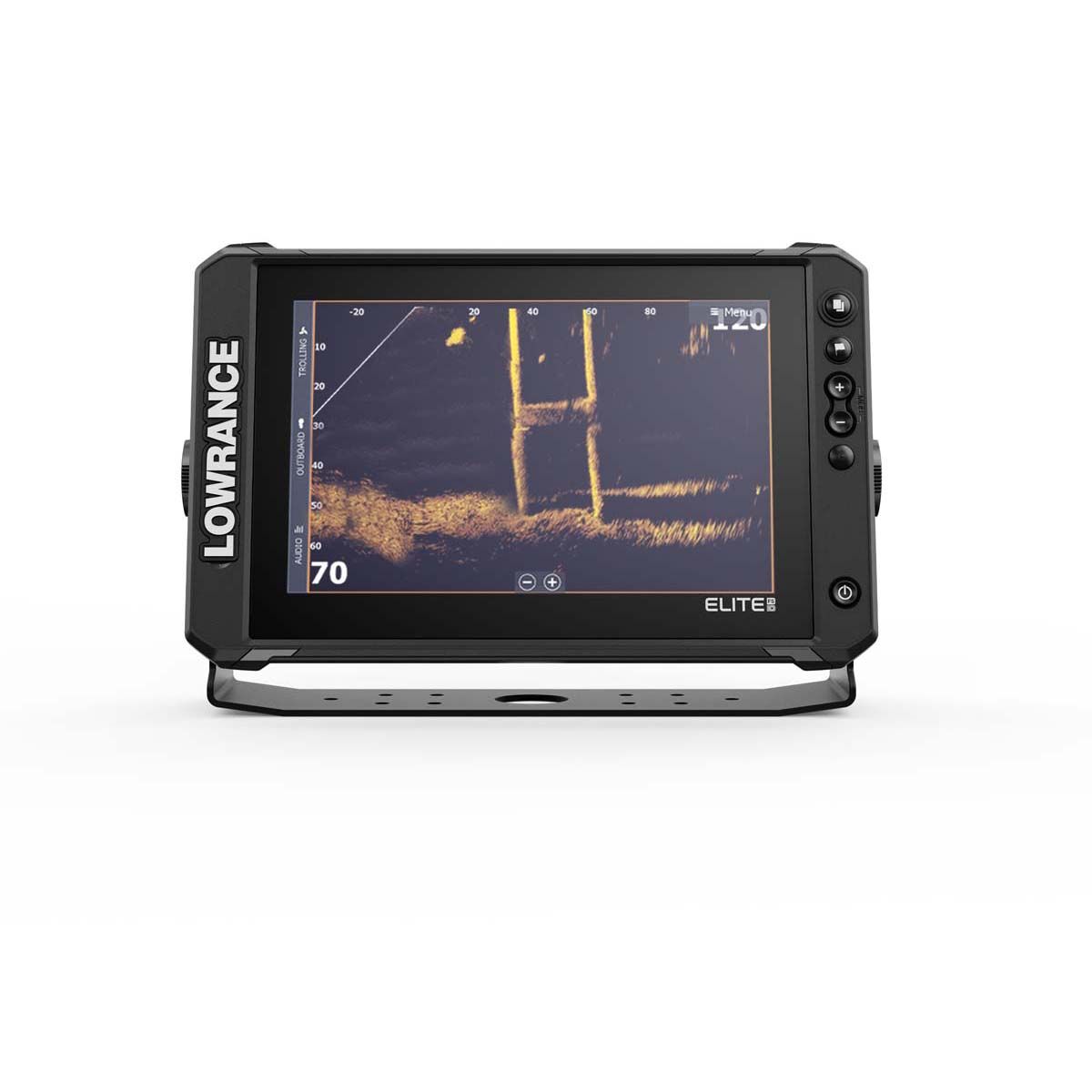

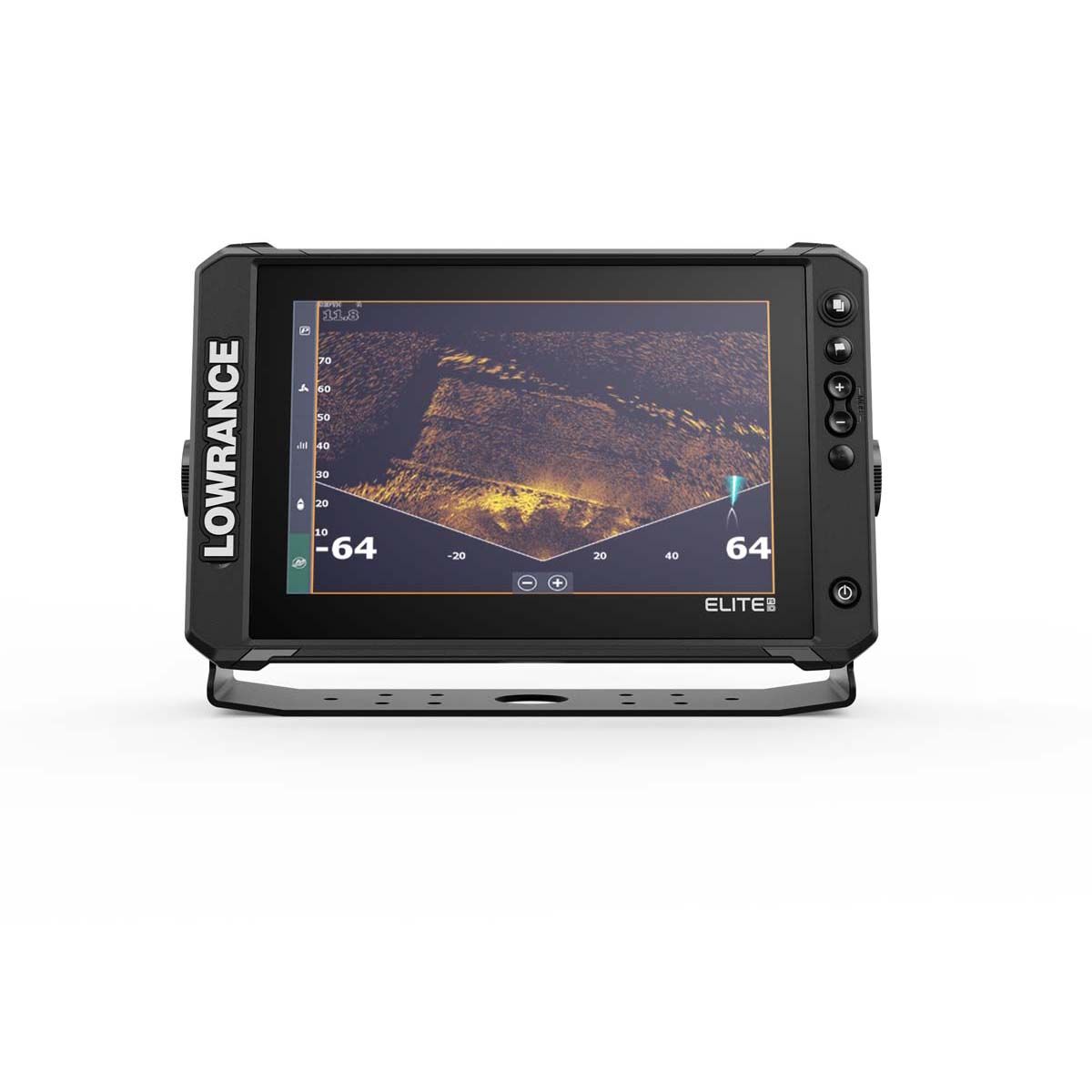

ACTIVE TARGET™
Fish smarter when you know exactly what the fish are doing in real time with ActiveTarget™ 2 Live Sonar.* Enjoy high-resolution views of fish movement, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.
*transducer purchased separately
ADVANCED MAPS

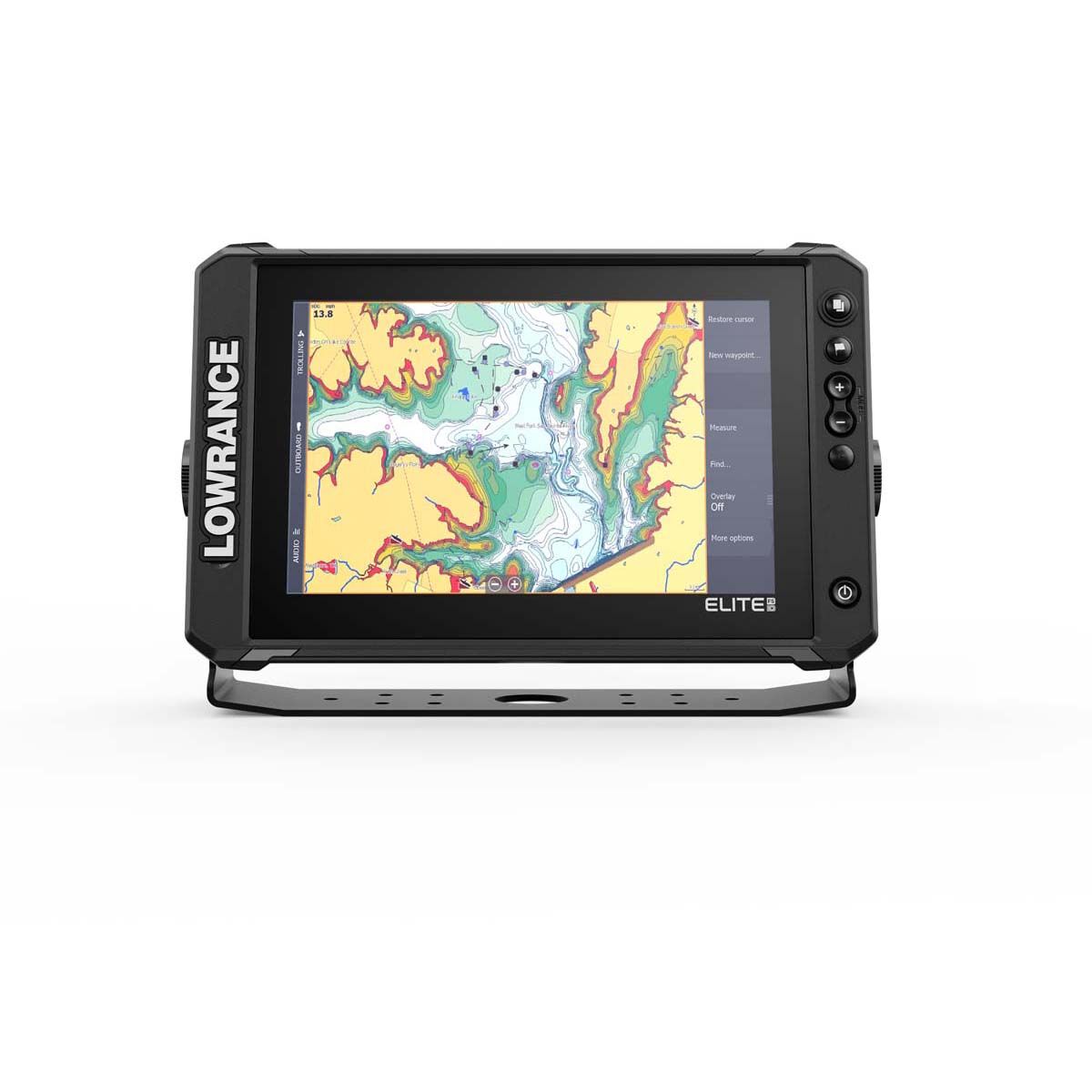

With C-MAP® Embedded Charts for New Zealand and Australia, you can spend less time searching and more time fishing, thanks to high-resolution inland and coastal charting that helps you find the best spots faster. Plus, Genesis Live lets you create custom ½-foot contour maps of your local lakes or uncharted waters in real time, giving you unmatched insight and control over your fishing grounds.
IPS SCREEN

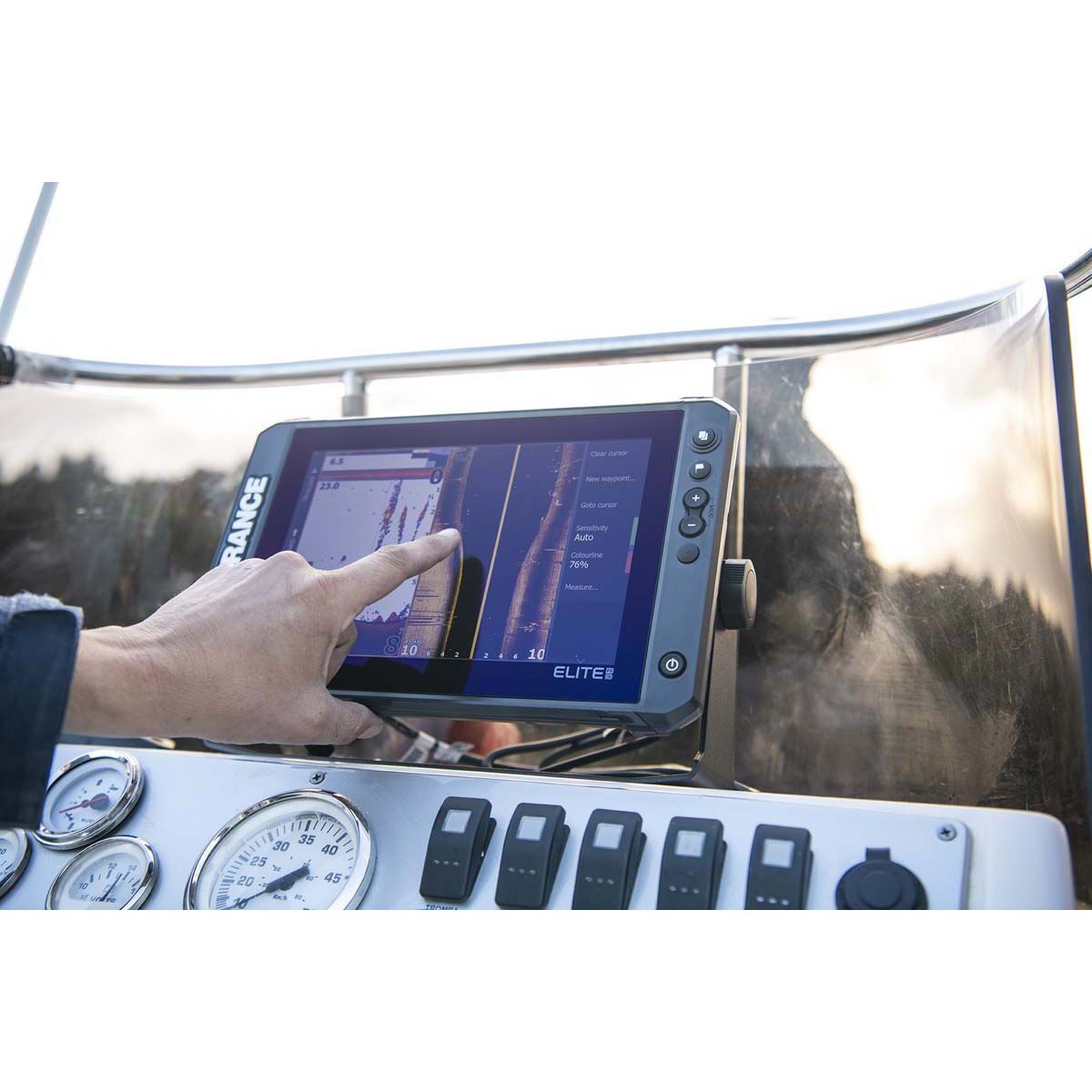

The multi-touch IPS screen promises clear views, even in sunny weather and the option to control with multi-touch or keypad keeps you fishing in all conditions.
Networking
Share sonar, charts, waypoints and other user data between multiple displays and seamlessly connect to other systems in the boat including Recon® & Ghost® Trolling Motors, Autopilots, Radar or PowerPole® Anchors for the complete fishing system and boat control.
Tech Spec
| BACKLIGHT COLOUR | Pure White LED |
|---|---|
| DISPLAY RESOLUTION | 1280x800 |
| DISPLAY SIZE | 10 inches |
| SCREEN BRIGHTNESS | >1200 nits |
| VIEWING ANGLES | 85° top/bottom85° left/right |
| BLUETOOTH | Integrated Bluetooth 4.0 with support for Bluetooth Classic |
|---|---|
| ETHERNET PORTS | 1 x 100Mbit |
| WIFI | Internal 802.11b/g/n |
| NMEA 0183 SENTANCES SUPPORTED | None |
| NMEA 2000 CONNECTIVITY | 1x Micro-C |
| PC VONNECTIVITY | None |
| SD CARD STORAGE | 1 micro SD card up to 32GB |
| VIDEO | None |
| CHARTS SUPPORTED | C-MAP (MAX N, MAX N+), C-MAP Genesis, C-MAP Precision Contour HD (AMER ONLY), Navionics (Gold, NAV+ Platinum+), Insight (Pro and HD), Lowrance Regional Mapping Partners |
|---|
| POWER CONSUMPTION MAX | 2.5A @ 13.8VDC with backlight on full |
|---|---|
| POWER CONSUMPTION MIN | 28 W 2.0A @ 13.8VDC with backlight on full |
| POWER CONSUMPTION TYPICAL | 2.0A @ 13.8VDC with backlight on full |
| RECOMMENDED FUSE RATING | 3A |
| SUPPLY VOLTAGE | 12v DC (10.8-17VDC) |
| HUMIDITY | 60°C, 95% relative humidity (RH) for 18 hours |
|---|---|
| OPERATING TEMPERATURE RANGE | -15°C to 55°C |
| SHOCK VIBRATION | 100,000 cycles of 20 G |
| STORAGE TEMPERATURE RANGE | -20°C to 60°C |
| WATERPROOF RATING | IPX7 with card door closed |
| CORRECTION | DGPSWAASMSASEGNOSGLONASS |
|---|---|
| GPS RECIEVER CHANNELS | 16 |
| POSTION ACCURACY | 20m RMS |
| TIME TO FIRST FIX | 30s |
| UPDATE RATE | 10 Hz |
| AIS | AIS Chart overlay. Target vessel details |
|---|---|
| AUTOPILOT | Outboard PilotGhost Trolling MotorRecon Trolling motor (software dependent)MotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway |
| CARTOGRAPHY INCLUDED | C-MAP Contour + (US models)Navionics basemap (AMER, AUS/NZ and ROW models) |
| DIGITAL SWITCHING | None |
| GPS | 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS |
| INTERNAL STORAGE | None |
| MULTIMEDIA | SonicHub, SonicHub2, Fusion Link products any NMEA 2000 compliant Marine Aduio products |
| SONAR COMPATABILITY | Integrated: CHIRP Broadband Active Imaging DownScan, Active Imaging SideScan, Active Imageing HD with an S3100 Compatible with:S3100 SonarHub StructureScan StructureScan 3D LiveSight Active Target |
| WAYPOINTS, ROUTES, TRACKS | 3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail |
| COMPASS SAFE | 2.1 ft (0.65 m) |
|---|---|
| MOUNTING TYPE | Gimbal Bracket or Dash Flush Mount |
| WEIGHT | 1.66 kg |
| INTERFACE | Multi-Touch TouchscreenZoom +/-MOB = (+/- combined) Pages Waypoint Light/Power |
| WARRANTY PERIOD | 2 Year + 3 additional years of upgrade options totaling 5 years |
