Oricom UHF390PK Radio Value Pack
Details
https://www.bcf.com.au/p/oricom-uhf390pk-radio-value-pack/599077.html
$359.99
Promotions
Special Offer
Or 4 payments of
$90.00
with
Buy now, pay four interest-free payments.
- 4 simple installments
- 100% interest-free, no hidden fees
Additional Information
Product Info
Product Info

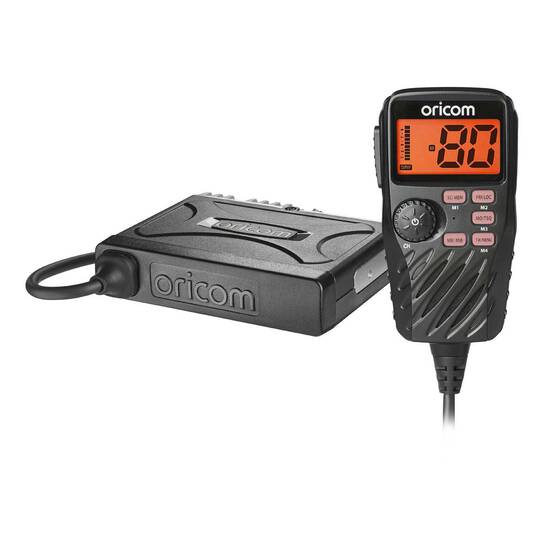

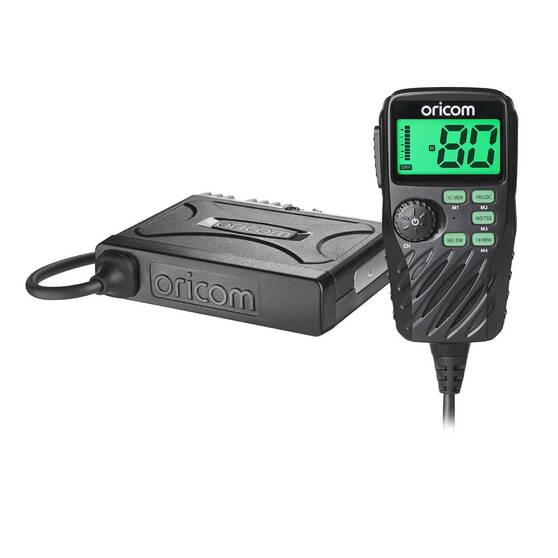

The Oricom UHF390PK Radio Pack is a cracker little addition to your touring set up. This easy to install UHF radio comes with a 5-Watt controller speaker microphone UHF CB Radio and the ANU215 6.5dBi antenna. With a hand-sized transceiver this UHF radio is perfect for rides with limited room, offering great performance in a compact package.

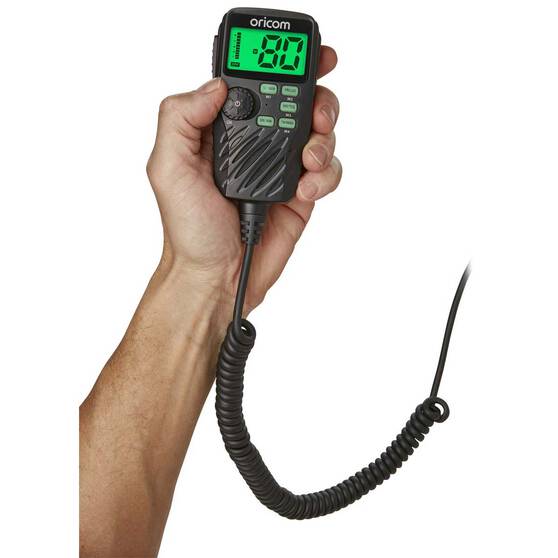

This UHF Radio pack has a powerful, yet small head unit with a large LCD display comes with all the controls. The mic comes with a built-in speaker, working together with the transceiver speaker for top-notch volume and sound quality.
Crafted to tackle the unique conditions of Australia, Oricom's mission is to keep you connected, no matter where you're headed. Get everything you will need to get going on your next adventure with the UHF390PK Radio!

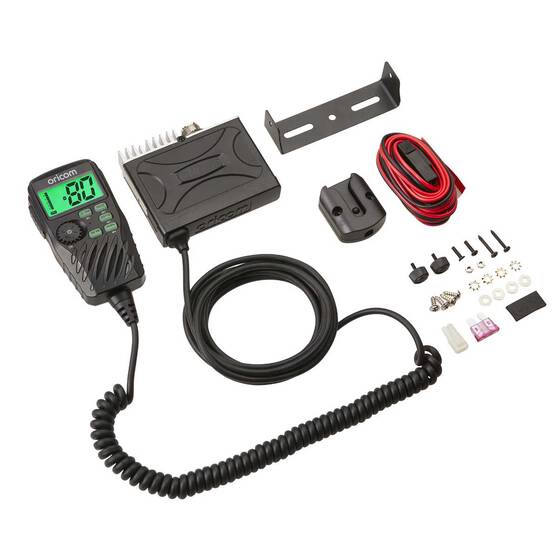

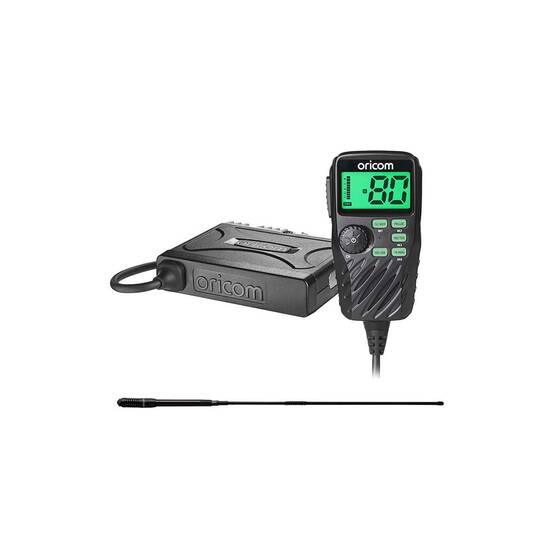

The Oricom UHF390PK Radio value pack comes with the following:
This UHF Radio pack has a powerful, yet small head unit with a large LCD display comes with all the controls. The mic comes with a built-in speaker, working together with the transceiver speaker for top-notch volume and sound quality.
Crafted to tackle the unique conditions of Australia, Oricom's mission is to keep you connected, no matter where you're headed. Get everything you will need to get going on your next adventure with the UHF390PK Radio!
The Oricom UHF390PK Radio value pack comes with the following:
- UHF390 CB Radio
- ANU215 6.5dBi Antenna

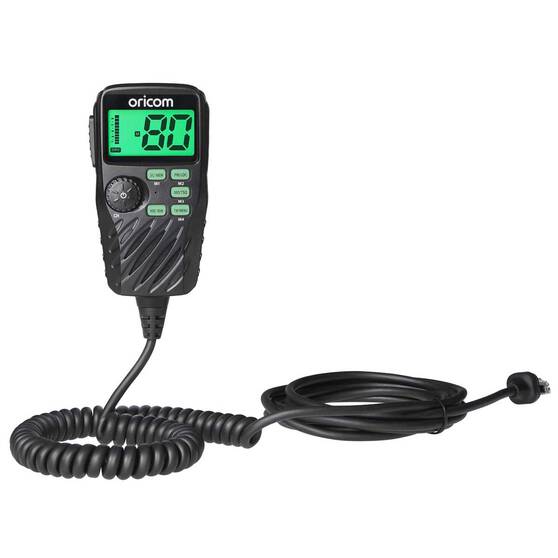

- Heavy duty controller speaker microphone
- Microphone mounting bracket
- Transceiver mounting bracket
- Pack of supplies mounting screws
- User Guide
Features
- 5-year warranty
- 5-Watt transmission power

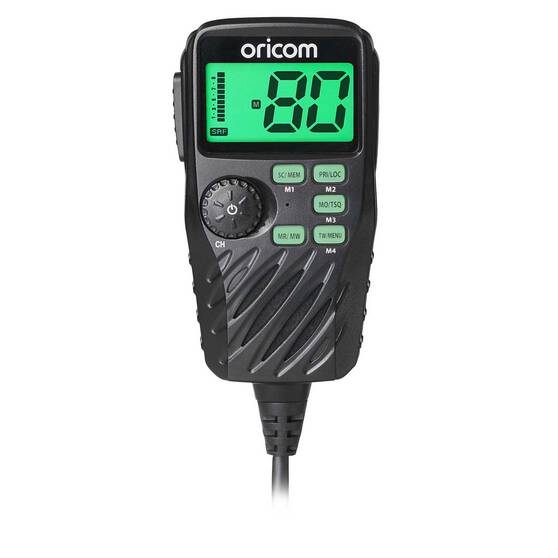

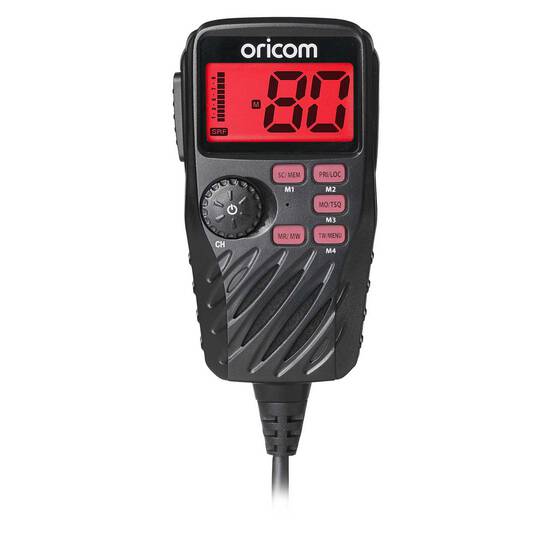

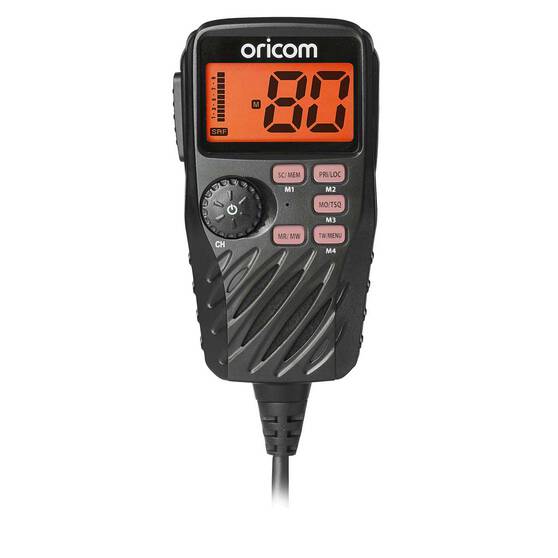

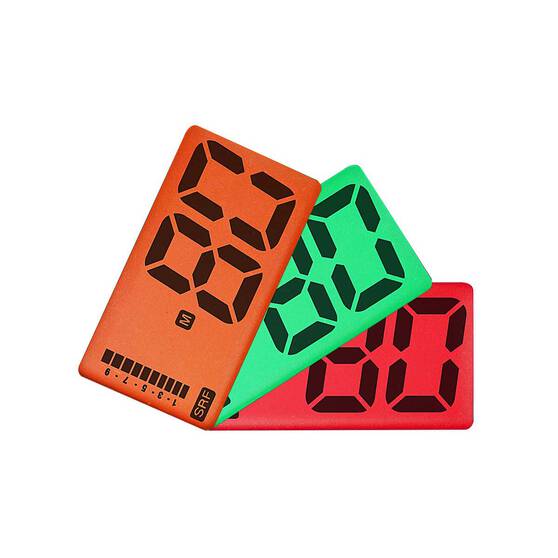

- Heavy duty controller speaker microphone with large tri colour backlit LCD display (Amber/Red/Green)
- All-rounder ANU215 6.5dBi UHF antenna with elevated feed, spring base and fibreglass whip
- Integrated speaker in the mic works with the transceiver speaker

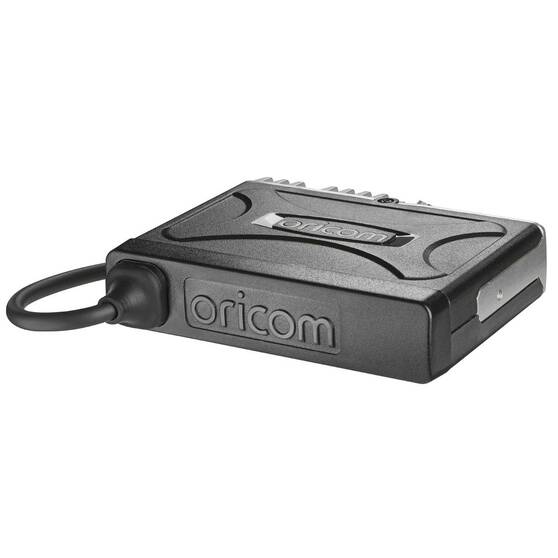

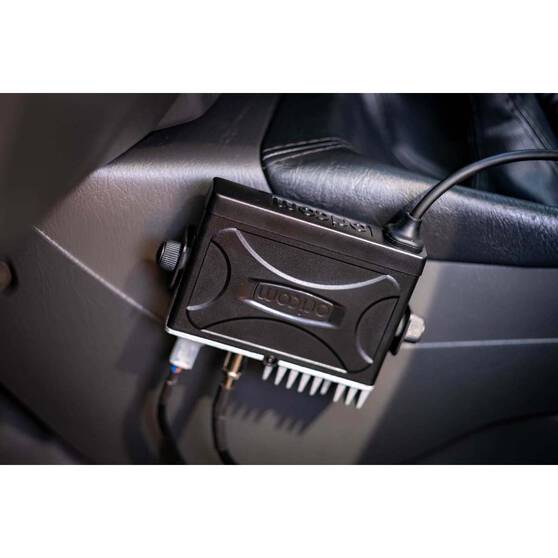

- Compact and tough transceiver for simple installation

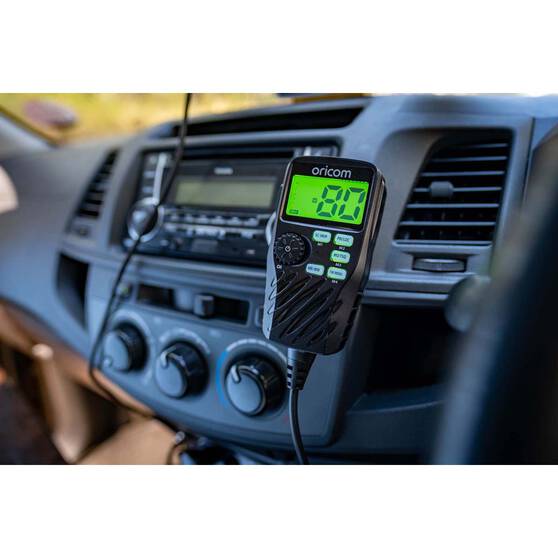

- Open/Priority scan makes it easy to stay in touch with your mates without taking your hands off the steering wheel
- Simultaneous transmission and reception on two different frequencies
- 38 CTCSS and 104 DCS codes
- 3.5mm external speaker jack
Tech Spec
GENERAL
| COMPLIANCE | AS/NZS 4365:2011 |
|---|---|
| FREQUENCY RANGE TX/RX | 476.425 - 477.4125MHz |
| NUMBER OF TX/RX CHANNELS | 80UHF CB (75 Voice channels) |
| CHANNEL SPACING TX/RX | 12.5KHz |
| OPERATING MODES | Simplex, Repeater TX offset (+750kHz) |
| SCANNING SPEED | 130msec per channel |
| ANTENNA IMPEDANCE | 50 Ohms |
| OPERATING VOLTS NOMINAL | 13.8V DC |
| OPERATIONG VOLTS RANGE | 10 to 15V DC |
| OVER VOLTAGE PROTECTION | Voltage regulator |
| OVER CURRENT PROTECTION | 2 AMP fuse |
| REVERSE POLARITY PROTECTION | Shunt diode |
| FREQUENCY STABILITY | +/- 2.5ppm |
TRANSMITTER
| RF OUTPUT POWER | Nominal 5W |
|---|---|
| MODULATION | F3E(FM) |
| MAXIMUM DEVIATION | 2.5KHz |
| SPURIOUS EMISSIONS | < -70dBc |
| TX AUDIO PRE-EMPHASIS | + 6dB/octave from 300Hz to 3kHz |
| CURRENT CONSUMPTION DURING TX | 1.5 Amps with 50 Ohm antenna termination |
RECEIVER
| CIRCUIT TYPE | Direct conversion by Single DSP chip |
|---|---|
| INTERMEDIATE FREQUENCIES | IF = 137KHz |
| MAXIMUM USEABLE SENSITIVITY | Less than -122dBm at 12dB SINAD |
