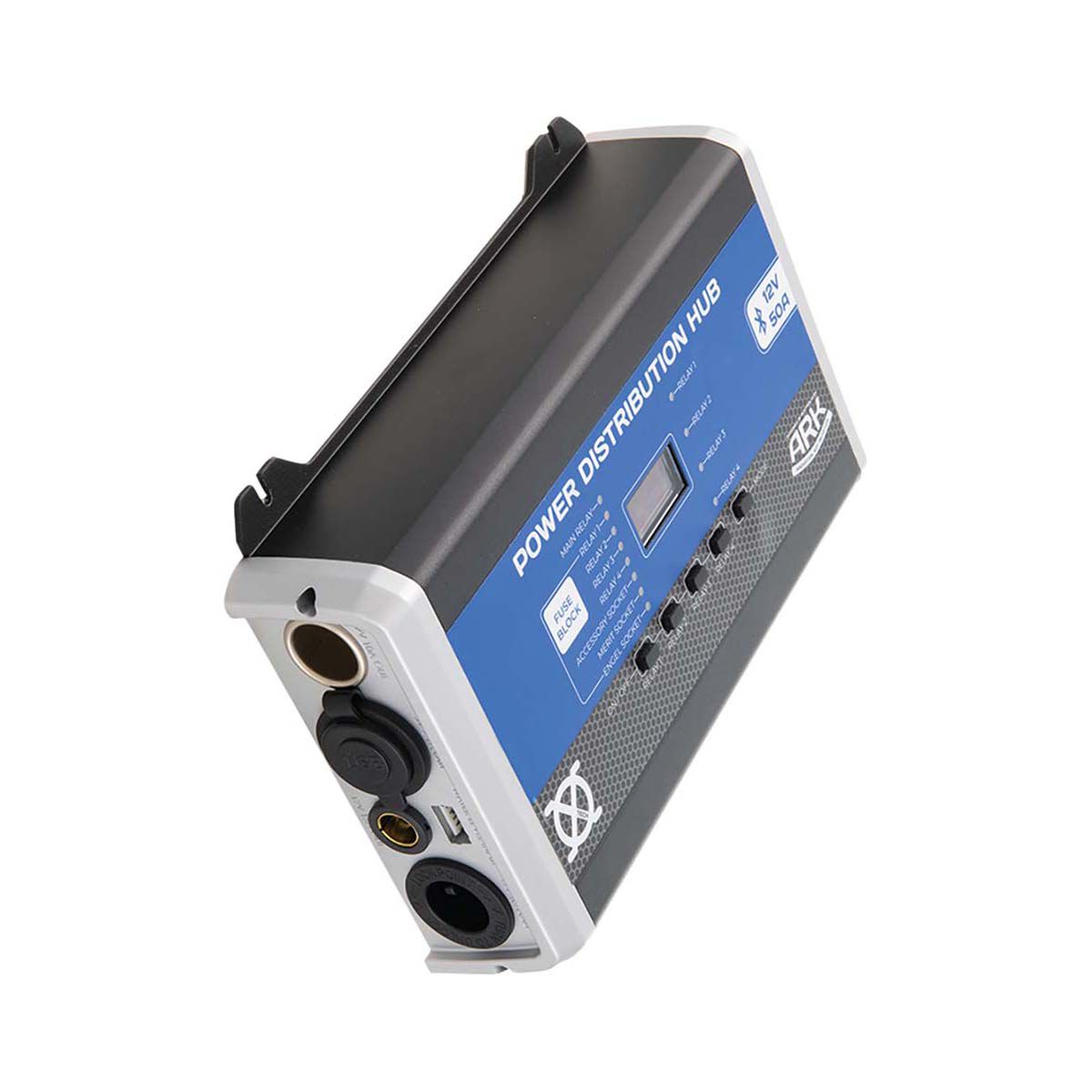

Ark Power Distribution Hub with Bluetooth 12V
Details
https://www.bcf.com.au/p/ark-power-distribution-hub-with-bluetooth-12v/682929.htmlPromotions
Buy now, pay four interest-free payments.
- 4 simple installments
- 100% interest-free, no hidden fees
Additional Information
Product Info
Product Info
The Ark Power Distribution Hub is equipped with 4 10A controllable relays that can give you next level control and automation of your 12V camping set up. Bluetooth connectivity to the App means you can use your smartphone to switch your connected devices on and off from the comfort of your seat around the campfire.
It features a wide range of additional outputs to suit any application you can think of. The outputs include a 50A rated Anderson style connector, a 10A rated cigarette socket, a 10A rated Engel socket, a 15A rated Merit socket and a dual USB socket with 2.1A connections. All you need to get hooked up is a battery wired up to a 50A Anderson style connector with an inline fuse. You can then connect the battery to the input and you're good to go! Its compatible with LiFePO4, AGM and flooded lead acid batteries
It also offers extra protection for your battery including reverse polarity protection, current protection and temperature protection. There is also an adjustable low voltage disconnect that you can set in either a high, medium or low setting based on your desired level of battery protection.
You can monitor the battery state of charge and usage in both real time and total power consumption information. You can also keep an eye on real time battery voltage, current, power and time to discharge and total consumption including minimum and maximum voltage data, maximum current data, total watt hours and used battery capacity in amp hours since last charge. All this can be viewed on the scrolling OLED display directly on the unit or wirelessly through a smartphone. All outputs are protected with internal self-resetting fuses and an electronically controlled main relay with visible LED indicators on the face of the unit.
For simple, easy to use, safe and convenient power management on all your outdoor adventures, look no further than the Ark Power Distribution Hub!
Features
- The ultimate 12V power management system with app control
- Monitor devices, batteries, and outputs via smartphone
- Next level in automation for your camping 12V setup with with wireless control through your smartphone
- 4 x 10A rated controllable relays which can be activated on the unit or wirelessly through the app
- Various outputs including 50A Anderson, 10A cigarette, 10A Engel, 15A Merit, and dual USB sockets
- Track battery stats including voltage, current, power and time to discharge
- Compatible with LiFePO4, AGM and flooded lead acid batteries
- Outputs are protected with self-resetting fuses and controlled relay for peace of mind
- Battery protection includes reverse polarity protection, current protection and temperature protection
- 12 month warranty
About Online Exclusives
What is an online exclusive?
BCF Online Exclusives are an extended range of exciting boating, camping & fishing gear. At BCF, we are committed to offering the best range of quality products and big brands to help you enjoy the great outdoors.
Our range has grown so much that we simply can't squeeze it all into stores, and so, the 'Online Exclusive' was born. A collection of extended ranges of boating, camping, hiking, fishing, clothing and footwear, which you won't find in most stores.
New ranges and brands are added regularly, so make sure you check it out before your next trip!
How can I tell an item is an online exclusive?
All of our online exclusives have an orange badge
Is Click & Collect available for online exclusives?
Online exclusives are available for home delivery only at this stage. They cannot be purchased as Click & Collect. We offer free shipping on all orders over $120 (excludes bulky items).
Are online exclusives available in store?
Online exclusive products are generally only available through the BCF website and not in your local store. Some products may be available in a small number of stores, such as our Townsville Superstore.
Can I return an online exclusive?
Yes! Online Exclusive products are covered by our Returns Policy and are treated the same as any product you might buy instore. See the full Returns Policy..
Can I return an online exclusive to store?
Yes. Online Exclusive products can be returned in store or via post as per our Returns Policy.
Do I have to pay for return delivery fees?
We offer free returns for items under 22kg and 105cm. Full details can be found in our Returns Policy.
Does BCF price match online exclusives?
Absolutely, as long as they meet the relevant criteria our Online Exclusive products fall under our Price Match Guarantee. View the full Price Match Guarantee Policy.
Where can I find the range of online exclusives?
Shop our whole range of Online Exclusives.
Tech Spec
| INPUT VOTLAGE | 12V |
|---|---|
| MAX. TOTAL INPUT/OUTPUT CURRENT | 50A |
| MAX. CURRENT ANDERSON CONNECTOR | 50A |
| MAX. CURRENT 12V DC SOCKET | 10A |
| MAX. CURRENT DUAL USB PLUGS | 2.1A combined |
| MAX. CURRENT ENGEL SOCKET | 10A |
| MAX. CURRENT MERIT SOCKET | 15A |
| MAX. CURRENT 4 x RELAYS | 10A each |
| VOLTAGE PROTECTION CUT OFF | High - 12.1V Medium - 11.6V Low - 10.9V |
| VOLTAGE PROTECTION RESET | High - 12.6V Medium - 12.2V Low - 12V |
| OPERATING TEMPERATURE | -20°C to 85°C |
| STORAGE TEMPERATURE | -40°C to 85°C |
| INTERNAL TEMPERATURE PROTECTION TRIGGERED |
85°C |
| TEMPERATURE PROTECTION RESET | 55°C |
| STANDBY USEAGE | 0.2Ah |
